Ragley Marley 1.0 - Dark Blue

Name: Ragley Marley 1.0 - Dark Blue
Brand: Ragley
SKU: 834541z
Price: 1199.99 GBP
Availability: PreOrder

The Marley has become a classic: light, punchy and versatile. It might be your first bike to explore off-road, or the agile plaything of a seasoned rider. Using 6061 alloy tubing, the Marley balances a stiff frame with enough compliance for the longest of days in the saddle.

Geometry is based firmly around fun with a 65.5-degree head angle keeping things stable and confidence inspiring on the rough stuff. Elsewhere on the frame the tick-boxes are checked; ISCG 05 chain guide tabs, a 44/56mm tapered head tube, internal dropper seat post compatibility and 148x12mm boost rear end.

Components are chosen for performance and reliability. A Shimano/Sunrace groupset, SRAM DB8 brakes, RockShox forks, tubeless ready wheels and the range topping 3C EXO+ Maxxis tyres.

Up, down, along and over; the Marley proves a great riding all-rounder doesn’t have to break the bank.

CHOOSE SIZE

S (Out of stock)

M (Out of stock)

L (Out of stock)

BIKE PROTECTION

invisiFRAME fitted (£170.00)

invisiFRAME fork fitted (£60.00)

was £1,599.99

Price (select options)

£1,199.99

e: / t: 01323 737320

click here to see finance examples or £95.60 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

49%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	12
Purchase Cost	£1,199.99
APR	11.90%
Deposit %	10.00%
Deposit amount	£120.00
Loan amount	£1,079.99
Pay per month	£95.60
Total payable	£1,267.20

THE DETAIL

Material   6061 alloy
Recommended Fork Travel   130mm – 140mm
Axle to Crown   522mm (130mm Fork)
Fork Offset   52mm
Wheels Size   27.5''
Max Tyre Size   2.6''
Headtube   ZS44/28.6 | ZS56/40
Seatpost   31.6mm
Seat Clamp   34.9mm
BB   73mm BSA
Rear Hub   12x148mm Boost
Rear Axle   12mm x 148mm Thru-Axle M12*P1.5
Chain Guide   ISCG 05 Tabs
Brake Mount   PM160

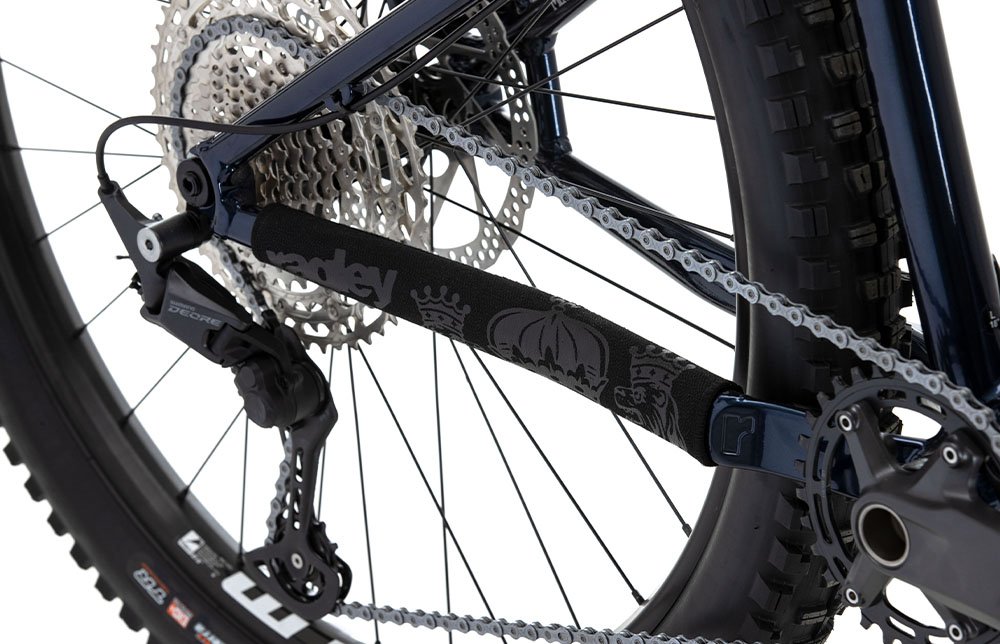

Protection   Chainstay Protector

SPECIFICATIONS

Build Kit	Marly 1.0
Frame	Ragley Marley Alloy Frame
Fork	Marzocchi Bomber Z2, 130mm Travel, RAIL , Gloss Black, Kabolt:15x110, 1.5 Tapered steerer, 44mm offset
Shock	N/A
Chainguide	N/A
Rear Derailleur	Shimano Deore RD-M5100 SGS 11-SPEED, SHADOW PLUS DESIGN
Shifters	Shimano Deore SL-M5100, 11-SPEED RAPIDFIRE, Direct attach to brake using iSpec EV
Crankset	Race Face Ride, 170mm, 32t
Bottom Bracket	24mm external
Cassette	Shimano Deore M5100 11-51t or DTS GMX 11-50t 11 Speed
Chain	KMC 11 SPEED X11-EPT
Brakes	SRAM DB8
Rotors	SRAM Centerline 180mm
Handlebar	Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width - S780mm, M780mm, L800mm, XL800mm)
Stem	Ragley 31.8mm clamp, 50mm length, +3 rise
Grips	Ragley A20 Compound
Headset	Nukeproof ZS44/28.6 \| EX44/40 with Ragley top cap
Seatpost	Brand-X Ascend Internal Route Post - 31.6mm, SM - 125mm Drop, MD, 150mm Drop, LG, XL � 170mm Drop
Saddle	Ragley Saddle
Front Tyre	Maxxis 27.5X2.50 WT MINION DHF 3C MaxxTerra/EXO /TR
Rear Tyre	?Maxxis 27.5X2.40 WT MINION DHR II 3C MaxxTerra/EXO /TR
Front Wheel	Nukeproof Neutron Boost, 27.5", 32h rims
Rear Wheel	Nukeproof Neutron Boost, 36 points of engagement, MS Freehub, 27.5", 32h rims
Weight	TBC
