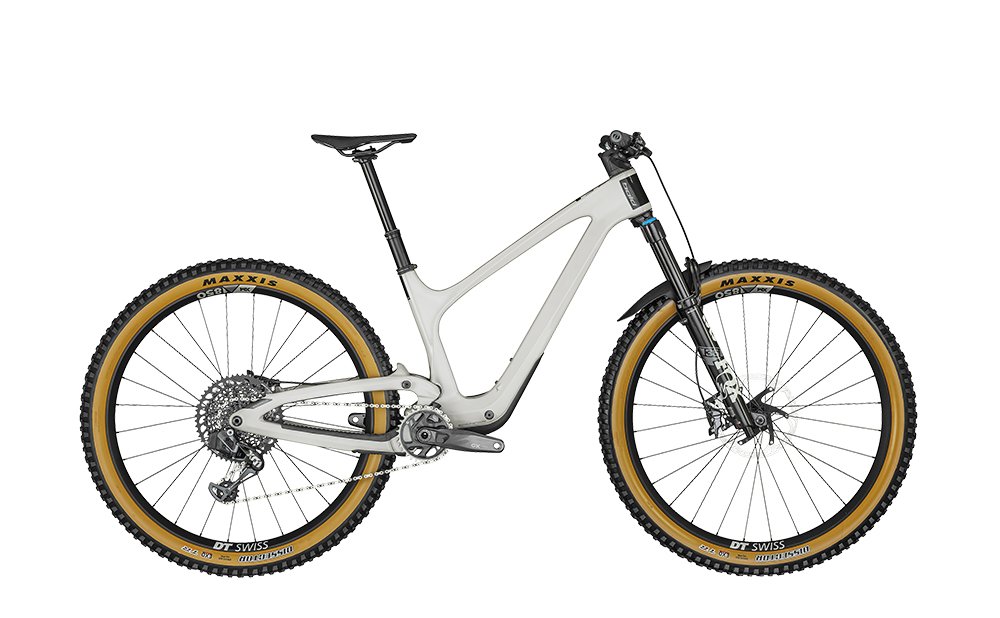

Bold Linkin 135 Ultimate

Bold Linkin 135 Ultimate

The BOLD LINKIN is the pinnacle of innovation, focussed on technical and aesthetic details to emphasise its industry-leading innovation and design. Created by passionate bikers and engineered for those wanting a high-end experience of technology and design.

Lead time: IF 'AVAILABLE TO ORDER' 5-7 DAYS
was £8,999.00
Price range (select options)
£4,499 - £6,199
e: / t: 01323 737320

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status
To see how much this would cost on finance enter Deposit or use slider below
£
10%
50%
USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE
Months 24
Purchase Cost £0.00
APR 11.90%
Deposit % 0.00%
Deposit amount £0.00
Loan amount £0.00
Pay per month £0.00
Total payable £0.00

THE DETAIL

Frame stiffness, lowest centre of gravity and optimum shock performance are the key benefits to our Internal Suspension Technology. The condition of the rear shock has a significant impact on suspension performance. The shock is always protected from dirt, water and crashes to ensure it is functioning at its best.
With the shock placed internally, we are able to design an ultra-compact linkage system for low weight and high stiffness. The linkage is directly attached to the shock and mounted to an axle inside the frame, meaning the suspension pivots no longer have to be constructed around the frame.
The integration concept features a clever storage solution for tools inside the frame which is easily accessible by opening the downtube cover. The kit includes a spare tube, mini pump, tire levers and a spot for chain quick links to save your day, in case of a flat tire.

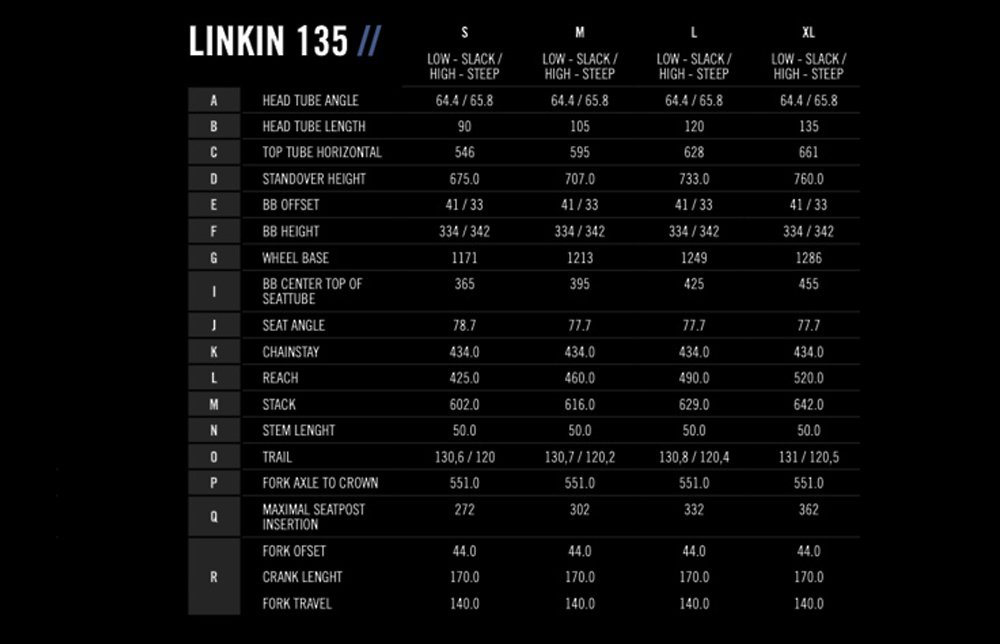

Having the ability to tune the bottom bracket height and head angle allows you to optimize the geometry and handling for you and your trails. With the Flip-Chip on the Bold VarioTec, you can change the bottom bracket height by 6.3 mm giving the LINKIN frame the availability to be customized off-the-shelf.

1/9
2/9
3/9
4/9
5/9
6/9
7/9
8/9
9/9

SPECIFICATIONS

Bulid Kit Ultimate 135
Frame Bold Linkin 135 - Carbon HMX -- Integrated Suspension Technology - IST VP -- Vario Tech, Head angle and BB heigh - Syncros Cable Integration System -- BB92 - UDH Interface - 12x148mm with 55mm Chainline
Fork FOX 36 Float Performance Elite Grip 2 Air -- HSC ? LSC ? HSR- LSR adjustable - Kabolt 15x110mm axle -- 44mm offset - tapered steerer -- 140mm travel
Shock FOX NUDE 5T EVOL Trunnion -- Custom w. travel - geo adj. -- 3 modes: Lockout Traction Control-Descend -- Custom large Air volume - DPS - Reb. Adj. -- Travel 135-90-Lockout - T185X55mm
Chainguide Bold custom
Rear Derailleur SRAM X01 Eagle AXS - 12 Speed -- Wireless Electronic Shift System
Shifters SRAM GX Eagle AXS Rocker Controller
Crankset SRAM GX Eagle DUB -- 55mm CL - 32T
Bottom Bracket SRAM DUB PF 92 MTB Wide - shell 41x92mm
Cassette SRAM GX XG1275 - 10-52 T
Chain SRAM CN GX Eagle
Brakes Shimano XT M8120 4 Piston Disc
Rotors Shimano SM-RT76 - 6 Bolt - 203-F and 180-R
Handlebar Syncros Hixon iC Carbon -- Size S & M 15mm rise - Size L & XL 25mm rise -- back sweep 8? - 780mm
Stem Syncros Hixon iC Carbon -- Size S & M 15mm rise - Size L & XL 25mm rise -- back sweep 8? - 780mm
Grips Syncros Pro lock-on grips
Headset Syncros ? Acros Angle adjust & Cable Routing HS System -- -0.6? head angle adjustment -- ZS56-28.6 ? ZS56-40 MTB
Seatpost Syncros Duncan Dropper Post 1.5 34.9mm -- Size S 150mm - Size M 170mm - Size L & XL 200mm
Saddle Syncros Tofino 1.5 Regular -- Titanium rails
Front Tyre Maxxis Dissector - 2.6? - 60TPI Foldable -- Tubeless Ready - EXO
Rear Tyre Maxxis Dissector - 2.6? - 60TPI Foldable -- Tubeless Ready - EXO
Front Wheel DT Swiss XM 1850 Spline 6 Bolt -- F: 15x110mm, R: 12x148mm -- 30mm Tubeless ready rim 28H - XD Driver -- Syncros Axle w-Removable Lever with Tool
Rear Wheel DT Swiss XM 1850 Spline 6 Bolt -- F: 15x110mm, R: 12x148mm -- 30mm Tubeless ready rim 28H - XD Driver -- Syncros Axle w-Removable Lever with Tool
Weight 13.9Kg - 14.3kg Weight Tubless setup with Save The Day Kit
Bulid Kit Ultimate 135
Frame Bold Linkin 135 - Carbon HMX -- Integrated Suspension Technology - IST VP -- Vario Tech, Head angle and BB heigh - Syncros Cable Integration System -- BB92 - UDH Interface - 12x148mm with 55mm Chainline
Fork FOX 36 Float Performance Elite Grip 2 Air -- HSC ? LSC ? HSR- LSR adjustable - Kabolt 15x110mm axle -- 44mm offset - tapered steerer -- 140mm travel
Shock FOX NUDE 5T EVOL Trunnion -- Custom w. travel - geo adj. -- 3 modes: Lockout Traction Control-Descend -- Custom large Air volume - DPS - Reb. Adj. -- Travel 135-90-Lockout - T185X55mm
Chainguide Bold custom
Rear Derailleur SRAM X01 Eagle AXS - 12 Speed -- Wireless Electronic Shift System
Shifters SRAM GX Eagle AXS Rocker Controller
Crankset SRAM GX Eagle DUB -- 55mm CL - 32T
Bottom Bracket SRAM DUB PF 92 MTB Wide - shell 41x92mm
Cassette SRAM GX XG1275 - 10-52 T
Chain SRAM CN GX Eagle
Brakes Shimano XT M8120 4 Piston Disc
Rotors Shimano SM-RT76 - 6 Bolt - 203-F and 180-R
Handlebar Syncros Hixon iC Carbon -- Size S & M 15mm rise - Size L & XL 25mm rise -- back sweep 8? - 780mm
Stem Syncros Hixon iC Carbon -- Size S & M 15mm rise - Size L & XL 25mm rise -- back sweep 8? - 780mm
Grips Syncros Pro lock-on grips
Headset Syncros ? Acros Angle adjust & Cable Routing HS System -- -0.6? head angle adjustment -- ZS56-28.6 ? ZS56-40 MTB
Seatpost Syncros Duncan Dropper Post 1.5 34.9mm -- Size S 150mm - Size M 170mm - Size L & XL 200mm
Saddle Syncros Tofino 1.5 Regular -- Titanium rails
Front Tyre Maxxis Dissector - 2.6? - 60TPI Foldable -- Tubeless Ready - EXO
Rear Tyre Maxxis Dissector - 2.6? - 60TPI Foldable -- Tubeless Ready - EXO
Front Wheel DT Swiss XM 1850 Spline 6 Bolt -- F: 15x110mm, R: 12x148mm -- 30mm Tubeless ready rim 28H - XD Driver -- Syncros Axle w-Removable Lever with Tool
Rear Wheel DT Swiss XM 1850 Spline 6 Bolt -- F: 15x110mm, R: 12x148mm -- 30mm Tubeless ready rim 28H - XD Driver -- Syncros Axle w-Removable Lever with Tool
Weight 13.9Kg - 14.3kg Weight Tubless setup with Save The Day Kit
