Shimano BR-M8200/BL-M8200 XT 2 pot bled brake lever/post mount calliper

Name: Shimano BR-M8200BL-M8200 XT 2 pot bled brake leverpost mount calliper
Brand: Shimano
SKU: M8200LRz
Price: 161.99 GBP
Availability: LimitedAvailability

The Perfect Balance of Power & Control: The Shimano XT 2-Pot Brake System

The Shimano XT 2-Pot Hydraulic Disc Brake System offers a comprehensive front and rear solution for Enduro and Trail riding, providing a perfectly matched brake setup with a lightweight and powerful performance profile. This system is engineered to deliver a precise, controlled, and progressive braking feel, enabling you to push your limits on every trail confidently.

Combining the advanced Servo-Wave lever with a high-performance 2-piston calliper, this brake set is the ideal choice for riders who demand consistency, reliability, and excellent modulation across their entire bike.

The Shimano XT 2-Pot Hydraulic Disc Brake System is the definitive choice for any rider seeking a lightweight, high-performance, and fully adjustable brake setup that offers a perfect balance of power and modulation for every ride.

CHOOSE SIZE

Rear

Front

was £179.99

Price (select options)

£161.99

e: / t: 01323 737320

THE DETAIL

Complete Front and Rear System: This kit provides a matching front (1000mm hose) and rear (1700mm hose) brake, ensuring consistent feel, performance, and aesthetics across your entire bike.

Evolved Servo-Wave Technology: The heart of the system is the short-stroke Servo-Wave mechanism. A cam linkage provides quick pad-to-rotor engagement, and then multiplies the leverage ratio at the point of contact, significantly increasing your stopping power with a firm, predictable feel.

Ultimate Customisation: The levers offer both free-stroke adjustment and no-tools lever reach adjustment, allowing you to precisely fine-tune the lever's position and feel to your exact preferences. The levers also feature a hinged clamp for quick and easy installation, eliminating the need to remove your grips.

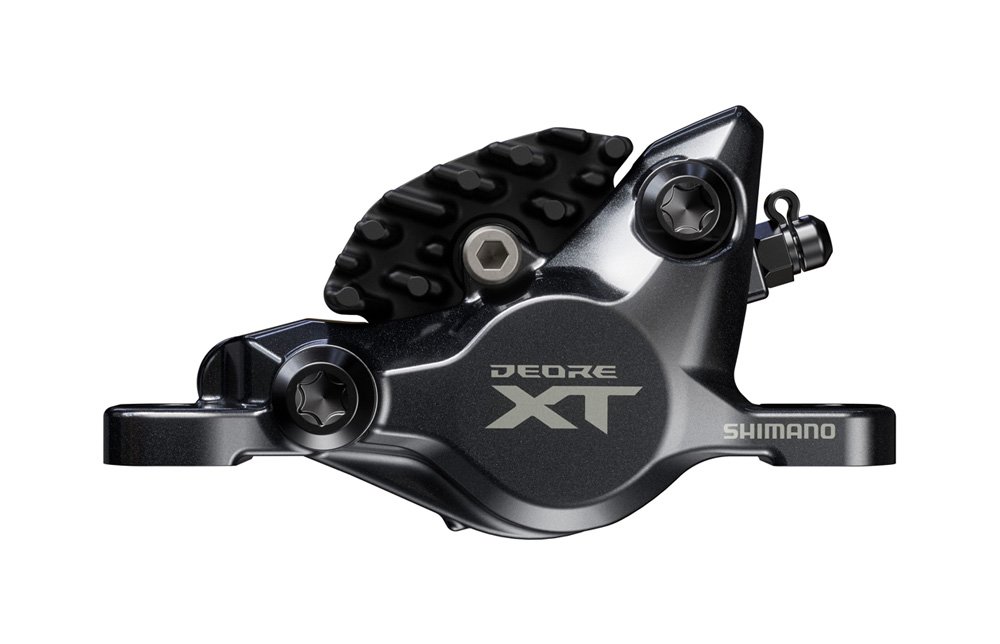

Lightweight 2-Piston Callipers: Both front and rear callipers feature a lightweight, two-piece forged alloy design with an opposed 2-piston configuration. This construction is optimised for high power and control, providing a progressive braking feel that is perfect for technical and demanding terrain.

Superior Rigidity: A second braced bar contact point on the lever increases the master cylinder's rigidity, eliminating flex and ensuring a solid, direct feel under heavy braking loads.

Component-Ready: The system comes without adapters or rotors, giving you the freedom to customise your setup with the parts that best suit your bike. It is recommended for use with Ice Tech Centre-Lock rotors (160mm, 180mm, and 203mm) and Ice Tech pads for optimum braking and heat management.

I-spec-EV Compatible: The levers are I-spec-EV compatible, allowing for a clean and tidy handlebar setup by mounting your shifters directly to the brake lever clamp.

Maintenance and Fluids: The system is designed for easy bleeding and is compatible only with Low Viscosity Oil, which ensures stable performance over a wide range of temperatures. The kit also includes pads, spare olives, and inserts, should you need to shorten the hoses.

SPECIFICATIONS

XT 2 pot Enduro/Trail brakes are performance-optimised Servo-Wave systems with full adjustability on the fly.
Calliper comes without adapters or rotors, giving you the freedom to customise and suit your bik.e
Recommended for use with Ice Tech Centre Lock rotors for optimum braking performance in a choice of 160, 180 and 203 mm
Short stroke Servo-Wave mechanism with SIL-TEC roller for a quick, smooth pad engagement and more power for aggressive riding
Free-stroke adjustment
Second braced bar contact point for increased master cylinder and lever rigidity
2-piston design optimised for high power and control
Lightweight forged two-piece design that increases rigidity and reduces weight
Forged alloy short up-swept brake lever with textured finish for optimum strength, grip and ergonomics
Evolved ergonomic lever design for trail/enduro with a closer pivot and natural finger motion provides efficient and powerful braking
For use with Low Viscosity Oil Only. For consistent viscosity over a wide temperature range, ensuring stable piston movement within the brake system, and always providing the necessary braking force with a constant lever stroke
Shim-less post style mounting system can be used with adapters
Hinged clamp and reach adjustment for quick installation and the perfect custom fit
I-spec-EV compatible
Kit also contains pads, spare olives and an insert, should you wish to adjust the length of the cuttable hose.s
Hose length Front: 1000 mm Rear: 1700mm
Product Type   Hydraulic Disc
Discipline   MTB
Side   Right/Front or Rear/Left
Colour   Black
Size   Front
Di2   No
