17% More Pinch-Flat Resistance: The core innovation of the FR 541 is its completely new bead hook profile. The wider and blunter shape of the rim wall distributes impact forces over a larger area of the tyre, which massively reduces the risk of pinch flats and tyre damage from hard bottom-outs.
Unmatched Impact Resistance: The new rim profile is not only more resistant to pinch flats but also significantly improves overall impact resistance. DT Swiss has added material in key areas and refined the profile to ensure the rim can take a beating from rocks and roots without deforming.
Lightweight for its Class: Despite its immense strength, the FR 541 remains remarkably light, weighing just 570g (27.5") and 605g (29"). This low rotational weight enhances acceleration and makes your bike more nimble and responsive.
Robust & Tubeless Ready: The rim features a 30mm internal width, which provides a perfect platform for modern, high-volume mountain bike tyres, giving you improved grip and a larger contact patch. It is a welded, hooked, and tubeless-ready design, ensuring a secure and reliable setup.
Precision Engineering: As you would expect from DT Swiss, the FR 541 is a masterclass in engineering. It utilises the PHR (Pro Head Reinforcement) system. It comes with convex Squorx nipples that automatically align with the spoke, reducing stress on the spoke and rim and increasing overall wheel durability.
Intended Use: The FR 541 is designed for the most demanding gravity disciplines, including Freeride, Downhill, and Enduro. It's built for hard riding and big hits.
New Technologies: This is the core of the new rim. It has an entirely new bead hook profile that is wider and blunter. This design innovation is the key to its enhanced performance.
Performance Improvements: The new profile provides a 17% increase in pinch-flat resistance and significantly improved impact resistance compared to the previous FR 560 model. This is due to the wider contact area on the tyre during hard impacts, which distributes the force more effectively.

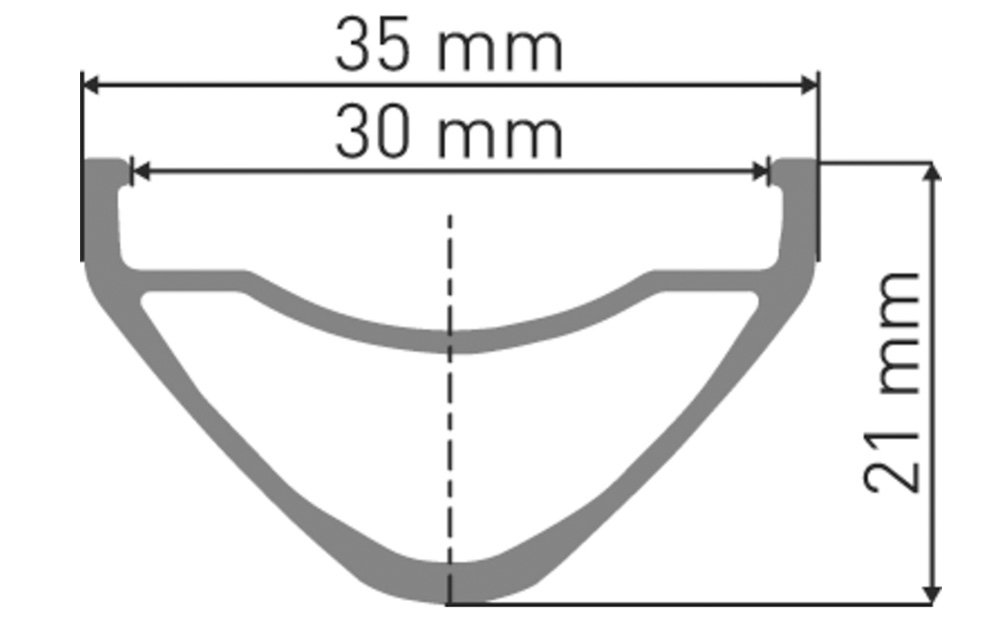

Weight & Dimensions: Aluminium rim with an internal width of 30mm, an external width of 35mm, and a height of 21mm. The weight is a very competitive 570g for 27.5" and 605g for 29".
Tubeless Ready: Hooked tubeless-compatible rim, designed for a reliable and secure tubeless setup.
Build Quality: Featuring a high-quality welded rim joint, which DT Swiss states is the most durable joining method for their aluminium rims. It also uses the PHR (Pro Head Reinforcement) system with convex Squorx nipples to ensure perfect spoke alignment and reduce stress points.

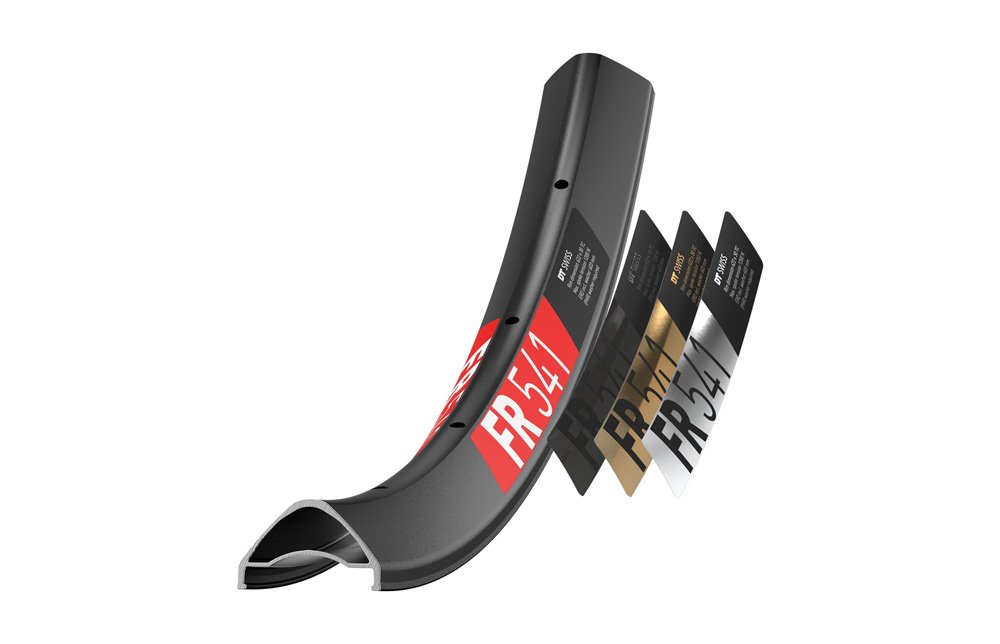

Customisation: The FR541 rim comes with multiple decal options (red, gold, chrome, and black) so riders can customise the look of their wheels.
