The little brother to the Onyx DC, this is the Onyx SC D1. At 180mm of travel, this is our top of the line enduro race fork. Featuring the proven D1 damper, high low speed compression, rebound and externally adjustable OTT. With 36mm stanchions and our stiffest chassis yet, charge hard into the roughest sections with confidence.

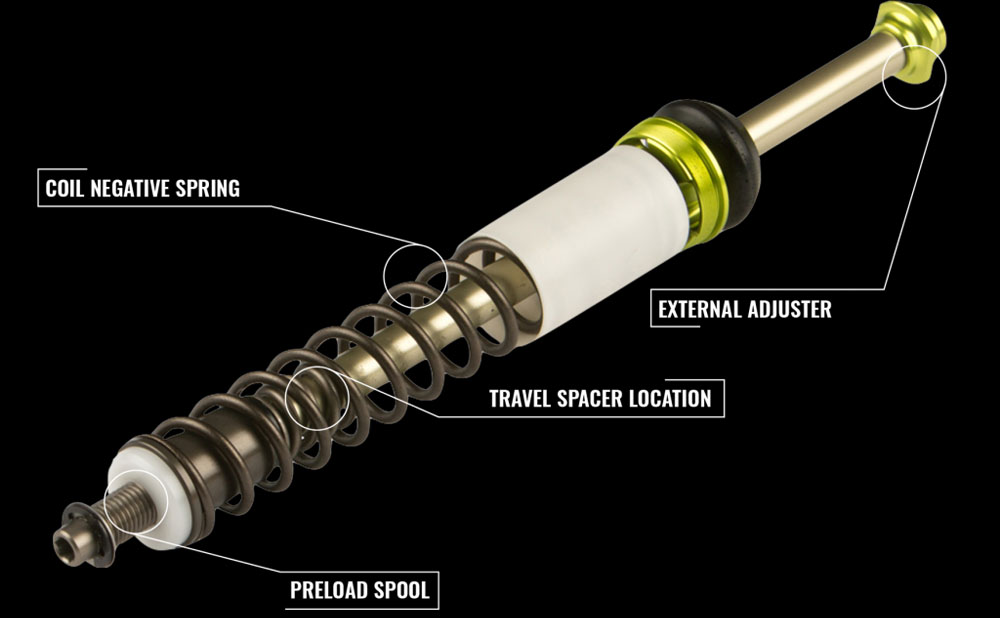

OTT (Off The Top)
Is wanting incredible small bump sensitivity and great mid-end stroke too much to ask? Not if you ride DVO. Out industry exclusive OTT feature really sets DVO products apart from anything else. It allows you to perfectly fine tune how the initial stroke feels without any mid/end stroke compromise. You really do get the best of both worlds.

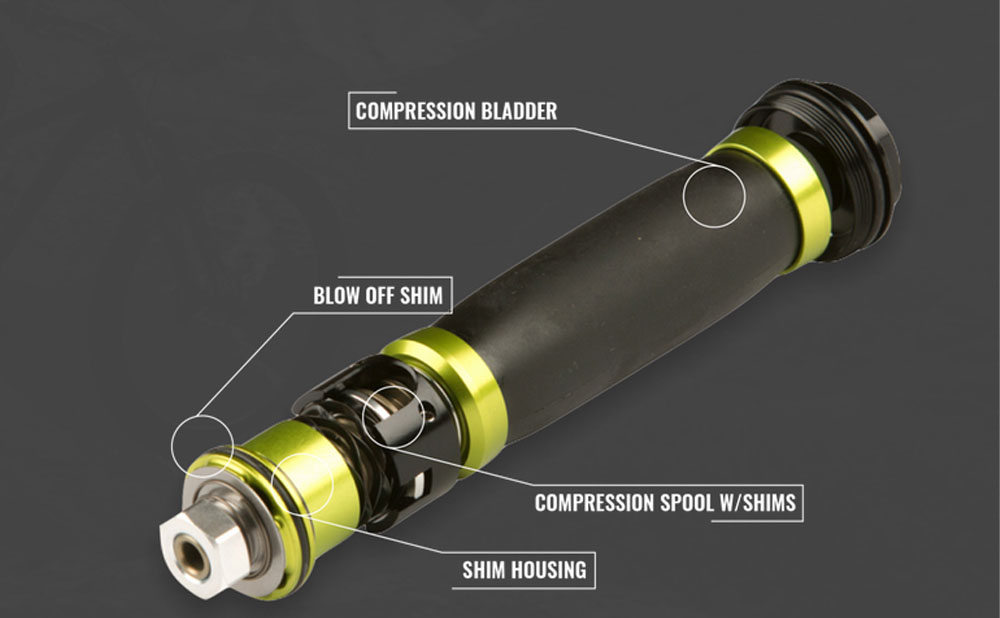

Shim Stack Controlled High/Low Speed Compression
6 clocks of low speed compression give you quick access to support on steep terrain for a firm climb platform. Setting 1-3 is great for giving you control when you're off the back of the bike and on the brakes hard. 4-6 is when you're laying the power down on traversing or climbing terrain.
Over 30 clicks of high speed adjustment five you ultimate adjustability for big impacts and control. Start to crank it in when you need the added support on G-outs, drops, big hits and landings.
14 clicks of shim stack controlled rebound that is 100% dynamic. Meaning, the rebound in controlled based on the speed at which oil flows through the system. The fork will react to what you through at it and be ready for what's next.
Intended Use Enduro
Model Name Onyx SC D1
Damper D1 Damper
High speed compression
6 position low speed compression
Air Spring Features Air Pressure Adjust, External OTT Off The Top.
Travel 160 - 180mm
Crown 42mm offset
Axle to Crown 575 at 180mm travel
Wheel Size 27.5"
Hub Spacing Boost 110mm
Axle Type 15mm Bolted Axle
Steerer Options Tapered Alloy
Rotor Mount 180mm Direct
Lowers Magnesium, Disc Only
Colour Options Black, Green, Blue
