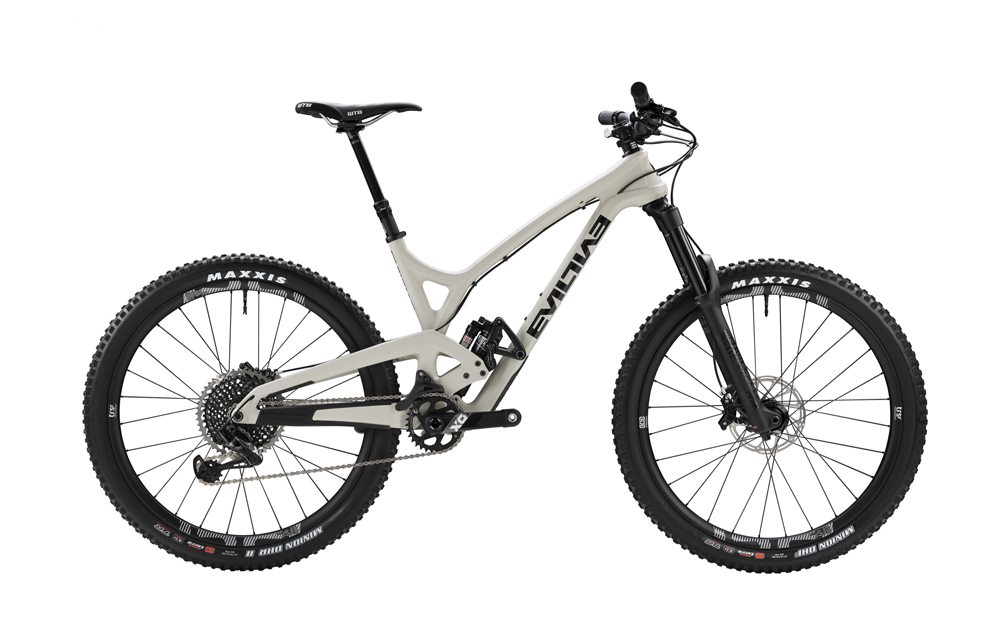

Evil Insurgent LB Yogurt Truck

Evil Insurgent LB Yogurt Truck

The Two Wheeled Death Machine Lives

Like the old Insurgent just a little Better'er

Fresh from the science lab the updated Insurgent LB has broken out of its test tube and is back with a vengeance. The Insurgent was the 27.5" wheeled bike Evil didnt even want to make. But as it turns out, the Insurgent has proven itself to be a hell raiser, ready to separate your tires from your rims in every corner. The short snappy chainstays, low bottom bracket and long top tube make shredding just a little bit betterer. Without trying to re-invent the wheel, Evil added boost rear axle spacing, and two fresh new colors; Freddy Mercury and Yogurt Truck. They also managed to shave almost a half-pound off the overall frame weight while improving ride quality. You just know its just gunna be lighter, fastest and gnarlier than ever before. Most importantly, they added water bottle cage mounts because it turns out that people like to drink water while they ride their bikes.

The hard charging, berm destroying, 27.5" wheeled unicorn has been reborn. Complete with boost rear axle spacing, improved ride feel, fresh colors and water bottle mounts. The Insurgent LB will have you slashing corners, hitting jump lines, and shredding single-track with an uncontrollable cackling and roost-a-flying feeling of fun that’ll make life just a little bit better’er.

The balance of fun, pop and crushing rock gardens

The original Insurgent was born in a time of turmoil, 26 was dying, 27.5 and 29 were the flavour of the day and nobody could decide which one they liked better. Evil tuned out the noise, busted out of the trends and made a bike that’s fun and had us slashing corners, ripping single track and hitting jump lines. It didn’t disappoint us then, and now it’s just a little bit better’er.

The Insurgent LB is ready to suit your shredding needs. If your favorite past-time is racking up king-of-the-mountain ascents and padding your strava stats then you can choose between a RockShox Monarch Plus or the Fox DPX2 rear shock to convert all your power into momentum with mind bending traction and a dependable feeling of plushness. If you prefer sending-it-to-flat, upgrade to the Push ElevenSix, which turns the bike into a square-edge-hit, traction generating, and bottomless feeling two wheeled death machine

If you're into pedalling all day, try a 150mm fork and set the flip chips to the LOW position and enjoy a 74.8° seat angle while the 66.1° head angle keeps the descents in control and the party level high. But if you're into enduro bro, or even better, slashing berms at bike parks, try a 160mm or 170mm fork with the flip chips in the XLOW position and experience a slack and low slung corner destroying play bike that likes to jump and square off corners.

Build Your Insurgent LB From £4350

Evil are currently offering 3 buildkits on the Insurgent frame.

1. GX Eagle - Lyrik Ultimate charger fork, RockShox Monarch Plus RC3 rear shock, E13 TRS alloy wheels, Maxxis Minion 3C EXO tyres, RaceFace Chester/Aeffect cockpit, Sram Guide RE brakes and Reverb dropper post.

2. XO1 Eagle Ltd - May Special Offer - As above but upgraded with XO1 eagle drivetrain and  Sram Guide RSC brakes.

3. XT Fox - NEW Shimano 12 Speed drivetrain and brakes with Fox Factory suspension.

4. XO1 EAGLE - AS GX Eagle spec but upgarded to complete XO1 Eagle groupset including carbon cranks and range topping Sram G2 RSC brakes.

CHOOSE OPTIONS
Size
$0.00
Build Kit
$5,599.76
Fork
$0.00
Rear Shock
$0.00
BAR/STEM UPGRADE
$0.00
Lead time: 7-10 Days
Available to order
$5,599.76
e: / t: 01323 737320

THE DETAIL



Bolt On Axle - Evil's new axle bolts directly into the derailleur hanger for stiff hassle free operation.
ISCG05 Mounts - Custom ISCG05 Mounts to accommodate Evil's lower guide collaboration with e13 components.
Delta System - Completely redesigned with a focus on simplicity, weight reduction and strength. Evil increased lateral frame stiffness with redesigned dog bone links that use integrated forged bosses to connect the linkage and simplify maintenance.
Downtube Protector - Molded Rubber Downtube Protector keeps rocks and debris off the plastic and quiets the ride.
Integrated Chainguide - Fully integrated carbon chainguide to keep that chain on.
Internal Routing - Internal routing for stealth dropper posts. Rear derailleur and brake routing is cleanly routed under the toptube and the rear derailleur cable is internally routed through the swingarm to keep things tidy.
Plastic Fantastic - Uni Directional Carbon with One Piece Molded construction from one of the best factories in the business.
Rubber Protection - Integrated rubber protection for the chainstay and seat stay to keep things peaceful and quiet in the woods.
Sag Meter - Evil added a fancy integrated SAG meter into the non-drive side Delta Link to make suspension set up easy. Push it forward, sit on your bike, adjust air pressure to 30%, then shred.
Lighter Lay Up - A new lighter layup improves the overall ride quality, maximizing compliance where we wanted and stiffness where we needed.

Wheel Travel 151mm
Rear Shock Rock Shox Monarch Plus RC3 Debonair, 200x57 (2 volume spacers)
Shock Hardware 22mm x 8mm
Fork Axle to Crown 542mm with Rockshox Pike 150mm fork
Fork Offset 42mm
Headtube Tapered 1 1/8" - 1 1/2"
Headset FSA Integrated Tapered No. 57/68 Upper 44mm Lower 62mm Tapered OD
Seatpost Diamete 30.9mm
Seatclamp Diameter 34.9mm
Rear Wheel Diameter 27.5"
Maximum Rear Tire Size 27.5" x 2.5" (Varies By Brand)
Bottom Bracket Shell 73mm Threaded
Chainline 49mm
Chainguide Mount ISCG05
Maximum Chainring Size 36T Single Ring
Minimum Chainring Size 30T Single Ring / 32T Oval
Rear Wheel Spacing 148mm x 12mm
Front Derailleur Single Ring Only
Brake Mount Type Post Mount 180mm
Maximum Rear Rotor Size 203mm

SPECIFICATIONS

GX Eagle Kit:

Frame    EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock    Rockshox Monarch Plus RC3 Debonair, 200x57 (+2 Volume Spacers)
Headset    FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers    Poly Spacers 5mm black
Fork    Rockshox Lyrik Ultimate Charger 2 RC2, 27.5, 160mm Travel, DebonAir, 15x100
Handlebar    Raceface Chester 35, Rise: 35mm Width: 780mm
Stem    Raceface Aeffect R 35, Length: 40mm
Grips    Evil Lock-on
Brake - Front    SRAM Guide RE
Brake - Rear    SRAM Guide RE
Rotor - Front    SRAM Center Line, 180mm
Rotor - Rear    SRAM Center Line, 180mm
Brake Adapter    Post to Post Mount Adapter
Shifter    SRAM GX Eagle, 12sp
Rear Derailleur    SRAM GX Eagle, 12sp
Cassette    SRAM XG-1275 Eagle, 10-50t:10,12,14,16,18,21,24,28,32,36,42,50
Chain    SRAM GX Eagle w/Powerlock
Crankset    Descendent 6K, DUB, Direct Mount 32t ring
Bottom Bracket    Sram DUB 73mm BSA
Wheelset - Front    e*thirteen TRS, Internal Width: 30mm, 15x110
Wheelset - Rear    e*thirteen TRS, Internal Width: 30mm, 12x148
Tire - Front    Maxxis Minion DHF EXO TR, 27.5 x 2.5
Tire - Rear    Maxxis Minion DHR II EXO TR, 27.5 x 2.3
Tubes    Stans Sealant
Seatpost    RockShox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 170mm(480mm)
Saddle    WTB Volt Pro

XO1 Eagle Ltd Kit:

Frame EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock Rockshox Monarch Plus RC3 Debonair, 200x57 (+2 Volume Spacers)
Headset FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers Poly Spacers 5mm black
Fork Rockshox Lyrik Ultimate Charger 2 RCT3, 27.5, 160mm Travel, DebonAir, 15x100
Handlebar Raceface Chester 35, Rise: 35mm Width: 780mm
Stem Raceface Chester 35, Length: 40mm
Grips Evil Lock-on
Brake - Front Sram Guide RSC
Brake - Rear Sram Guide RSC
Rotor - Front SRAM Center Line, 180mm
Rotor - Rear SRAM Center Line, 180mm
Brake Adapter Post to Post Mount Adapter
Shifter SRAM X01 Eagle, 12sp
Rear Derailleur SRAM X01 Eagle, 12sp
Cassette SRAM XG-1295 Eagle, 10-50t:10,12,14,16,18,21,24,28,32,36,42,50
Chain SRAM X01 Eagle w/Powerlock
Crankset Sram Descendant 7K, 32t ring, 170mm
Bottom Bracket SRAM DUB 73mm BSA
Wheelset - Front e*thirteen TRS, Internal Width: 30mm, 15x110
Wheelset - Rear e*thirteen TRS, Internal Width: 30mm, 12x148
Tire - Front Maxxis Minion DHF 3C EXO TR, 27.5 x 2.5
Tire - Rear Maxxis Minion DHR II 3C EXO TR, 27.5 x 2.3
Tubes Stans Sealant
Seatpost Rockshox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 170mm(480mm)
Saddle WTB Volt Pro

XT Fox Build Kit

Frame EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock Fox Float DPS, Factory, EVOL, 165x45, 0.8 Spacer, Trunnion / 20x8
Headset - FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers - Poly Spacers 5mm black
Fork - Fox 36 GRIP2 Factory150mm
Handlebar - Raceface Chester 35, Rise: 35mm Width: 780mm
Stem - Raceface Aeffect R 35, Length: 40mm
Grips - Evil Palmela Handerson Lock-on
Brake - Front Shimano XT M8120 4-Piston / Rear Shimano XT M8120 4-Piston
Rotor - Front Shimano RT86 Ice Tech, 180mm, 6-Bolt / Rear Shimano RT86 Ice Tech, 180mm, 6-Bolt
Shifter - Shimano XT 12sp
Rear - Derailleur Shimano XT 12sp
Cassette -  Shimano XT M8100-12, HYPERGLIDE+ 10-12-14-16-18-21-24-28-33-39-45-51
Chain - Shimano XT M8100, w/Quick-Linkk
Crankset - Shimano XT M8130, 32t, 170mm, 56.5mm Chainline
Bottom Bracket - Shimano XT BB-MT800
Wheelset - Front e*thirteen LG1, Internal Width: 30mm, 15x110
Wheelset - Rear e*thirteen LG1, Internal Width: 30mm, 12x148
Tire - Front Maxxis Minion DHF EXO TR, 27.5 x 2.5
Tire - Rear Maxxis Minion DHR II EXO TR, 27.5 x 2.3
Tubes - Stan’s No Tube Tubeless Sealant
Seatpost -  BikeYoke, 30.9, S: 125mm, M/L: 150m

X01 Eagle Build Kit:

Frame EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock Rockshox Monarch Plus RC3 Debonair, 200x57 (+2 Volume Spacers)
Headset FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers Poly Spacers 5mm black
Fork Rockshox Lyrik Ultimate Charger 2 RC2, 27.5, 160mm Travel, DebonAir, 15x100
Handlebar Raceface SIXC Carbon 35, Rise: 35mm Width: 800mm
Stem Raceface Turbine R 35, Length: 40mm
Grips Evil Lock-on
Brake - Front SRAM G2 RSC
Brake - Rear SRAM G2 RSC
Rotor - Front SRAM Center Line, 180mm
Rotor - Rear SRAM Center Line, 180mm
Brake Adapter Post to Post Mount Adapter
Shifter SRAM X01 Eagle, 12sp
Rear Derailleur SRAM X01 Eagle, 12sp
Cassette SRAM XG-1295 Eagle, 10-50t:10,12,14,16,18,21,24,28,32,36,42,50
Chain SRAM X01 Eagle w/Powerlock
Crankset SRAM Eagle XO Carbon, DUB, 32t ring
Bottom Bracket SRAM DUB 73mm BSA
Wheelset - Front e*thirteen TRS, Internal Width: 30mm, 15x110
Wheelset - Rear e*thirteen TRS, Internal Width: 30mm, 12x148
Tire - Front Maxxis Minion DHF EXO TR, 27.5 x 2.5
Tire - Rear Maxxis Minion DHR II EXO TR, 27.5 x 2.3
Tubes 27.5" tubes
Seatpost Rockshox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 170mm(480mm)
Saddle WTB Volt Pro
