Hope Carbon Crank Custom Bundle

Name: Hope Carbon Crank Custom Bundle
Brand: Hope
SKU: HopeCarbonCrankBundle
Price: 514.75 GBP
Availability: InStock

Hope Carbon Crankset Bundle (MTB)

Creating a custom Hope Carbon Crank Bundle allows you to tailor your drivetrain for either high-impact Enduro/Trail riding or lightweight Gravel/Road performance. By combining Hope's hand-laid carbon arms with their precision CNC-machined chainrings and legendary bottom brackets, you create a cohesive, UK-manufactured system designed for longevity.

When purchasing this bundle, remember that Hope's 30mm cranks require a specific Hope Crank Tool for installation and the Hope BB Tool for the bottom bracket. If you don't already have these in your workshop, they are essential additions to your order.

CHOOSE OPTIONS

Select Preferred Crankset

£0.00

Select Preferred Chainring

£49.00

Select Bottom Bracket if wanted

£0.00

Select BB tool if needed

£0.00

was £635.00

Available to order

£514.75

ADD TO ORDER

e: / t: 01323 737320

THE DETAIL

Step 1: Choose Your Crank Arms

The foundation of your bundle depends on your riding discipline. Both options feature Hope's unique internal structural foam core for vibration damping.

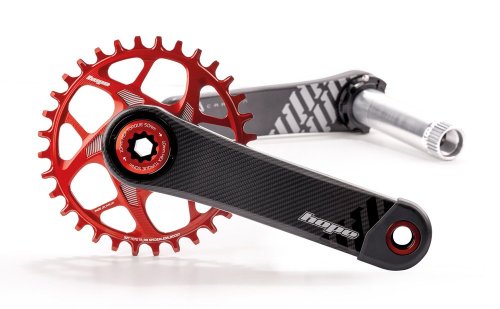

Hope Carbon Crankset (MTB): The "Evo" version is designed for Enduro and Trail. It features a 1K carbon weave for impact protection and is gravity-rated.
Hope RX Carbon Crankset: Specifically tuned for Gravel and Road. It is significantly lighter and optimised for the higher cadences of drop-bar riding.
Step 3: Add a Hope Bottom Bracket

To ensure the smoothest rotation and maximum bearing life, a matching Hope BB is highly recommended.
Hope 30mm Threaded Bottom Bracket: Features high-quality custom stainless steel bearings and double-sealed labyrinth seals. Available for BSA, Pressfit, and specific frame standards in all Hope colours.
Step 2: Select Your Chainring

Hope chainrings use a proprietary spline system that eliminates the need for separate bolts, reducing weight and increasing stiffness.
Hope R22 Direct Mount Chainring: The latest evolution for MTB. It features an enhanced tooth profile for better chain retention and mud shedding. Available in 28T - 36T.
Hope RX Direct Mount Chainring: Designed to pair with the RX cranks. These rings are optimised for road and gravel chainlines, available in larger sizes up to 44T.

SPECIFICATIONS

Hope Carbon Crank Custom Bundle	Option A (MTB Focus)	Option B (Gravel Focus)
Crank Arms	Hope Carbon MTB	Hope RX Carbon
Chainring	R22 Direct Mount	RX Direct Mount
Spindle	30mm 7075-T6	30mm 7075-T6
Chainline	52mm (Boost)	45mm (Standard)
BB Type	Hope 30mm Threaded	Hope 30mm Threaded
Typical Weight	?530g (Inc. Ring)	?510g (Inc. Ring)
Intended Use	Enduro / All-Mountain	Gravel / Road / CX

Hope Carbon Crank Custom Bundle	Option A (MTB Focus)
Crank Arms	Hope Carbon MTB
Chainring	R22 Direct Mount
Spindle	30mm 7075-T6
Chainline	52mm (Boost)
BB Type	Hope 30mm Threaded
Typical Weight	?530g (Inc. Ring)
Intended Use	Enduro / All-Mountain

Hope Carbon Crank Custom Bundle	Option B (Gravel Focus)
Crank Arms	Hope RX Carbon
Chainring	RX Direct Mount
Spindle	30mm 7075-T6
Chainline	45mm (Standard)
BB Type	Hope 30mm Threaded
Typical Weight	?510g (Inc. Ring)
Intended Use	Gravel / Road / CX
