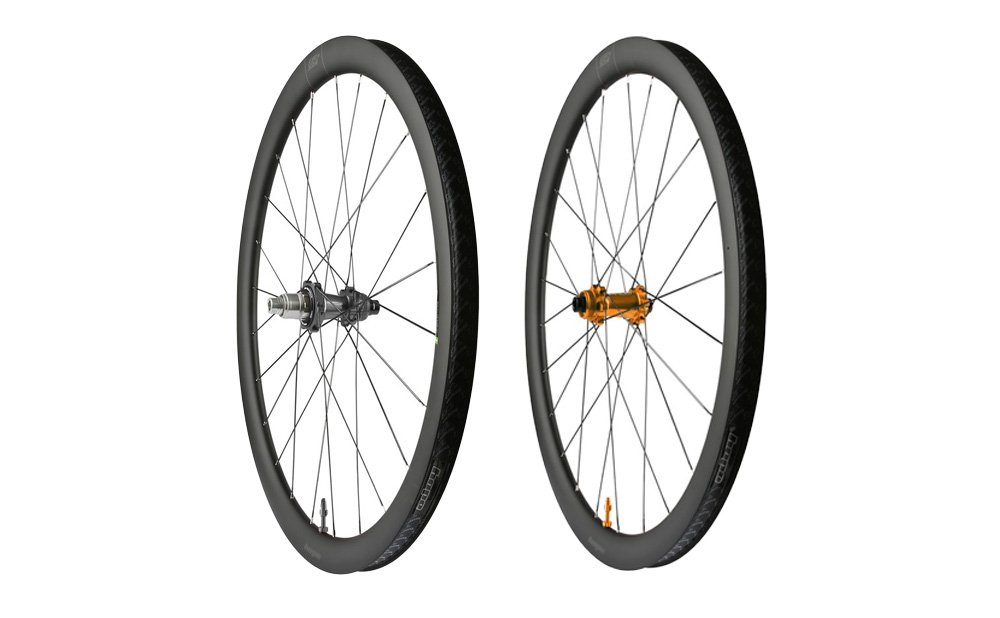

Hope RX 40 Pro 5 Carbon Wheelset

Name: Hope RX 40 Pro 5 Carbon Wheelset
Brand: Hope
SKU: HopeRX40CarbonWheelset
Price: 1015.75 GBP
Availability: PreOrder

Hope RX40 Pro 5 | Premium Carbon Gravel Performance

The Hope RX40 is the newly released gravel-specific evolution of their carbon wheel line. While it shares the same 40mm depth as the road-focused RD40, it features a significantly wider, hookless rim profile designed to handle wider gravel tyres and more aggressive off-road terrain.

The RX40 is specifically engineered for the "go-anywhere" gravel crowd. The standout upgrade is the 25.5mm internal width, which is 30% wider than the RD40. This allows for superior support of high-volume tyres up to 60mm, reducing tyre squirm and allowing for ultra-low pressures to increase grip and comfort on technical trails.

Hand-built in Barnoldswick, UK, it uses the high-performance Pro 5 hubs and is designed to be Hope's "ultimate" high-end gravel wheelset

The RX40 vs. RD40 Decision

Tyre Choice: If you plan on running tyres wider than 35mm, the RX40 is the clear winner. The 25.5mm internal width provides a much better tyre shape than the 21mm RD40.
Rim Interface: Note that the RX40 is Hookless. This means you must ensure your tyres are "Tubeless Ready" and compatible with hookless rims, even if you plan to run inner tubes.
Terrain: The RX40 is Hope's "Go Anywhere" wheel. If your riding includes singletrack, rocky descents, or heavy luggage, the extra width and reinforced hookless bead of the RX40 make it the more durable long-term investment.

CHOOSE OPTIONS

Select Rear Hub Size

£0.00

Select Front Hub Size

£0.00

Select Hub Shell Colour

£0.00

Select Freehub Pattern

£0.00

Lead time: Built-to-Order 1-2 Weeks

was £1,195.00

Available to order

£1,015.75

ADD TO ORDER

e: / t: 01323 737320

THE DETAIL

Advanced Carbon & Hub Tech

Hookless Rim Design: The RX40 moves to a modern hookless (straight-side) profile. This construction is inherently stronger at the rim edge and lighter, helping Hope achieve a lighter wheelset than the narrower RD40 while being tougher.
Pro 5 Hubset: Features the latest 6-pawl offset design with 108 points of engagement. This provides nearly instant power transfer, which is critical for technical climbing and punchy accelerations on loose gravel.
Aerodynamic Edge: Despite being a rugged gravel wheel, the 40mm depth provides an aerodynamic benefit on paved transfer sections and fast fire roads without sacrificing stability in crosswinds.
Hand-Built Longevity: Every wheel is laced with Sapim CX-Ray bladed spokes and brass nipples. Because they are made in the UK, every single spare part—from pawls to rim stickers—is easily available for long-term servicing.

Key Features

Wider & Lighter: Despite the extra width, it is approximately 23g lighter than the road-going RD40 version.
Vibration Damping: The carbon layup is tuned to filter out high-frequency vibrations, significantly reducing hand fatigue over multi-day adventure rides.
Custom Anodising: Available in all seven signature Hope colours, with colour-matched tubeless valves included in the box.
High System Weight: Built to handle a 130kg limit, making it suitable for loaded bikepacking.

SPECIFICATIONS

Rim Material	Hookless Carbon Fibre	Stronger, lighter "straight-side" construction.
Rim Depth	40mm	Aerodynamic gravel-race profile.
Internal Width	25.5mm	Optimized for 32mm�60mm tyres.
External Width	30mm	Robust profile for impact resistance.
Wheelset Weight	1,523g	Front: 685g / Rear: 838g.
Hubset	Hope Pro 5 (CL SP)	Stainless bearings; 108 points of engagement.
Spokes	Sapim CX-Ray Bladed	24 front and rear; Straight Pull.
Max System Weight	130kg	High durability for bikepacking.
UK Price (RRP)	?�1,195.00	Front: �545 / Rear: �650.

Rim Material	Hookless Carbon Fibre
Rim Depth	40mm
Internal Width	25.5mm
External Width	30mm
Wheelset Weight	1,523g
Hubset	Hope Pro 5 (CL SP)
Spokes	Sapim CX-Ray Bladed
Max System Weight	130kg
UK Price (RRP)	?�1,195.00

Rim Material	Stronger, lighter "straight-side" construction.
Rim Depth	Aerodynamic gravel-race profile.
Internal Width	Optimized for 32mm�60mm tyres.
External Width	Robust profile for impact resistance.
Wheelset Weight	Front: 685g / Rear: 838g.
Hubset	Stainless bearings; 108 points of engagement.
Spokes	24 front and rear; Straight Pull.
Max System Weight	High durability for bikepacking.
UK Price (RRP)	Front: �545 / Rear: �650.
