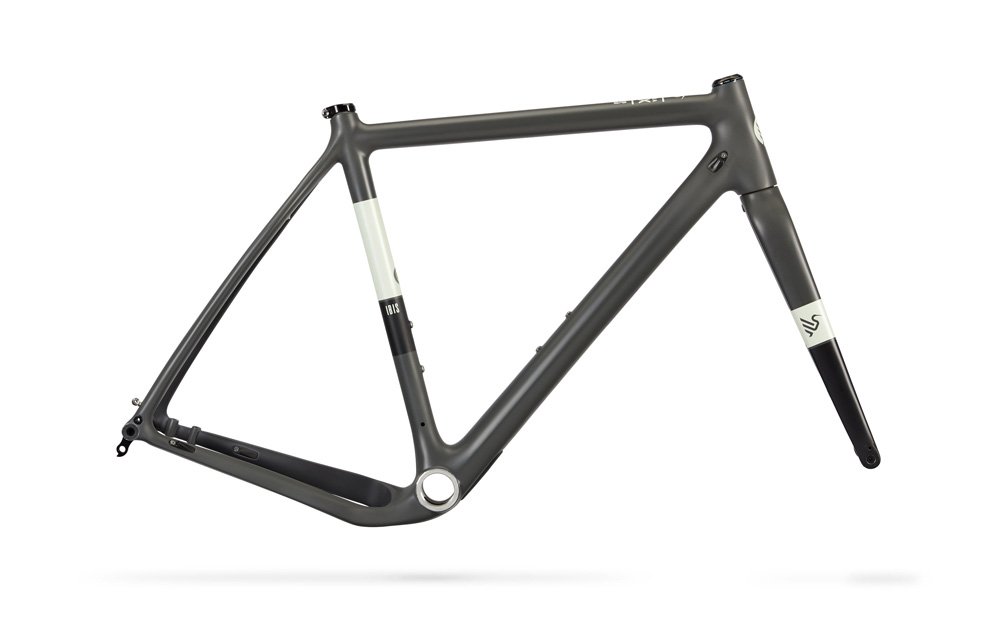

Ibis Hakka MX Frameset - Clean Slate Grey

Name: Ibis Hakka MX Frameset - Clean Slate Grey
Brand: Ibis
SKU: HKC1STS00000025z
Price: 2081.65 GBP
Availability: LimitedAvailability

Introducing the Ibis Hakka MX: The Versatile Gravel Bike for Every Adventure

The Ibis Hakka MX is the ultimate Swiss Army Knife of bikes, designed to excel on various terrains and adventures. From fast gravel roads to challenging singletrack, it is equally at home on the road and off the beaten path.

OutdoorGearLab: "If being in the front of the pack is your thing, the Ibis Hakka will put you there. The Hakka absolutely rips with its sub-1000 gram frame...; this bike brings the adrenaline."

The Ibis Hakka MX is the perfect choice for riders seeking a versatile and capable gravel bike that can handle anything from fast road rides to challenging off-road adventures.

CHOOSE SIZE

49cm (Out of stock)

53cm (Out of stock)

55cm

58cm

61cm (Out of stock)

BIKE PROTECTION

Frame & Fork - Fully Fitted (£250.00)

was £2,449.00

Price (select options)

£2,081.65

e: / t: 01323 737320

click here to see finance examples or £45.39 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	12	18	24	36	48	60
Purchase Cost	£2,081.65	£2,081.65	£2,081.65	£2,081.65	£2,081.65	£2,081.65
APR	0.00%	0.00%	0.00%	7.90%	7.90%	7.90%
Deposit %	10.04%	10.04%	10.04%	10.04%	10.04%	10.04%
Deposit amount	£209.00	£209.00	£209.00	£209.00	£209.00	£209.00
Loan amount	£1,872.65	£1,872.65	£1,872.65	£1,872.65	£1,872.65	£1,872.65
Pay per month	£156.05	£104.04	£78.03	£58.36	£45.39	£37.64
Total payable	£2,081.60	£2,081.72	£2,081.72	£2,309.96	£2,387.72	£2,467.40

THE DETAIL

Lightweight and Versatile: The Hakka MX boasts a lightweight and incredibly versatile frame that is equally capable of tackling fast gravel roads and challenging singletrack.
Advanced Geometry: The Hakka MX features modern geometry with a slack head tube angle, providing stability and confidence on descents.
Versatile Routing Options: Internal cable routing accommodates a wide range of drivetrain options, including 1x and 2x setups, and is compatible with mechanical and electronic shifting.
Durable Construction: The Hakka MX is built to last, with a robust frame and high-quality components designed to withstand the rigours of gravel riding.
Comfortable Ride: The Hakka MX provides a comfortable and efficient ride, perfect for long-distance adventures and daily commutes.

SPECIFICATIONS

Version	V1 Rebrand
Frame Material	Carbon fiber monocoque
Frame Weight	1000g
Wheel Size	700c or 650b/27.5"
Rear Axle	142mm x 12mm thru-axle
Front Axle	100mm x 12mm thru-axle
Seatpost Diameter	31.6mm / Dropper Post Compatible
Front Brake	Flat-mount front disc, 160mm rotor
Rear Brake	Flat-mount rear disc, 140mm rotor
Chainstay Length	430mm
Bottom Bracket	T47 Threaded Bottom Bracket, 68mm, External Cups
Tapered Headtube	IS 41/28.6 upper, IS 52/40 lower
Drivetrain	1X or 2X compatible (wireless and DI2 FD only), up to 48t 1X chainring, 34t minimum
Front Derailleur Spec	34.9mm clamp, wireless and DI2

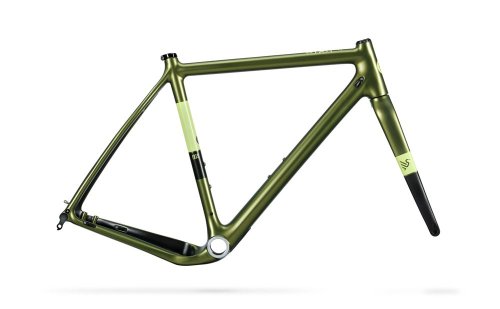

Colors	Lemongrass Green or Cleanslate Gray
Sizes	49 / 53 / 55 / 58 / 61
Frame Warranty	Lifetime

Version	V1 Rebrand
Frame Material	Carbon fiber monocoque
Frame Weight	1000g
Wheel Size	700c or 650b/27.5"
Rear Axle	142mm x 12mm thru-axle
Front Axle	100mm x 12mm thru-axle
Seatpost Diameter	31.6mm / Dropper Post Compatible
Front Brake	Flat-mount front disc, 160mm rotor
Rear Brake	Flat-mount rear disc, 140mm rotor
Chainstay Length	430mm
Bottom Bracket	T47 Threaded Bottom Bracket, 68mm, External Cups
Tapered Headtube	IS 41/28.6 upper, IS 52/40 lower
Drivetrain	1X or 2X compatible (wireless and DI2 FD only), up to 48t 1X chainring, 34t minimum
Front Derailleur Spec	34.9mm clamp, wireless and DI2
Colors	Lemongrass Green or Cleanslate Gray
Sizes	49 / 53 / 55 / 58 / 61
Frame Warranty	Lifetime
