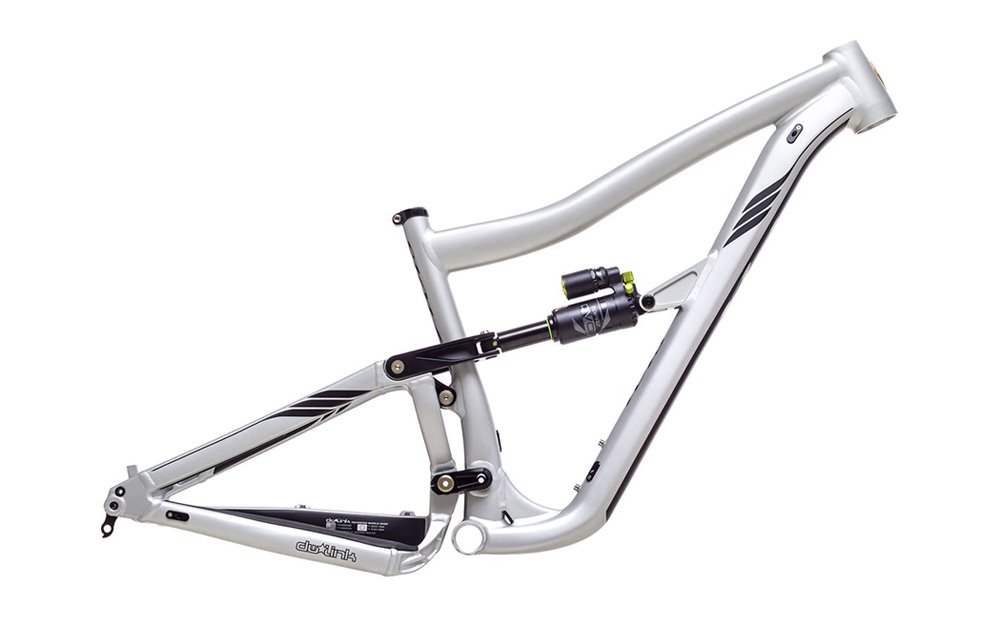

Ibis Ripmo AF Frameset - DVO Topaz Air - XL - Last One

Name: Ibis Ripmo AF Frameset - DVO Topaz Air - XL - Last One
Brand: Ibis
SKU: IB-001111Metalframe
Price: 999.00 GBP
Availability: InStock

Introducing the Ibis Ripmo AF Frameset: Conquer Any Trail

The Ibis Ripmo AF frameset is a testament to Ibis' commitment to building exceptional mountain bikes. This meticulously crafted aluminium frame delivers unmatched performance, durability, and style, empowering you to confidently conquer any trail.

IT’S METAL
Over our long tenure from mountain biking’s awkward adolescence to its current anything-shreddy era, we’ve experimented with steel, aluminum and titanium — remember the Bow-Ti, the first superbike? We remember the metal times too, and it feels good to offer a premium ride experience to our broadening family of riders, courtesy of durable, affordable aluminum alloy.

LIFETIME FRAME & PIVOT BEARING WARRANTY

CHOOSE SIZE

L (Out of stock)

X-LARGE

BIKE PROTECTION

invisiFRAME fitted (£195.00)

was £2,299.00

Price (select options)

£999.00

e: / t: 01323 737320

click here to see finance examples or £42.02 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

44%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	12	24
Purchase Cost	£999.00	£999.00
APR	11.90%	11.90%
Deposit %	10.01%	10.01%
Deposit amount	£100.00	£100.00
Loan amount	£899.00	£899.00
Pay per month	£79.58	£42.02
Total payable	£1,054.96	£1,108.48

THE DETAIL

MODERN GEOMETRY
With a steep, 76-degree seat tube angle and a rangy but not stratospheric reach, the Ripmo AF places riders centrally and upright over the bottom bracket. It makes for an efficient position that can go the long haul without placing too much weight on its slack, 64.9-degree headtube angle. A 44mm reduced-offset fork is more surefooted on steep descents and steadies high speeds. Better up, better down.

DW LINK
Since 2005, Ibis have partnered with suspension guru Dave Weagle on the dw-link suspension platform. It provides an unparalleled combination of climbing efficiency and downhill performance, which has been proven repeatedly at the highest levels of racing.

COIL COMPATIBLE
The Ripmo AF is compatible with both coil and air shocks due to a more progressive leverage rate. It allows for coil’s linearity to thrive and we spec air shocks with tunes that provide pop without feeling too harsh. On the trail, it gives the suspension a supple feel throughout the entirety of the stroke, enhancing traction no matter how deep you dig.

DVO
Ibis has made the frames leverage rate progressive enough for all coil shocks, making them handle the increased stress of being driven off of a clevis. The DVO JadeX is a custom tuned DVO suspension for this Ibis frame.

2.6” TIRE CLEARANCE
Ibis helped pioneer the wide rim revolution, which inspired the new crop of wider 2.4” — 2.6” tires. When paired together, this combo can be run at ultra-low pressures, which results in elbow-dragging cornering traction without sacrificing straight-line speed.

LONG DROPPER POST
What’s better than a dropper post? A longer one. Our frames are designed to accommodate the longest dropper posts possible. Riders over 5’8 (or 173cm) can easily run a 185mm dropper post, while folks between 5’ and 5’8 (152cm — 172cm) can use a post 125mm or longer depending on inseam length.

REMOVABLE ISCG05 MOUNT
Our optional ISCG 05 mount is there if you want it, removable if you don’t.

SPECIFICATIONS

Frame Material   Aluminum
Frame Weight   8.25 lbs / 3.74 kg (size M with DVO Topaz Air)
Wheel Size   29” / up to 2.6" tires
Front Travel   160mm
Rear Travel   147mm
Boost Axles   148mm rear / 110mm front
Seatpost Diameter   31.6mm
Rear Brake   Post mount / 203mm max rotor
Chainstay Length   435mm
Bottom Bracket   Threaded (73mm English threaded)
ISCG 05 Compatible   Optional removable adapter
Tapered Headtube   ZS44 upper / ZS56 lower
Colors   Metal
Sizes XL
Frame Warranty   LIFETIME
