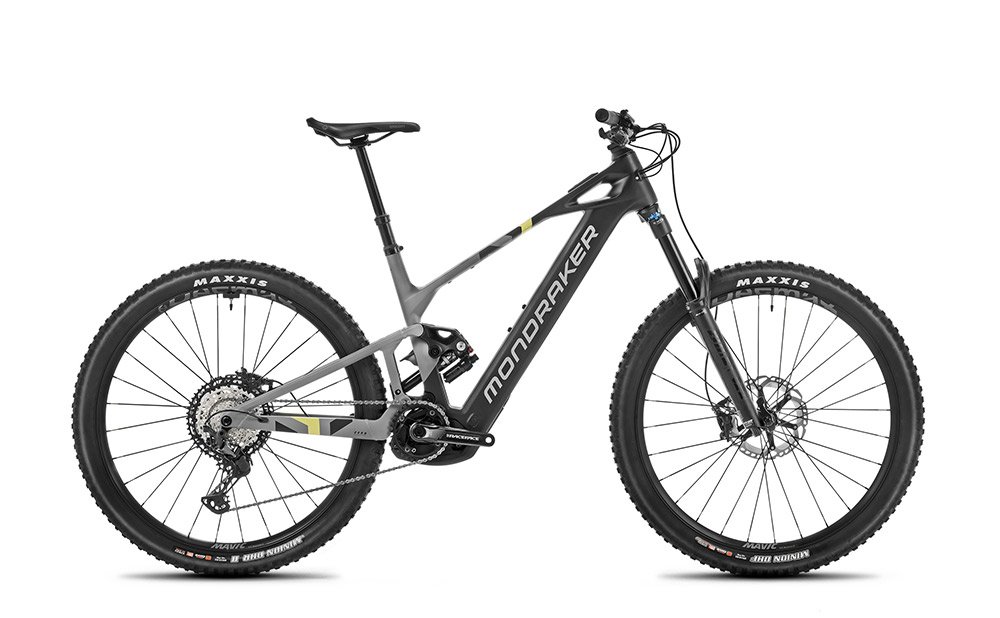

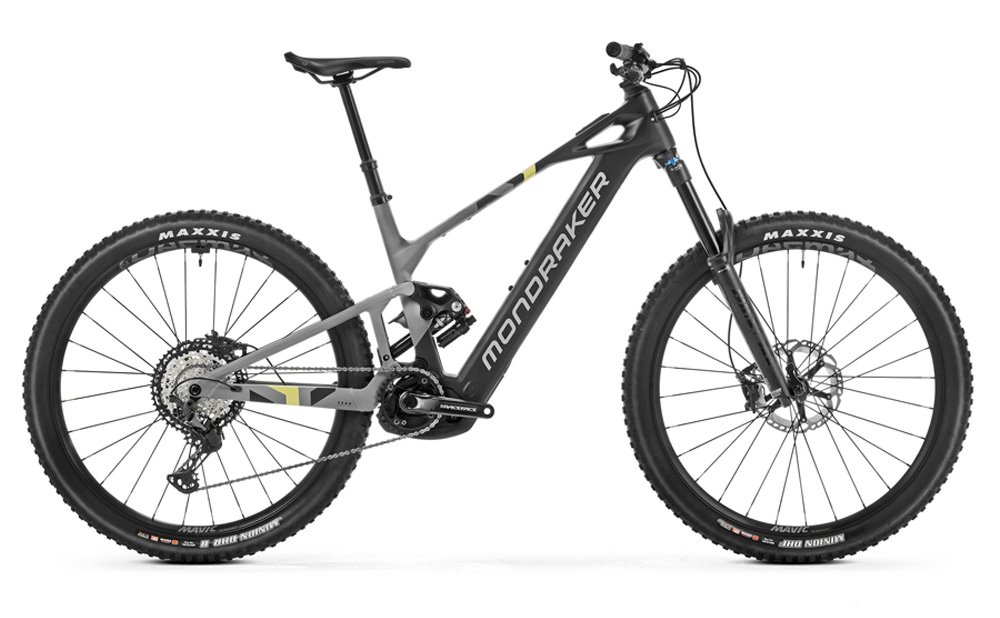

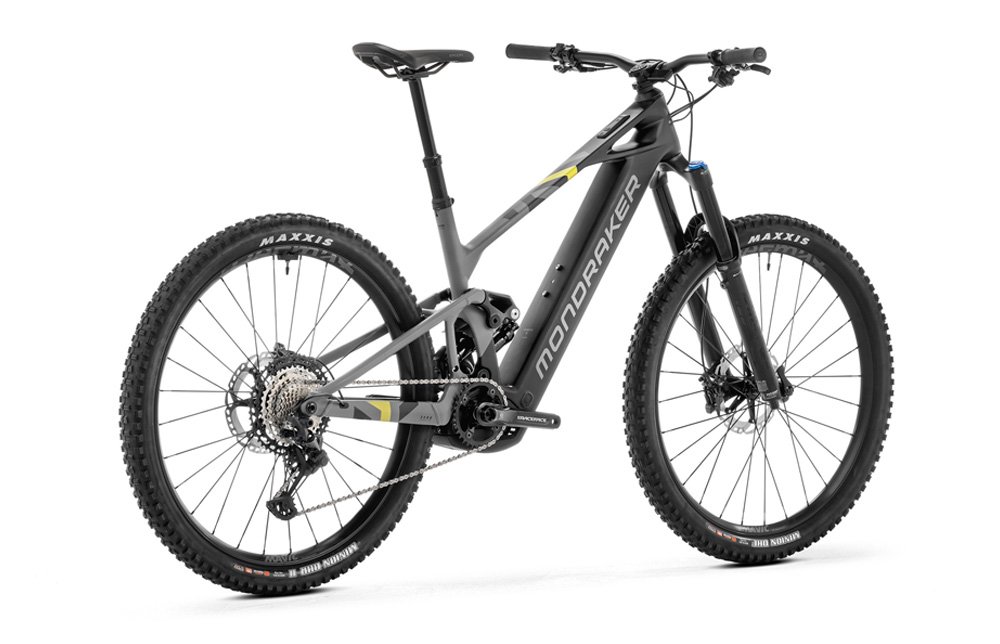

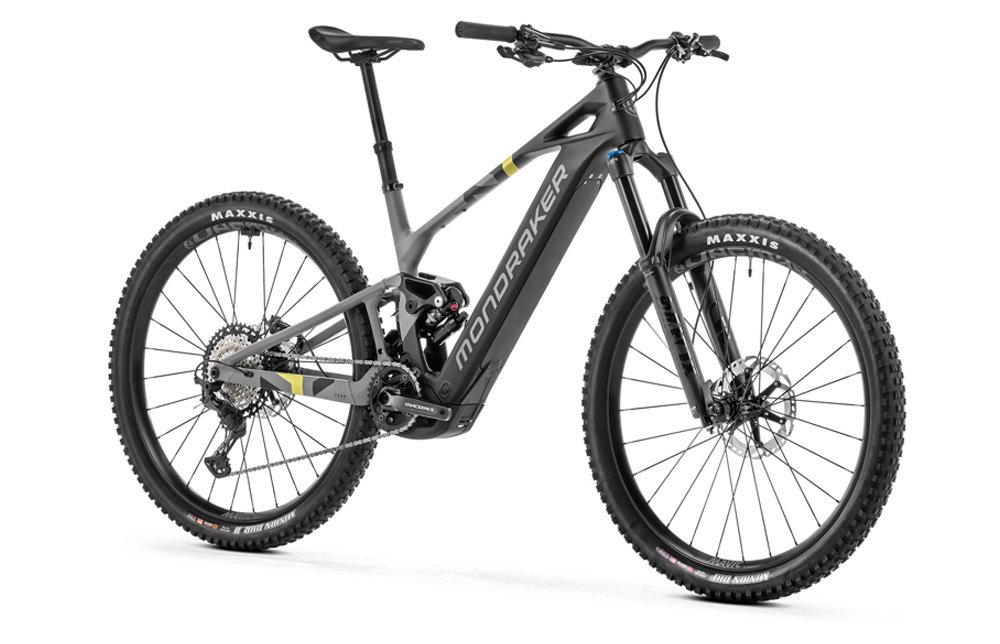

Mondraker Crafty CARBON R - Black / Nimbus Grey / Tonic Gold

Name: Mondraker Crafty CARBON R - Black Nimbus Grey Tonic Gold
Brand: Mondraker
SKU: 010.25338z
Price: 5039.2 GBP
Availability: LimitedAvailability

Introducing the 2025 Mondraker Crafty Carbon R: The New Generation of e-Enduro

The game is over—welcome to a new era of authentic e-Enduro. The 2025 Mondraker Crafty Carbon R represents the latest evolution of Mondraker's most successful e-bike, making it more CRAFTY than ever before. This full-power mountain bike is designed to dominate the trails, boasting an unmistakable identity, increased performance, enhanced agility, and seamless pedalling assistance.

At its heart, the Crafty Carbon R is powered by Bosch's revamped Performance Line CX (Smart System) motor, offering 85Nm of torque and 600W max power with refined delivery and quieter operation. This motor is paired exclusively with Bosch’s new, more efficient, lighter, and fully removable 800Wh Powertube battery, accessible via a cover on the downtube underside.

Built with a Crafty Stealth Air full Carbon front triangle and a Stealth Alloy rear triangle, the Crafty Carbon R incorporates the very latest Zero Suspension System (150mm travel), a flip chip, and optimised swingarm lengths (455mm/465mm depending on size) for superior kinematics. Its Forward Geometry has been refined with an intermediate ML frame size, ensuring a near-perfect fit for every rider.

The 2025 Mondraker Crafty Carbon R is your ultimate ticket to accessing the latest evolution in e-Enduro, offering unparalleled performance, integration, and a truly exhilarating ride experience.

Crafty Carbon R is your ticket to ride Mondraker’s best range of e-bikes ever. The Bosch CX motor, the heart of the machine, is combined with Bosch’s fully removable 800Wh battery (accessible via a cover on the underside of the downtube). This is the only build with a Shimano XT M8100 groupset, including XT four piston brakes, XT 12 speed rear mech and 10-51 cassette. Available in two colourways: Bunker Grey / Fog Grey / Flame Red, and Black / Nimbus Grey / Tonic Gold.

CHOOSE SIZE

M (Out of stock)

ML (Out of stock)

L (Out of stock)

XL (Out of stock)

was £6,299.00

Price (select options)

£5,039.20

e: / t: 01323 737320

click here to see finance examples or £117.86 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	12	24	36	48
Purchase Cost	£5,039.20	£5,039.20	£5,039.20	£5,039.20
APR	11.90%	11.90%	11.90%	11.90%
Deposit %	10.00%	10.00%	10.00%	10.00%
Deposit amount	£504.00	£504.00	£504.00	£504.00
Loan amount	£4,535.20	£4,535.20	£4,535.20	£4,535.20
Pay per month	£401.45	£211.99	£149.10	£117.86
Total payable	£5,321.40	£5,591.76	£5,871.60	£6,161.28

THE DETAIL

Advanced Carbon Frame: Crafty Stealth Air full Carbon front triangle combined with a Stealth Alloy rear triangle for optimal strength, weight, and durability. Features 150mm Zero Suspension System and Boost 12x148mm rear axle.

New Bosch Performance Line CX Motor (Smart System): Lighter, smaller, quieter, and more refined power delivery with 85Nm torque and 600W max power (25Km/h). Controlled by Purion 400, Bosch Mini Remote, and System Controller.

Massive 800Wh Bosch Powertube Battery: Fully removable and integrated into the downtube, providing extensive range for epic e-Enduro adventures.

Premium Fox Suspension:
Fork: Fox 38 29 Float GRIP Performance, 160mm travel, e-bike tuned, with a sturdy 38mm stanchion.

Rear Shock: Fox Float-X LV Performance, 185x55mm, with 2-position compression lever and adjustable rebound.

Shimano XT M8100 12-Speed Drivetrain: This build exclusively features the top-tier mechanical Shimano XT M8100 groupset, including a 10-51T cassette for wide-range gearing and a Shimano XT M8100 rear derailleur.

Shimano XT M8120 4-Piston Hydraulic Disc Brakes: Powerful and consistent braking performance with 203mm MT800 ICE-Tech CenterLock rotors front and rear, and ergonomic XT M8100 levers.

Mavic E-Deemax 29 Wheelset: Robust 29" wheels with 30mm internal width, tubeless-ready rims, and Boost hub spacing (15x110mm front, 12x148mm rear).

Maxxis Minion Tires: Aggressive Maxxis Minion DHF 29x2.6" (front) and Minion DHR II 29x2.6" (rear) with 3C MAXX TERRA and EXO+ Protection, tubeless-ready for ultimate grip and durability.

Onoff Components & Dropper Post: Features Onoff S6 stem/handlebar, Onoff Forest grips, and an Onoff Pija dropper post (140 mm- 210 mm travel depending on size) for dynamic riding.

Optimised Sizing: Now available in 5 sizes (S, M, ML, L, XL) with updated kinematics and proportional swingarm lengths for a refined fit across all rider heights.

Approximate Weight: 23.9 kg (52.69 lbs).

Eye-Catching Colourways: Available in Bunker Grey / Fog Grey / Flame Red and Black / Nimbus Grey / Tonic Gold.

SPECIFICATIONS

Frame: Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock: Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings: CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer

Fork: Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips: Onoff Forest, CNC lock-on, 135mm

Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle: Ergon SM-10

Front brake: Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Rear brake: Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin

Brake lever: Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust

Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes: Mavic J-bend double butted, contactless lacing

Front hub: Mavic, Boost 15x110mm, IS 6 bolts

Rear hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub

Front tyre: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tyre: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Crankset: Race Face Aeffect-R ebike, 160mm

Rings: Race Face, 34T, steel, direct mount

Chain: Shimano XT M8100, 12s

Rear derailleur: Shimano XT M8100, SGS, Shadow+

Shift levers: Shimano XT M8100, Rapid Fire Plus, 12s

Casette: Shimano XT M8100 10-51T Hyperglide+, 12s

Derailleur hanger: Sram UDH

Weight: 23.9 kg

Display: Purion 400 / Bosch Mini Remote / Bosch System Controller

Motor: New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery: Bosch Powertube 800Wh
