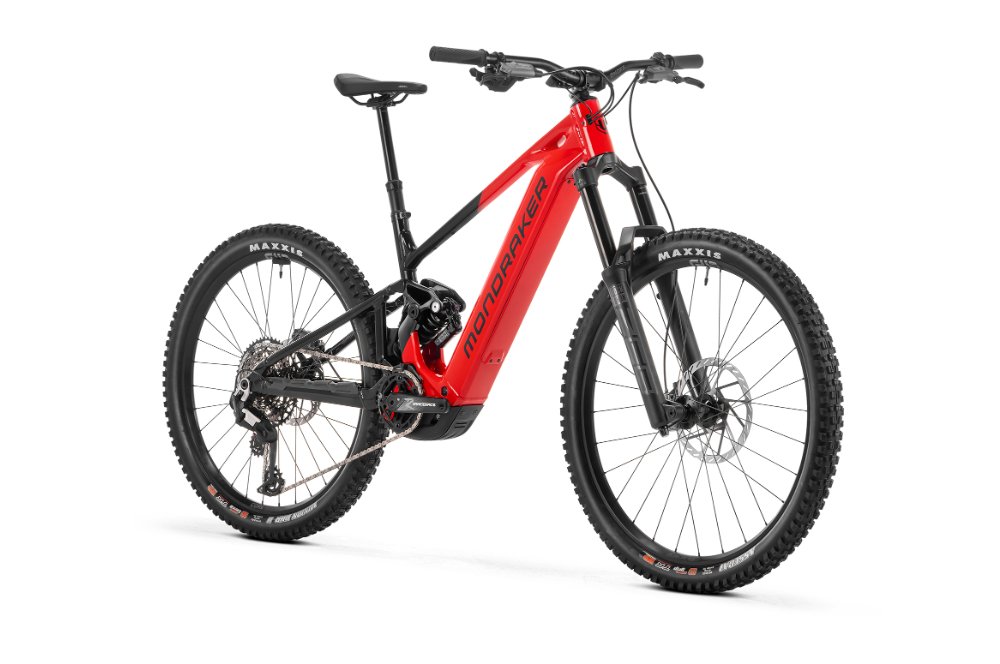

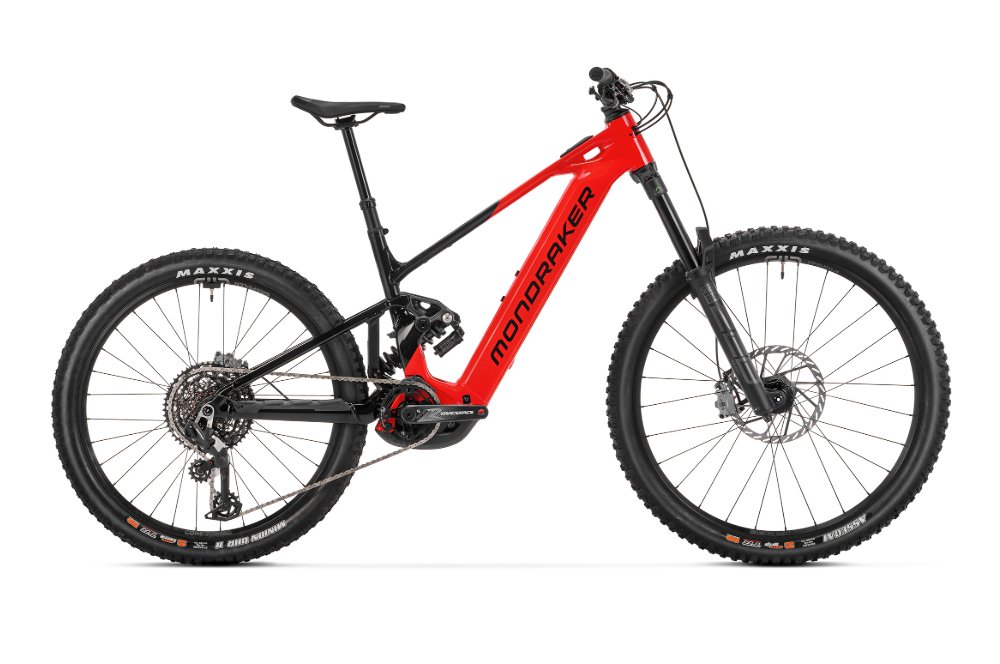

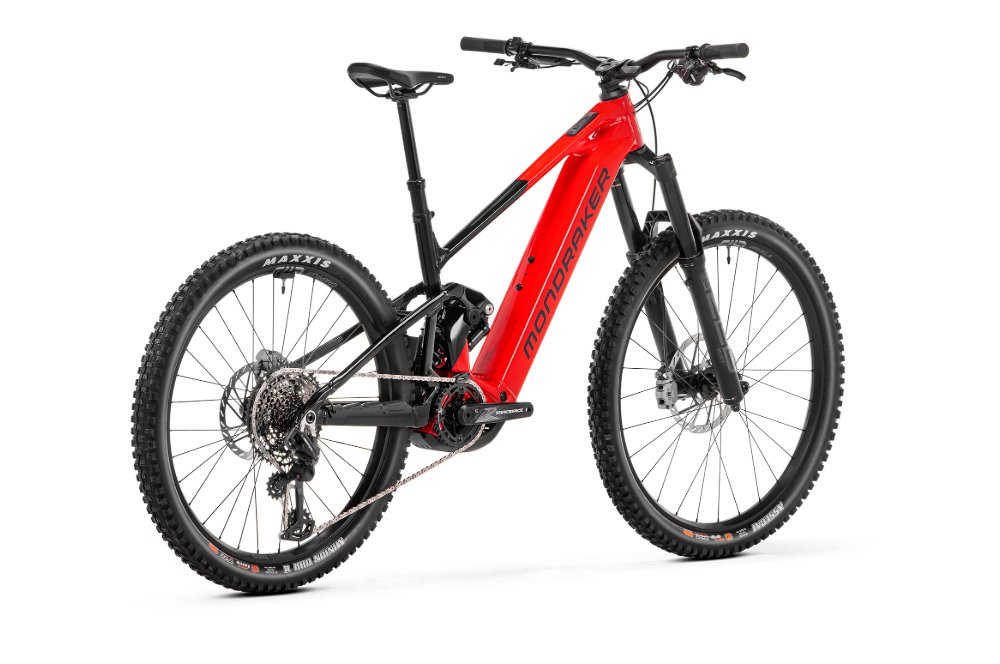

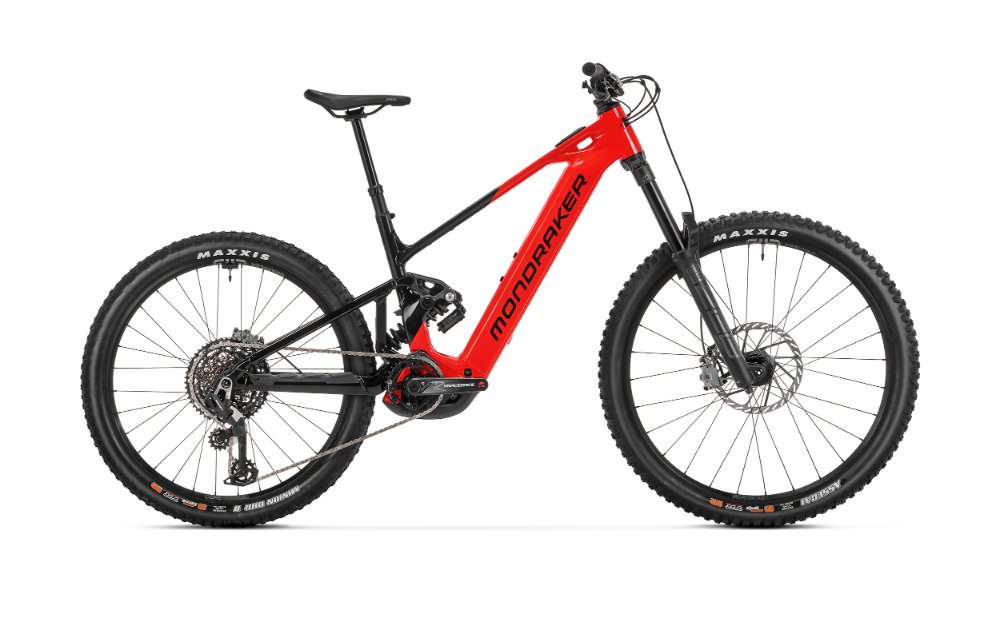

Mondraker Level R

Name: Mondraker Level R
Brand: Mondraker
SKU: MY26LevelRMLz
Price: 5999.00 GBP
Availability: LimitedAvailability

Conquer the Roughest Trails: The New Mondraker Level R Enduro eMTB

The Mondraker Level R is your accessible ticket to the next full-power enduro eMTB riding level. Seriously "levelled up" for 2026, this bike is built to push boundaries, offering outstanding suspension performance, cutting-edge Bosch motor technology, and radical geometry to inspire confidence on truly rowdy terrain.

With a massive 180mm front and 170mm rear travel, a powerful Bosch Performance Line CX Gen 5 motor, and a high-capacity 800Wh removable battery, the Level R empowers you to maximise your descents and confidently tackle the most technical terrain imaginable.

The Mondraker Level R is designed to improve your riding. It offers outstanding power, travel, and range in a truly capable and reliable enduro eMTB package.

CHOOSE SIZE

Price (select options)

£5,999.00

e: / t: 01323 737320

click here to see finance examples or £118.17 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

49%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	6	12	24	36	48	60
Purchase Cost	£5,999.00	£5,999.00	£5,999.00	£5,999.00	£5,999.00	£5,999.00
APR	0.00%	0.00%	7.90%	7.90%	7.90%	11.90%
Deposit %	10.00%	10.00%	10.00%	10.00%	10.00%	10.00%
Deposit amount	£600.00	£600.00	£600.00	£600.00	£600.00	£600.00
Loan amount	£5,399.00	£5,399.00	£5,399.00	£5,399.00	£5,399.00	£5,399.00
Pay per month	£899.83	£449.92	£243.28	£168.27	£130.88	£118.17
Total payable	£5,998.98	£5,999.04	£6,438.72	£6,657.72	£6,882.24	£7,690.20

THE DETAIL

Core Technologies & Performance:
Next-Level Power: Equipped with the latest Bosch Performance Line CX Gen 5 motor, now delivering up to 100Nm of torque (with the latest software update) and 750W peak output, ensuring formidable climbing assistance and acceleration.

Massive Battery Capacity: Features a high-capacity 800Wh removable internal battery, redesigned for greater energy density and improved efficiency. It's also compatible with Bosch's Powermore 250Wh range extender for up to 1050Wh total range (sold separately).

Mullet Wheel Setup: It rolls on a 29-inch front and 27.5-inch rear wheel configuration for sharper, more playful handling and increased performance and control on aggressive terrain.

Updated Zero Suspension System: Mondraker's renowned kinematics have been refined for enhanced sensitivity in the initial stroke, superior impact absorption on big hits, and improved climbing traction.

Refined Forward Geometry: The updated geometry includes a slacker 64° head angle and adjustable settings via a flip chip on the lower shock mount (Standard and Low positions), allowing you to fine-tune the bike's geometry for specific terrain and riding styles.

Optimised Sizing: Built around a newly engineered Stealth Evo aluminium frame, the Level R is available in five sizes, featuring size-specific chainstay lengths (445mm for S, M, ML, and 455mm for L, XL) to ensure a perfectly balanced ride feel for every rider.

Level R Specific Build Highlights:

Robust Suspension: Features a capable RockShox ZEB RC fork up front and a complementary RockShox shock at the rear, providing reliable and controlled suspension performance.

Confident Braking: Equipped with powerful SRAM Maven Bronze brakes for dependable stopping power and modulation in all conditions.

Reliable Drivetrain: It uses an SRAM Eagle T-Type drivetrain (10-52T cassette, 34T chainring), which offers smooth and precise 12-speed shifting for navigating varied terrain.

Aggressive Tyres: The vehicle comes fitted with Maxxis Assegai 29"x2.6" WT (front) / Minion DHR II 27.5"x2.6" WT (rear) tyres, which are renowned for their exceptional grip and durability.

Intuitive Control: Features a top-tube integrated System Controller and a Bosch Purion 400 display on the handlebar for essential ride data.

Premium Finishing Kit: This kit includes a selection of ONOFF components, including the ONOFF Pija dropper post (size-dependent travel).

SPECIFICATIONS

Build	Level XR
Frame	Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one- piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers
Fork	�hlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm, axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed, compression, rebound, air preload, ramp chamber
Shock	�hlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low- speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Chain Guide	OnOff
Rear Derailleur	Sram GX Eagle AXS T-Type,12s
Shifters	Sram Eagle AXS Pod MMX, 12s
Crankset	Race Face Aeffect ebike 160mm w/Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Cassette	Sram XS-1275, 10-52T, T-Type, 12s
Chain	Sram GX Eagle T-Type, 12s, Powerlock
Brakes	Sram Maven Silver 4-piston caliper, HS2 220/200mm IS 6 bolts one-piece rotors, steel-backed metal sintered pads, SwingLink and lever pivot bushings, tools-free reach adjust
Rotors	HS2 220/200mm IS 6 bolt one-piece rotors
Handlebar	Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8� backsweep, 5� upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Stem	Onoff S6 30mm 0�, 6061 forged alloy + CNC, 31.8mm barbore
Grips	Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Headset	Onoff ZS44/ZS56, 1-1/8�, 1.5� head tube, ACB sealed bearings, top 42x30x7x45�x45�, bottom 52x40x8x45�x45�
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210- 185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle	FIZIK Terra Aidon X5 145mm
Front Tyre	Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
Rear Tyre	Maxxis Minion DHR II 27�5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection,120x2TPI, folding bead
Rims	e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27�5 rear
Spokes	e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub	e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub	e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Drive Unit	Bosch Performance Line CX (25Km/h) SMART SYSTEM Gen5
Battery	Bosch Powertube 800Wh
Display/Controller	Kiox 400 / Bosch Mini Remote
Weight

Build	Level RR
Frame	Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one- piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers
Fork	Fox 38 29 Float GRIPX2 Factory Kashima, 180mm, tapered steerer tube, Boost 15x110mm Kabolt, axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Shock	Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings, CL50 compression, RL40 rebound, Rezi LML, Bleed 1,1, B60. Spring rate:S size 350 lbs, M size 400 lbs, size ML 450 lbs, L size 500 lbs, XL size 500 lbs
Chain Guide	OnOff
Rear Derailleur	Sram S1000 Eagle AXS T-Type, 12s
Shifters	Sram Eagle AXS Pod MMX, 12s
Crankset	Race Face Aeffect ebike 160mm w/Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Cassette	Sram XS-1270, 10-52T, T-Type, 12s
Chain	Sram GX Eagle T-Type, 12s, Powerlock
Brakes	Sram Maven Bronze, 4-piston caliper, steel-backed metal sintered pads, SwingLink and lever pivot bushings, tools-free reach adjust
Rotors	HS2 220/200mm IS 6 bolt one-piece rotors
Handlebar	Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8� backsweep, 5� upsweep, 31.8mm barbore. L and XL size: 38mm rise
Stem	Onoff S6 30mm 0�, 6061 forged alloy + CNC, 31.8mm barbore
Grips	Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Headset	Onoff ZS44/ZS56, 1-1/8�, 1.5� head tube, ACB sealed bearings, top 42x30x7x45�x45�, bottom 52x40x8x45�x45�
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210- 185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle	FIZIK Terra Aidon X5 145mm
Front Tyre	Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
Rear Tyre	Maxxis Minion DHR II 27�5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection,120x2TPI, folding bead
Rims	e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27�5 rear
Spokes	e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub	e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub	e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Drive Unit	Bosch Performance Line CX (25Km/h) SMART SYSTEM Gen5
Battery	Bosch Powertube 800Wh
Display/Controller	Kiox 400 / Bosch Mini Remote
Weight

Build	LEVEL R
Frame	Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one- piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers
Fork	RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload
Shock	RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Chain Guide	OnOff
Rear Derailleur	Sram 90 Eagle T-Type, 12s
Shifters	Sram 90 Eagle, 12s, T-Type Actuation, single click
Crankset	Race Face Aeffect ebike 160mm w/Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Cassette	Sram XS-1270, 10-52T, T-Type, 12s
Chain	Sram 70 Eagle T-Type, 12s, Powerlock
Brakes	Sram Maven Bronze, 4-piston caliper, steel-backed metal sintered pads, SwingLink and lever pivot bushings, tools-free reach adjust
Rotors	HS2 220/200mm IS 6 bolt one-piece rotors
Handlebar	Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8� backsweep, 5� upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Stem	Onoff S3 30mm 0�, 6061 forged alloy, 31.8mm barbore
Grips	Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Headset	Onoff ZS44/ZS56, 1-1/8�, 1.5� head tube, ACB sealed bearings, top 42x30x7x45�x45�, bottom 52x40x8x45�x45�
Seatpost	Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210- 185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle	FIZIK Terra Aidon X5 145mm
Front Tyre	Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
Rear Tyre	Maxxis Minion DHR II 27�5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection,120x2TPI, folding bead
Rims	e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27�5 rear
Spokes	e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub	e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub	e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Drive Unit	Bosch Performance Line CX (25Km/h) SMART SYSTEM Gen5
Battery	Bosch Powertube 800Wh
Display/Controller	Purion 400 / Bosch Mini Remote / Bosch System Controller
Weight
