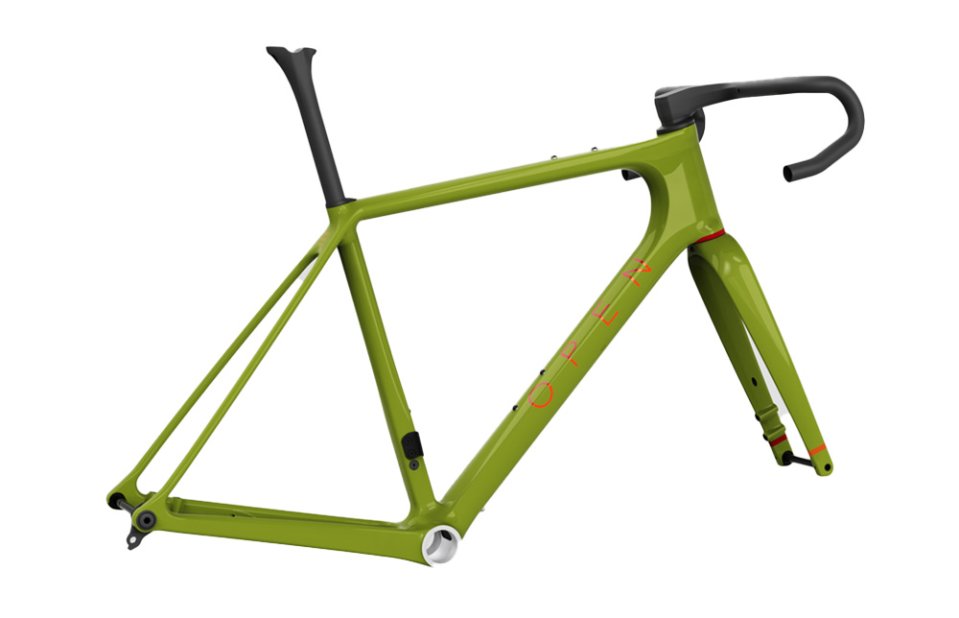

Open U.P. 2.0 (UDH) Frameset

Open U.P. 2.0 (UDH) Frameset

Open Cycles U.P. 2.0 Frameset - Unbeaten Path Carbon Gravel/Road

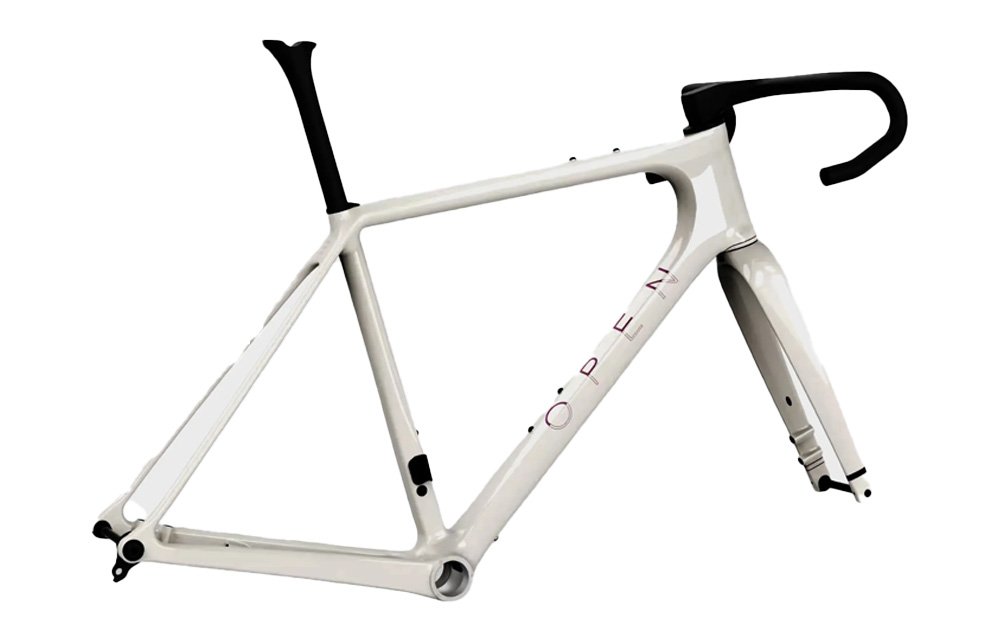

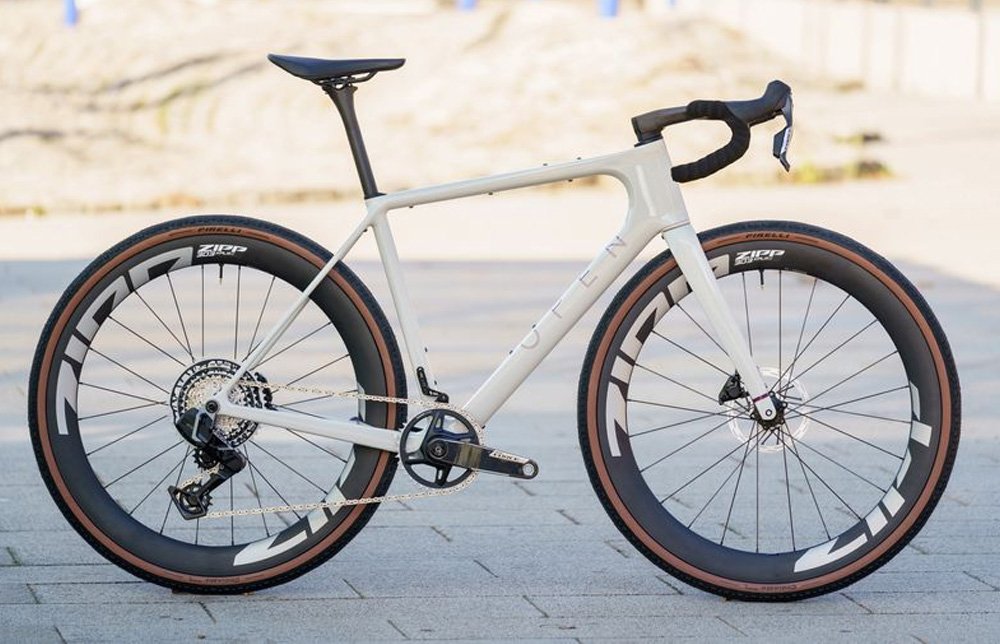

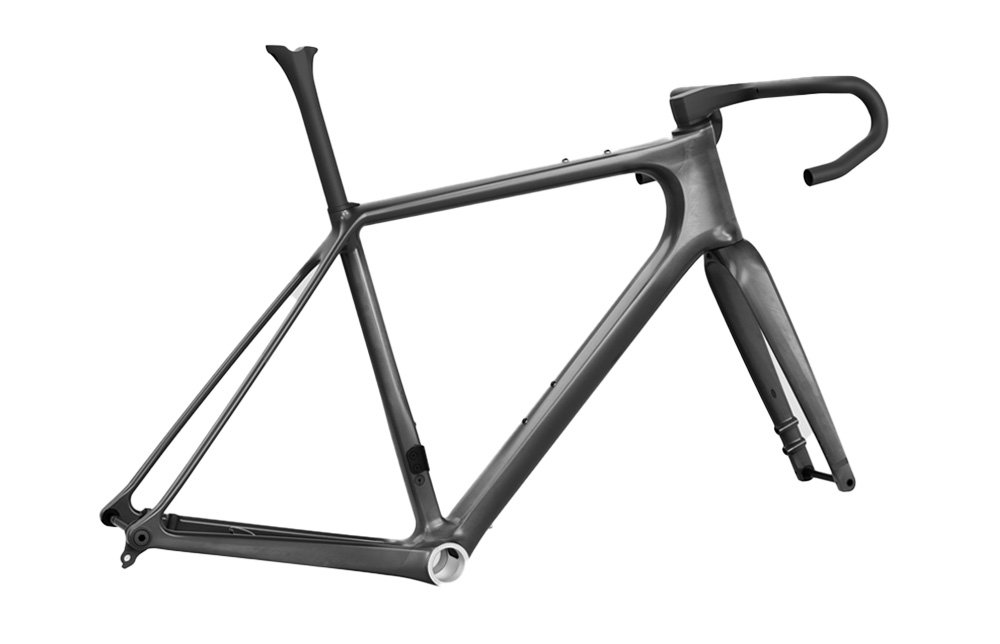

The Open Cycles U.P. 2.0 Frameset is the latest iteration of the bike that established the "gravel plus" category. It remains a masterclass in minimalist design, engineered by industry legends to be incredibly fast on the road yet virtually unstoppable off it. The core philosophy is GO for the Unbounded Path.

Unmatched Versatility and Tyre Clearance

The key to the U.P.'s versatility is its tyre clearance, achieved through the iconic dropped drive-side chainstay. The 2.0 frameset flawlessly handles two major wheel sizes:

700c Wheels: Optimised for fast riding with road and gravel tyres up to 40mm wide. 650 ext{b}$ Wheels: Allows the use of wide mountain bike tyres up to 2.1in (54mm), transforming the bike into a nimble, plush hardtail for tackling singletrack and extremely rough terrain.

Full massive in-depth info and technical specifications at Open Cycles website here.

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status
To see how much this would cost on finance enter Deposit or use slider below
£
10%
24%
USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE
Months 6 9 10 12 18 24 36 48 60
Purchase Cost £3,999.00 £3,999.00 £3,999.00 £3,999.00 £3,999.00 £3,999.00 £3,999.00 £3,999.00 £3,999.00
APR 0.00% 0.00% 0.00% 0.00% 0.00% 0.00% 7.90% 7.90% 7.90%
Deposit % 10.00% 10.00% 10.00% 10.00% 10.00% 10.00% 10.00% 10.00% 10.00%
Deposit amount £400.00 £400.00 £400.00 £400.00 £400.00 £400.00 £400.00 £400.00 £400.00
Loan amount £3,599.00 £3,599.00 £3,599.00 £3,599.00 £3,599.00 £3,599.00 £3,599.00 £3,599.00 £3,599.00
Pay per month £599.83 £399.89 £359.90 £299.92 £199.94 £149.96 £112.17 £87.24 £72.34
Total payable £3,998.98 £3,999.01 £3,999.00 £3,999.04 £3,998.92 £3,999.04 £4,438.12 £4,587.52 £4,740.40

THE DETAIL

Construction and Features: The U.P. 2.0 frameset is constructed from high-quality Carbon Monocoque, delivering an exceptionally low weight while ensuring the stiffness required for efficient power transfer. The frameset includes the matching Open U-Turn Fork, known for its low weight and precise steering.

For the modern builder, the frame maintains key features that prioritise performance and ease of maintenance:

Threaded Bottom Bracket: Uses a reliable BB386-standard bottom bracket shell, preferred by many mechanics for its ease of installation and reduced creaking.

Integrated Routing: Fully internal cable routing for a clean look, protecting cables from the elements.

Minimalist Design: No unnecessary mounting points or frills, keeping the frameset light and focused on speed and capability. The U.P. 2.0 is the definitive chassis for a dream build that truly eliminates the boundaries between road, gravel, and light mountain biking.

1/9
2/9
3/9
4/9
5/9
6/9
7/9
8/9
9/9

SPECIFICATIONS

Specification Detail Notes
Frame Material Carbon Monocoque High-quality carbon fibre lay-up for stiffness and low weight.
Fork (Included) Open U-Turn Carbon Fork Lightweight, full carbon tapered steerer.
Head Tube Standard Tapered (1?1/8?? to 1?1/2??) Standard for modern road/gravel forks.
Max Tyre Clearance 700c�40mm Ideal for fast gravel and road use.
Max Tyre Clearance 650b�2.1in (or 54mm) Transforms the bike into a rugged off-road machine.
Bottom Bracket BB386 Threaded 79mm Shell width, threaded standard.
Axle Standard F/R 100�12mm / 142�12mm Thru-Axle Standard road/gravel flat mount thru-axles.
Brake Mounts Flat Mount Disc (160mm) Minimum 160mm rotor size front and rear.
Cable Routing Internal Routing options for mechanical, Di2, or 1x systems.
Seatpost Diameter 27.2mm Promotes compliance and comfort. Requires external clamp.
Chainstay Design Dropped Drive-Side Unique design to maximise 650b tyre clearance.
Frame Weight (Approx) ?1040g (Size M) Extremely light for a frame with this capability.
Fork Weight (Approx) ?390g Lightweight full carbon fork.
Specification Detail
Frame Material Carbon Monocoque
Fork (Included) Open U-Turn Carbon Fork
Head Tube Standard Tapered (1?1/8?? to 1?1/2??)
Max Tyre Clearance 700c�40mm
Max Tyre Clearance 650b�2.1in (or 54mm)
Bottom Bracket BB386 Threaded
Axle Standard F/R 100�12mm / 142�12mm Thru-Axle
Brake Mounts Flat Mount Disc (160mm)
Cable Routing Internal
Seatpost Diameter 27.2mm
Chainstay Design Dropped Drive-Side
Frame Weight (Approx) ?1040g (Size M)
Fork Weight (Approx) ?390g
Specification Notes
Frame Material High-quality carbon fibre lay-up for stiffness and low weight.
Fork (Included) Lightweight, full carbon tapered steerer.
Head Tube Standard Standard for modern road/gravel forks.
Max Tyre Clearance Ideal for fast gravel and road use.
Max Tyre Clearance Transforms the bike into a rugged off-road machine.
Bottom Bracket 79mm Shell width, threaded standard.
Axle Standard F/R Standard road/gravel flat mount thru-axles.
Brake Mounts Minimum 160mm rotor size front and rear.
Cable Routing Routing options for mechanical, Di2, or 1x systems.
Seatpost Diameter Promotes compliance and comfort. Requires external clamp.
Chainstay Design Unique design to maximise 650b tyre clearance.
Frame Weight (Approx) Extremely light for a frame with this capability.
Fork Weight (Approx) Lightweight full carbon fork.
