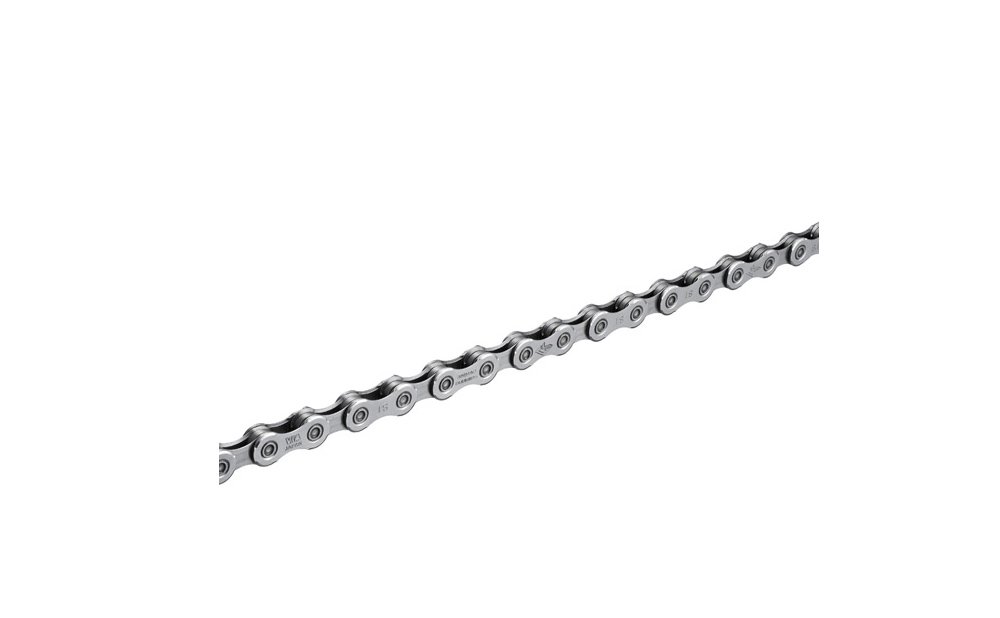

Shimano CN-LG500 Link Glide Chain

Name: Shimano CN-LG500 Link Glide Chain
Brand: Shimano
SKU: CNLG500138Q
Price: 29.99 GBP
Availability: InStock

Shimano LG500 Linkglide Chain - 10/11-Speed

The Shimano LG500 is the dedicated chain for the Linkglide ecosystem, designed to provide smooth, decisive shifting and incredible longevity. This remains the standard-issue chain for high-torque e-bikes and heavy-duty trekking bikes, offering a more affordable yet highly durable alternative to the premium LG700 series.

The Shimano LG500 chain is the vital link in the Linkglide system. While traditional chains are designed for speed and weight reduction, the LG500 is engineered for mass and surface area to resist the "stretch" and wear caused by the high power output of modern mid-drive motors.

Built for Durability

In testing, Linkglide chains have been shown to be up to 300% more durable than standard Hyperglide chains in high-load scenarios. This is achieved through a specific plate geometry and heat-treatment process that allows the chain to sit deeper and more securely on the thicker teeth of Linkglide cassettes.

THE DETAIL

Linkglide Optimisation: Specifically designed to work with the unique shifting gates of Linkglide cassettes, ensuring the chain doesn't "jump" under heavy pedalling.
E-Bike Rated: Fully tested and approved for use with high-torque systems like the Shimano EP801 and Bosch Performance Line CX.
Smooth Pedalling: The chamfered inner and outer plates reduce friction and noise, resulting in a quieter drivetrain even under significant chain tension.
Versatile Compatibility: While designed for Linkglide, the LG500 is also compatible with standard 11-speed Hyperglide (HG) drivetrains, making it a robust upgrade for riders who find they go through standard 11-speed chains too quickly.

SPECIFICATIONS

Specification	Detail	Notes
Model Number	CN-LG500	The primary 10/11-speed Linkglide chain.
Speed Compatibility	10 / 11-Speed	Compatible with both LG 10 and 11-speed systems.
Series	Linkglide (LG)	Also compatible with 11-speed HG road/MTB.
Connection Type	Quick-Link (CN900-11)	Includes one non-reusable Quick-Link.
Link Count	126L / 138L	138L version is recommended for long-stay e-bikes.
Plate Treatment	Grey Finish	Durable coating to resist corrosion and wear.
Weight	?257g	Based on 114 links; heavier than HG for durability.
Roller Type	Solid Pin	High-strength pins to handle motor torque.
System Compatibility	Linkglide / Hyperglide 11	Note: NOT compatible with 12-speed systems.
Chromatising Treatment	Yes (Link Pin)	Extends the life of the internal pivot points.

Specification	Detail
Model Number	CN-LG500
Speed Compatibility	10 / 11-Speed
Series	Linkglide (LG)
Connection Type	Quick-Link (CN900-11)
Link Count	126L / 138L
Plate Treatment	Grey Finish
Weight	?257g
Roller Type	Solid Pin
System Compatibility	Linkglide / Hyperglide 11
Chromatising Treatment	Yes (Link Pin)

Specification	Notes
Model Number	The primary 10/11-speed Linkglide chain.
Speed Compatibility	Compatible with both LG 10 and 11-speed systems.
Series	Also compatible with 11-speed HG road/MTB.
Connection Type	Includes one non-reusable Quick-Link.
Link Count	138L version is recommended for long-stay e-bikes.
Plate Treatment	Durable coating to resist corrosion and wear.
Weight	Based on 114 links; heavier than HG for durability.
Roller Type	High-strength pins to handle motor torque.
System Compatibility	Note: NOT compatible with 12-speed systems.
Chromatising Treatment	Extends the life of the internal pivot points.
