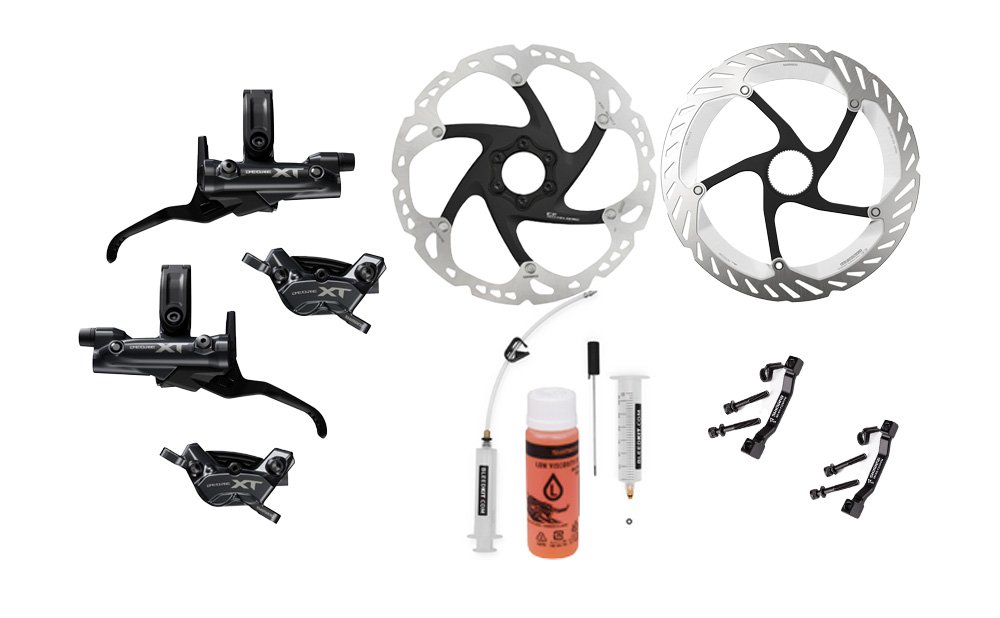

Shimano XT M8200/M8220 Disc Brake Bundle

Name: Shimano XT M8200M8220 Disc Brake Bundle
Brand: Shimano
SKU: M8200BUNDLE
Price: 399 GBP
Availability: InStock

Shimano Deore XT | M8200 Disc Brake Set

The M8200 represents the most significant update to the XT brake platform in years. The focus for 2026 has been consistency and heat management. By redesigning the master cylinder with a second braced contact point against the handlebar, Shimano has eliminated the "flex" experienced during hard braking, leading to a much firmer, more immediate lever feel.

EVO Opinion:

The Shimano Deore XT M8200 disc brake system is the 2026 evolution of the industry-standard XT trail and enduro brake. Building on the legendary performance of the M8100 series, the M8200 generation introduces a refined lever body, updated I-Spec EV ergonomics, and, most importantly, a switch to a new low-viscosity mineral oil that ensures a consistent bite point regardless of temperature or terrain.

The M8200 system is modular, allowing you to pair the new BL-M8200 master cylinder with either the BR-M8220 (4-piston) caliper for heavy-duty gravity and e-MTB use, or the BR-M8200 (2-piston) caliper for lightweight cross-country setups.

Performance Insight: 2-Pot vs. 4-Pot

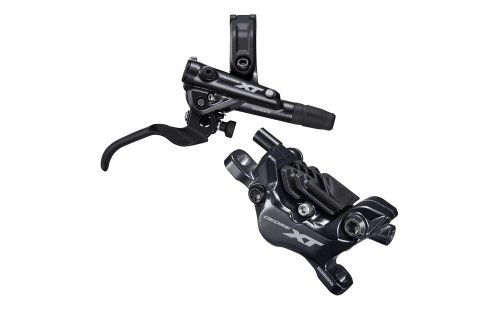

The 4-Piston (BR-M8220): If you are riding an e-MTB (like the Ibis Oso) or racing enduro, this is mandatory. The dual-diameter pistons provide an immense amount of "stopping power" that allows you to brake much later into corners.
The 2-Piston (BR-M8200): If you are building a lightweight XC machine (like the Scott Scale), the 2-piston caliper is significantly lighter. It offers incredible "feel" and modulation, making it easier to avoid locking the wheel on loose gravel or wet roots.
Bleeding: The M8200 series retains Shimano’s "One-Way Bleed" system, which remains the easiest in the industry. Ensure you use the specific Shimano Low Viscosity Oil funnel; do not use standard red mineral oil, as it is too thick for the refined ports in the M8200 master cylinder

CHOOSE OPTIONS

Select 4-Pot or 2-Pot Caliper

£0.00

Select Front Rotor Required

£0.00

Select Rear Rotor Required

£0.00

Select Front Brake Mounta Adapter if needed

£0.00

Select Rear Braje Mounta Adapter if needed

£0.00

Select Bleed Kit and/or Oil If needed

£0.00

was £539.95

Available to order

£399.00

ADD TO ORDER

e: / t: 01323 737320

click here to see finance examples or £31.78 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	12
Purchase Cost	£399.00
APR	11.90%
Deposit %	10.03%
Deposit amount	£40.00
Loan amount	£359.00
Pay per month	£31.78
Total payable	£421.36

THE DETAIL

Modular Caliper Options: You can mix and match. Pair the BL-M8200 lever with the BR-M8220 (4-piston) for enduro/trail dominance, or the BR-M8200 (2-piston) for a weight-saving XC configuration.
I-Spec EV Integration: The new clamp offers broader rotational adjustment, allowing you to position your shifters or dropper remotes perfectly relative to your brake levers.
Tool-Free Reach Adjust: Maintains the classic XT feature of adjusting your lever reach on the fly without needing an Allen key.
Low-Viscosity Mineral Oil: The move to new low-viscosity oil is the "secret sauce" for 2026. It drastically improves fluid flow in extreme cold and ensures that the pad contact point remains rock-solid, even on massive, sustained descents where heat build-up would typically cause lever fade.
Refined Servo-Wave Ergonomics: The new lever shape is designed to follow a more natural finger arc. The updated Servo-Wave mechanism engages the pads faster, providing a powerful initial bite while maintaining the trademark XT modulation that allows you to feather the brakes through technical rock gardens.
Anti-Rattle Calipers: The new calipers feature updated pad spring designs and ovalized mounts to eliminate the "clatter" or rattle that plagued some previous-generation XT brakes when riding over high-frequency chatter.
RT-CL800 (Center Lock): The gold standard for modern wheelsets. The "Freeza" technology in this rotor is excellent for heat dissipation. It uses an internal lockring design, making it compatible with standard thru-axle tools.
SM-RT86 (6-Bolt): The classic 6-bolt choice. These feature a distinct, wide braking surface and reliable hardware, making them the preferred choice for riders who swap wheels frequently or prefer the simplicity of 6-bolt mounting.
RT-CL800: If you are building a modern bike with Center Lock wheels (like the Reserve 34/37), use this. It is lighter and the "Freeza" fins help significantly with cooling.
SM-RT86: If you are using standard 6-bolt hubs or simply prefer the aesthetic and mechanical simplicity of 6-bolt rotors, this remains the most reliable option on the market.

SPECIFICATIONS

Specification	Detail	Notes
Brake System	Deore XT BL-M8200 / BR-M8220/8200	2 or 4-piston options.
Rotor Interface (Option A)	RT-CL800 (Center Lock)	Recommended for modern wheels.
Rotor Interface (Option B)	SM-RT86 (6-Bolt)	Recommended for versatility.
Rotor Sizes	160mm / 180mm / 203mm / 220mm	Always check frame/fork max clearance.
Adapter (Standard)	Shimano SM-MA Series	Use "Post-to-Post" adapters.
Common Adapter Codes	SM-MA-F180P/P2	e.g., 160mm mount to 180mm rotor.
Oil Requirement	Low Viscosity Mineral Oil Only	Critical: Do not use older red oil.
Pad Compatibility	Ice-Tech Fin (J-Type) / Standard	New anti-rattle spring design.

Specification	Detail
Brake System	Deore XT BL-M8200 / BR-M8220/8200
Rotor Interface (Option A)	RT-CL800 (Center Lock)
Rotor Interface (Option B)	SM-RT86 (6-Bolt)
Rotor Sizes	160mm / 180mm / 203mm / 220mm
Adapter (Standard)	Shimano SM-MA Series
Common Adapter Codes	SM-MA-F180P/P2
Oil Requirement	Low Viscosity Mineral Oil Only
Pad Compatibility	Ice-Tech Fin (J-Type) / Standard

Specification	Notes
Brake System	2 or 4-piston options.
Rotor Interface (Option A)	Recommended for modern wheels.
Rotor Interface (Option B)	Recommended for versatility.
Rotor Sizes	Always check frame/fork max clearance.
Adapter (Standard)	Use "Post-to-Post" adapters.
Common Adapter Codes	e.g., 160mm mount to 180mm rotor.
Oil Requirement	Critical: Do not use older red oil.
Pad Compatibility	New anti-rattle spring design.
