Bike Parts / Brakes GO BACK

Sram Maven Base Disc Brake Bundle

Name: Sram Maven Base Disc Brake Bundle
Brand: Sram
SKU: SramMavenBaseBundle
Price: 289 GBP
Availability: OutofStock

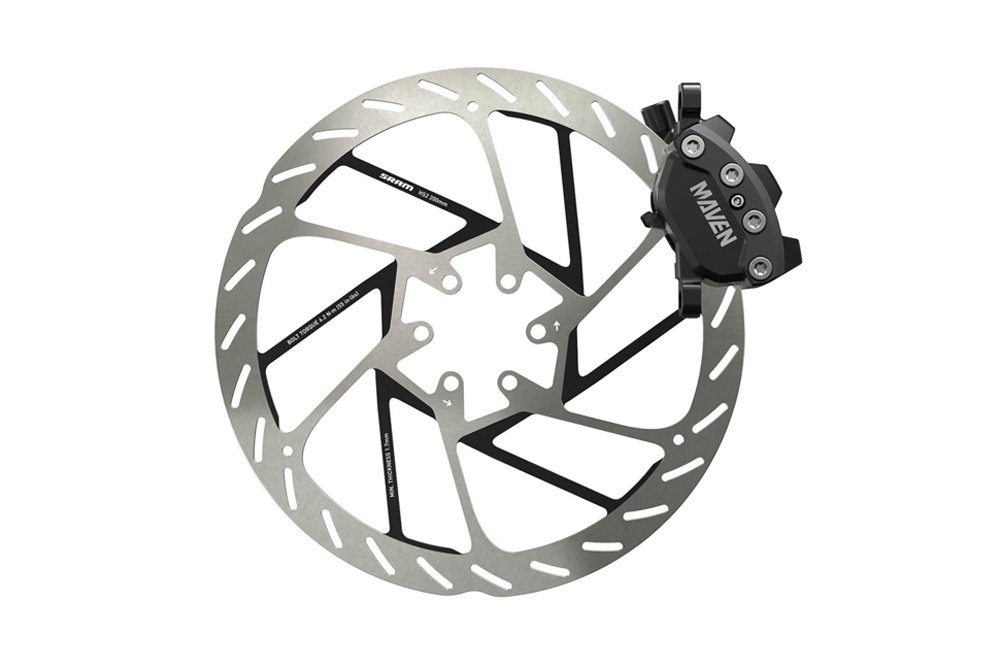

SRAM Maven Base Disc Brake Bundle with HS2 Rotor Option

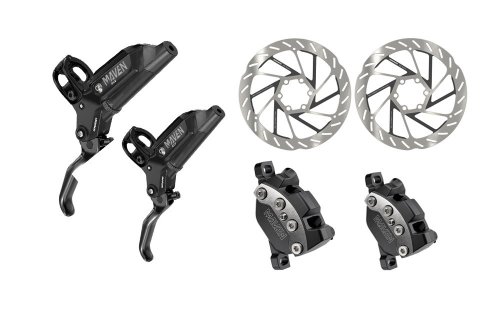

The SRAM Maven Base Front & Rear Brake Bundle provides everything you need to upgrade to the most powerful and consistent braking system SRAM has ever produced. This kit includes two complete Maven Base brake units (front and rear specific), delivering incredible control and heat management for the most demanding gravity riding.

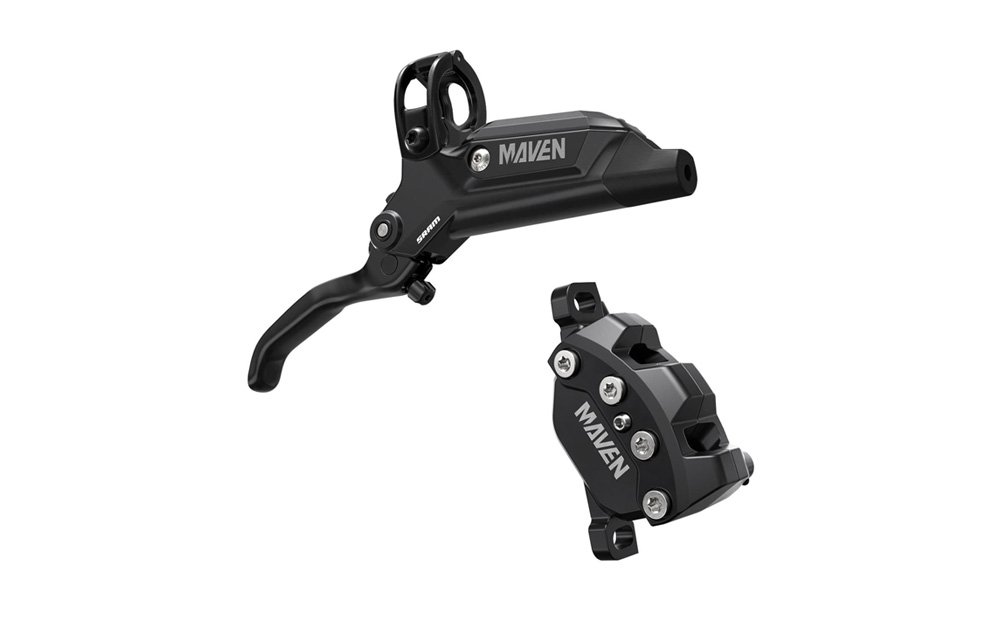

The core of the system is the stiff 4-piston calliper with its superior heat management, paired with the new low-maintenance Mineral Oil fluid system. The Stealth lever architecture and Tool-Free Reach Adjust offer an ultra-clean cockpit setup and on-the-fly customisation.

Optional Extras for a Complete Upgrade:

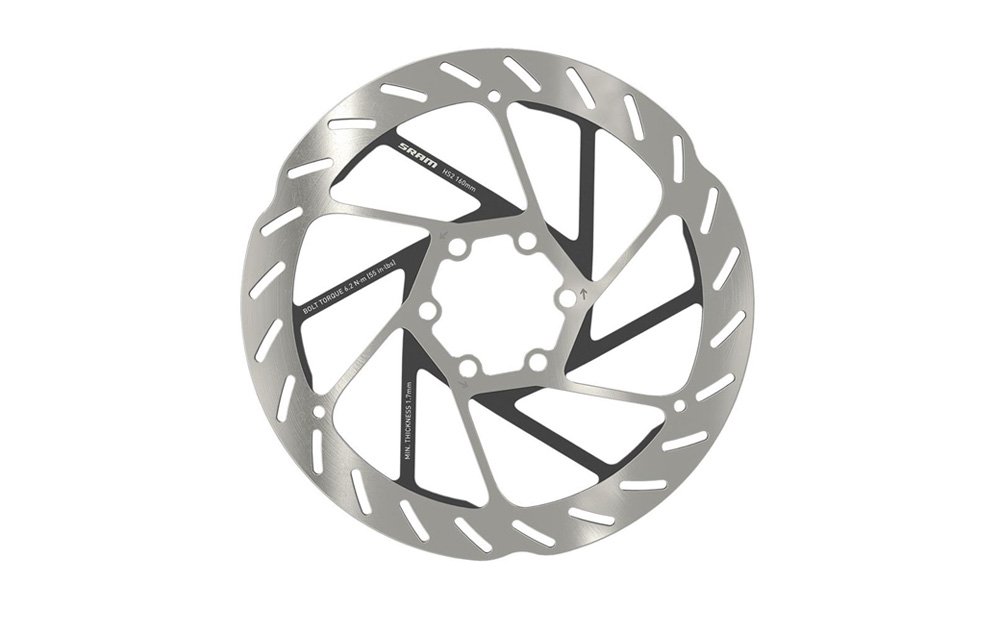

SRAM HS2 Rotors: We highly recommend upgrading to the SRAM HS2 rotor. The HS2 is thicker (2.0mm) and features an all-new brake track with recesses for enhanced heat dissipation. This rotor delivers up to 7% more power and 50% better heat management than previous models, making it the perfect partner for the high-power Maven calliper.

Brake Mounts: Select the correct size Post Mount (PM) adaptors for your frame and fork to ensure you can run the large rotor sizes (e.g., 200mm, 220mm) for which the Maven system is designed.

CHOOSE OPTIONS

Front Rotor

£0.00

Rear Rotor

£0.00

Rear Brake Mount Adapter

£0.00

Front Brake Mount Adapter

£0.00

was £360.00

Out of stock

£289.00

e: / t: 01323 737320

click here to see finance examples or £23.01 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	12
Purchase Cost	£289.00
APR	11.90%
Deposit %	10.03%
Deposit amount	£29.00
Loan amount	£260.00
Pay per month	£23.01
Total payable	£305.12

THE DETAIL

Complete System: Includes both front and rear Maven Base brake assemblies, ready for installation (hoses supplied pre-bled).

Maximised Power: Utilises the massive braking force generated by the 4-piston callipers for total control.

Seamless Integration: Each lever includes a MatchMaker™ X (MMX) clamp for a single-clamp setup with shifters and dropper remotes.

Optional HS2 Rotor Upgrade: Enhance performance further with SRAM’s thick, heat-shedding HS2 rotors.

Low Maintenance: The Mineral Oil system provides long service intervals and consistent performance.

SPECIFICATIONS

Specification	Detail	Notes
Bundle Contents	1x Front Maven Base Brake, 1x Rear Maven Base Brake	Supplied with organic pads, MMX clamps, and olives/barbs.
Application	Enduro, DH, E-MTB, Gravity	Full gravity setup.
Brake Fluid	Mineral Oil (Maxima Mineral Brake Oil)	Low maintenance and superior heat stability.
Caliper	Forged Aluminium, 4-Piston	Oversized pistons (18mm & 19.5mm) for maximum power.
Lever Adjustments	Tool-Free Reach Adjust	No tools required for lever position fine-tuning.
Hose Routing	Stealth Lever Exit	Clean aesthetics and bar integration.

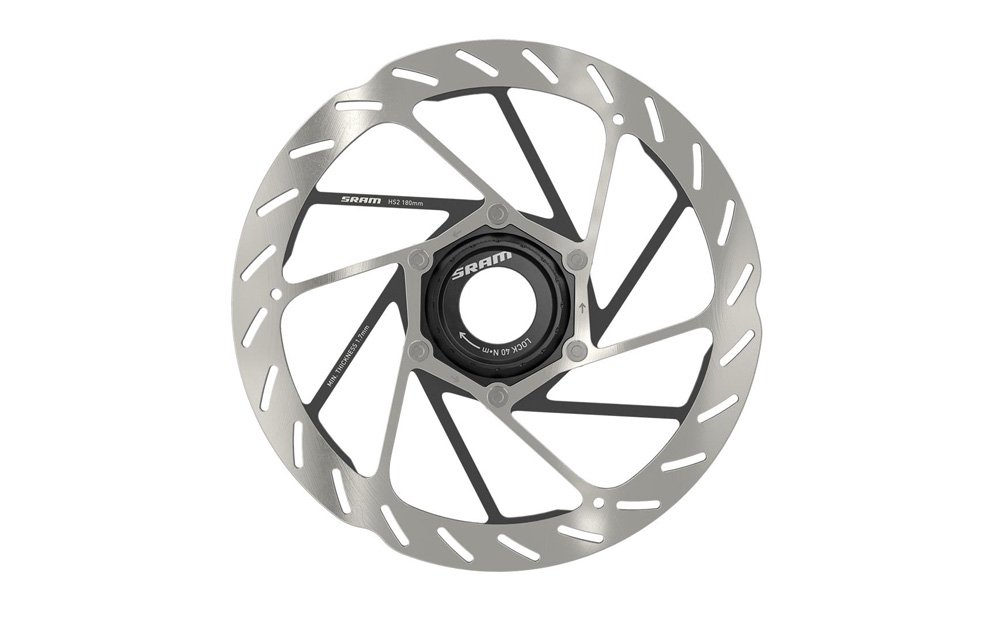

Rotors (Optional Add-On)	SRAM HS2 Rotor (6-Bolt or Center Lock)	Highly Recommended: 2.0mm thick for improved power and heat management.
Rotor Sizes (Common)	200mm, 220mm (Recommended)	The Maven system performs best with larger diameter rotors.
Brake Mounts (Optional Add-On)	SRAM Post Mount Adaptors	Required to match your rotor choice to your frame/fork. Consult a sizing guide for specific bike requirements.
Compatibility	9/16" standard threaded mount	Standard for most modern MTB cranks.
Finish	Blast Black Anodised	Uniform look for the entire brake system.

Specification	Detail
Bundle Contents	1x Front Maven Base Brake, 1x Rear Maven Base Brake
Application	Enduro, DH, E-MTB, Gravity
Brake Fluid	Mineral Oil (Maxima Mineral Brake Oil)
Caliper	Forged Aluminium, 4-Piston
Lever Adjustments	Tool-Free Reach Adjust
Hose Routing	Stealth Lever Exit
Rotors (Optional Add-On)	SRAM HS2 Rotor (6-Bolt or Center Lock)
Rotor Sizes (Common)	200mm, 220mm (Recommended)
Brake Mounts (Optional Add-On)	SRAM Post Mount Adaptors
Compatibility	9/16" standard threaded mount
Finish	Blast Black Anodised

Specification	Notes
Bundle Contents	Supplied with organic pads, MMX clamps, and olives/barbs.
Application	Full gravity setup.
Brake Fluid	Low maintenance and superior heat stability.
Caliper	Oversized pistons (18mm & 19.5mm) for maximum power.
Lever Adjustments	No tools required for lever position fine-tuning.
Hose Routing	Clean aesthetics and bar integration.
Rotors (Optional Add-On)	Highly Recommended: 2.0mm thick for improved power and heat management.
Rotor Sizes (Common)	The Maven system performs best with larger diameter rotors.
Brake Mounts (Optional Add-On)	Required to match your rotor choice to your frame/fork. Consult a sizing guide for specific bike requirements.
Compatibility	Standard for most modern MTB cranks.
Finish	Uniform look for the entire brake system.
