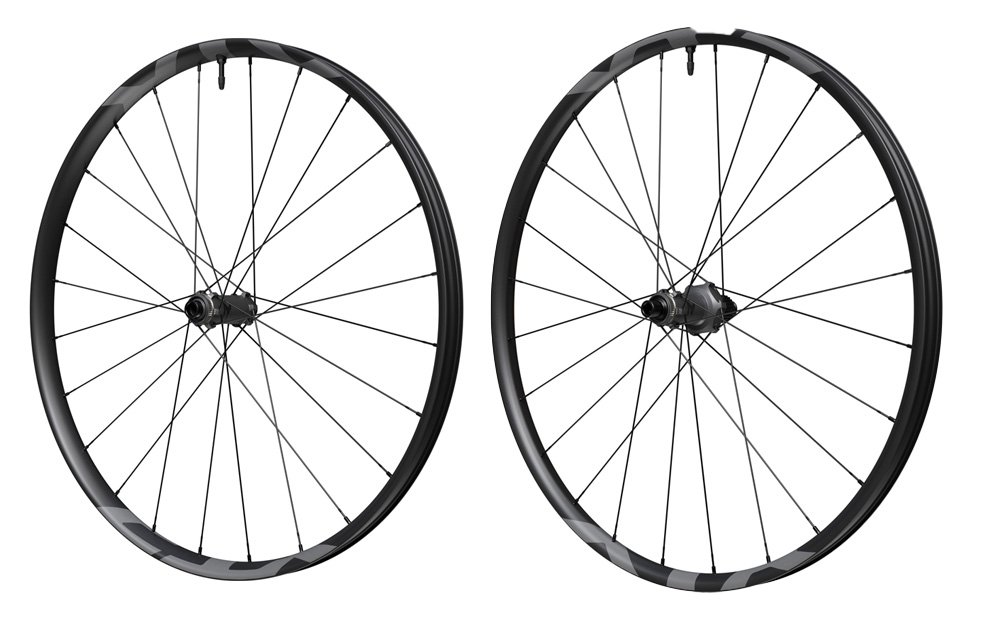

XTR M9200 29er XTR XC Carbon wheels

Name: XTR M9200 29er XTR XC Carbon wheels
Brand: Shimano
SKU: EWHM9200LFEBD9Xz
Price: 749.00 GBP
Availability: LimitedAvailability

Conquer the XC Course with Shimano XTR WH-M9200 Carbon Race Wheels

Engineered to meet the most demanding pro criteria, the Shimano XTR WH-M9200 Carbon XC Race Wheels are the ultimate choice for cross-country racers seeking a decisive edge. These 29-inch wheels combine lightweight design with exceptional strength and durability, delivering instant power transfer and precise handling on every trail.

Built for the rigours of competitive XC, the WH-M9200 wheels feature advanced carbon technology and meticulous construction, ensuring a responsive and reliable ride when every second counts.

The Shimano XTR WH-M9200 Carbon XC Race Wheels are engineered for victory, providing the strength, speed, and reliability that professional and aspiring XC racers demand.

CHOOSE COLOUR

Front

Rear

Pair

Price range (select options)

£749 - £1,499

e: / t: 01323 737320

THE DETAIL

Key Features of the Shimano XTR WH-M9200 Carbon XC Race Wheels:

Ultra-Lightweight XC Race Design: Precision-engineered to be incredibly light, providing a significant climbing efficiency and overall acceleration advantage for competitive cross-country racing.

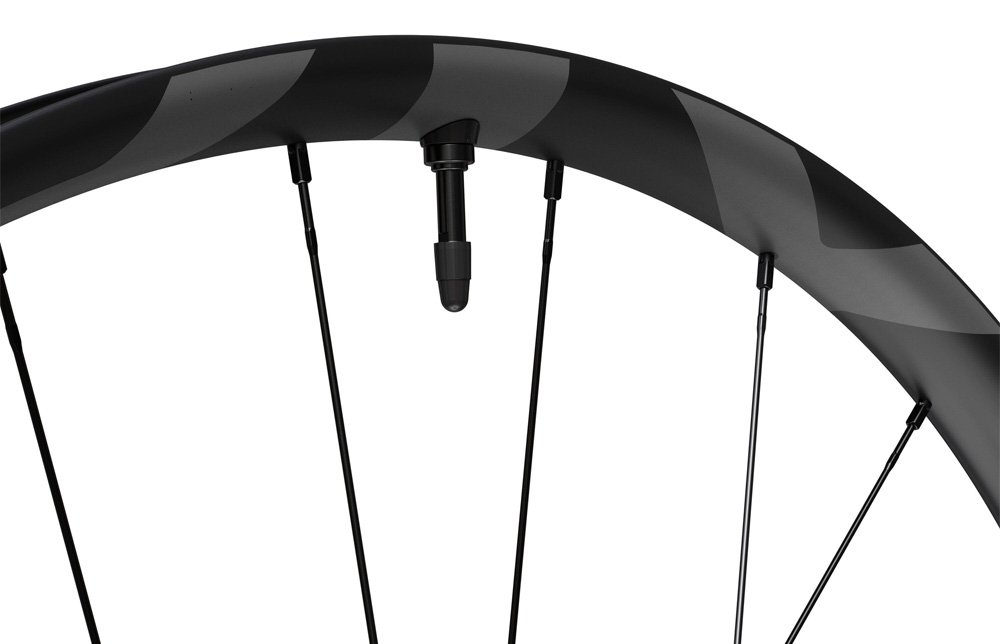

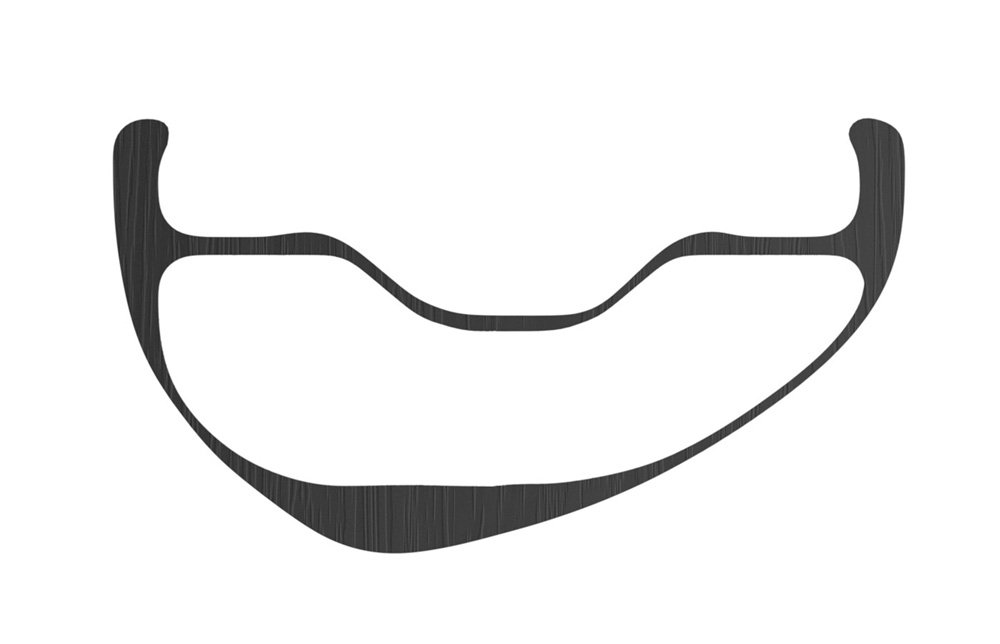

Durable Carbon Rims: Features strong and durable hooked carbon rims with a 29.6mm internal width, optimised for modern XC tires and fully tubeless compatible for enhanced grip and puncture resistance.

Responsive Power Transfer: The rear wheel boasts an alloy 12-speed MICRO SPLINE freehub body with quick 3.5-degree pawl engagement, ensuring instant power delivery from every pedal stroke.

24 Titanium Spokes: Both front and rear wheels have 24 titanium spokes, which offer an exceptional strength-to-weight ratio and reliable performance under race conditions.

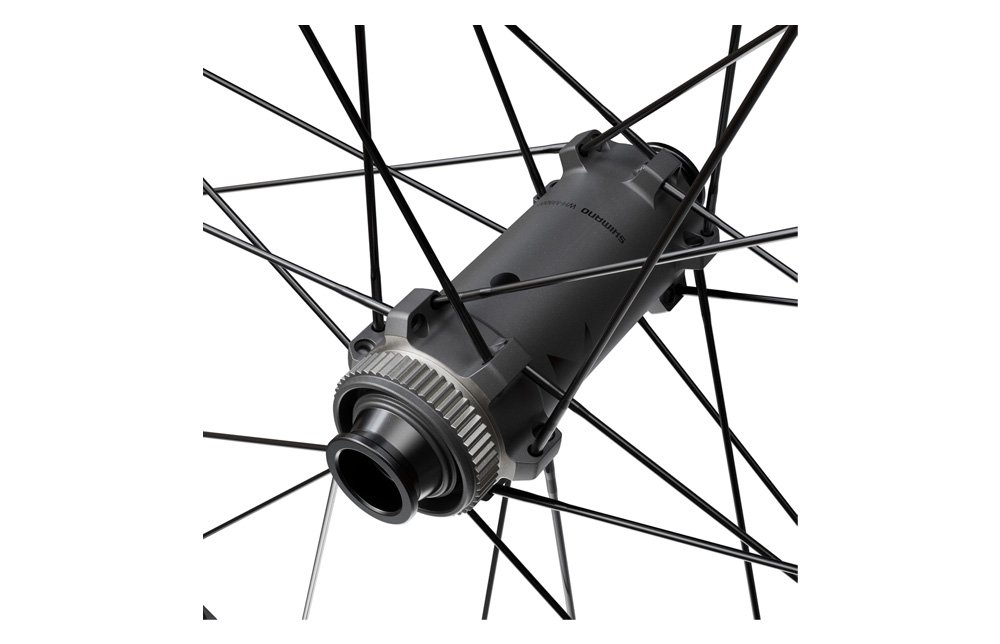

Smooth & Durable Hubs: These hubs are equipped with stainless steel cartridge bearings featuring pre-load adjustment for optimized sealing and easy maintenance. Wide bearing placement enhances lateral rigidity, improving strength and longevity.

Robust & Elegant Hub Shells: Forged and anodised alloy hub shells provide maximum strength, durability, and a long-lasting premium aesthetic.

Easy Centre-Lock Disc Mount: The efficient Centre-Lock Disc Rotor mounting system is designed for quick and secure rotor installation and removal.

Boost Thru-Axle Compatibility: Designed for modern mountain bikes, the rear wheel is compatible with 148 x 12 mm dropouts, and the front with 110 x 15 mm dropouts, ensuring robust stiffness and precise tracking.

12-Speed HYPERGLIDE+ Ready: The rear wheel is optimised for seamless integration with 12-speed HYPERGLIDE+ cassette sprockets, ensuring smooth and fast shifting.

SPECIFICATIONS

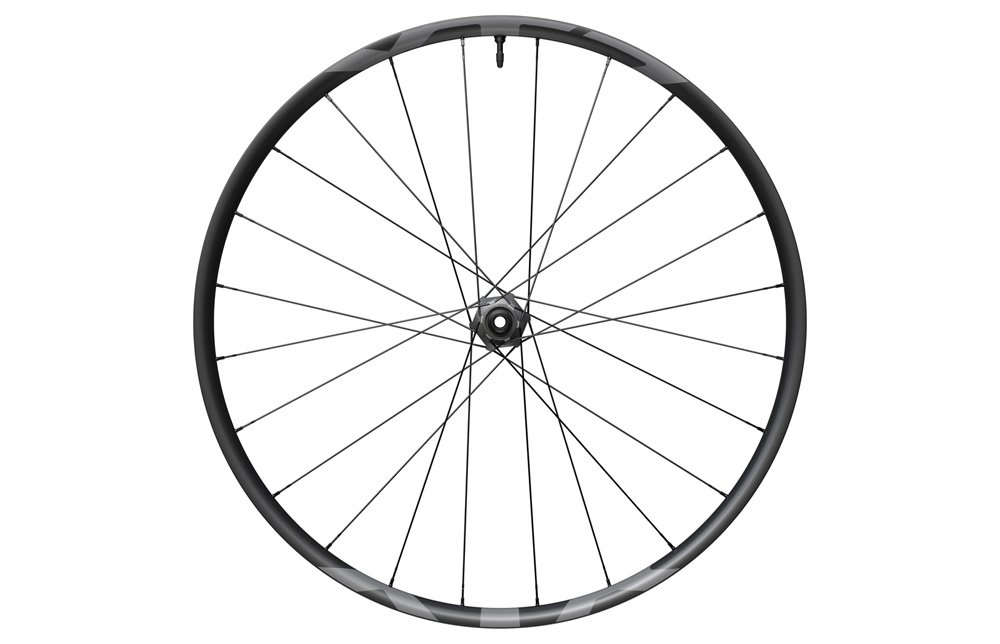

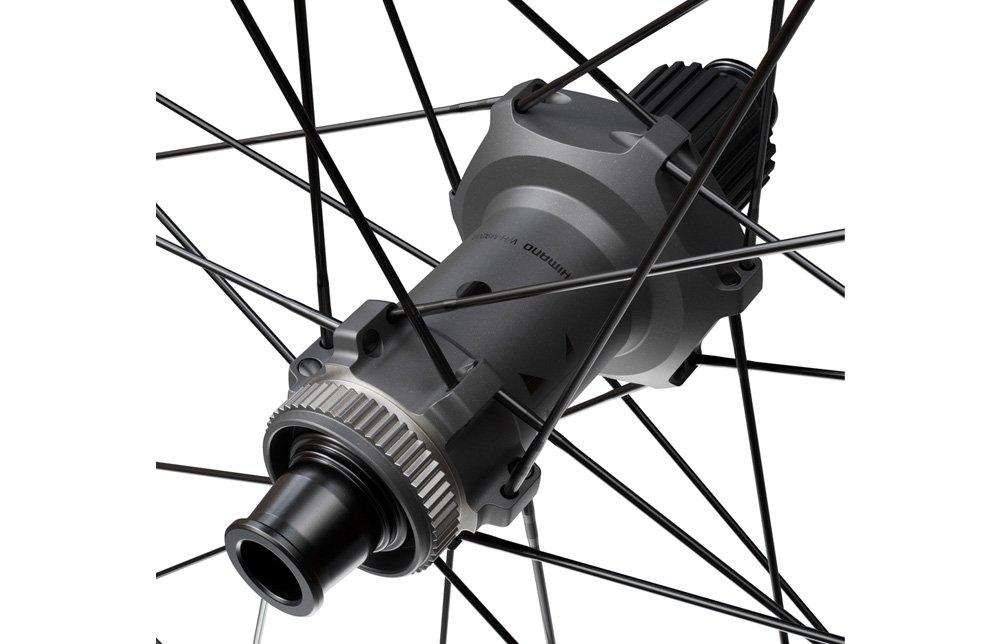

Rear Wheel:

24 titanium spokes
Alloy 12-speed MICRO SPLINE freehub body with quick pawl engagement (3.5 deg)
Stainless steel cartridge bearing with pre-load adjust
Forged then anodised alloy hub shell for maximum strength and long-lasting good looks
Easy to use Centre-Lock Disc Rotor mount
Aluminium axle
For 148 x 12 mm dropouts
For use with 12-speed HYPERGLIDE+ cassette sprockets
Product Type   Rear Wheels
Discipline   MTB
Colour   Black
Axle Type   Bolt Thru 12mm
Brake Type Centre Lock
Freehub   Shimano Micro Spline
Hub Width   148mm
Rim Depth   <25mm
Rim Type   Carbon Clincher
Rim Width   26 - 35mm
Wheel Diameter   29 inches

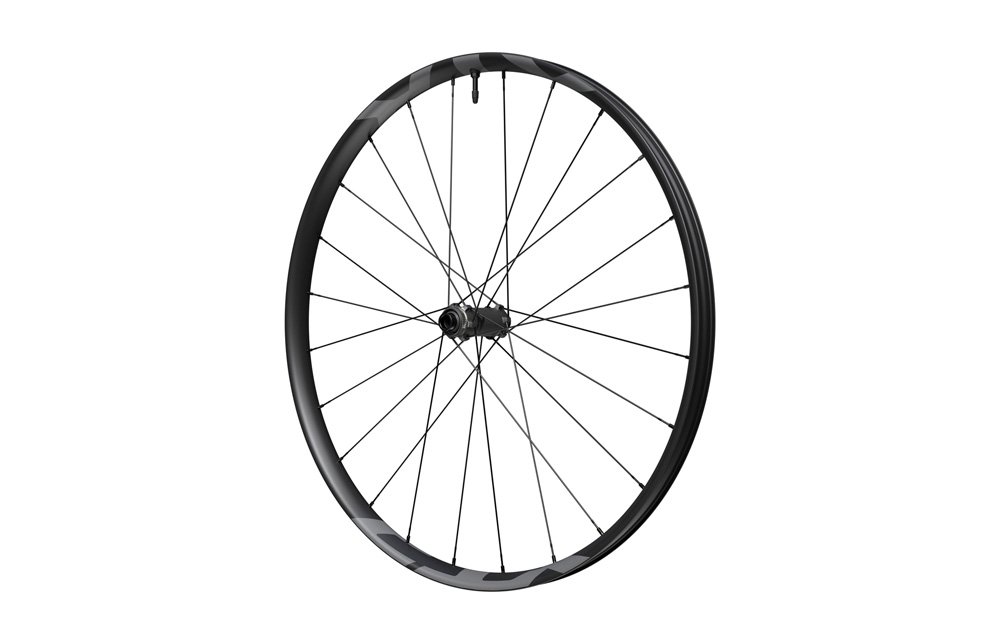

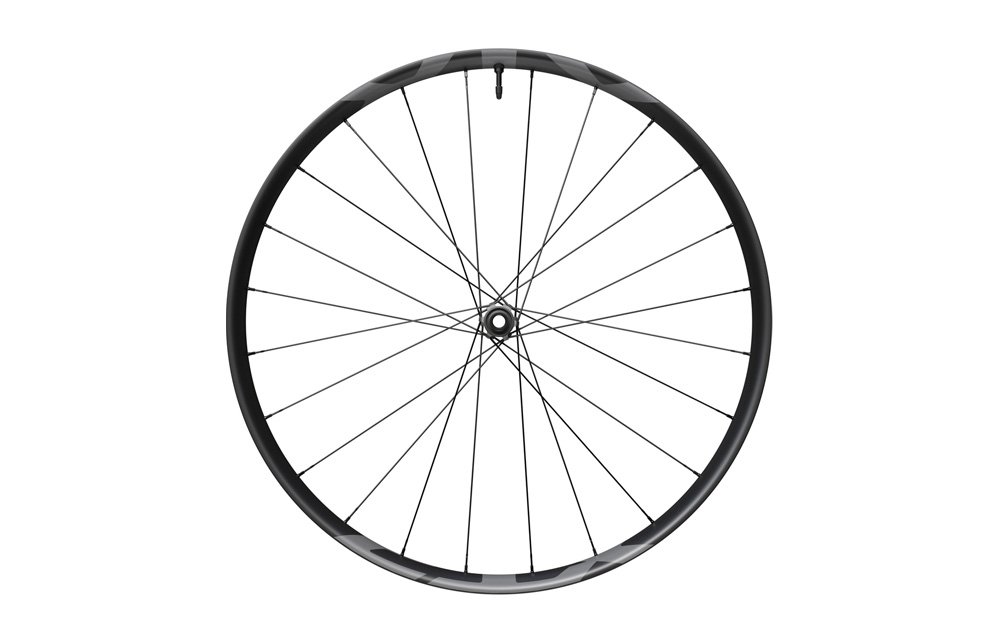

Front:

24 titanium spokes
Stainless steel cartridge bearing with pre-load adjust
Forged then anodised alloy hub shell for maximum strength and long-lasting good looks
Easy to use Centre-Lock Disc Rotor mount
Aluminium axle
For 110 x 15 mm dropouts
Product Type   Front Wheels
Discipline   MTB
Colour   Black
Axle Type   Bolt Thru 15mm
Brake Type Centre Lock
Hub Width   110mm
Rim Depth   <25mm
Rim Type   Carbon Clincher
Rim Width   26 - 35mm
Wheel Diameter   29 inches
