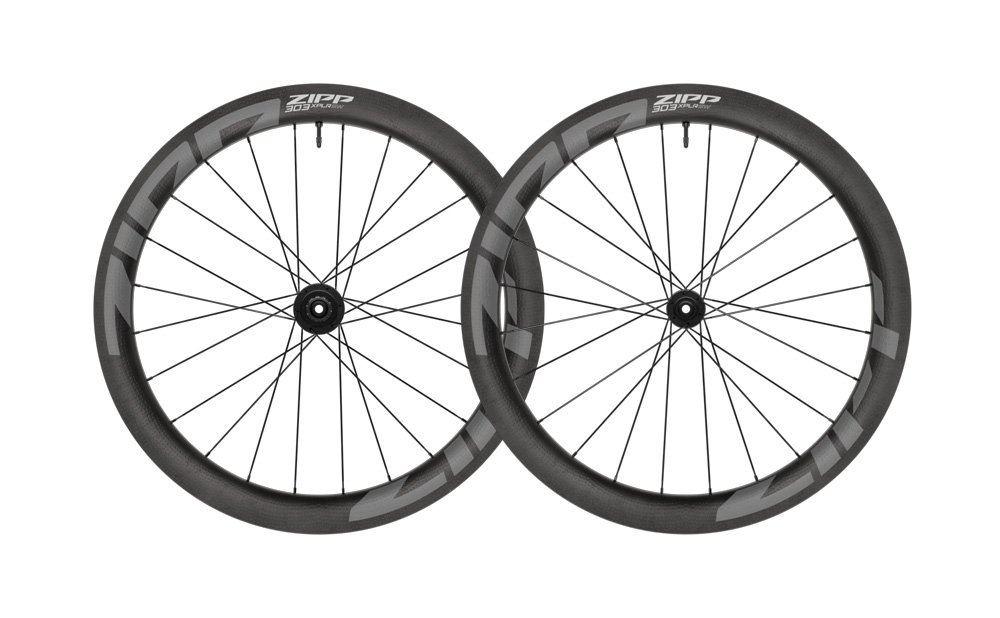

Zipp 303 XPLR SW Carbon Wheelset

Name: Zipp 303 XPLR SW Carbon Wheelset
Brand: Zipp
SKU: ZPWS303XPLRSWSz
Price: 1339.00 GBP
Availability: LimitedAvailability

The Zipp 303 XPLR SW is the flagship version of Zipp's ultra-wide gravel racing line. While the "S" model focuses on value, the SW represents the "Super-Wide" performance pinnacle, featuring an advanced carbon layup, Zipp's signature aerodynamic dimpling, and premium German-engineered hubs.

It is designed with a singular mission: to be the fastest gravel wheel in the world by aerodynamically integrating a 40mm–45mm tyre into a massive 32mm internal rim profile.

The 303 XPLR SW is built around Zipp's Total System Efficiency (TSE). By using a rim that is nearly as wide as the tyre itself, Zipp has effectively created a "combined airfoil" that maintains airflow attachment far longer than traditional gravel rims. The SW version adds several key performance layers that distinguish it from the standard "S" model

CHOOSE COLOUR

Shimano HG

Sram XDr

was £1,600.00

Price (select options)

£1,339.00

e: / t: 01323 737320

click here to see finance examples or £54.30 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

25%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	12	24
Purchase Cost	£1,339.00	£1,339.00
APR	0.00%	7.90%
Deposit %	10.01%	10.01%
Deposit amount	£134.00	£134.00
Loan amount	£1,205.00	£1,205.00
Pay per month	£100.42	£54.30
Total payable	£1,339.04	£1,437.20

THE DETAIL

ABLC Dimpling: The SW rim features Zipp’s iconic Sawtooth/ABLC dimples. These micro-depressions create a thin, turbulent boundary layer of air that allows the airflow to remain "stuck" to the rim, significantly reducing aerodynamic drag in real-world wind conditions.
ZR1 Hubset: Engineered in Germany, these hubs feature a 6-pawl leaf spring design that provides 66 points of engagement (5.45-degree). This near-instant pick-up is a major upgrade for technical gravel climbs and sprinting out of tight corners.
Sapim CX-Ray Spokes: To save weight and add a touch more compliance, the SW build uses the industry-leading CX-Ray bladed spokes, paired with aluminium nipples to keep the rotational weight at an absolute minimum.
Optimised for High Volume: The 32mm internal width is designed specifically for tyres between 40mm and 60mm. This wide stance provides massive lateral support, allowing you to run pressures as low as 20psi--25psi without the tyre rolling off the rim.
Hookless Tech: Designed strictly for Tubeless-Ready (TLR) tyres. Always check Zipp's official compatibility list (e.g., Zipp/Goodyear XPLR, Schwalbe G-One RS, etc.).
Featherweight Aero: Despite the massive 54mm depth and 40mm external width, the wheelset weighs just 1,452g.
Unmatched Stability: The deep section is surprisingly resistant to crosswinds thanks to its rounded profile, making it a "fit-and-forget" wheel for all weather.
Lifetime Warranty: Zipp offers a full lifetime warranty for the original owner, covering impact damage during normal gravel use.

SPECIFICATIONS

Specification	Detail	Notes
Rim Material	Advanced Carbon Fibre	Features ABLC dimpled aero finish.
Internal Width	32mm	Minimum 40mm tyre required.
Rim Depth	54mm	Deepest gravel-specific racing profile.
External Width	40mm	Creates a seamless aero transition.
Wheelset Weight	1,452g	Verified weight (XDR freehub/tape included).
Hub Type	Zipp ZR1 Disc	Stainless steel bearings; 5.45? engagement.
Spoke Count	24 Front / 24 Rear	Sapim CX-Ray (2-cross lacing).
Max Tyre Pressure	50psi�/�3.45bar	Strictly for low-pressure gravel setups.
Max System Weight	130kg	Suitable for racing and light bikepacking.

Specification	Detail
Rim Material	Advanced Carbon Fibre
Internal Width	32mm
Rim Depth	54mm
External Width	40mm
Wheelset Weight	1,452g
Hub Type	Zipp ZR1 Disc
Spoke Count	24 Front / 24 Rear
Max Tyre Pressure	50psi�/�3.45bar
Max System Weight	130kg

Specification	Notes
Rim Material	Features ABLC dimpled aero finish.
Internal Width	Minimum 40mm tyre required.
Rim Depth	Deepest gravel-specific racing profile.
External Width	Creates a seamless aero transition.
Wheelset Weight	Verified weight (XDR freehub/tape included).
Hub Type	Stainless steel bearings; 5.45? engagement.
Spoke Count	Sapim CX-Ray (2-cross lacing).
Max Tyre Pressure	Strictly for low-pressure gravel setups.
Max System Weight	Suitable for racing and light bikepacking.
