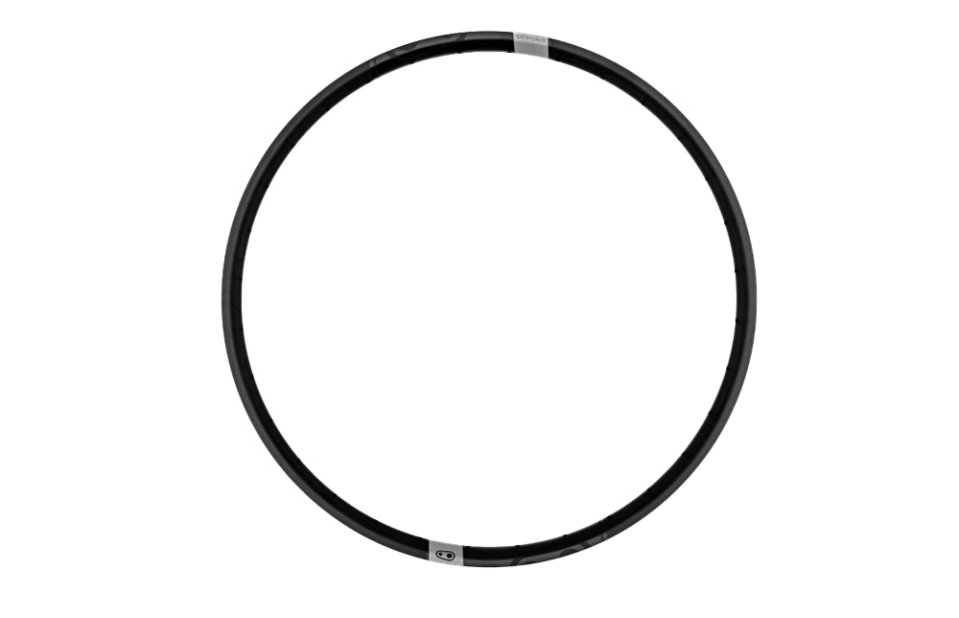

CrankBrothers Synthesis Alloy Enduro Rim V1

Name: CrankBrothers Synthesis Alloy Enduro Rim V1
Brand: Crankbrothers
SKU: CRB-16541z
Price: 99.00 GBP
Availability: InStock

Crankbrothers Synthesis Enduro Alloy Rim - Tuned Front and Rear Specific

The Crankbrothers Synthesis Enduro Alloy Rim brings the revolutionary Tuned Wheel System concept to a durable, high-value aluminium package, available separately for custom wheel builds.

The design acknowledges that the front and rear wheels perform fundamentally different jobs on the trail, and tunes each rim accordingly to enhance performance, control, and durability.

The Front Rim (Compliant): The front rim is engineered for compliance, maximising grip and steering control. It features a wider 30mm internal width (IW) to support the tyre better, increasing air volume and contact patch, and rounding the tyre profile for enhanced turning performance. The rim is designed to work with a lower spoke count (28H) and lower tension to improve comfort and control in the turns.

The Rear Rim (Stiff): The rear rim is tuned for stiffness and durability to withstand peak loads, hard landings, and impacts. It uses a slightly narrower 28.5mm internal width (IW), which provides better rolling resistance and sharpens the tyre edge for improved drive-train grip. It is designed to pair with a higher spoke count (32H) and higher tension for optimal stability and tracking at speed.

Both rims are constructed from premium, shot-peened Aluminium Alloy for significantly higher tensile strength and resistance to cracks and deformation than standard alloys.

The rims feature a welded joint for superior strength and are fully Tubeless Ready.

CHOOSE SIZE & COLOUR

29"

Front

Rear

27.5"

Front (out of stock)

Rear

was £114.99

Price range (select options)

£99 - £102

e: / t: 01323 737320

THE DETAIL

Tuned Front/Rear Concept: Different widths, profiles, and recommended spoke counts/tensions optimise performance for each end of the bike.

High-Grade Alloy: Constructed from premium Aluminium, offering enhanced resistance to dents, cracks, and deformation.

Front Grip: 30mm inner width on the front rim enhances tyre volume, contact patch, and cornering grip.

Rear Stability: 28.5mm inner width on the rear rim enhances stability and tracking under load.Enduro Ready: 20mm rim height and reinforced geometry built to withstand the rigours of aggressive trail and Enduro riding.Warranty:

SPECIFICATIONS

Specification	Front Rim (Compliant)	Rear Rim (Stiff)	Notes
Rim Material	6069 Aluminium Alloy	6069 Aluminium Alloy	Shot-peened finish for increased surface strength and durability.
Intended Use	Enduro / All-Mountain	Enduro / All-Mountain	Optimised for the unique demands of each wheel.
Inner Rim Width	30mm	28.5mm	Wider front for grip; narrower rear for stability/rolling resistance.
Outer Rim Width	?35mm	?33.5mm	Reflects the difference in internal width and wall thickness.
Rim Height/Depth	20mm	20mm	Shallow profile enhances vertical compliance.
Tyre Compatibility	Tubeless Ready (Clincher)	Tubeless Ready (Clincher)	Valve and tape required for tubeless setup.
Joint Type	Welded and Sleeved	Welded and Sleeved	Maximises structural integrity.
Spoke Hole Count	28 Hole (H)	32 Hole (H)	Lower spoke count on the front for compliance; higher on the rear for stiffness.
Size Options	27.5in (ETRTO 584mm), 29in (ETRTO 622mm)	27.5in (ETRTO 584mm), 29in (ETRTO 622mm)	Available for both wheel sizes.
Weight (Approx. 29in)	?572g	?573g	Weights are very similar despite differing profiles and hole counts.
Effective Rim Diameter (ERD)	596mm (29in) / 558mm (27.5in)	596mm (29in) / 558mm (27.5in)	Critical measurement for calculating spoke lengths.

Specification	Front Rim (Compliant)
Rim Material	6069 Aluminium Alloy
Intended Use	Enduro / All-Mountain
Inner Rim Width	30mm
Outer Rim Width	?35mm
Rim Height/Depth	20mm
Tyre Compatibility	Tubeless Ready (Clincher)
Joint Type	Welded and Sleeved
Spoke Hole Count	28 Hole (H)
Size Options	27.5in (ETRTO 584mm), 29in (ETRTO 622mm)
Weight (Approx. 29in)	?572g
Effective Rim Diameter (ERD)	596mm (29in) / 558mm (27.5in)

Specification	Rear Rim (Stiff)
Rim Material	6069 Aluminium Alloy
Intended Use	Enduro / All-Mountain
Inner Rim Width	28.5mm
Outer Rim Width	?33.5mm
Rim Height/Depth	20mm
Tyre Compatibility	Tubeless Ready (Clincher)
Joint Type	Welded and Sleeved
Spoke Hole Count	32 Hole (H)
Size Options	27.5in (ETRTO 584mm), 29in (ETRTO 622mm)
Weight (Approx. 29in)	?573g
Effective Rim Diameter (ERD)	596mm (29in) / 558mm (27.5in)

Specification	Notes
Rim Material	Shot-peened finish for increased surface strength and durability.
Intended Use	Optimised for the unique demands of each wheel.
Inner Rim Width	Wider front for grip; narrower rear for stability/rolling resistance.
Outer Rim Width	Reflects the difference in internal width and wall thickness.
Rim Height/Depth	Shallow profile enhances vertical compliance.
Tyre Compatibility	Valve and tape required for tubeless setup.
Joint Type	Maximises structural integrity.
Spoke Hole Count	Lower spoke count on the front for compliance; higher on the rear for stiffness.
Size Options	Available for both wheel sizes.
Weight (Approx. 29in)	Weights are very similar despite differing profiles and hole counts.
Effective Rim Diameter (ERD)	Critical measurement for calculating spoke lengths.
