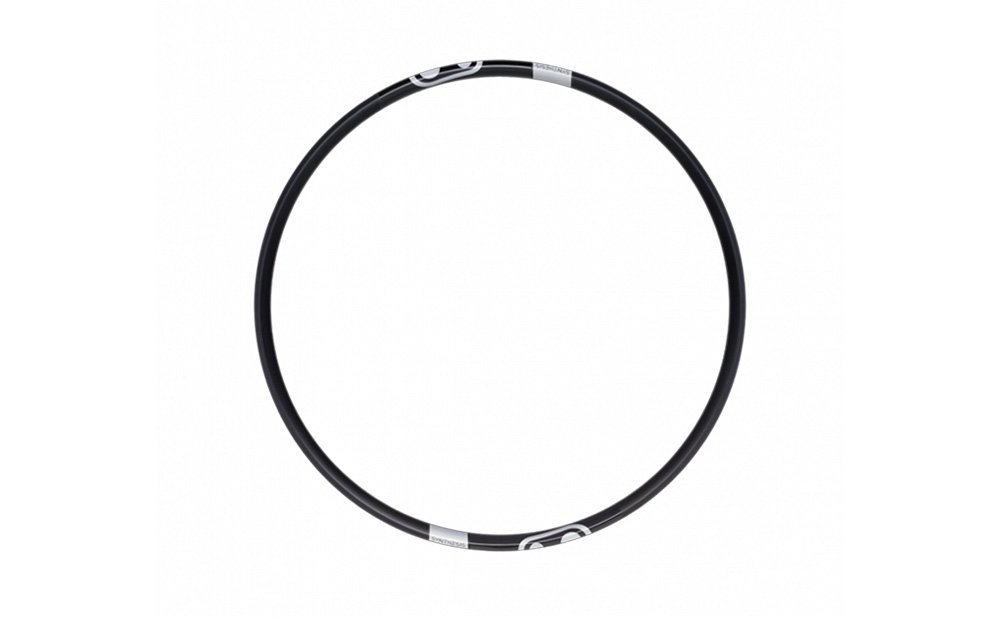

CrankBrothers Synthesis Enduro Alloy 2.0 Rim

CrankBrothers Synthesis Enduro Alloy 2.0 Rim

Crankbrothers Synthesis Enduro Alloy 2.0 Rim - Tuned Front and Rear Specific

Crankbrothers Synthesis Enduro Alloy 2.0 Rim - 6069 Aluminium, Lifetime Warranty, 30mm Front / 28.5mm Rear

The Crankbrothers Synthesis Enduro Alloy 2.0 Rim represents the next generation of their unique, performance-oriented alloy wheels. This 2.0 version maintains the revolutionary Tuned Wheel System concept—where the front and rear wheels are specifically engineered for their distinct tasks on the trail—while dramatically boosting durability and reliability.

Key Upgrades for the 2.0 Version:

Improved Material: The alloy has been upgraded from 6013 to 6069 Aluminium Alloy, delivering significantly superior tensile, yield, and shear strength. This drastically enhances resistance to dents, cracks, and deformation.

Enhanced Finish: The rim receives a shot-peened finish, strengthening the outer layer and increasing fatigue life and crack resistance.

Reinforced Geometry: The rim profile has been re-engineered with thicker rim walls in high-impact areas to boost durability and reduce the risk of pinch flats.Lifetime Warranty: Due to the enhanced strength, the 2.0 rim is now covered by a Lifetime Warranty for the original owner against defects and on-trail damage that prevents the tyre from holding air.

Tuned Performance Concept:

The Front Rim (30mm internal width): Engineered to be Compliant. The wider 30mm inner width enhances tyre volume, increases the contact patch, and promotes better grip and steering control. Designed for a 28-Hole count for subtle vertical flex.

The Rear Rim (28.5mm Internal Width): Engineered to be Stiff. The narrower 28.5mm inner width and a 32-Hole spoke count maximise stability, power transfer, and durability, ensuring precise tracking when smashing through rough terrain.

Choose the Synthesis Enduro Alloy 2.0 Rim to build a world-class, custom wheelset that is perfectly tuned for aggressive Enduro and All-Mountain riding.

was £159.99
Price (select options)
£143.99
e: / t: 01323 737320

THE DETAIL

Tuned Front/Rear Concept: Different widths, profiles, and recommended spoke counts/tensions optimise performance for each end of the bike.

High-Grade Alloy: Constructed from premium Aluminium, offering enhanced resistance to dents, cracks, and deformation.

Front Grip: 30mm inner width on the front rim enhances tyre volume, contact patch, and cornering grip.

Rear Stability: 28.5mm inner width on the rear rim enhances stability and tracking under load.Enduro Ready: 20mm rim height and reinforced geometry built to withstand the rigours of aggressive trail and Enduro riding.Warranty:


1/9
2/9
3/9
4/9
5/9
6/9
7/9
8/9
9/9

SPECIFICATIONS

Specification Front Rim (Compliant) Rear Rim (Stiff) Notes
Model Version Synthesis Enduro Alloy 2.0 Synthesis Enduro Alloy 2.0 Features upgraded 6069 Alloy and a Lifetime Warranty.
Rim Material 6069 Aluminium Alloy 6069 Aluminium Alloy Shot-peened finish for enhanced durability.
Intended Use Enduro / All-Mountain Enduro / All-Mountain Optimised for aggressive riding disciplines.
Inner Rim Width 30mm 28.5mm Core difference for the Tuned Wheel System.
Rim Height/Depth 20mm 20mm Shallow profile designed to enhance vertical compliance.
Tyre Compatibility Tubeless Ready (Clincher) Tubeless Ready (Clincher) Requires rim tape and valve for tubeless setup.
Joint Type Welded and Sleeved Welded and Sleeved High-strength rim joint construction.
Spoke Hole Count 28 Hole (H) 32 Hole (H) Different spoke counts contribute to the compliance/stiffness tuning.
Size Options 27.5in (ETRTO 584mm), 29in (ETRTO 622mm) 27.5in (ETRTO 584mm), 29in (ETRTO 622mm) Available for standard wheel sizes.
Weight (Approx. 29in) ?572g ?573g Weights are for the 29in version.
Effective Rim Diameter (ERD) 596mm (29in) / 558mm (27.5in) 596mm (29in) / 558mm (27.5in) Critical measurement for spoke length calculation.
Warranty Lifetime (Original Owner) Lifetime (Original Owner) Coverage against defects and on-trail damage preventing air retention.
Specification Front Rim (Compliant)
Model Version Synthesis Enduro Alloy 2.0
Rim Material 6069 Aluminium Alloy
Intended Use Enduro / All-Mountain
Inner Rim Width 30mm
Rim Height/Depth 20mm
Tyre Compatibility Tubeless Ready (Clincher)
Joint Type Welded and Sleeved
Spoke Hole Count 28 Hole (H)
Size Options 27.5in (ETRTO 584mm), 29in (ETRTO 622mm)
Weight (Approx. 29in) ?572g
Effective Rim Diameter (ERD) 596mm (29in) / 558mm (27.5in)
Warranty Lifetime (Original Owner)
Specification Rear Rim (Stiff)
Model Version Synthesis Enduro Alloy 2.0
Rim Material 6069 Aluminium Alloy
Intended Use Enduro / All-Mountain
Inner Rim Width 28.5mm
Rim Height/Depth 20mm
Tyre Compatibility Tubeless Ready (Clincher)
Joint Type Welded and Sleeved
Spoke Hole Count 32 Hole (H)
Size Options 27.5in (ETRTO 584mm), 29in (ETRTO 622mm)
Weight (Approx. 29in) ?573g
Effective Rim Diameter (ERD) 596mm (29in) / 558mm (27.5in)
Warranty Lifetime (Original Owner)
Specification Notes
Model Version Features upgraded 6069 Alloy and a Lifetime Warranty.
Rim Material Shot-peened finish for enhanced durability.
Intended Use Optimised for aggressive riding disciplines.
Inner Rim Width Core difference for the Tuned Wheel System.
Rim Height/Depth Shallow profile designed to enhance vertical compliance.
Tyre Compatibility Requires rim tape and valve for tubeless setup.
Joint Type High-strength rim joint construction.
Spoke Hole Count Different spoke counts contribute to the compliance/stiffness tuning.
Size Options Available for standard wheel sizes.
Weight (Approx. 29in) Weights are for the 29in version.
Effective Rim Diameter (ERD) Critical measurement for spoke length calculation.
Warranty Coverage against defects and on-trail damage preventing air retention.
