Shimano XTR Center Lock Disc Hubs

Name: Shimano XTR Center Lock Disc Hubs
Brand: Shimano
SKU: EFHM9210BBXz
Price: 107.09 GBP
Availability: LimitedAvailability

Elevate Your Ride with Shimano XTR M9210 Hubs: Pro-Level Performance for Any Trail

Designed to meet the most stringent pro criteria, Shimano XTR M9210 Hubs deliver the lightweight performance and unwavering durability demanded by top-tier Enduro, Trail, and XC riders. These hubs are engineered to be the heart of your high-performance wheelset, providing instant power transfer, rock-solid reliability, and precise control across all mountain biking disciplines.

Built with premium materials and advanced bearing placement, XTR M9210 hubs ensure your wheels spin smoothly and last longer, even under the most aggressive riding conditions.

Shimano XTR M9210 Hubs are the ultimate foundation for a lightweight, durable, and high-performance mountain bike wheelset, ready to meet the demands of any trail or race.

CHOOSE SIZE & COLOUR

32 hole Centre-Lock

Front

Rear

Pair

28 hole Centre-Lock

Front

Rear

Pair

was £118.99

Price range (select options)

£107.09 - £238.99

e: / t: 01323 737320

THE DETAIL

Instant Power Transfer: The rear FH-M9210 hub features an alloy 12-speed MICRO SPLINE freehub body with rapid 3.5-degree pawl engagement. Your pedalling force translates into immediate forward motion, crucial for technical climbs and quick accelerations.

Smooth & Durable Bearings: Both front and rear hubs use high-quality stainless steel cartridge bearings with pre-load adjustment. This ensures optimised sealing for protection against elements and easy maintenance, keeping your wheels spinning freely.

Enhanced Lateral Rigidity: Wide bearing placement significantly improves lateral rigidity, adding strength and durability to your wheel build for precise tracking over rough terrain.

Robust & Lightweight Construction: The hub shells are forged and then anodised, creating a strong, lightweight alloy body with a sleek, long-lasting finish. Aluminum axles further contribute to the low weight.

Easy Centre-Lock Disc Mounting: Both hubs use the user-friendly Centre-Lock Disc Rotor mount, which allows for quick, secure, and precise installation of your brake rotors.

Boost Thru-Axle Compatibility: Designed for modern mountain bike standards, the rear hub (FH-M9210) is compatible with 148 x 12 mm Boost dropouts, while the front hub (HB-M9210) fits 110 x 15 mm Boost dropouts, ensuring maximum frame and fork stiffness.

12-Speed HYPERGLIDE+ Ready: The rear hub is fully optimised with Shimano's 12-speed HYPERGLIDE+ cassette sprockets, guaranteeing seamless and efficient shifting.

Versatile Drilling Options: Both 28- and 32-hole drillings are available (for both front and rear hubs), providing flexibility for various wheel build preferences.

SPECIFICATIONS

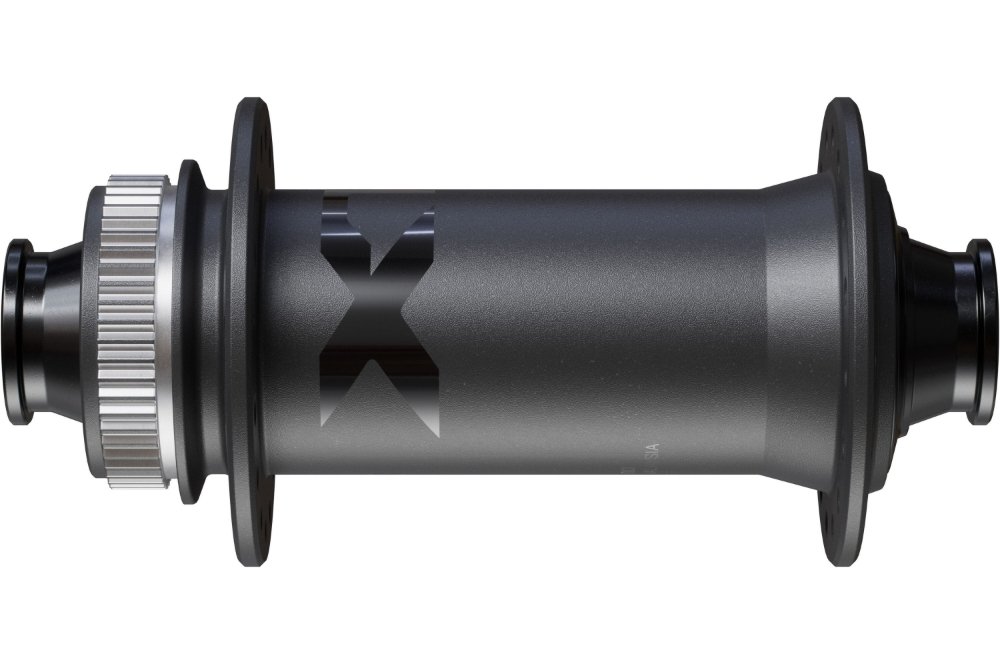

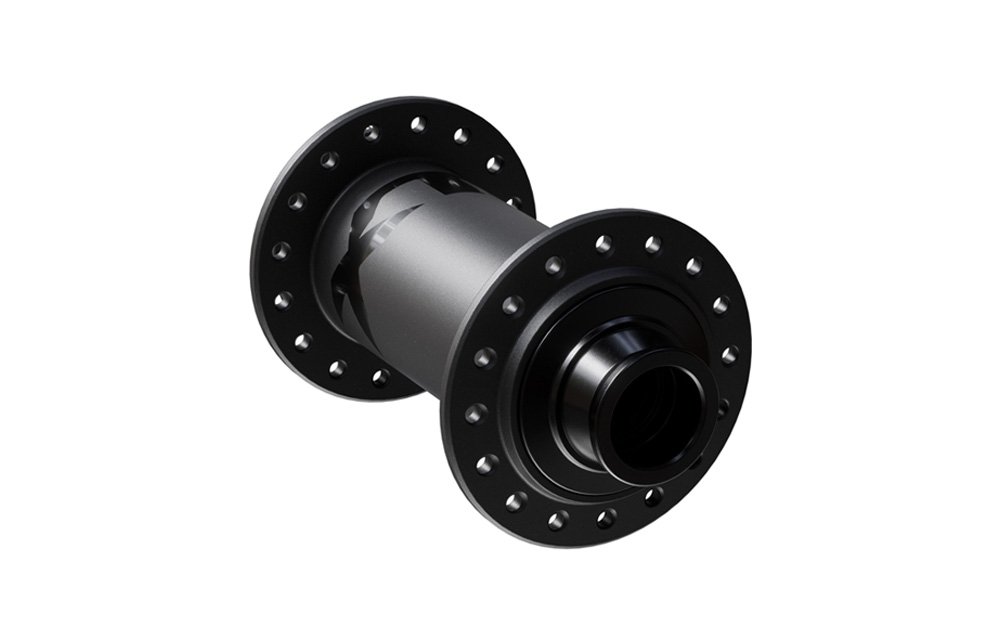

Front Hub:

HB-M9210 XTR lightweight Enduro/Trail/XC front hub designed to meet the pro criteria
Stainless steel cartridge bearing with pre-load adjust
Forged then anodised alloy hub shell
Aluminium axle
For 110 x 15 mm dropouts
Discipline   MTB
Colour   Black
Axle Type   Bolt Thru 15mm
Brake Mounting   Centre Lock
Di2   No
Drilling   28 and 32 Hole
Flange Type   Classic
Hub Width   110mm

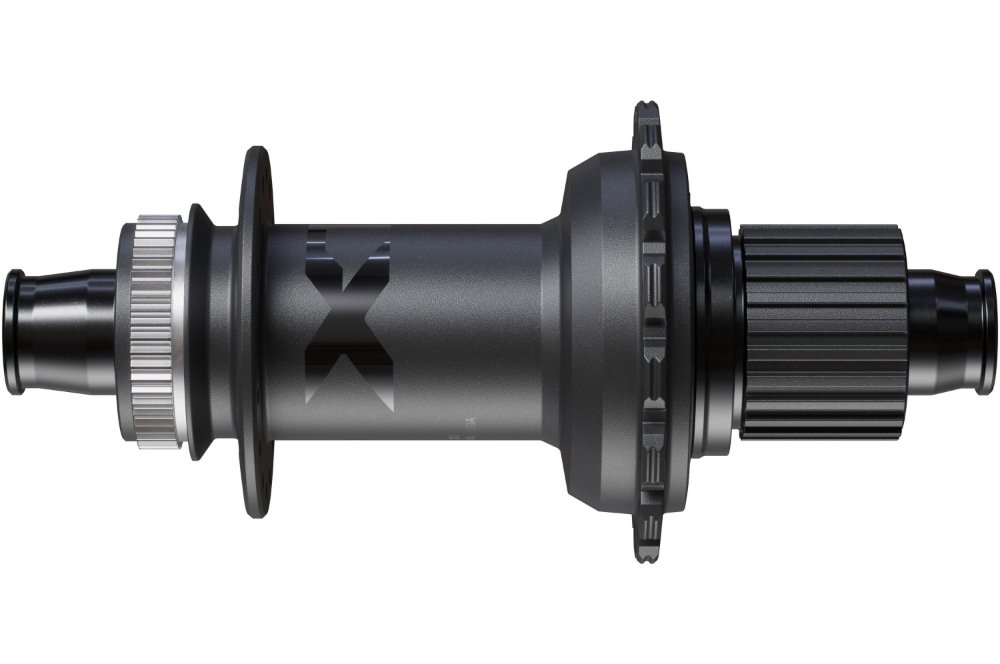

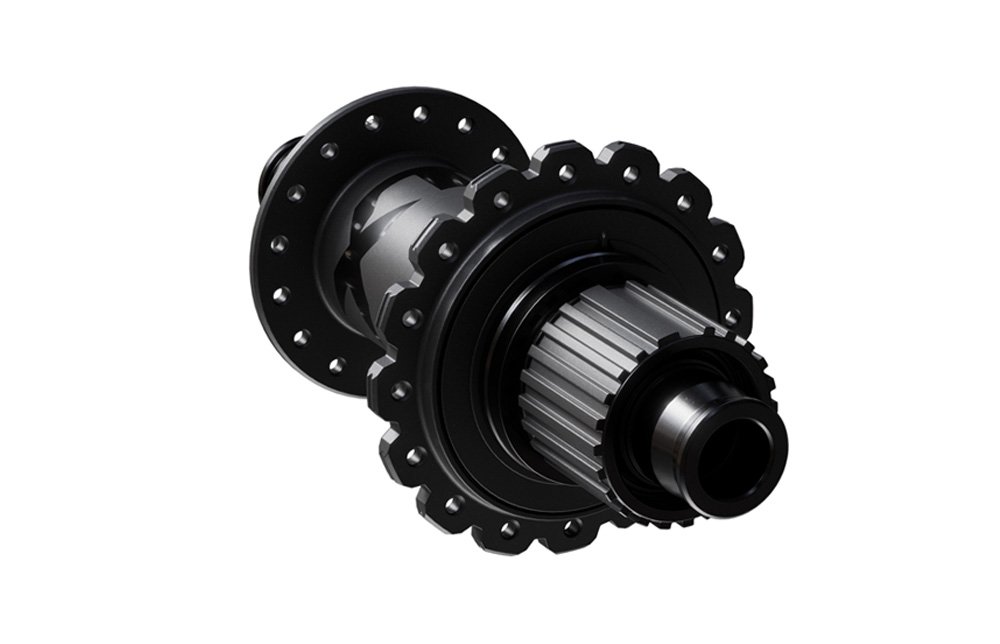

Rear Hub:

Alloy 12-speed MICRO SPLINE freehub body with quick pawl engagement (3.5 deg)
Stainless steel cartridge bearing with pre-load adjust
Forged then anodised alloy hub shell
Aluminium axle
For 148 x 12 mm dropouts
For use with 12-speed HYPERGLIDE+ cassette sprockets
Discipline   MTB
Colour   Black
Size   28 and 32 hole
Axle Type   Bolt Thru 12mm
Brake Mounting   Centre Lock
Flange Type   Classic
Freehub   Shimano Micro Spline
Hub Width   148mm
