Ibis Ripmo AF Frame - Espresso Black - Last XL

Name: Ibis Ripmo AF Frame - Espresso Black - Last XL
Brand: Ibis
SKU: RIPMOAFESPRESSOUDHLz
Price: 1574.25 GBP
Availability: PreOrder

Unleash Your Inner Shredder with the Affordable and Aggressive Ibis Ripmo AF

Experience the award-winning performance of the Ibis Ripmo at a more accessible price point with the all-new Ripmo AF. This aluminum enduro bike delivers exceptional climbing efficiency, confidence-inspiring downhill handling, and the legendary durability of aluminum construction, making it the perfect choice for aggressive trail riders seeking a well-rounded package.

"The Ibis Ripmo AF is a modern, affordable aluminium trail bike with award-winning performance. It's the perfect bike for riders who want a versatile trail bike that can handle anything from technical climbs to rowdy descents." - BikeRadar.

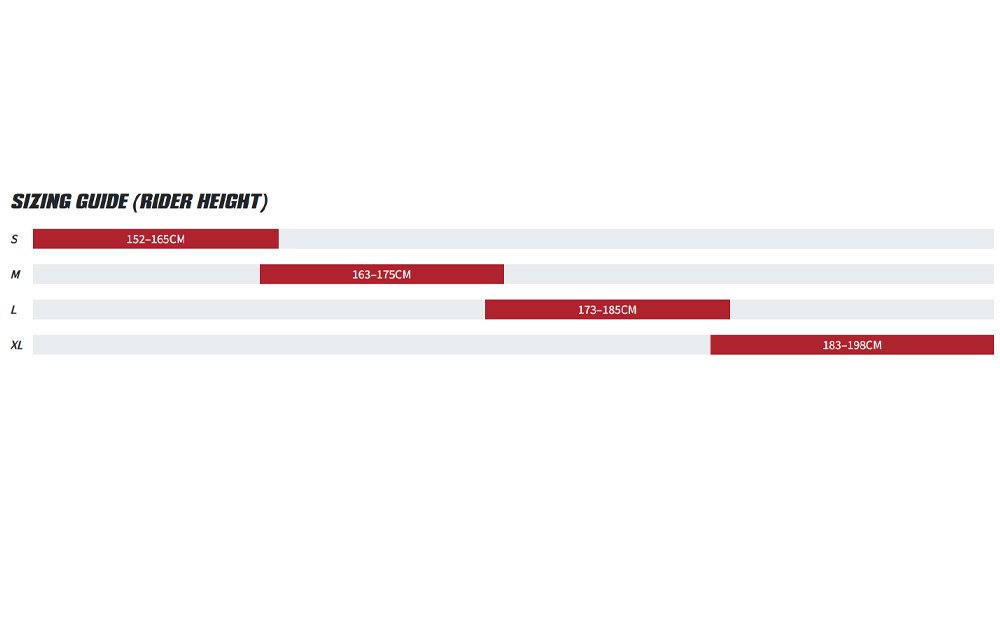

CHOOSE SIZE

S (Out of stock)

M (Out of stock)

L (Out of stock)

X-Large

BIKE PROTECTION

Frame - Fully Fitted (£195.00)

Lead time: 1-2 WEEKS

was £2,099.00

Price (select options)

£1,574.25

e: / t: 01323 737320

THE DETAIL

Built for Real-World Performance:

Durable Aluminum Frame: The Ripmo AF utilizes a high-quality aluminum frame that offers a perfect blend of affordability, weight, and stiffness. This makes it a great option for riders who prioritize value without sacrificing performance.

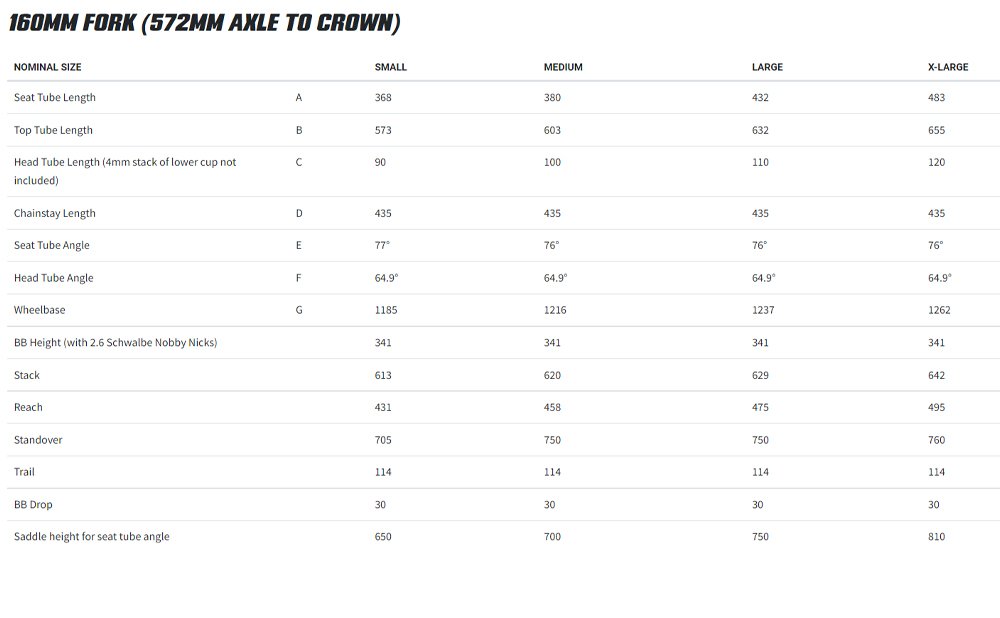

Modern Geometry: The Ripmo AF boasts a slack head tube angle, steep seat tube angle, and long reach for optimal climbing efficiency and confidence-inspiring downhill control on technical terrain.

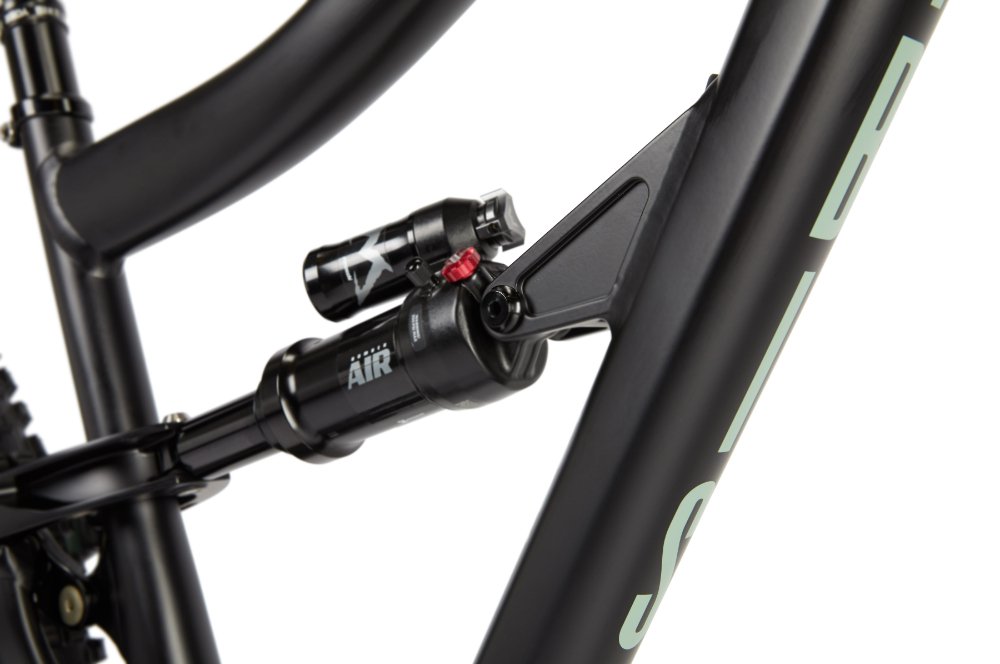

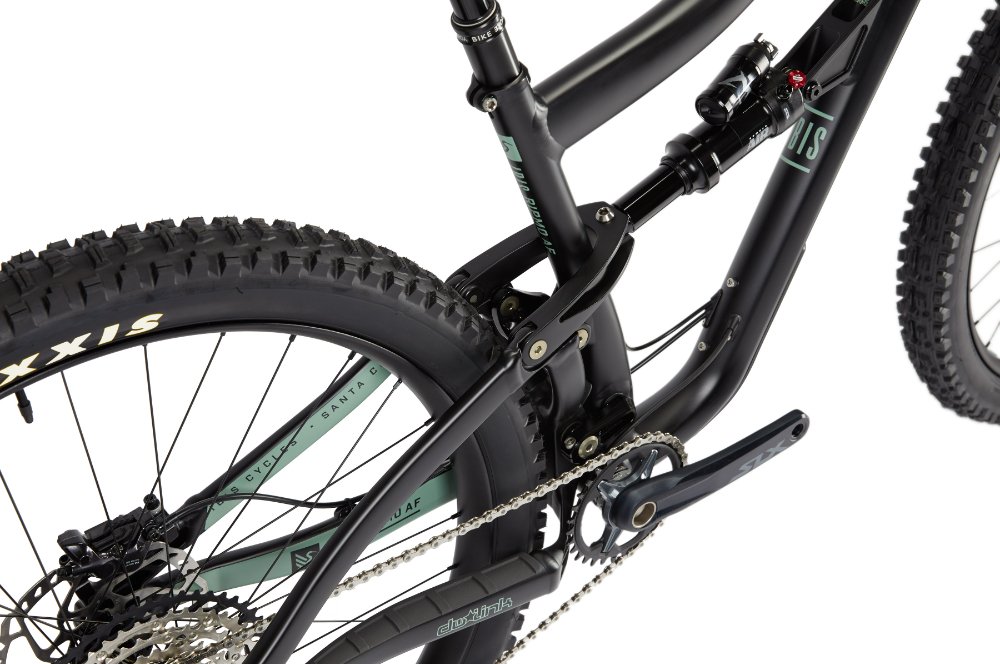

DW-Link Suspension: Ibis's award-winning DW-Link suspension platform provides a unique combination of pedaling efficiency and progressive travel, allowing you to rail corners and conquer challenging climbs with ease.

2.6" Tire Clearance: Accommodate wide tires up to 2.6" for increased traction and control on loose and technical trails. Run them at lower pressures to experience the benefits of improved compliance and grip.

Key Features:

Universal derailleur hanger for maximum compatibility
Air and coil shock compatible for rider preference
Long dropper post compatibility for maximum freedom of movement
Removable ISCG05 mount for chain guide customization
Lifetime warranty on frame defects
Lifetime warranty

SPECIFICATIONS

Version	V1 UDH
Frame Material	Aluminum
Frame Weight	8.25 lbs / 3.74 kg (size M with Marzocchi Bomber Air)
Shock Specs	Marzocchi Bomber Air, 210 x 55
Wheel Size	29� / up to 2.5" tires
Front Travel	160mm
Rear Travel	147mm
Shock Specs	210 x 55mm
Boost Axles	148mm rear / 110mm front
Seatpost Diameter	31.6mm
Rear Brake	160mm post mount / 203mm max rotor
Chainstay Length	435mm
Bottom Bracket	Threaded (73mm English threaded)
Chainline	55mm chainline, 182mm Q Factor
Derailleur Hanger	SRAM UDH
ISCG 05 Compatible	ISCG 05 Tab Mount available separately
Headset	ZS44 upper / ZS56 lower
Colours	Cinnabon Bronze or Espresso Black
Sizes	S / M / L / XL
Warranty	Lifetime

Version	V1 UDH
Frame Material	Aluminum
Frame Weight	8.25 lbs / 3.74 kg (size M with Marzocchi Bomber Air)
Shock Specs	Marzocchi Bomber Air, 210 x 55
Wheel Size	29� / up to 2.5" tires
Front Travel	160mm
Rear Travel	147mm
Shock Specs	210 x 55mm
Boost Axles	148mm rear / 110mm front
Seatpost Diameter	31.6mm
Rear Brake	160mm post mount / 203mm max rotor
Chainstay Length	435mm
Bottom Bracket	Threaded (73mm English threaded)
Chainline	55mm chainline, 182mm Q Factor
Derailleur Hanger	SRAM UDH
ISCG 05 Compatible	ISCG 05 Tab Mount available separately
Headset	ZS44 upper / ZS56 lower
Colours	Cinnabon Bronze or Espresso Black
Sizes	S / M / L / XL
Warranty	Lifetime
