Hope R22 104 BCD Chainring

Hope R22 104 BCD Chainring

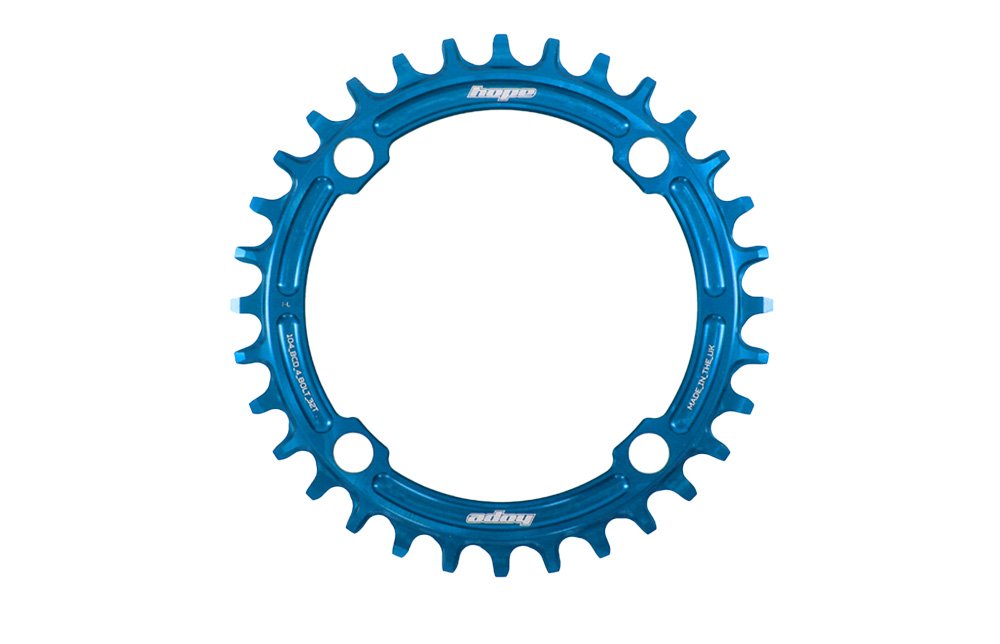

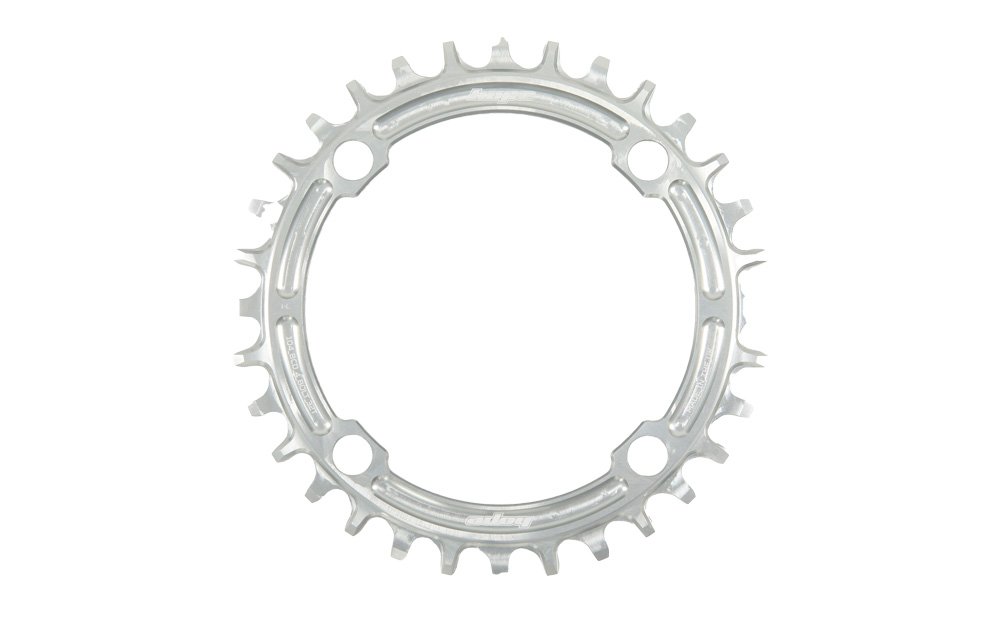

Hope R22 104BCD Chainring

The Hope R22 104BCD is designed for riders who prefer the modularity of a 4-bolt spider. It replaces the previous "Narrow-Wide" model with the new R22 profile, developed to handle the tighter tolerances of modern 12-speed chains while remaining fully backwards-compatible with 10- and 11-speed systems.

The R22 Evolution

The "R22" designation refers to the revised tooth shape, which features asymmetrical loading faces. This design helps the chain "seat" more quickly and securely, reducing the risk of dropping in rough terrain without the need for a heavy chainguide. It is particularly effective at shedding mud, making it a favourite for UK winter riding.

The Hope R22 104BCD Chainring is the versatile, high-performance solution for riders using traditional 4-bolt cranksets. While much of Hope's range has shifted towards direct-mount systems, the R22 104BCD ensures that those with classic cranks can still benefit from Hope's latest R22 tooth technology, offering world-class chain retention and a significantly longer lifespan than standard alloy rings.

CHOOSE COLOUR & SIZE
Red
was £50.00
Price (select options)
£41.50
e: / t: 01323 737320

THE DETAIL

  • Universal 104BCD Fitment: Compatible with any crankset using the standard 104mm Bolt Circle Diameter (BCD).

  • Advanced R22 Profile: Optimized for the latest 12-speed chains from Shimano and SRAM (including Eagle), but works perfectly with 10 and 11-speed setups.

  • Superior Mud Clearance: CNC-machined "finishing" on the base of the teeth helps eject grit and grime, extending the life of both the ring and your chain.

  • 7075-T6 Construction: Machined from a single plate of high-strength aluminium for maximum stiffness and wear resistance

  • Anodised Aesthetic: Available in Hope’s signature range of six colours to perfectly match your cockpit or hubs.

When fitting a 32T 104BCD ring, please note that because the diameter is so small, the bolts must sit very close to the chain. Hope integrates threaded spacers into the 32T version to provide the necessary clearance for the chain to sit fully on the teeth without hitting the spider arms.

1/9
2/9
3/9
4/9
5/9
6/9
7/9
8/9
9/9

SPECIFICATIONS

Specification Detail Notes
Mounting Standard 104BCD (4-Bolt) Fits standard MTB spiders (Shimano, SRAM, etc.).
Material 7075-T6 Aluminium High-grade aerospace alloy for maximum durability.
Speed Compatibility 10 / 11 / 12-Speed Fully compatible with Shimano & SRAM 12-speed.
Tooth Profile R22 Asymmetrical Narrow-Wide Revised for 2024�2026 for better retention.
Sizes Available 32T,34T,36T,38T 32T features integrated threaded offsets.
Weight (32T) ?45g Lightweight yet incredibly robust.
Colour Options Black, Silver, Blue, Red, Orange, Purple Hard anodised for long-lasting colour.
Bolt Compatibility Standard M8 Chainring Bolts Best paired with Hope's own bolt kits.
Manufacturing Barnoldswick, UK CNC machined in-house for total precision.
Specification Detail
Mounting Standard 104BCD (4-Bolt)
Material 7075-T6 Aluminium
Speed Compatibility 10 / 11 / 12-Speed
Tooth Profile R22 Asymmetrical Narrow-Wide
Sizes Available 32T,34T,36T,38T
Weight (32T) ?45g
Colour Options Black, Silver, Blue, Red, Orange, Purple
Bolt Compatibility Standard M8 Chainring Bolts
Manufacturing Barnoldswick, UK
Specification Notes
Mounting Standard Fits standard MTB spiders (Shimano, SRAM, etc.).
Material High-grade aerospace alloy for maximum durability.
Speed Compatibility Fully compatible with Shimano & SRAM 12-speed.
Tooth Profile Revised for 2024�2026 for better retention.
Sizes Available 32T features integrated threaded offsets.
Weight (32T) Lightweight yet incredibly robust.
Colour Options Hard anodised for long-lasting colour.
Bolt Compatibility Best paired with Hope's own bolt kits.
Manufacturing CNC machined in-house for total precision.
Specification
Mounting Standard
Material
Speed Compatibility
Tooth Profile
Sizes Available
Weight (32T)
Colour Options
Bolt Compatibility
Manufacturing
