Renthal Revo - F Pedals

Name: Renthal Revo - F Pedals
Brand: Renthal
SKU: PDRNRF9Dz
Price: 119.99 GBP
Availability: LimitedAvailability

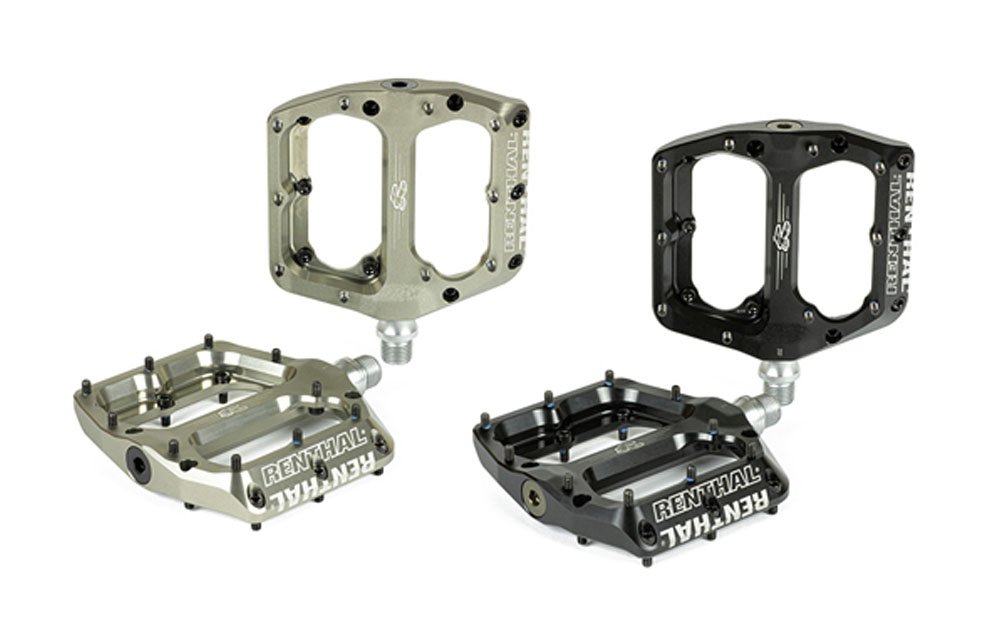

Renthal Revo-F Flat MTB Pedals - Ride-Tuned Grip and Home Serviceable Durability

Introducing the Renthal Revo-F Flat MTB Pedals, a highly anticipated component that brings Renthal's renowned 'Ride-Tuned' philosophy to the pedal market. Engineered for maximum control and unmatched durability, the Revo-F sets a new standard for high-performance flat pedals.

The pedal body is forged and CNC-machined from high-grade 6061 Aluminium, with a large, supportive platform measuring 100mm x 104mm. The design is deliberately robust, prioritising bomb-proof strength over chasing marginal weight savings. The key feature is the dual-axis concave platform, which is genuinely shaped in the metal (not just using pin height) to securely 'cup' the rider's foot for superior control and stability. The smooth, chamfered leading edges are designed to glide over rock strikes rather than snag.

Grip is fully tuneable thanks to the 10 screw-through pins per side, which can be adjusted from 5.5mm down to 2.5mm in 1mm increments using the supplied pins and washers—allowing riders to fine-tune the feel for any terrain or shoe choice.

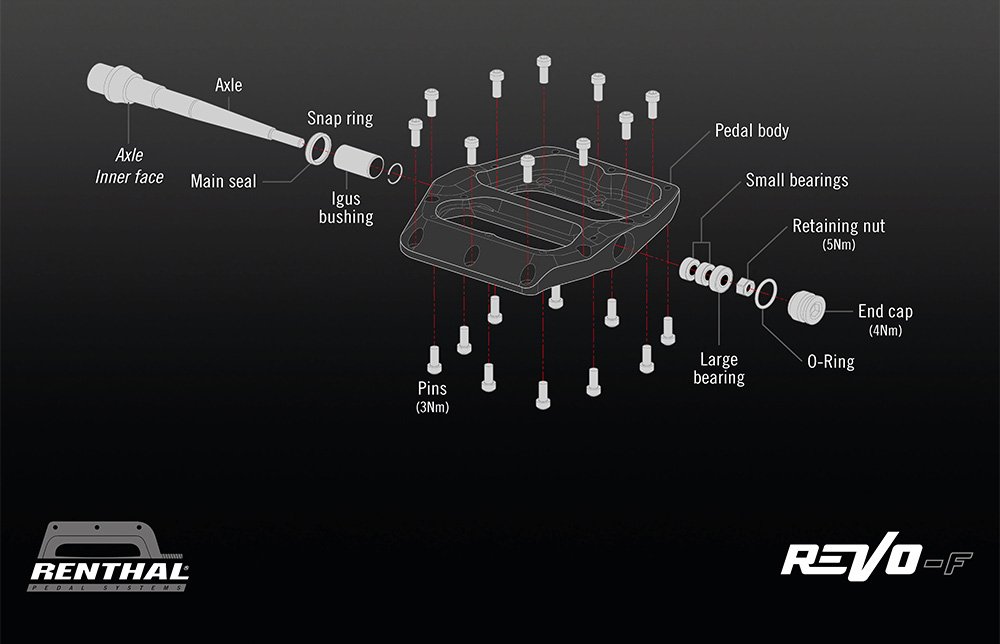

Internally, the Revo-F is built to last. It spins on a high-grade Chromoly axle, supported by an extra-wide inboard IGUS bush and three outboard cartridge bearings. The patent-pending axle system is a standout innovation, enabling full home servicing with only standard household tools (6mm and 8mm hex keys, 8mm socket, mallet), eliminating the need for specialist workshop equipment. Full contact seals and an O-ring end cap ensure the internals are fully protected from the elements.

CHOOSE COLOUR

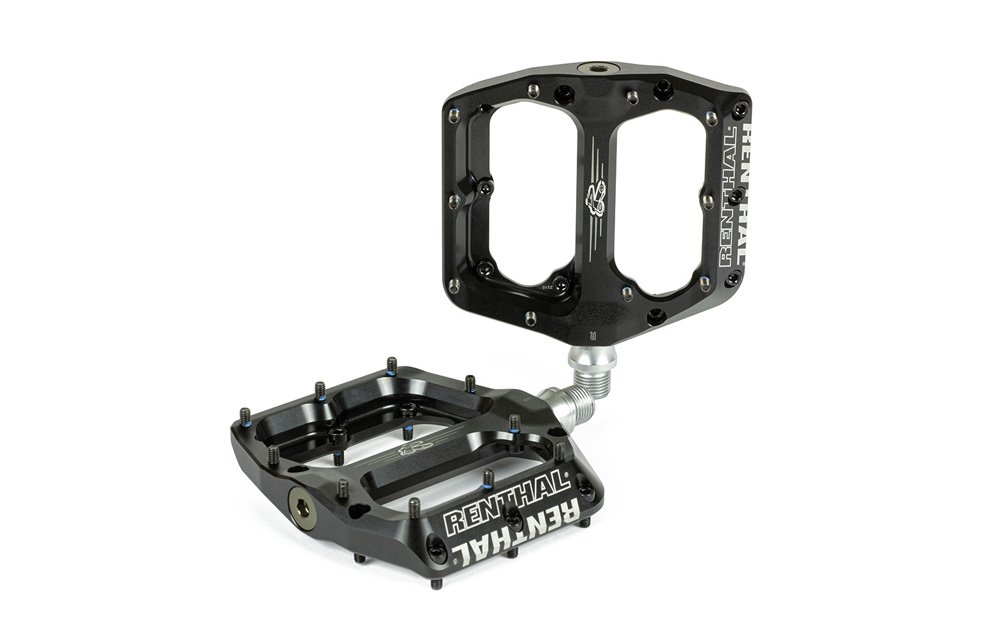

Black

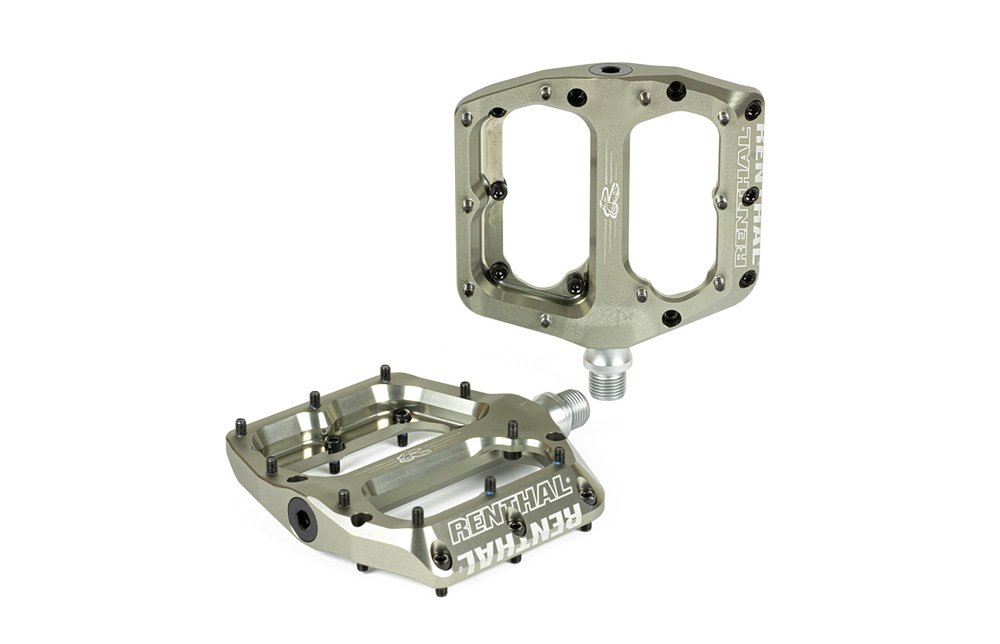

Alu Gold

was £154.95

Price (select options)

£119.99

e: / t: 01323 737320

THE DETAIL

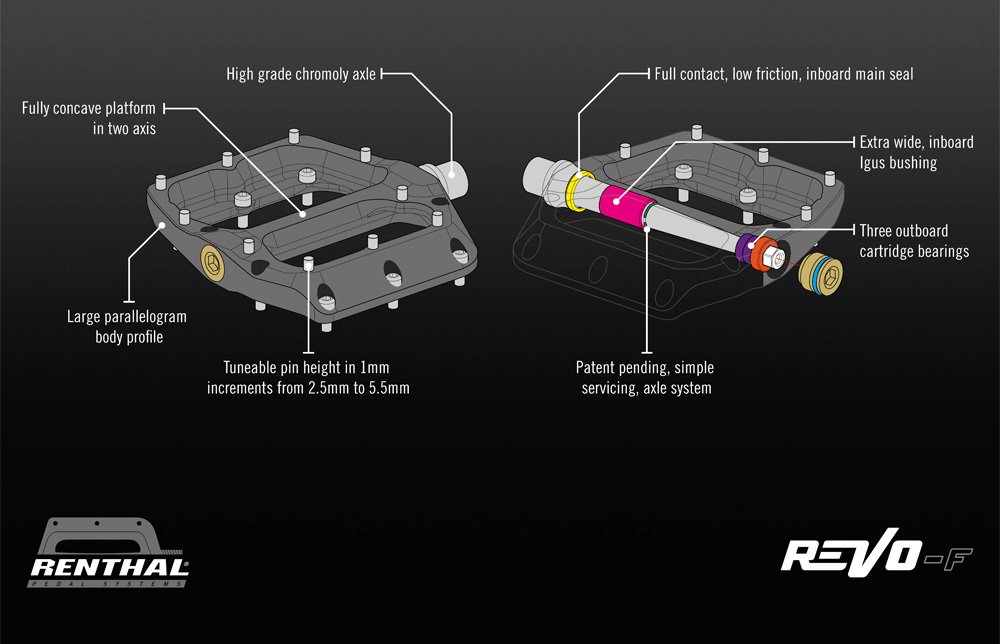

Ride-Tuned Dual Concave: Genuine concave shape in both the horizontal and vertical axes for maximum foot stability and control.

Tuneable Grip: 10 screw-through pins per side with height adjustment from 2.5mm to 5.5mm.

Home Serviceable: Patent-pending axle system allows for easy bearing and bush service with standard tools.

Robust Construction: Forged and CNC machined 6061 Aluminium body and a high-grade Chromoly axle for bomb-proof durability.

Superior Internals: Runs on an extra-wide IGUS bush and three outboard cartridge bearings, fully sealed against the elements

SPECIFICATIONS

• Concave platform. L-100mm x W-104mm
• Ten pins per side
• Adjustable pin length. 2.5mm to 5.5mm in 1mm increments
• Three outboard cartridge bearings
• Extra wide inboard IGUS bush
• Fully sealed - Inboard full contact lip-seal. Outer O-ring seal
• Home serviceable, with Renthal patent pending axle system
• Forged and CNC machined 6061 aluminium pedal body
• High-grade chromoly axle
• 488g

Specification	Detail	Notes
Model	Renthal Revo-F Platform Pedals (Pair)	Renthal's first purpose-built flat pedal, focused on durability and tuneability.
Pedal Body	Forged and CNC Machined 6061 Aluminium	Extremely strong alloy, fully machined for precision and reduced material where not needed.
Axle Material	High-Grade Chromoly Steel	Chosen for its durability and strength. Full-length design for maximum bearing support.
Platform Dimensions	100mm (Length) x 104mm (Width)	Compact parallelogram profile, with increased axle width to maximise usable area.
Pedal Thickness	17mm (Fore/Aft Edges), 14mm (Thinnest Point)	Features a dual-axis concave profile built into the body itself.
Pin Quantity	10 Pins per side (Screw-through type)	Asymmetric pin positioning to maximise grip across the platform.

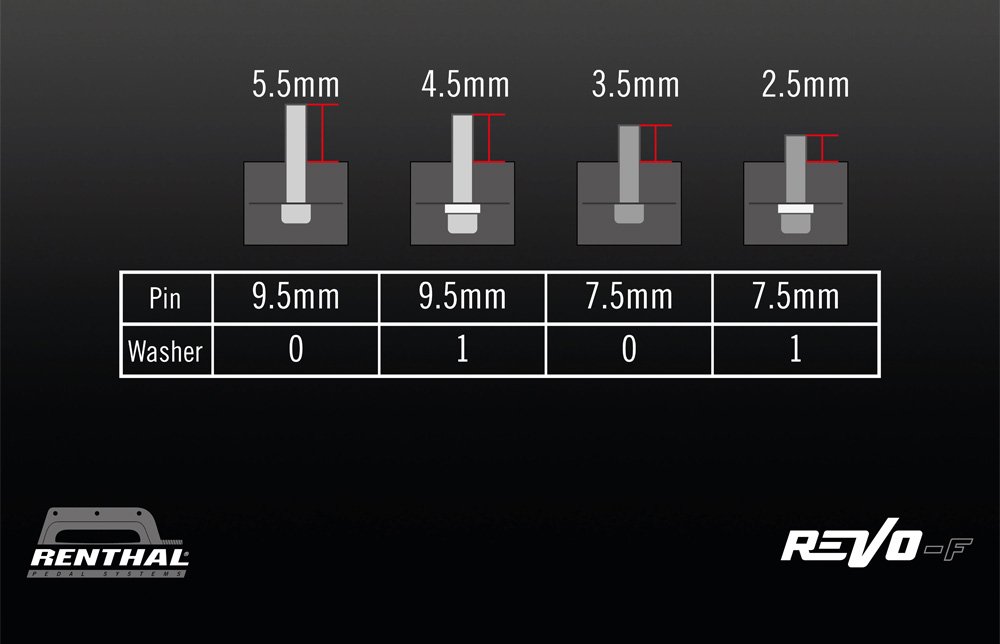

Pin Adjustability	2.5mm to 5.5mm (in 1mm increments)	Achieved using the supplied short/long pins and 1mm washers for fine-tuning grip.
Bearings/Bushings	3 x Outboard Cartridge Bearings, 1 x Extra Wide Inboard IGUS Bush	High-quality, durable internals designed for a long service life.
Sealing	Inboard Full Contact Lip-Seal and Outboard O-ring End-Cap Seal	Comprehensive sealing to keep dirt and water ingress to a minimum.
Servicing	Patent-Pending Axle System	Allows full home servicing using standard tools (no specialist tools required).
Weight (Pair)	488g (Claimed)	A robust weight reflecting the priority on strength and durability.
Available Finishes	Black, AluGold Anodised	Renthal's classic and distinctive finish options.

Specification	Detail
Model	Renthal Revo-F Platform Pedals (Pair)
Pedal Body	Forged and CNC Machined 6061 Aluminium
Axle Material	High-Grade Chromoly Steel
Platform Dimensions	100mm (Length) x 104mm (Width)
Pedal Thickness	17mm (Fore/Aft Edges), 14mm (Thinnest Point)
Pin Quantity	10 Pins per side (Screw-through type)
Pin Adjustability	2.5mm to 5.5mm (in 1mm increments)
Bearings/Bushings	3 x Outboard Cartridge Bearings, 1 x Extra Wide Inboard IGUS Bush
Sealing	Inboard Full Contact Lip-Seal and Outboard O-ring End-Cap Seal
Servicing	Patent-Pending Axle System
Weight (Pair)	488g (Claimed)
Available Finishes	Black, AluGold Anodised

Specification	Notes
Model	Renthal's first purpose-built flat pedal, focused on durability and tuneability.
Pedal Body	Extremely strong alloy, fully machined for precision and reduced material where not needed.
Axle Material	Chosen for its durability and strength. Full-length design for maximum bearing support.
Platform Dimensions	Compact parallelogram profile, with increased axle width to maximise usable area.
Pedal Thickness	Features a dual-axis concave profile built into the body itself.
Pin Quantity	Asymmetric pin positioning to maximise grip across the platform.
Pin Adjustability	Achieved using the supplied short/long pins and 1mm washers for fine-tuning grip.
Bearings/Bushings	High-quality, durable internals designed for a long service life.
Sealing	Comprehensive sealing to keep dirt and water ingress to a minimum.
Servicing	Allows full home servicing using standard tools (no specialist tools required).
Weight (Pair)	A robust weight reflecting the priority on strength and durability.
Available Finishes	Renthal's classic and distinctive finish options.
