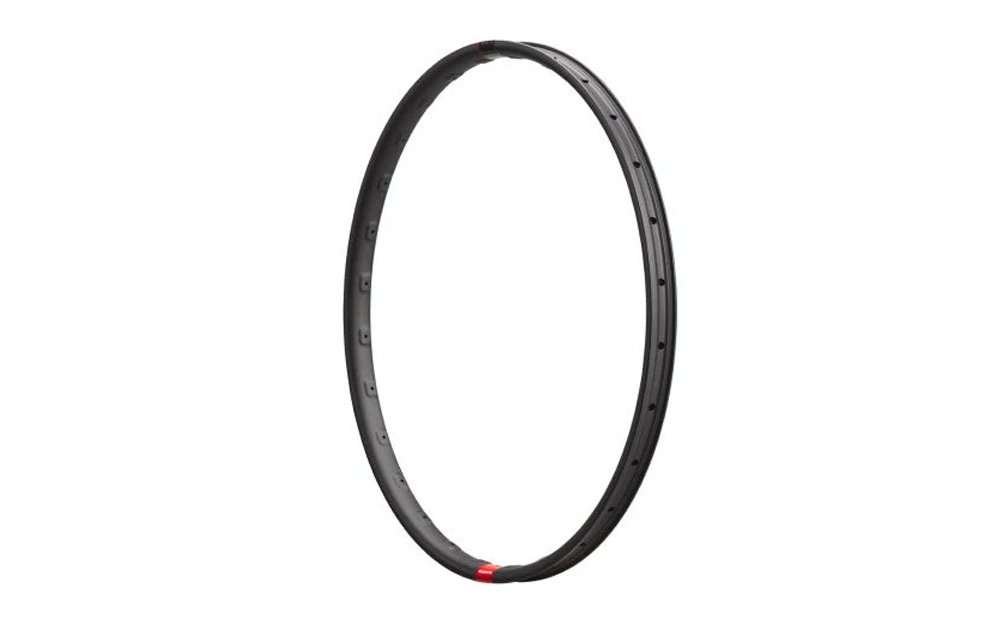

Reserve 30 HD Carbon Rim

Name: Reserve 30 HD Carbon Rim
Brand: Reserve
SKU: SCS-77-23470z
Price: 649.00 GBP
Availability: LimitedAvailability

Reserve 30|HD Carbon Rim – 27.5" and 29" Trail/Enduro Master

The Reserve 30|HD Carbon Rim is engineered fo the most aggressive Trail, All-Mountain, and Enduro riding, available in both 27.5" and 29" sizes. Designed with input from the Santa Cruz Syndicate, the 30mm internal width is perfectly matched for modern MTB tyres from 2.3" to 2.6", providing optimal support and stability for improved grip and control.

Constructed from premium carbon, the rim features a distinctive asymmetrical design with a 4mm offset to improve spoke bracing angles and equalise spoke tension, resulting in a stiffer, stronger, and more reliable wheel build. Reinforcements around the spoke holes further enhance durability where it's needed most.

The hookless bead profile ensures a secure fit for tubeless-ready tyres and simplifies the setup process. The redesigned rim bed also makes it easier to seat tubeless tyres. For riders who demand unwavering strength and performance on technical terrain, the Reserve 30|HD is E-Bike Approved and backed by Reserve's industry-leading Lifetime Warranty.

CHOOSE COLOUR

27.5" - 28 Hole

29" - 28 Hole (Out of stock)

Price (select options)

£649.00

e: / t: 01323 737320

click here to see finance examples or £50.70 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

13%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	6	12	24
Purchase Cost	£649.00	£649.00	£649.00
APR	0.00%	7.90%	11.90%
Deposit %	10.02%	10.02%	10.02%
Deposit amount	£65.00	£65.00	£65.00
Loan amount	£584.00	£584.00	£584.00
Pay per month	£97.33	£50.70	£27.30
Total payable	£648.98	£673.40	£720.20

THE DETAIL

Ultimate Durability: Reinforced spoke holes and robust carbon layup built for aggressive riding and E-Bikes.

Optimal Tyre Support: 30mm internal width is ideal for 2.3" to 2.6" mountain bike tyres.

Superior Wheel Strength: Asymmetrical offset improves spoke tension balance for a stronger, more reliable wheel.

Easy Tubeless Setup: Hookless design and redesigned rim bed make fitting and seating tubeless tyres a breeze.

Confidence on the Trail: Backed by Reserve's renowned Lifetime Warranty.

SPECIFICATIONS

Specification	Value	Unit	Notes
Model	Reserve 30	HD Carbon Rim	-
Wheel Size Options	29" and 27.5"	-	Available for both standard and 'Mullet' setups.
Rim Material	Carbon	-	Reinforced for increased strength and durability.
Designed For	Trail, All-Mountain, Enduro, E-Bike	-	High strength rating for aggressive use.
Internal Rim Width	30	mm	Consistent internal width across both sizes.
Rim Depth	20	mm	Consistent depth across both sizes.
Spoke Count (Holes)	28	hole	Standard drilling for this model.
Rim Weight (29")	516	grams	Approximate weight for the 29" rim only.
Rim Weight (27.5")	497	grams	Approximate weight for the 27.5" rim only.
ERD (Effective Rim Diameter) 29"	598	mm	Essential for 29" spoke length calculation.
ERD (Effective Rim Diameter) 27.5"	559	mm	Essential for 27.5" spoke length calculation.
Asymmetric Offset	4	mm	Improves spoke bracing angles.
Tyre Compatibility	Tubeless Ready (Hookless Bead)	-	Designed for modern tubeless mountain bike tyres.
Brake Compatibility	Disc Only	-	No brake track for rim brakes.
Warranty	Lifetime	-	Covers rim against manufacturing defects and riding impacts.
