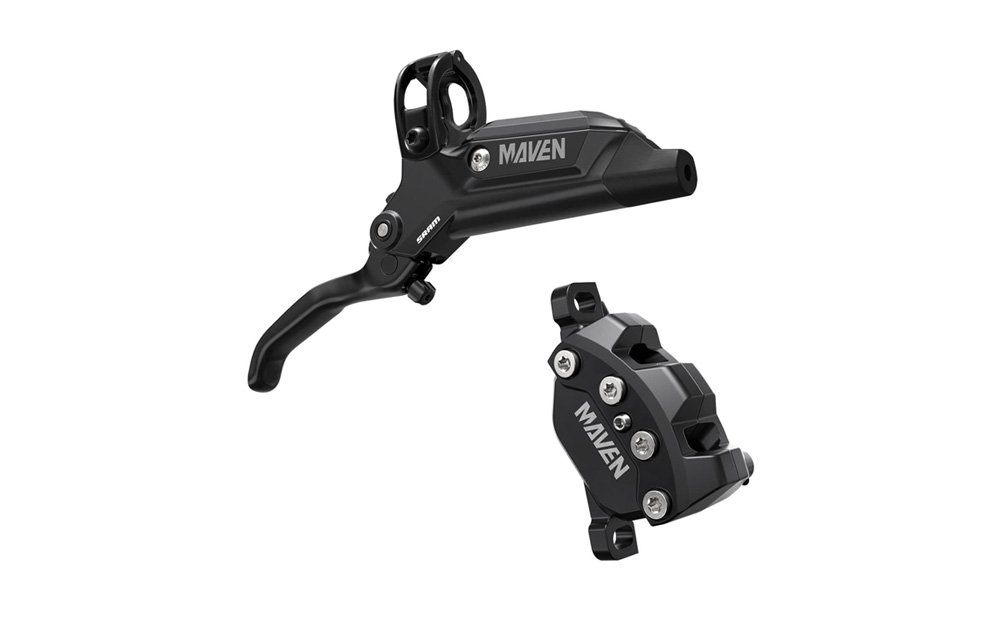

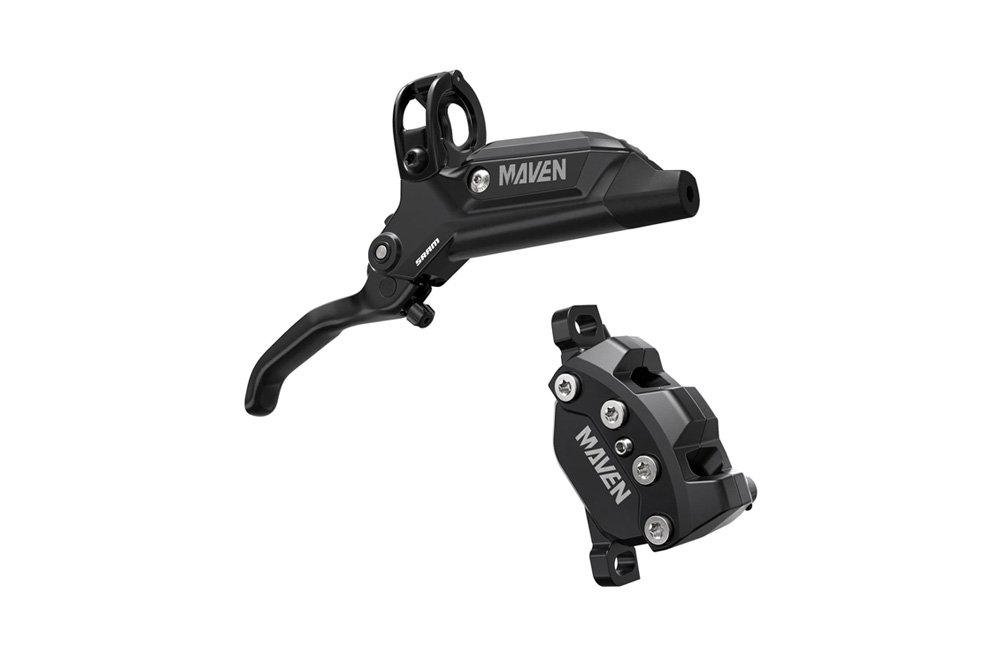

Sram Maven Base Stealth Disc Brake

Name: Sram Maven Base Stealth Disc Brake
Brand: Sram
SKU: DBS8241000z
Price: 289.00 GBP
Availability: LimitedAvailability

SRAM Maven Base Disc Brake

The SRAM Maven Base Hydraulic Disc Brake delivers the monumental power and heat management of the Maven platform in a robust, no-nonsense package. Designed for the demands of Enduro, Downhill (DH), and heavy-duty E-MTB use, the Maven system is SRAM’s most powerful to date, built to give you the confidence to push your limits.

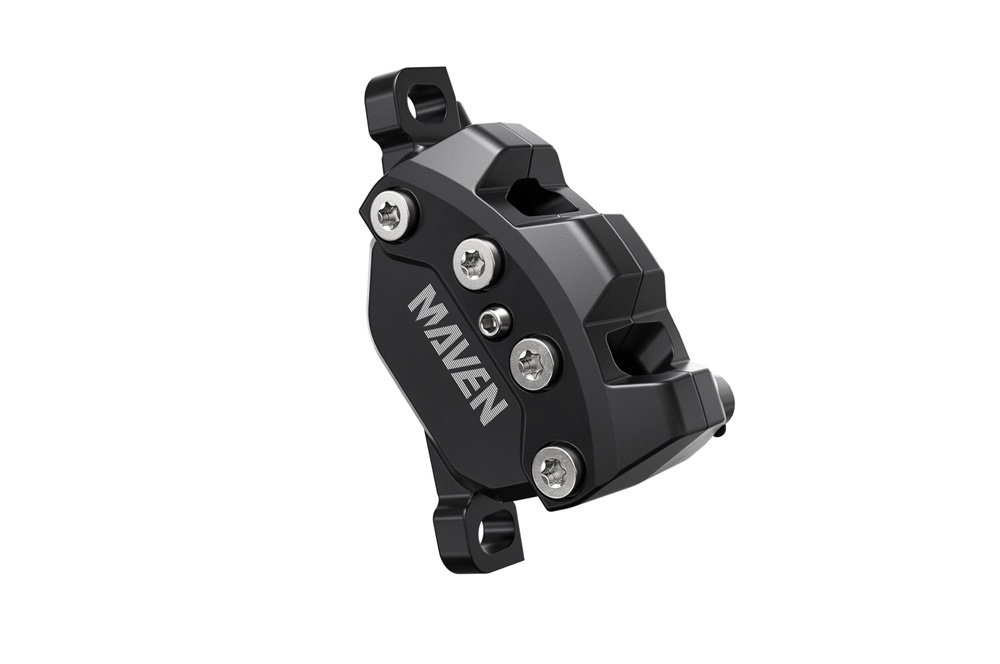

The key to the Maven’s immense power is the new stiff 4-piston calliper, which houses oversized 18mm and 19.5mm pistons. This increased piston size and calliper stiffness translate into massive braking force and superior heat dissipation, ensuring consistent performance on the longest and steepest descents.

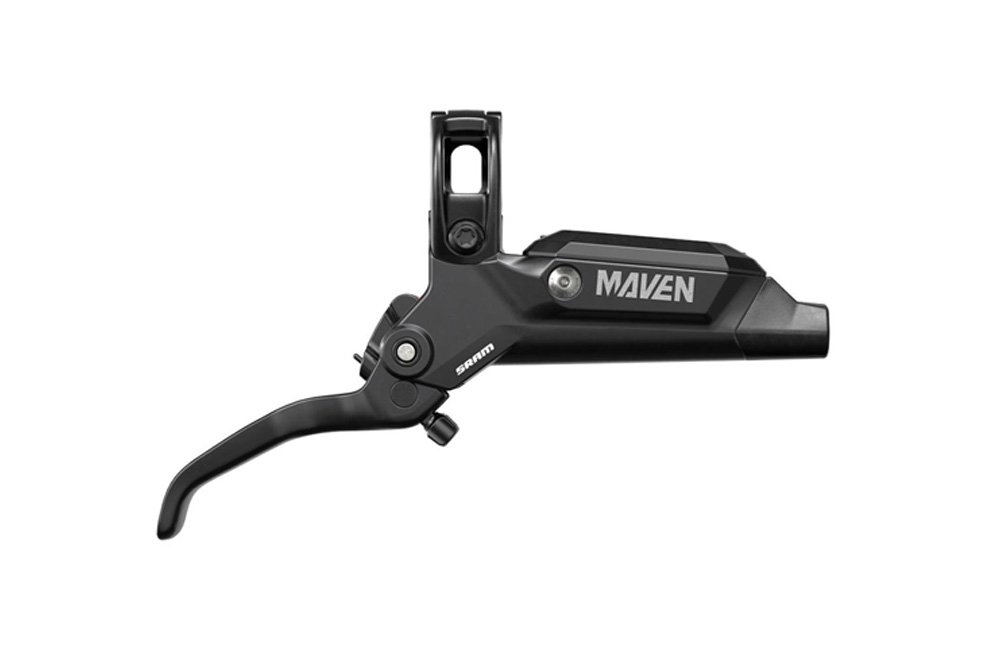

The Base model features a durable forged alloy lever blade with Tool-Free Reach Adjust, allowing you to dial in your preferred lever position quickly. The DirectLink™ lever mechanism ensures a direct, efficient translation of your finger input, delivering a predictable application of that enormous power. The modern Stealth lever architecture provides a clean, integrated look in your cockpit.

Notably, the Maven series is SRAM’s high-performance move to a Mineral Oil fluid system, offering reduced maintenance and extended service intervals. The Base is finished in a clean Blast Black anodised finish.

CHOOSE SIZE

Front - 950mm hose

Rear - 2000mm Hose

was £360.00

Price (select options)

£289.00

e: / t: 01323 737320

click here to see finance examples or £23.01 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	12
Purchase Cost	£289.00
APR	11.90%
Deposit %	10.03%
Deposit amount	£29.00
Loan amount	£260.00
Pay per month	£23.01
Total payable	£305.12

THE DETAIL

Extreme-Duty Power: Features a stiff 4-piston calliper with two sizes of oversized phenolic pistons (18mm and 19.5mm) for class-leading force.

Mineral Oil System: Uses Maxima Mineral Brake Oil for simplified, low-maintenance longevity and extended service life.

Stealth Lever Body: Modern design with the hose exiting close to the handlebar for a sleek, clean cockpit.

Tool-Free Reach Adjust: Easy, on-the-fly adjustment of the lever distance from the bar.

Optimised Heat Management: Calliper design ensures phenomenal heat dissipation for fade-free performance.

Bleeding Edge™: Features the easy-to-use Bleeding Edge™ port for simple, drip-free maintenance.

SPECIFICATIONS

Specification	Detail	Notes

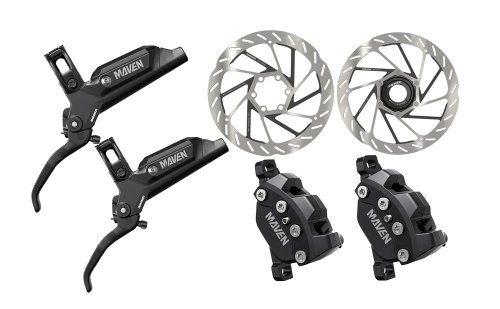

Bundle Contents	1x Front Maven Base Brake, 1x Rear Maven Base Brake	Supplied with organic pads, MMX clamps, and olives/barbs.
Application	Enduro, DH, E-MTB, Gravity	Full gravity setup.
Brake Fluid	Mineral Oil (Maxima Mineral Brake Oil)	Low maintenance and superior heat stability.
Caliper	Forged Aluminium, 4-Piston	Oversized pistons (18mm & 19.5mm) for maximum power.
Lever Adjustments	Tool-Free Reach Adjust	No tools required for lever position fine-tuning.
Hose Routing	Stealth Lever Exit	Clean aesthetics and bar integration.
Rotors (Optional Add-On)	SRAM HS2 Rotor (6-Bolt or Center Lock)	Highly Recommended: 2.0mm thick for improved power and heat management.
Rotor Sizes (Common)	200mm, 220mm (Recommended)	The Maven system performs best with larger diameter rotors.
Brake Mounts (Optional Add-On)	SRAM Post Mount Adaptors	Required to match your rotor choice to your frame/fork. Consult a sizing guide for specific bike requirements.
Compatibility	9/16" standard threaded mount	Standard for most modern MTB cranks.
Finish	Blast Black Anodised	Uniform look for the entire brake system.

Specification	Detail
Bundle Contents	1x Front Maven Base Brake, 1x Rear Maven Base Brake
Application	Enduro, DH, E-MTB, Gravity
Brake Fluid	Mineral Oil (Maxima Mineral Brake Oil)
Caliper	Forged Aluminium, 4-Piston
Lever Adjustments	Tool-Free Reach Adjust
Hose Routing	Stealth Lever Exit
Rotors (Optional Add-On)	SRAM HS2 Rotor (6-Bolt or Center Lock)
Rotor Sizes (Common)	200mm, 220mm (Recommended)
Brake Mounts (Optional Add-On)	SRAM Post Mount Adaptors
Compatibility	9/16" standard threaded mount
Finish	Blast Black Anodised

Specification	Notes
Bundle Contents	Supplied with organic pads, MMX clamps, and olives/barbs.
Application	Full gravity setup.
Brake Fluid	Low maintenance and superior heat stability.
Caliper	Oversized pistons (18mm & 19.5mm) for maximum power.
Lever Adjustments	No tools required for lever position fine-tuning.
Hose Routing	Clean aesthetics and bar integration.
Rotors (Optional Add-On)	Highly Recommended: 2.0mm thick for improved power and heat management.
Rotor Sizes (Common)	The Maven system performs best with larger diameter rotors.
Brake Mounts (Optional Add-On)	Required to match your rotor choice to your frame/fork. Consult a sizing guide for specific bike requirements.
Compatibility	Standard for most modern MTB cranks.
Finish	Uniform look for the entire brake system.
