Santa Cruz Tallboy CC

Santa Cruz Tallboy CC

If ever there was a gravity riders’ XC bike, the Tallboy is it.

The new 120mm Tallboy takes a leap further into what short-travel bikes really are capable of. With kick-ass lower-link VPP suspension, a streamlined design, the typical Santa Cruz refinement, and rather radical geometry, the Tallboy is back to being a genre bending folk hero.

Sure, 10mm more travel might only seem like one small step—but coupled with a lower link-driven VPP suspension design this is one giant leap for the Tallboy.

It’s the kind of bike that makes you sprint while going up, along, over, or down due to the maximum efficiency of the VPP design and responsive, lightweight chassis. But because it shares the same engineering principles as our longest travel bikes, the progressive lower link-mounted shock feels equally at home doing cross-country as it does in extreme-country. Paired with a 130mm fork the new Tallboy becomes ever more appealing to riders who like to open it up.

And the geometry, that's a big part of what's going on...

Established theory suggests shorter travel bikes get ridden slower, therefore require steeper and more conservative geometries. In reality though, when was the last time you ever throttled back on a fun trail because you weren’t on a bigger bike?  Caution to the wind and all that. So we’ve done the same here and mimicked our longer travel geometry to create a bike with a 65.5-degree head-angle, generous front center, and short offset fork. Something rarely seen on a bike of this ilk.

And the radical thinking doesn’t stop there.  The Tallboy’s short-short 430mm chainstays have +/- 10mm of rear axle adjustment to ensure riders of all sizes and styles feel equally at home. Match that to a relatively low BB (335mm and 37.5mm drop) and you’ve got a combo that’s ready to haul into every pocket turn and launch out the other side.

See video
2563g

Frame

Colour:
Custom Build Santa Cruz Tallboy CC

If ever there was a gravity riders’ XC bike, the Tallboy is it.

The new 120mm Tallboy takes a leap further into what short-travel bikes really are capable of. With kick-ass lower-link VPP suspension, a streamlined design, the typical Santa Cruz refinement, and rather radical geometry, the Tallboy is back to being a genre bending folk hero.

Sure, 10mm more travel might only seem like one small step—but coupled with a lower link-driven VPP suspension design this is one giant leap for the Tallboy.

It’s the kind of bike that makes you sprint while going up, along, over, or down due to the maximum efficiency of the VPP design and responsive, lightweight chassis. But because it shares the same engineering principles as our longest travel bikes, the progressive lower link-mounted shock feels equally at home doing cross-country as it does in extreme-country. Paired with a 130mm fork the new Tallboy becomes ever more appealing to riders who like to open it up.

And the geometry, that's a big part of what's going on...

Established theory suggests shorter travel bikes get ridden slower, therefore require steeper and more conservative geometries. In reality though, when was the last time you ever throttled back on a fun trail because you weren’t on a bigger bike?  Caution to the wind and all that. So we’ve done the same here and mimicked our longer travel geometry to create a bike with a 65.5-degree head-angle, generous front center, and short offset fork. Something rarely seen on a bike of this ilk.

And the radical thinking doesn’t stop there.  The Tallboy’s short-short 430mm chainstays have +/- 10mm of rear axle adjustment to ensure riders of all sizes and styles feel equally at home. Match that to a relatively low BB (335mm and 37.5mm drop) and you’ve got a combo that’s ready to haul into every pocket turn and launch out the other side.

1837g

Fork

Select:

Pike Select combines the DebonAir™ spring with the Charger™ RC damper, perfect for any trail junket you have planned. As a bonus, we included race-proven Maxima Plush fluid to help reduce friction, silence noise, and keep things running smooth ride after ride.

Features

New Maxima Plush damping fluid reduces friction and silences damper noise.
New graphics.
Charger™ RC damper featuring low speed compression adjust.
Highly tunable DebonAir™ spring offers a coil-like consistent feel throughout the travel.

221g

Rear shock

Select:

EXCEPTIONAL BUMP COMPLIANCE MEETS EXCEPTIONAL EFFICIENCY

The Float DPS’ lightweight chassis, EVOL air spring, and dual piston damper with 3-position switch help conserve energy for when you need it most. “Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race. Factory Series products feature slippery smooth, ultra-durable Genuine Kashima Coat.

Features

  • NEW graphics
  • NEW metric or trunnion-style remote shock offerings
  • DPS damper with three positions - Open, Medium, Firm modes
  • Dual Piston valve design improves both rebound and compression flow
  • Lightweight, one-piece EVOL air sleeve improves responsiveness and sensitivity
  • Factory Series models feature Genuine Kashima Coat
  • Starting Weight* 221 g

Specification

Sizes (3-position Lever):

  • Imperial Sizes 6.5 x 1.5 / 7.25 x 1.75 / 7.5 x 2.0 / 7.875 x 2.0 / 7.875 x 2.25
  • Metric Sizes 190 x 40 / 190 x 42.5 / 190 x 45 / 210 x 50 / 210 x 55

Adjustments (3-Position Lever):

  • Lever actuated Open, Medium, Firm modes
  • Open mode adjust tuning range (1, 2, 3)
  • Rebound
  • Air spring pressure
  • Body finish: Kashima Coat
  • Air sleeve finish: Kashima Coat
782g

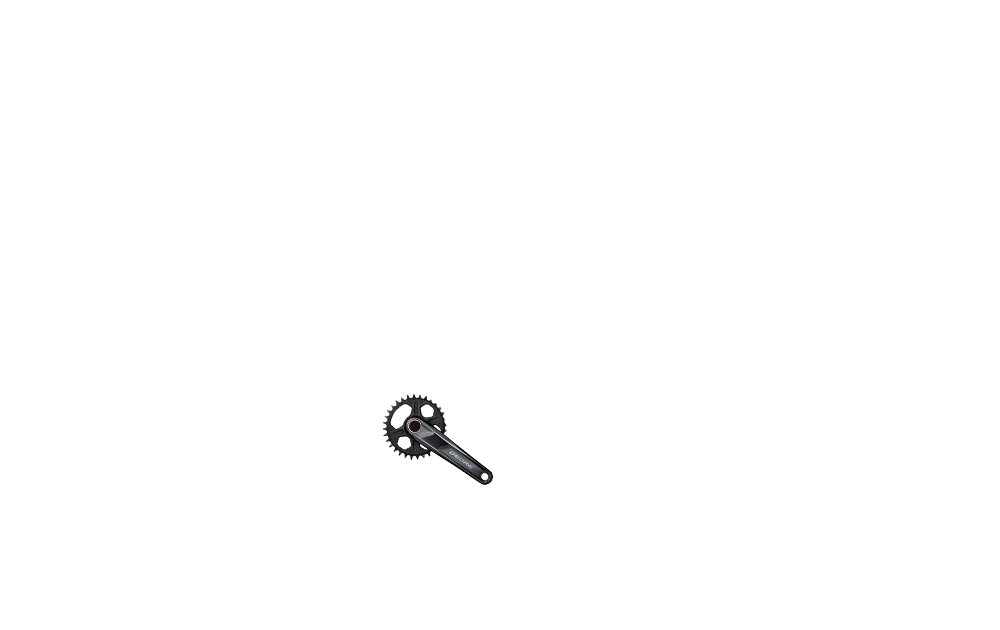

Chainset

Chain/Ring Length:
Select:

The SHIMANO DEORE FC-M6100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 178 mm Q-factor that is compatible with 148 mm O.L.D. frames.

The sleek metallic colour shift DEORE crankset comes in single-only (1x12) configuration for drivetrain simplicity. It features the same DYNAMIC CHAIN ENGAGEMENT+ technology as XTR, DEORE XT and SLX cranksets, which with its narrow/wide tooth profile is key to the improved chain retention, smoothness and quietness of the drivetrain. For secure and fast mounting of the chainring, the crank is equipped with a direct mount system, making chainring changes a breeze.

Features

  • Superior chain retention for smoother riding even over rough terrain
  • DYNAMIC CHAIN ENGAGEMENT+ improves chain engagement and retention
  • More maneuverability and aggressive riding realized
  • For wide 148 mm O.L.D. and 55 mm chainline
  • Direct mount chainring

Specification

  • Mounting system: Direct mount
  • Gear options: 30 T, 32 T

320g

Rear derailleur

Select:

The all-new SHIMANO DEORE M6100 rear derailleurs deliver advanced shifting performance with decreased tension in the low gear position. Larger 13T pulleys increase efficiency and chain management while compatibility with SHIMANO's new 12-speed cassettes boosts range.

Features

  • 1x12-speed SHIMANO SHADOW RD+ rear derailleur
  • Fast and precise shifting for modern mountain biking
  • Silent drivetrain in all gear positions
  • Decreased rear derailleur and chain tension in low gear
  • Bigger 13T pulley
  • Stable drivetrain in rough terrain
  • Low-profile design avoids damage from rocks
  • Chain stabilizer reduces chain drop, slap and noise

Specification

MODEL NO: RD-M6100-SGS
SERIES: DEORE M6100 Series
Color: Series color
B-Axle_Hollow axle: Yes

Compatible chain: HG 12-speed
Direct attachment (Conventional): Yes
Fluoric coated link bushings: 7
Low sprocket_Max.: 51T
Low sprocket_Min.: 51T
Max. front difference: 0T
Pulley_Sunken type pulley bolt: Yes
Pulley_Teeth: 13T
Pulley cage: SGS
Rear speeds: 12
Top-Normal spring type_SHADOW RD+: Yes
Top sprocket_Max.: 10T
Top sprocket_Min.: 10T
Total capacity: 41T

602g

Cassette

Select:

With its BEAM SPIDER construction, the new SHIMANO DEORE M6100 12-speed cassette shaves weight while increasing SHIMANO's MTB gearing range another gear. Using SHIMANO's new MICRO SPLINE freehub body and HYPERGLIDE+ tooth profile, the 10-51T cassette delivers advanced shifting performance.

Features

  • Trickle down technologies at its best
  • HYPERGLIDE+ provides fast and smooth shifting
  • BEAM SPIDER construction cuts weights and boosts stiffness
  • 10-51T wide range 12-speed gear combination

Specification

  • MODEL NO: CS-M6100-12
  • SERIES: DEORE M6100 Series
  • Combination: 10-12-14-16-18-21-24-28-33-39-45-51T
  • Combination name (Group name): 10-51T
  • Compatible chain: HG 12-speed
  • Speeds: 12
  • Type: HYPERGLIDE+
131g

Gear shifters

Select:

SHIMANO's RAPIDFIRE PLUS DEORE shift lever delivers light and responsive shifting for improved control out on the trail.

Features

  • Quick and easy shifting
  • Quicker lever access and light operation
  • Shifts max. 3 gears at a time (Main lever)
  • Easily-visible gear position indicator option improves shifting control

Specification

  • MODEL NO: SL-M6100-R
  • SERIES: DEORE M6100 Series
  • Color: Series color
  • Clamp band: Yes
  • Compatible RD Type: MTB 12-speed
  • Max. multiple shifts (Main lever/ rear): 3
  • Optical Gear Display: Yes
  • Optical Gear Display_Without: Yes
  • Rear speeds: 12
  • Recommended SL outer cashing: OT-SP41
  • Release function_2-Way release: Yes
  • SL cable adjust: Yes
  • Shifter type: RAPIDFIRE PLUS
345g

Handle bar

Width:
Select:

Aeffect is a new generation of Affordable All mountain equipement by Race face. The Aeffect bars comes in the new 35mm bar/stem standard. Forged and machined from 6061 Aluminium. 780x20 Rise.

155g

Stem

Length:
Select:

Aeffect is a new generation of Affordable All mountain equipement by Race face. The Aeffect stem comes in the new 35mm bar/stem standard. Forged and machined from 6061 Aluminium.

98g

Grips

Select:

Single lock-ring design with the staying power of dual lock-ring.  A taper-lock core uses an internal sleeve that narrows towards the last 38mm (1.5”) of the grip, effectively clamping onto the end of the bar to eliminate twisting.

Flared closed end for comfort, feel and security.  8mm (0.3”) of rubber with a subtle mushroom profile on the tip resists scuffing, provides comfort and adds an intuitive feel for the bar end.  (We also found it adds a healthy dose of forgiveness when clipping trees on tight trails!)

Long grip length and waffle knurl for maximum control.  A generous 125mm (4.9”) grip length (excluding lock-ring) allows plenty of room to reposition hands on differing terrain and long rides.  The moto-knurl pattern gives just the right balance of feel and grip in all conditions.

150g

Headset

Select:

Legendary Hope headset - UK made with stainless bearings and inclides Hope Head Doctor top cap assemby.

Rubber sealed cartridge type, stainless steel bearings and additional 'O' ring seals in the cups to ensure years of maintenance free running. It's strong enough for downhill use, yet still light enough for cross-country. Bearing Type: Sealed stainless steel cartridge type. Cups: 2014 aluminium.

640g

Seatpost

Select:

The Ascend Seatpost is only compatible with bikes that can use an internally routed dropper. (Please note that it cannot be converted to external cable actuated.)The seatpost is cable actuated at the bottom of the post via a linkage mechanism which eliminates cable pull/movement, to ensure consistent performance time and time again.

The ergonomic shifter style remote lever is designed to be run where your front shifter would normally sit. This means that the Ascend Dropper is ideally suited for those using a 1x chain ring set up; without a front derailleur. However, a paddle style shifter is available aftermarket for those who want to use the Ascend dropper post with a front derailleur and shifter.

The Ascend Dropper seatpost sets new standards for reliability and performance at a fantastic price point.

Features:

  • Material: AL7075-T651; Finish: Sand Blasted and Hard Anodised Black
  • Bar mounted shifter style remote lever and Cable operated internal routing
  • Linkage mechanism eliminates any outer cable pull
  • Zero Offset one piece head/upper shaft with micro adjust clamp
  • Diameter: 30.9mm or 31.6mm; Length: 498mm; Travel: 170mm
  • Rider Weight: Min: 50-55kg; Max: 120kg
  • Weight (31.6mm- exc cable and shifter): 595g
  • Cable Length: 1.5m
  • Warranty: 2 Years
  • Remote Adjuster: Yes
  • Dropper: Yes
295g

Saddle

Select:

The Volt is the next evolution in WTB saddles. Thin Line style compact padding borrowed from the Silverado and Devo compliment subtle curves and a melange of popular features from several of our saddles. A slight whale tail and gentle drop to the nose provide something to push against while not limiting riders to one seating position. This saddle has enough padding for all day riding comfort yet scant enough weights for XC competition gaining it endless acclaim and popularity among riders.


SPECIFICATIONS:

RAIL: Steel
COLOUR: Black (Silver accents)
WEIGHT: 297g
DETAILS:Synthetic Cover, Flex-tuned shell and Standard Padding

49g

Seatpost quick release

Select:

Santa Cruz Logo Seat Clamp. Comes with Frame.

0g

Pedals

Select:
If you require pedals please chose from this menu
1382g

Brake sets

Select:

With a focus on reduced weight and cross-country tuned stopping power, the SLX BL-M7100 lever provides intuitive modulation so that you can explore your limits with confidence. The M7120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control. Shimano's SM-RT66 6-bolt disc brake rotors deliver consistent stopping power in all riding conditions. The rotor's reliable anti-loosen plate construction makes for quick and secure installation.

Features:

  • Stable and versatile high-performance brake control
  •  I-SPEC EV Clamp Band
  • Rider Tuneable
  • Quicker Piston retraction
  • High power braking instills greater downhill confidence and control
  • Reduces disc brake rotor wobbling noise and increases braking power by 10% (vs. M7000)
  • Four Piston
  • Quick and easy assembly
  • Banjo type connection and inside hose routing
  • Reliable and easy anti-loosen plate
  • Metal pad compatible
  • 160 mm, 180 mm, 203 mm



280g

Chain

Select:

The M6100 chain provides smooth shifting and enhanced chain retention thanks to an extended portion of the inner plate. The new chain features QUICK-LINK assembly and is optimized for HYPERGLIDE+ cassettes and DYNAMIC CHAIN ENGAGEMENT+ chainrings.

Features

  • Proprietary design ensures smooth shifting and strength
  • Extended inner plate improves chain engagement and retention
  • Shorter shift times and less pedaling shock
  • Optimized to work with HYPERGLIDE+ cassette sprockets and DYNAMIC CHAIN ENGAGEMENT+ chainrings

Specification

  • MODEL NO: CN-M6100
  • SERIES: DEORE M6100 Series
  • Average weight: 252
  • Remarks: QUICK-LINK
  • Chromizing treatment link pin: Yes
  • Pin link plate: Grey
  • Roller link plate: Brown
  • Type: HG 12-speed
  • E-Bike RD system compatible: Yes
0g

Chain Guide

Select:

No Chain Device Fitted

0g

Extras

Select:

No Extras Included

Add toolkit, straps and other emergency kit on your bike rather than in a heavy backpack.

Extras included:

Oneup Components EDC Toolkit

Backcountry Research Straps - Used by EWS Champ Ritchie Rude.

2000g

Wheels

Select:

Wheels machine built and hand finished in Barnoldswick
Fortus 35w rim built on our bulletproof Pro 4 Hubs
Standard J-bend hub wheel builds available in our 6 standard colours
Larger diameter spoke flange, to build a stiffer wheel
Stainless Steel, sealed cartridge bearings
Welded and eyeleted 6061 T6 aluminium rim
Tubeless compatible
Black Sapim Race Stainless Steel double-butted spokes built with Silver Brass nipples

Internal width: 35mm
External width: 40mm
Profile depth: 18.5mm
Rim ERD: 567mm
Recommended tyre width: 2.5” - 3.0”
Spoke count: 32



1950g

Tyres

Select:

The open and aggressive tread design gives the High Roller II excellent soil penetration and mud clearing ability. A square profile provides a solid, consistent feel across the knobs. Modified knobs on the shoulder and centre improve braking performance and traction on hard surfaces. When gravity pulls you downhill, rely on the High Roller II to keep you upright.​

Weight:

PRICE:

Santa Cruz Tallboy CC

*Finance example shown is with 10% deposit. Add build to the Basket and select the Finance button to see all Finance options. The weights shown on this site are intended as a guide. Actual weights may vary slightly from stated due for example; size of frame. We currently take most of our weights from information that is provided by the product manufacture, however we at EVO Cycles are weighing what products we can to provide you with an exact weight [All bike weights are weighed without pedals].

Are you sure you want to add this bike to the basket?

ProBuilds are hand built and take between 1-3 weeks. We like to think good things come to those that wait.
