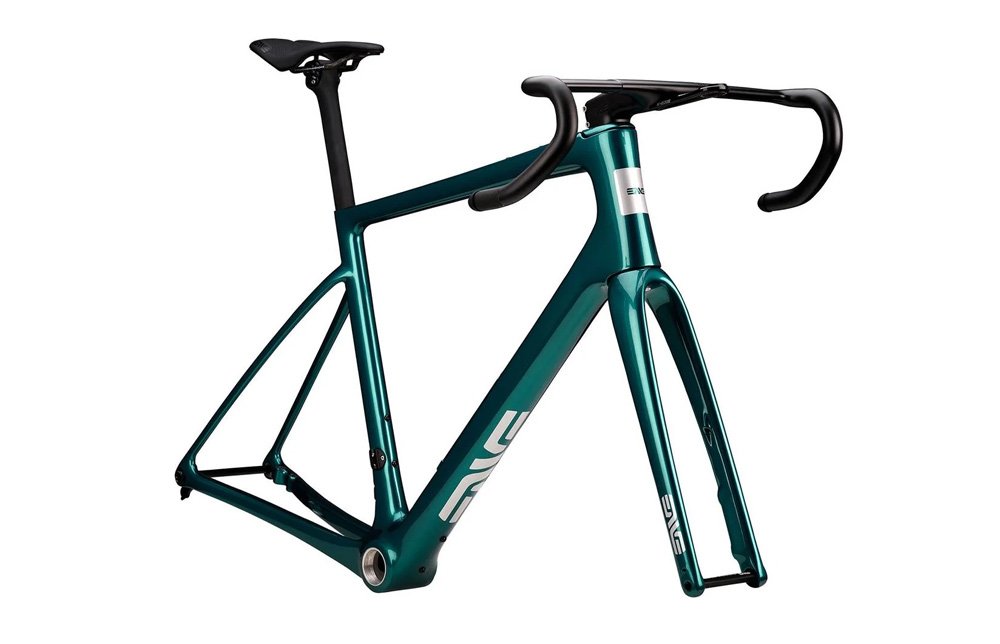

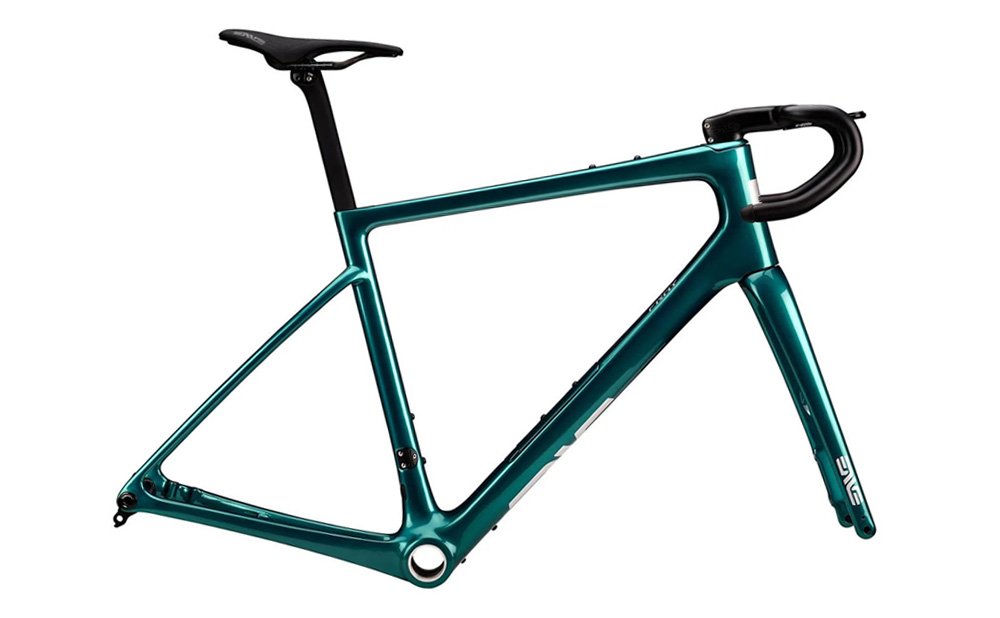

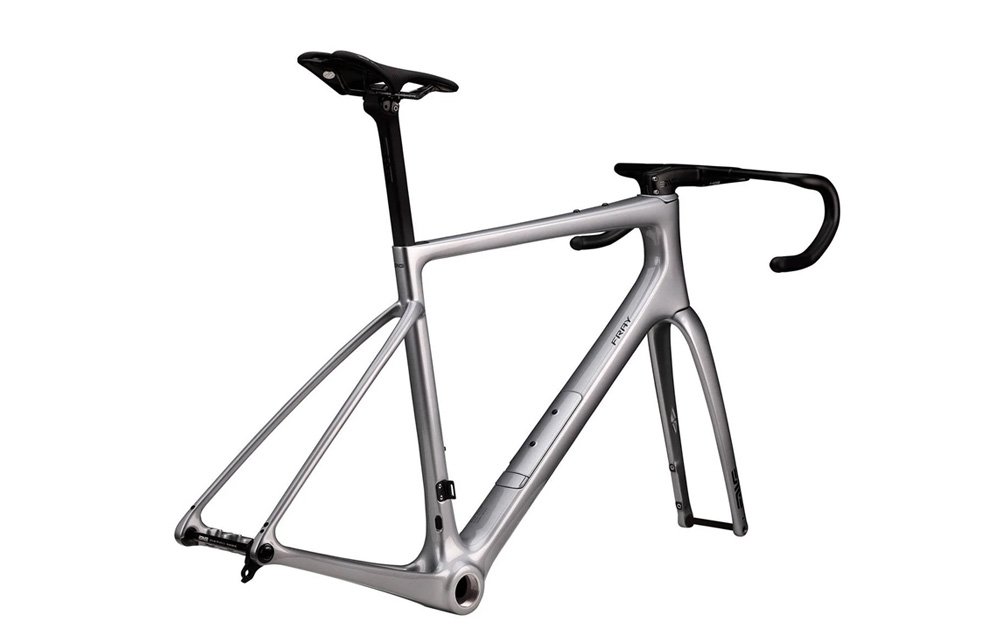

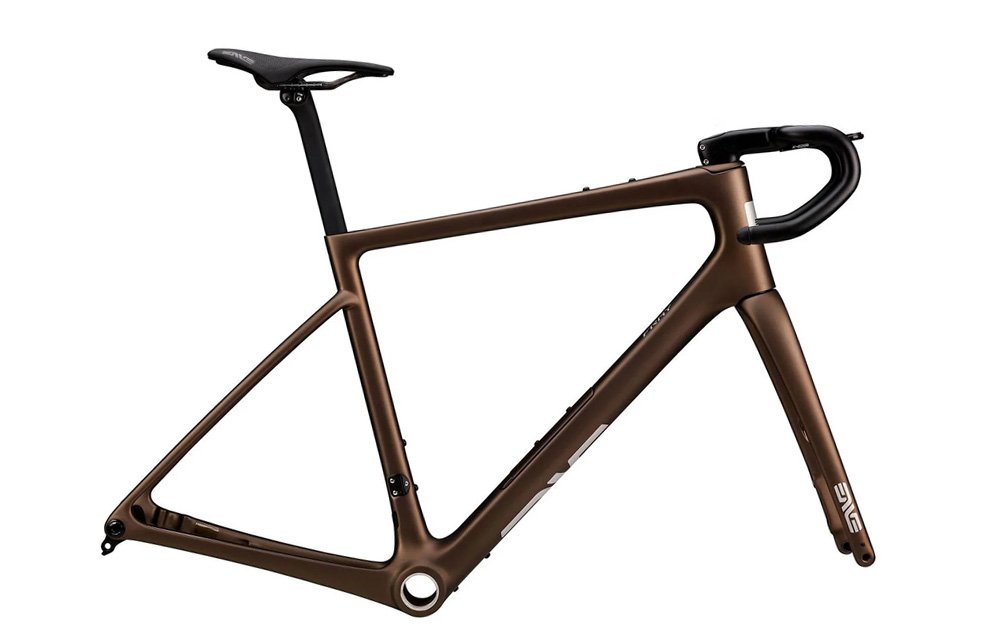

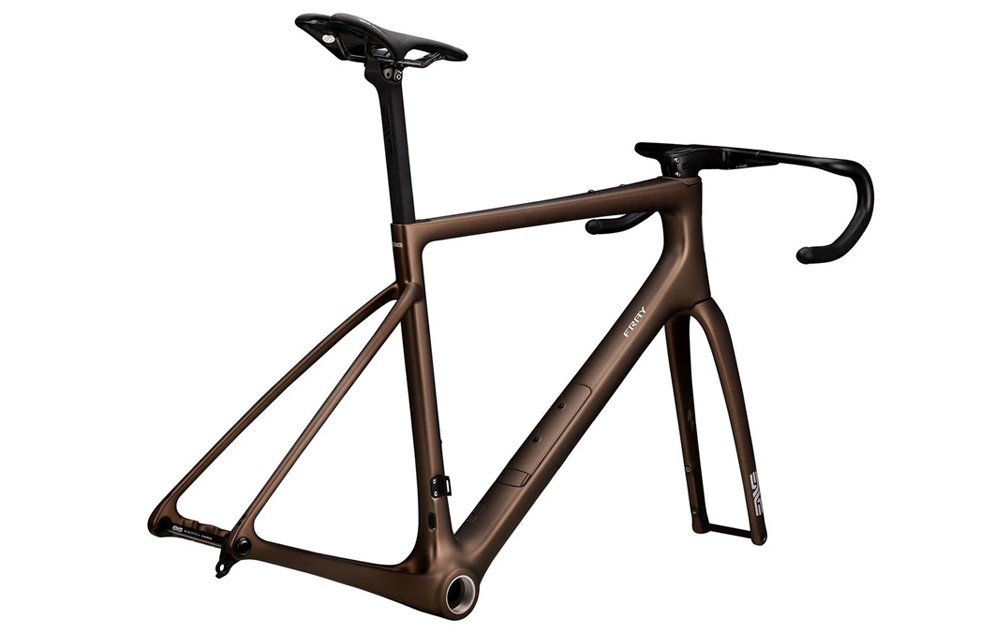

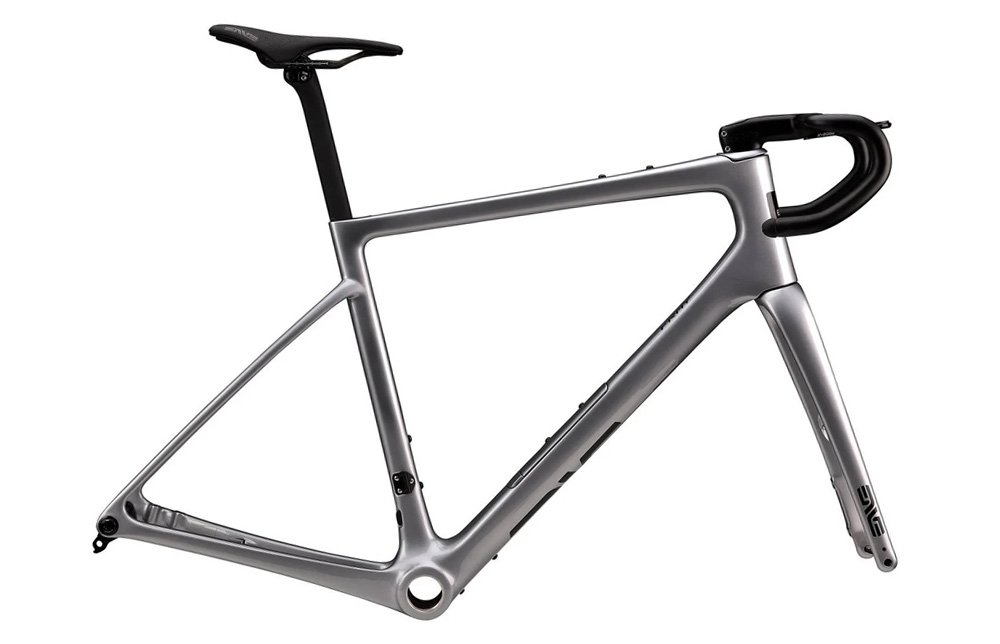

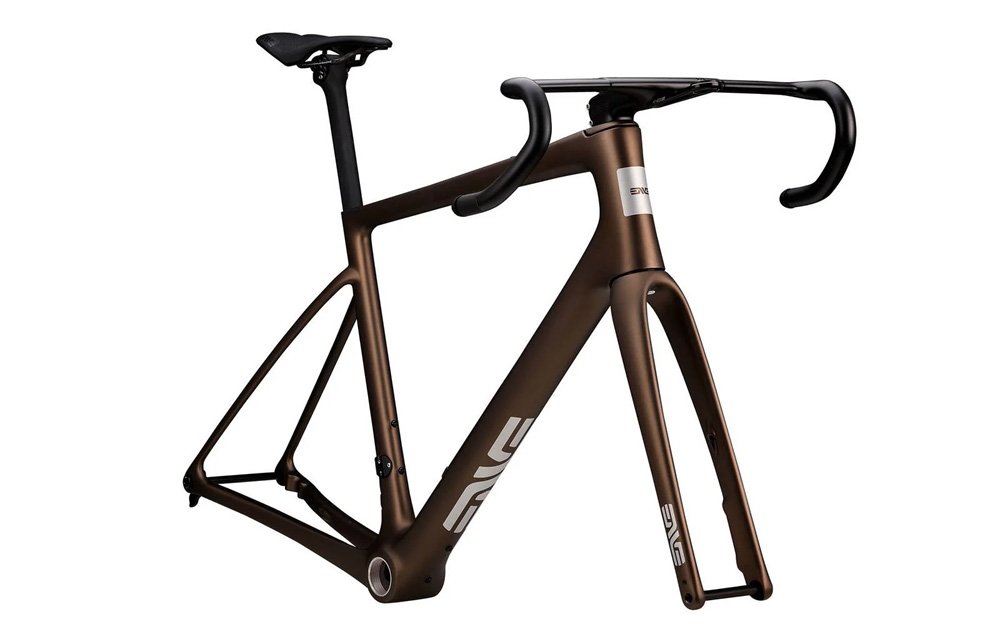

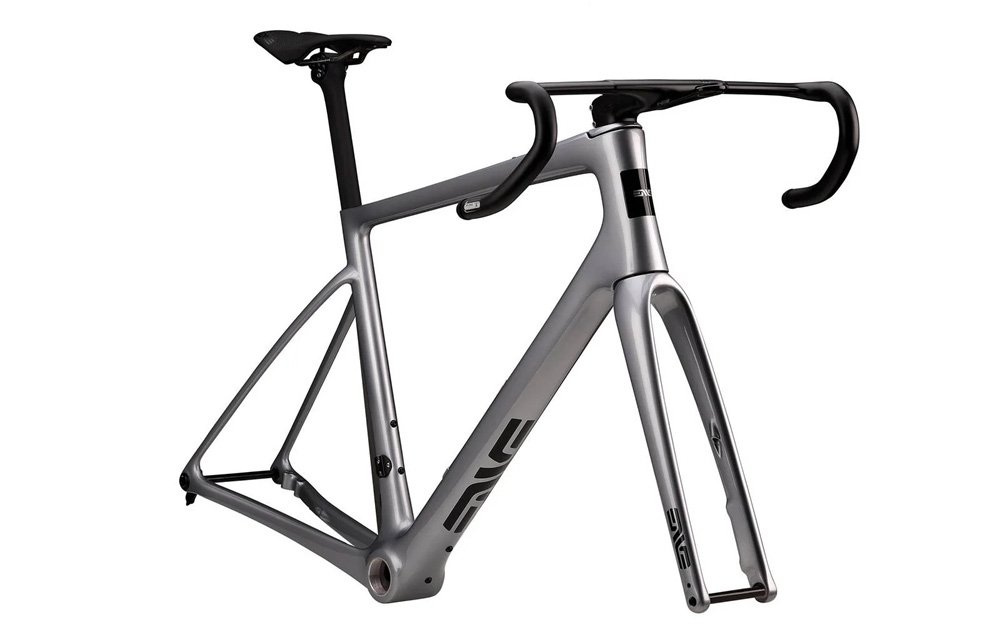

Enve Fray Frameset

Name: Enve Fray Frameset
Brand: Enve
SKU: ENFS11002100500
Price: 4800 GBP
Availability: InStock

ENVE Fray Frameset - Endurance Road, 40mm Tyre Clearance, T47 BB, Integrated

The ENVE Fray is the brand's all-new, endurance-focused road bike that slots between the aero Melee and the pure gravel MOG. It prioritises comfort and versatility with massive tyre clearance, while still retaining excellent aerodynamic efficiency and full integration.

The ENVE Fray Frameset is engineered to be the ultimate high-performance endurance and all-road machine. It balances the aerodynamic lessons learned from the Melee with the versatility required for all-day adventures, making it perfect for gran fondos, paved routes, and light gravel exploration.

Comfort and Versatility: The Fray's geometry is endurance-focused, offering a slightly taller stack and shorter reach than the Melee for a more comfortable, upright position on long rides. Its defining feature is its versatility, achieved through massive 700c x 40mm tyre clearance (max recommended), allowing riders to tackle rough pavement and light, packed gravel comfortably.

The frameset incorporates the Cargo Bay internal storage—a discreet compartment in the down tube—providing secure, rattle-free space for tools and spares. This feature, borrowed from the MOG, is a massive advantage for self-supported endurance rides.

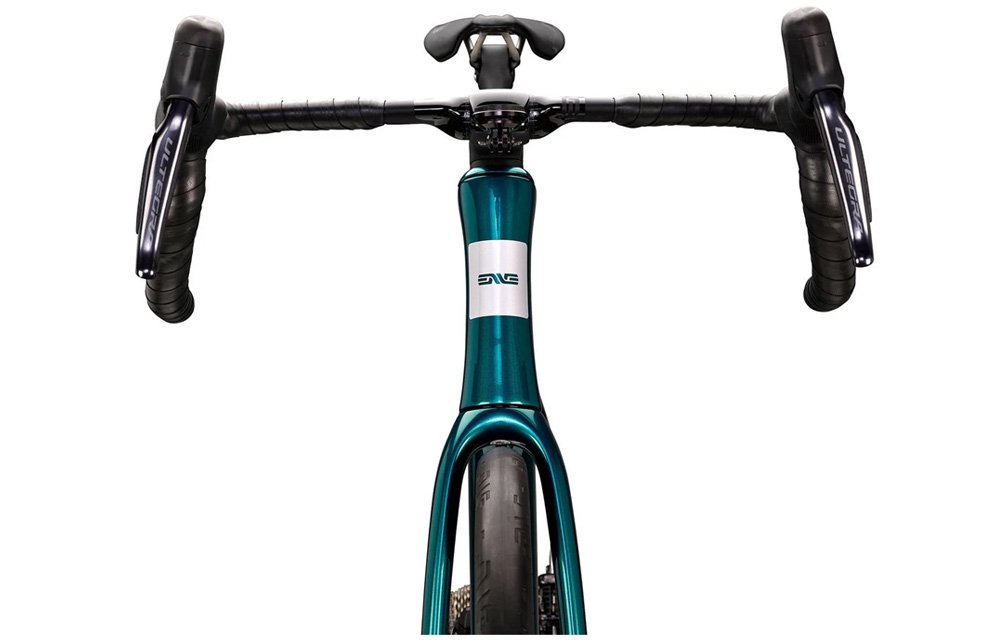

Integration and Premium Build: The Fray utilises the ENVE In-Route System for complete concealment of hoses and wires through the frame and fork, and the custom ENVE Aero Stem/SES AR Handlebar (cockpit included in this frameset package). This ensures a clean, aero profile and protection from the elements.

The frameset uses premium Uni-Directional Carbon Fibre construction and features a T47 Threaded Bottom Bracket (86mm shell) for reliable, noise-free performance and ease of maintenance. The Fray is designed for speed, stability, and all-day comfort, regardless of the terrain.

Full details on this model can be found on ENVE's website here.

CHOOSE OPTIONS

Select Size & Colour Required

£3,640.00

Select Required Seatpost Length and Offset

£330.00

Select Required Handlebar

£440.00

Select Stem Length (unless sleected One-Piece Bar Above)

£390.00

Select Saddle Model and Size

£0.00

Select Complimentary Bar Tape

£0.00

Select Optional Wheelset

£0.00

Select Optional Tyres

£0.00

Select optional Enve Bottle Cage

£0.00

Select Enve Waterbottle if desired

£0.00

Select Optional Enve Computer Mount

£0.00

BIKE PROTECTION

FRAME & FORK - FULLY FITTED (£250.00)

Out of stock

£4,800.00

e: / t: 01323 737320

click here to see finance examples or £104.72 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	6	12	24	36	48
Purchase Cost	£4,800.00	£4,800.00	£4,800.00	£4,800.00	£4,800.00
APR	0.00%	0.00%	7.90%	7.90%	7.90%
Deposit %	10.00%	10.00%	10.00%	10.00%	10.00%
Deposit amount	£480.00	£480.00	£480.00	£480.00	£480.00
Loan amount	£4,320.00	£4,320.00	£4,320.00	£4,320.00	£4,320.00
Pay per month	£720.00	£360.00	£194.66	£134.64	£104.72
Total payable	£4,800.00	£4,800.00	£5,151.84	£5,327.04	£5,506.56

THE DETAIL

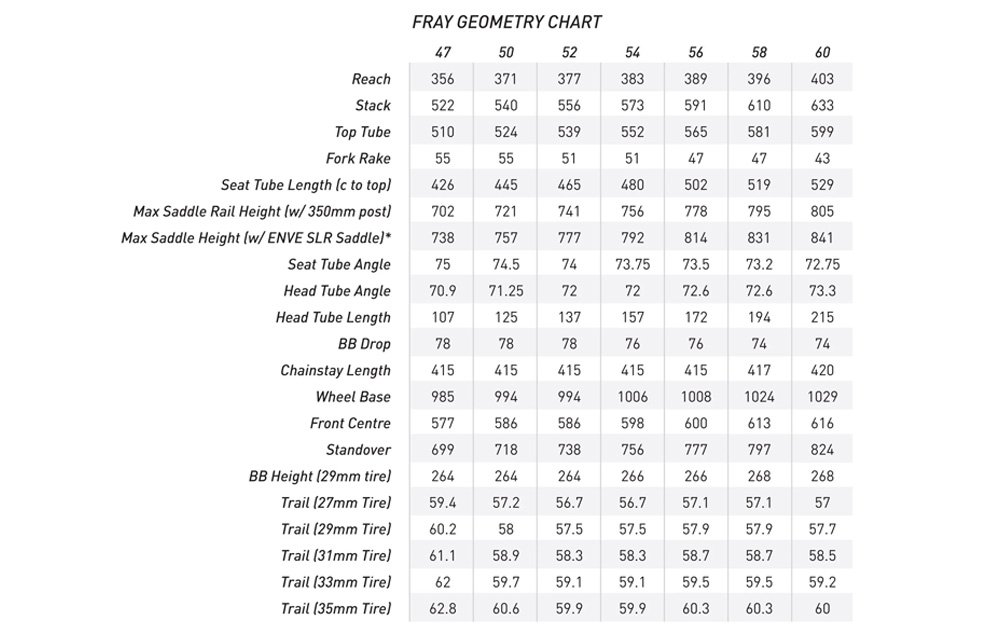

Endurance Geometry: Slightly taller stack and shorter reach for long-distance comfort and stability.

Versatile Clearance: Massive 40mm max tyre clearance for all-road capability.

Integrated Cargo Bay: Secure, rattle-free internal storage in the down tube.

Complete Integration: Utilises the ENVE In-Route System for thoroughly hidden brake hoses and wires.

Threaded BB: Reliable T47 Inboard/Outboard Threaded bottom bracket standard.

Complete Frameset: Includes frame, fork, headset, integrated cockpit and ENVE Aero Road Seatpost, plus FREE Ti-railed Enve saddle and ENVE bar tap courtesy of EVO Cycles!

SPECIFICATIONS

Specification	Detail	Notes
Frame Material	Uni-Directional Carbon Fibre	Premium, lightweight construction tuned for endurance.
Fork (Included)	ENVE Integrated Aero Fork	Full carbon, designed for the ENVE In-Route System.
Head Tube Standard	Tapered (1?1/8?? to 1?1/2??)	Custom integrated headset with ENVE In-Route System.
Tyre Clearance (Max)	700c�40mm	Maximum width for all-road versatility.
Bottom Bracket	T47 Threaded (86mm Shell)	Durable, easy-to-maintain standard.
Axle Standard F/R	100�12mm / 142�12mm Thru-Axle	Standard flat mount disc road thru-axles.
Brake Mounts	Flat Mount Disc	Optimized for 160mm rotors F/R.
Cable Routing	Fully Internal (ENVE In-Route)	Through the cockpit, headset, and frame.

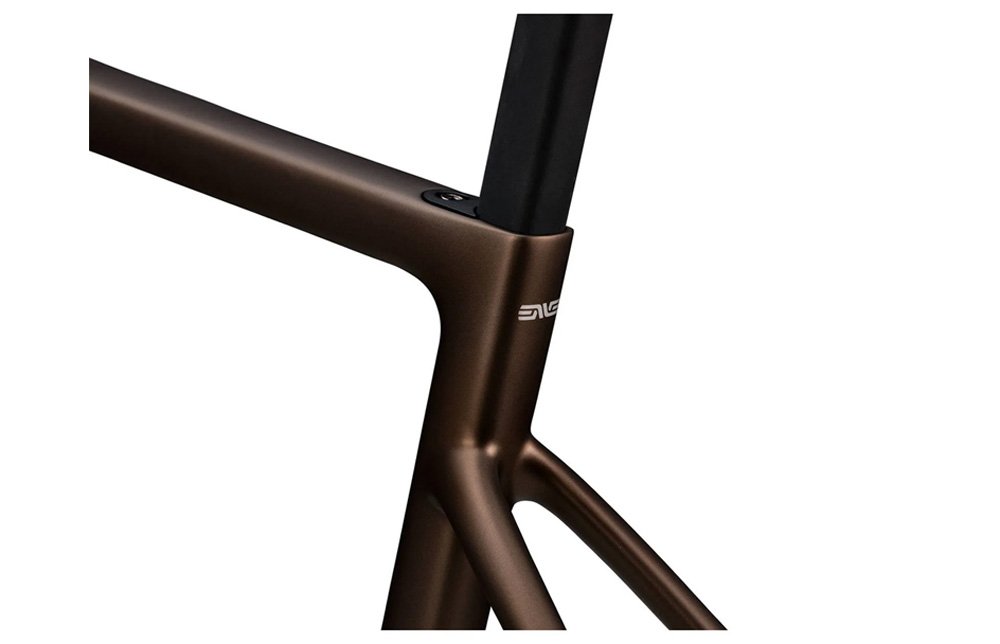

Seatpost (Included)	ENVE Aero Road Seatpost	Custom D-shaped aero profile seatpost.
Storage	Integrated Cargo Bay	Internal down tube storage compartment (for L/XL/XXL sizes).
Frame Weight (Approx)	?900g (Size 56)	Extremely light for an endurance and all-road frame.
Frameset Weight (Approx)	?1650g (Frame, Fork, Seatpost)	Competitive weight for a fully integrated system.

Specification	Detail
Frame Material	Uni-Directional Carbon Fibre
Fork (Included)	ENVE Integrated Aero Fork
Head Tube Standard	Tapered (1?1/8?? to 1?1/2??)
Tyre Clearance (Max)	700c�40mm
Bottom Bracket	T47 Threaded (86mm Shell)
Axle Standard F/R	100�12mm / 142�12mm Thru-Axle
Brake Mounts	Flat Mount Disc
Cable Routing	Fully Internal (ENVE In-Route)
Seatpost (Included)	ENVE Aero Road Seatpost
Storage	Integrated Cargo Bay
Frame Weight (Approx)	?900g (Size 56)
Frameset Weight (Approx)	?1650g (Frame, Fork, Seatpost)

Specification	Notes
Frame Material	Premium, lightweight construction tuned for endurance.
Fork (Included)	Full carbon, designed for the ENVE In-Route System.
Head Tube Standard	Custom integrated headset with ENVE In-Route System.
Tyre Clearance (Max)	Maximum width for all-road versatility.
Bottom Bracket	Durable, easy-to-maintain standard.
Axle Standard F/R	Standard flat mount disc road thru-axles.
Brake Mounts	Optimized for 160mm rotors F/R.
Cable Routing	Through the cockpit, headset, and frame.
Seatpost (Included)	Custom D-shaped aero profile seatpost.
Storage	Internal down tube storage compartment (for L/XL/XXL sizes).
Frame Weight (Approx)	Extremely light for an endurance and all-road frame.
Frameset Weight (Approx)	Competitive weight for a fully integrated system.
