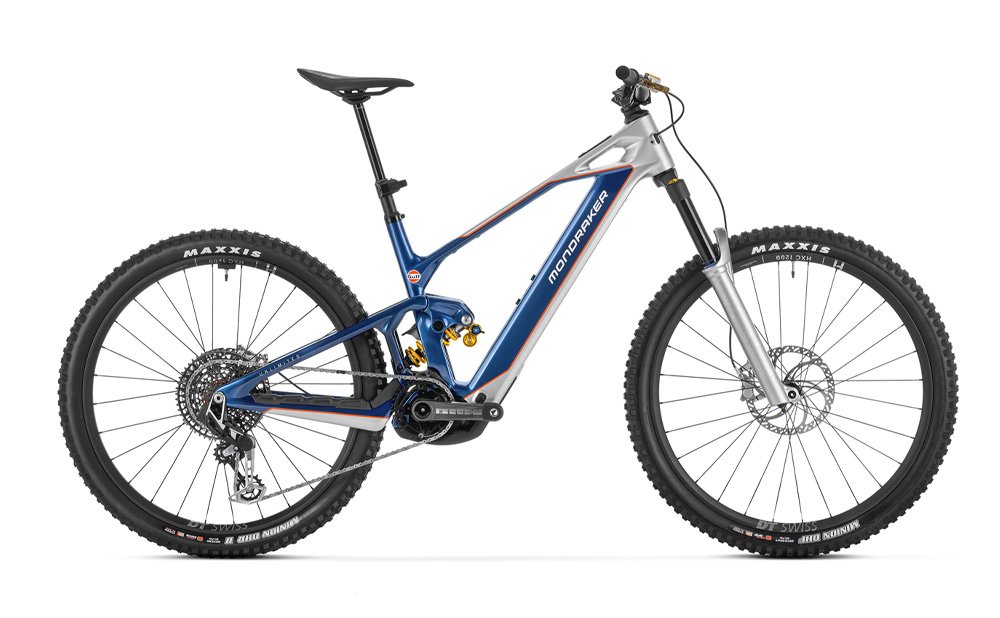

Mondraker Crafty Unlimited - Gulf Edition

Name: Mondraker Crafty Unlimited - Gulf Edition
Brand: Mondraker
SKU: CraftyUnLtdGulfSz
Price: 14499.00 GBP
Availability: LimitedAvailability

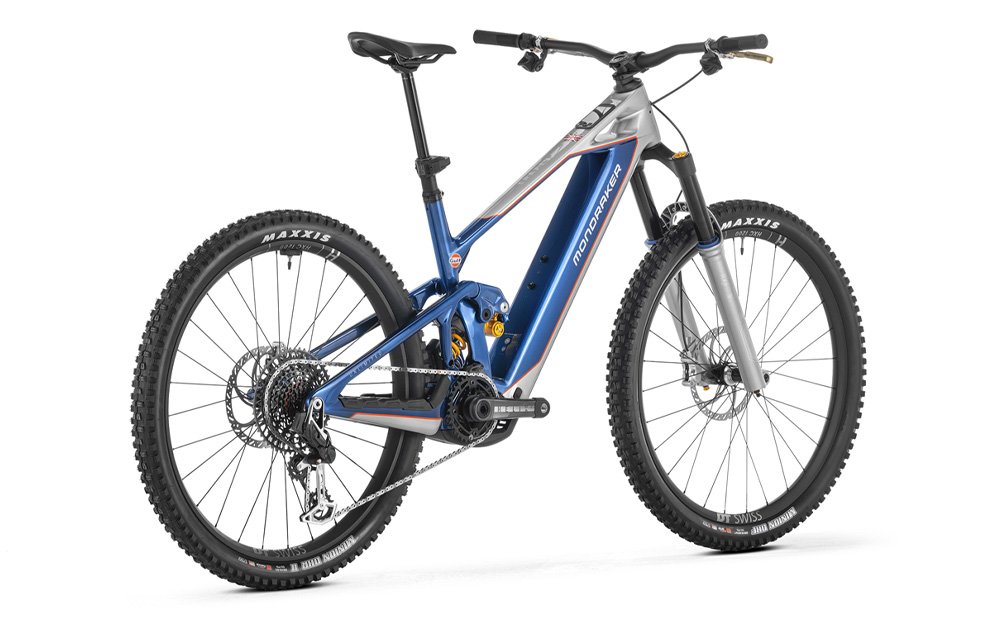

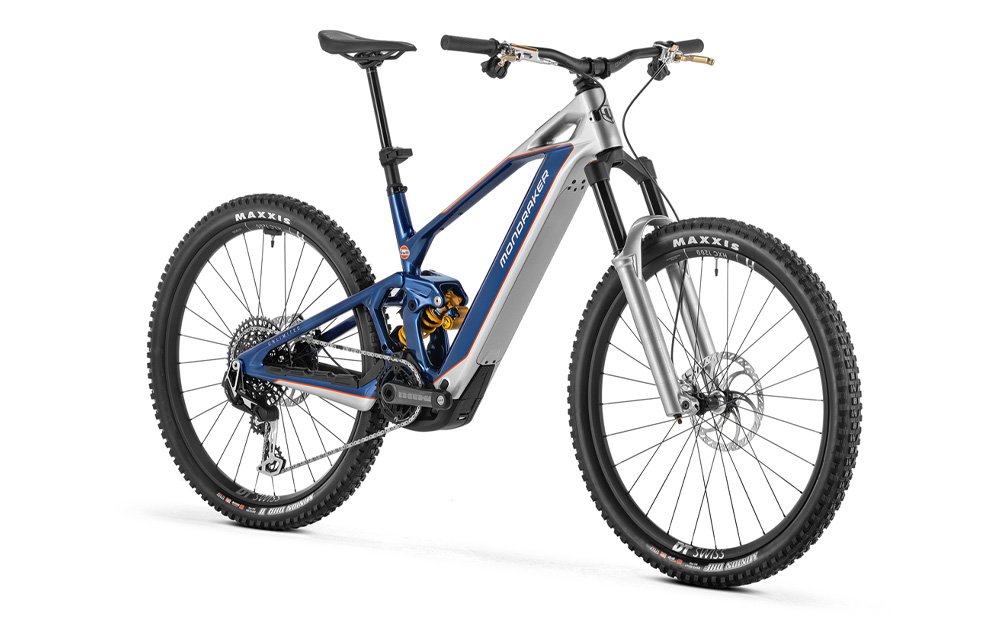

Mondraker Crafty Unlimited Gulf Edition

The 2026 Mondraker Crafty Unlimited Gulf Edition is a masterpiece of mountain bike engineering. Built around a full Stealth Air Carbon frame, it utilises the updated Zero Suspension System to deliver 150mm of rear travel. This limited-edition model is equipped with the Bosch Performance Line CX-R (Race) motor, providing aggressive power delivery and a massive 800Wh battery for extended racing sessions.

Elite Component Selection

This build spares no expense, featuring the legendary Trickstuff Maxima brakes—widely regarded as the most powerful mountain bike brakes in the world. The suspension is handled by Öhlins' latest RXF 38 M.3 fork and TTX22M.2 coil shock, providing a level of damping consistency and adjustability usually reserved for factory racing teams.

Evo's Opinion:

The Mondraker Crafty Unlimited Gulf Edition is a strictly limited, high-performance e-MTB that celebrates the iconic racing partnership between Mondraker and Gulf Oil. This special edition isn't just a paint job; it's a top-tier build of the Crafty Carbon, featuring a custom "Gulf Blue" and "Heritage Orange" livery. Only 75 individually numbered units have been produced worldwide, making it one of the most exclusive mountain bikes on the market in 2026.

CHOOSE SIZE

Med/Lrg

X-Large

BIKE PROTECTION

Frame - Fully Fitted (£250.00)

Fork - Fully Fitted (£60.00)

Price (select options)

£14,499.00

e: / t: 01323 737320

click here to see finance examples or £285.62 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	6	12	24	36	48	60
Purchase Cost	£14,499.00	£14,499.00	£14,499.00	£14,499.00	£14,499.00	£14,499.00
APR	0.00%	0.00%	7.90%	7.90%	7.90%	11.90%
Deposit %	10.00%	10.00%	10.00%	10.00%	10.00%	10.00%
Deposit amount	£1,450.00	£1,450.00	£1,450.00	£1,450.00	£1,450.00	£1,450.00
Loan amount	£13,049.00	£13,049.00	£13,049.00	£13,049.00	£13,049.00	£13,049.00
Pay per month	£2,174.83	£1,087.42	£587.99	£406.70	£316.32	£285.62
Total payable	£14,498.98	£14,499.04	£15,561.76	£16,091.20	£16,633.36	£18,587.20

THE DETAIL

Bosch CX-R Motor: The Race-specific drive unit with exclusive "Race Mode" and high-response power delivery.
Öhlins M.3 Suspension: Features the TTX18 Twin Tube cartridge and a ramp chamber for professional-grade tuning.
Trickstuff Maxima Brakes: CNC-machined from 7075-T6 alloy with 4-piston callipers for ultimate stopping power.
SRAM XX Eagle Transmission: Robust, wireless T-Type shifting that allows for seamless gear changes under the motor's full torque.
DT Swiss HXC 1200 Wheels: Top-tier carbon wheels with DT 180 hubs and ceramic bearings for minimum rolling resistance.

SPECIFICATIONS

Specification	Detail	Notes

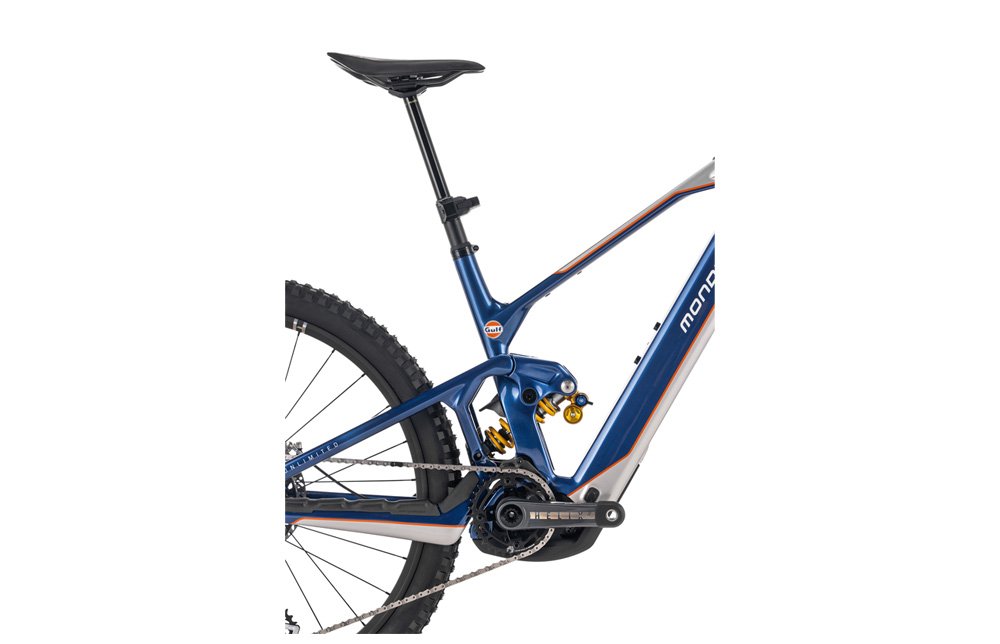

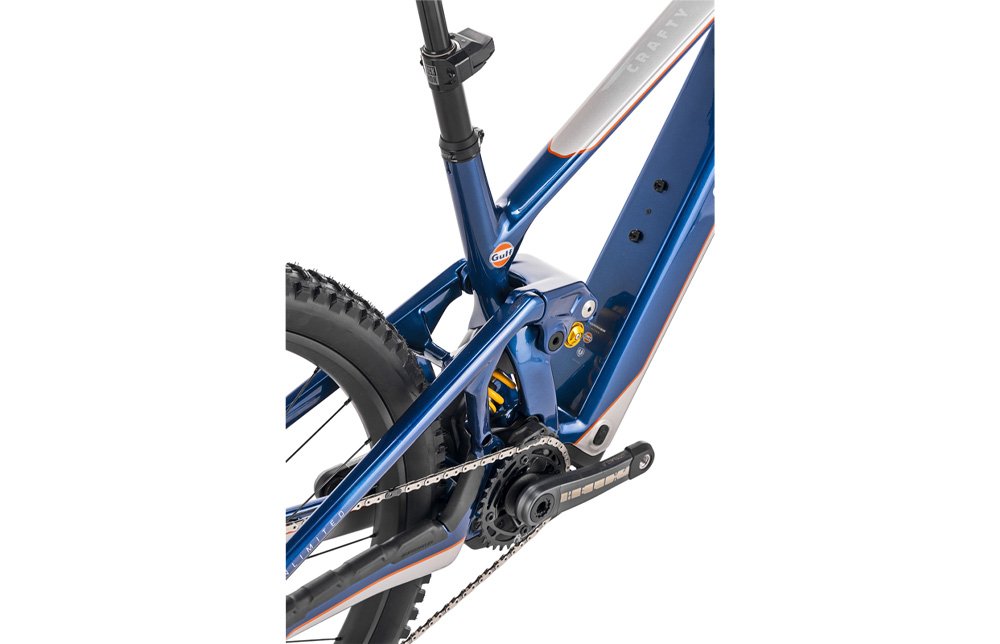

Frame	Crafty Stealth Air full Carbon, 150mm travel	Updated Zero Suspension System, UDH, internal battery.

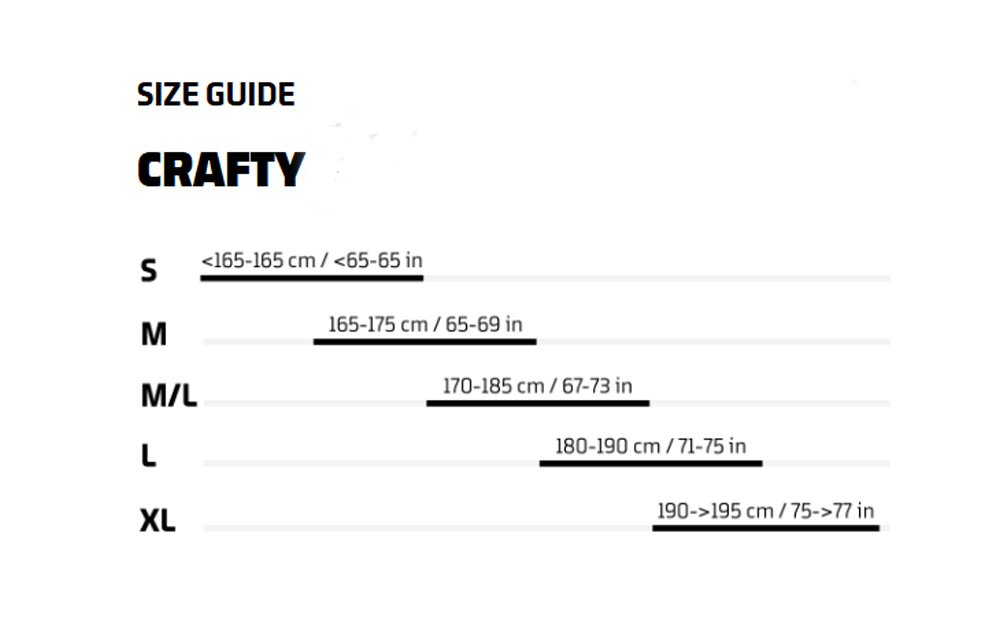

Sizes	S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm	Five size options for precise rider fitment.

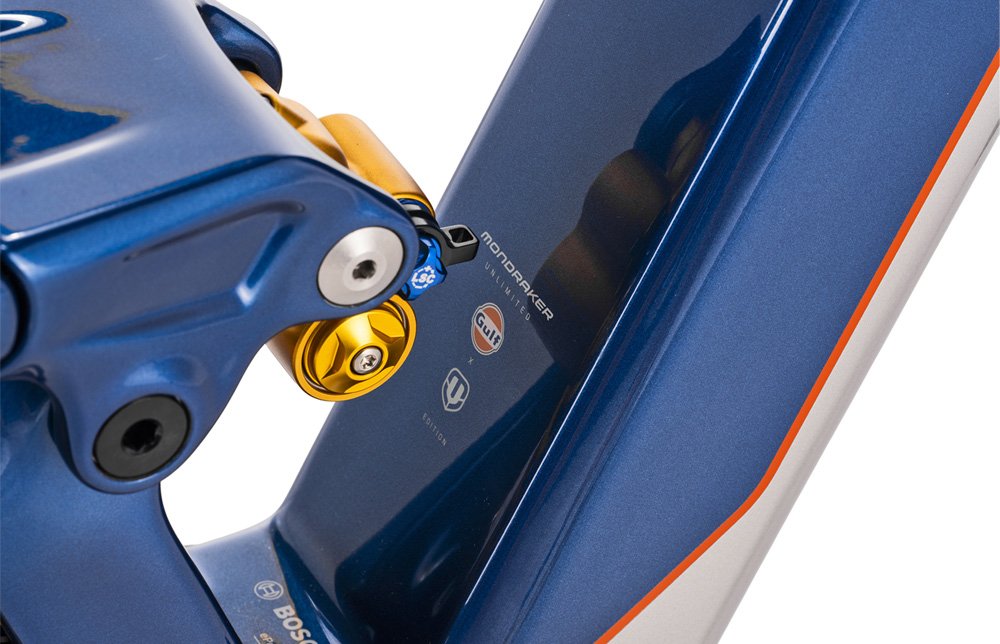

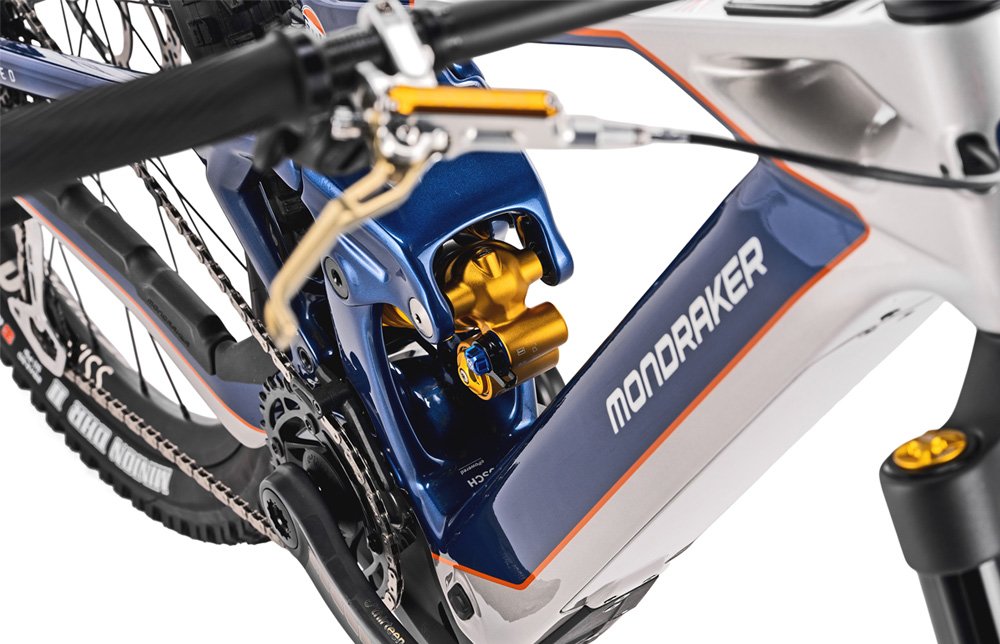

Rear Shock	�hlins TTX22M.2 185x55mm	High/low speed compression, rebound, spring preload.
Shock Settings	C20 compression, R40 rebound	Custom spring rates per size (S: 411lbs to XL: 605lbs).
Fork	�hlins RXF 38 M.3 29, 160mm	TTX18 cartridge, ramp chamber, 44mm offset.
Headset	Acros custom ZS56/ZS56	Internal cable routing through the headset.
Stem	Onoff S9 30mm 0�, Full CNC	Optimized for Forward Geometry stability.
Handlebar	Onoff S9 1.0 Carbon, 800mm	25mm rise (L/XL have 38mm rise).
Grips	Onoff Desert Pro, CNC lock-on	Thicker size provided for L and XL frames.
Seatpost	RockShox Reverb Stealth AXS	Wireless dropper (S: 125mm, M: 150mm, ML-XL: 175-200mm).
Saddle	Fizik Vento Argo 00 Carbon	150mm width with full carbon rails.
Front/Rear Brakes	Trickstuff Maxima 4-Piston	7075 T6 CNC alloy with 203mm 6-bolt rotors.
Brake Lever	Trickstuff Maxima CNC	Tool-free reach adjust with Kevlar hoses.
Rims	DT Swiss HXC 1200 Carbon Spline 29	30mm internal width, hookless, tubeless ready.
Front Hub	DT 180, Boost 15x110mm	Ceramic SINC bearings for ultimate speed.
Rear Hub	DT 180, Boost 12x148mm	Ratchet EXP OS 42 system, XD freehub.
Front Tire	Maxxis Minion DHF 29x2.5	3C Maxx Grip, EXO+ Protection, 60TPI.
Rear Tire	Maxxis Minion DHR II 29x2.5	3C Maxx Terra, EXO+ Protection, 60TPI.

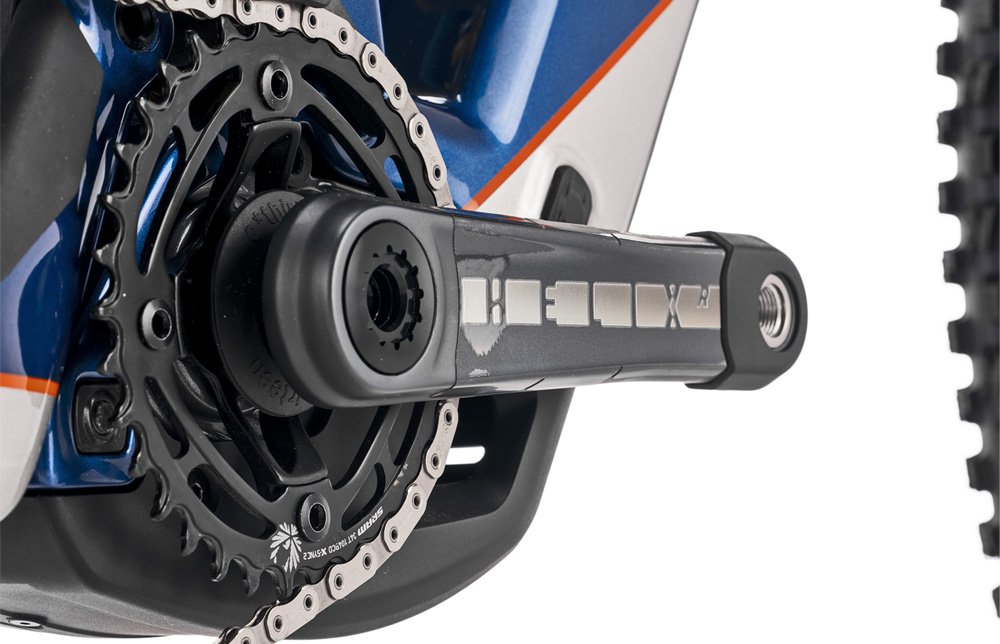

Crankset	E.13 Helix Race Carbon E*Spec Plus	160mm length across all sizes.
Rings	SRAM XX Eagle 34T T-Type	Direct mount, steel construction for durability.
Chain	SRAM XX Eagle T-Type, 12s	Powerlock included.
Rear Derailleur	SRAM XX Eagle AXS, T-Type	Wireless electronic shifting.
Shift Levers	SRAM Eagle AXS Pod Rocker	12-speed ergonomic controller.
Cassette	SRAM XS-1295, 10-52T	T-Type Eagle transmission range.
Motor	Bosch Performance Line CX-R	Smart System (BDU386Y), 85Nm torque.
Battery	Bosch Powertube 800Wh	High-capacity internal removable battery.
Display	Bosch Kiox 400 / Mini Remote	Handlebar-mounted control module.

Specification	Detail
Frame	Crafty Stealth Air full Carbon, 150mm travel
Sizes	S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear Shock	�hlins TTX22M.2 185x55mm
Shock Settings	C20 compression, R40 rebound
Fork	�hlins RXF 38 M.3 29, 160mm
Headset	Acros custom ZS56/ZS56
Stem	Onoff S9 30mm 0�, Full CNC
Handlebar	Onoff S9 1.0 Carbon, 800mm
Grips	Onoff Desert Pro, CNC lock-on
Seatpost	RockShox Reverb Stealth AXS
Saddle	Fizik Vento Argo 00 Carbon
Front/Rear Brakes	Trickstuff Maxima 4-Piston
Brake Lever	Trickstuff Maxima CNC
Rims	DT Swiss HXC 1200 Carbon Spline 29
Front Hub	DT 180, Boost 15x110mm
Rear Hub	DT 180, Boost 12x148mm
Front Tire	Maxxis Minion DHF 29x2.5
Rear Tire	Maxxis Minion DHR II 29x2.5
Crankset	E.13 Helix Race Carbon E*Spec Plus
Rings	SRAM XX Eagle 34T T-Type
Chain	SRAM XX Eagle T-Type, 12s
Rear Derailleur	SRAM XX Eagle AXS, T-Type
Shift Levers	SRAM Eagle AXS Pod Rocker
Cassette	SRAM XS-1295, 10-52T
Motor	Bosch Performance Line CX-R
Battery	Bosch Powertube 800Wh
Display	Bosch Kiox 400 / Mini Remote

Specification	Notes
Frame	Updated Zero Suspension System, UDH, internal battery.
Sizes	Five size options for precise rider fitment.
Rear Shock	High/low speed compression, rebound, spring preload.
Shock Settings	Custom spring rates per size (S: 411lbs to XL: 605lbs).
Fork	TTX18 cartridge, ramp chamber, 44mm offset.
Headset	Internal cable routing through the headset.
Stem	Optimized for Forward Geometry stability.
Handlebar	25mm rise (L/XL have 38mm rise).
Grips	Thicker size provided for L and XL frames.
Seatpost	Wireless dropper (S: 125mm, M: 150mm, ML-XL: 175-200mm).
Saddle	150mm width with full carbon rails.
Front/Rear Brakes	7075 T6 CNC alloy with 203mm 6-bolt rotors.
Brake Lever	Tool-free reach adjust with Kevlar hoses.
Rims	30mm internal width, hookless, tubeless ready.
Front Hub	Ceramic SINC bearings for ultimate speed.
Rear Hub	Ratchet EXP OS 42 system, XD freehub.
Front Tire	3C Maxx Grip, EXO+ Protection, 60TPI.
Rear Tire	3C Maxx Terra, EXO+ Protection, 60TPI.
Crankset	160mm length across all sizes.
Rings	Direct mount, steel construction for durability.
Chain	Powerlock included.
Rear Derailleur	Wireless electronic shifting.
Shift Levers	12-speed ergonomic controller.
Cassette	T-Type Eagle transmission range.
Motor	Smart System (BDU386Y), 85Nm torque.
Battery	High-capacity internal removable battery.
Display	Handlebar-mounted control module.
