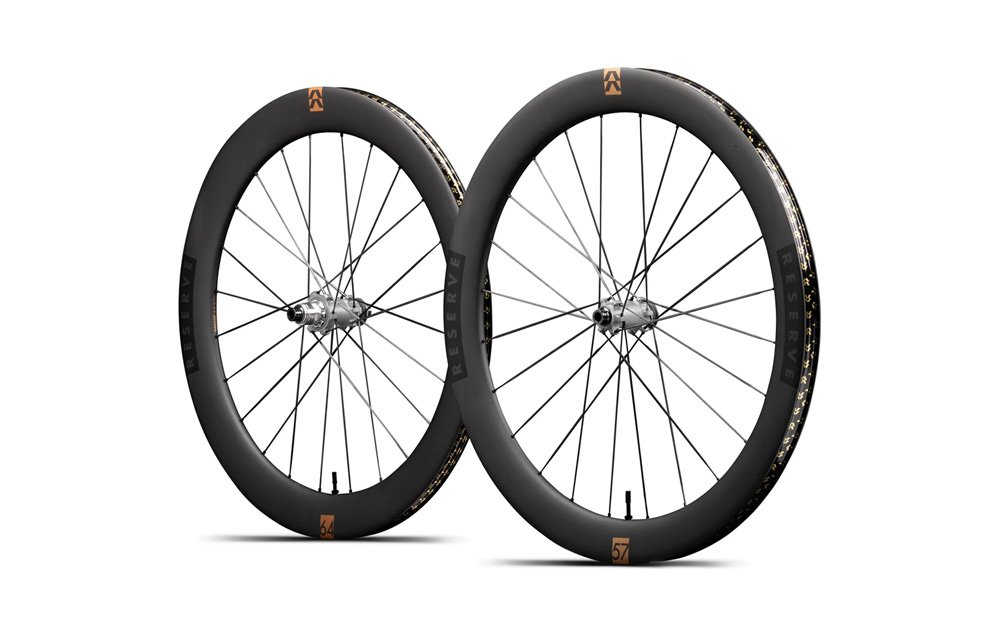

Reserve 57|64 SL Turbulent Aero (Carbon Spoke) Wheelset

Name: Reserve 57|64 SL Turbulent Aero (Carbon Spoke) Wheelset
Brand: Reserve
SKU: SCS-89-29641
Price: 2699.1 GBP
Availability: LimitedAvailability

To round out the high-speed "SL" collection, we have the Reserve 57|64 SL Turbulent Aero. This is the uncompromising choice for flat-out speed, specifically engineered for breakaways, criteriums, and time trials where every second counts.

Just as with the shallower SL models, this version swaps the standard DT Swiss hubs and steel spokes for the ultra-premium Tune Pico hubs and Vonoa bladed carbon spokes. This results in a deep-section aero wheelset that weighs a staggering 1,470g—a weight usually reserved for wheels half this depth.

The 57|64 SL is designed for high-velocity stability. The 57mm front rim uses a blunted profile to mitigate "steering snap" in crosswinds, while the 64mm rear rim focuses on maximising the "sail effect" and reducing drag. Despite its depth, the SL layup and carbon spoke technology make it light enough to remain competitive on rolling terrain and punchy climbs.

The Tune & Vonoa System

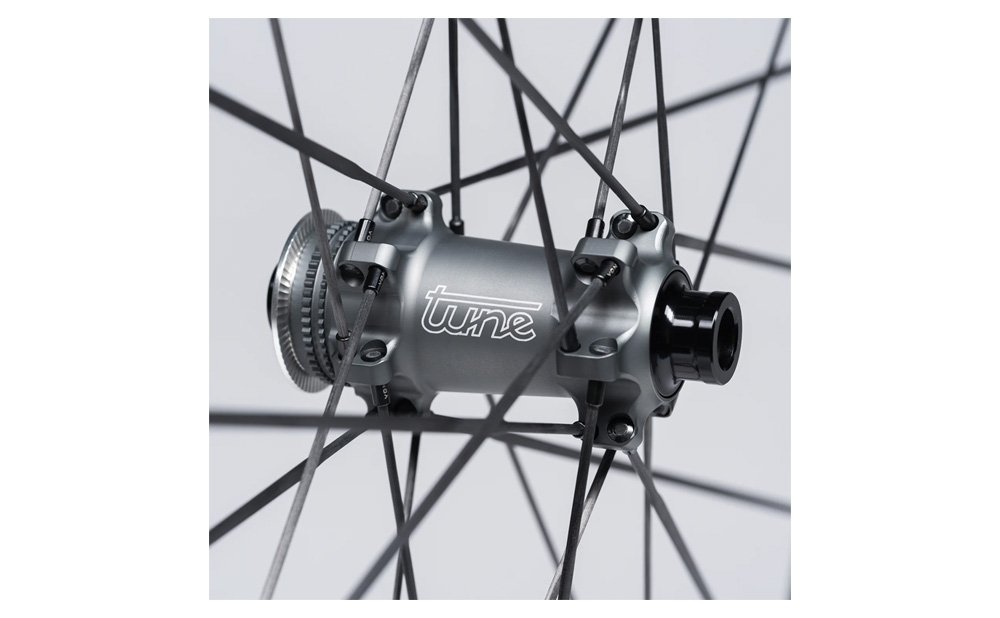

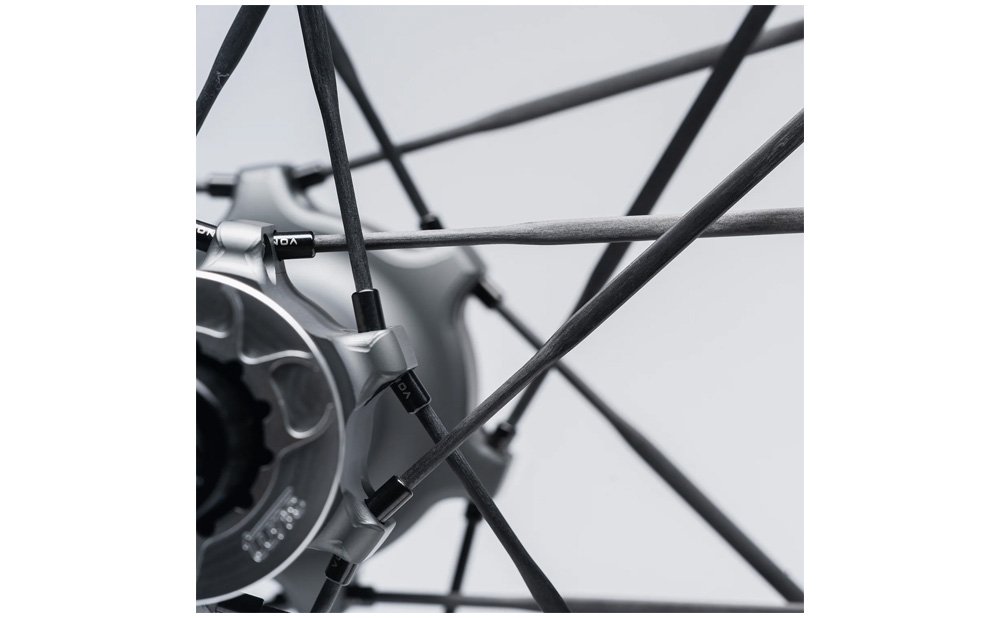

By using Tune Pico hubs and Vonoa carbon spokes, Reserve has created a wheel with incredible lateral stiffness. When you're out of the saddle sprinting for a finish line, there is zero perceptible flex. The Tune Pico hubs are CNC-machined in Germany to align perfectly with the spoke angles of the deep 57/64 rims, ensuring that the carbon spokes remain in a pure tension state without bending.

click here to see finance examples or £113.55 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	6	12	24
Purchase Cost	£2,699.10	£2,699.10	£2,699.10
APR	0.00%	7.90%	11.90%
Deposit %	10.00%	10.00%	10.00%
Deposit amount	£270.00	£270.00	£270.00
Loan amount	£2,429.10	£2,429.10	£2,429.10
Pay per month	£404.85	£210.89	£113.55
Total payable	£2,699.10	£2,800.68	£2,995.20

THE DETAIL

Key Features
Turbulent Aero Refinement: Building on the 52|63, the 57|64 is over 8% faster in real-world wind conditions while maintaining the exact same rim weight.
Vonoa Carbon Spokes: Offer a massive weight saving over steel and a significant increase in tensile strength, making the wheel feel "sharper" under power.
Pro-Level Heritage: Chosen by riders like Wout van Aert for high-speed finishes, including his legendary Champs-Élysées sprint victories.
Wide Tyre Performance: Optimized for $29 ext{mm} ext{--} 30 ext{mm}$ tyres. The $25.4 ext{mm}$ internal front width creates a seamless aerodynamic profile that effectively "widens" your tyre for better grip and lower rolling resistance.

SPECIFICATIONS

Specification	Detail	Notes
Rim Material	Carbon Fibre (30\|SL)	Optimized for trail compliance.
Internal Width	30mm	Perfect for 2.3" to 2.5" tyres.
Specification	Detail	Notes	Notes
Wheelset Weight	1,470g	Including tape, Fillmore valves, and lockrings.	Bonded lenticular construction.

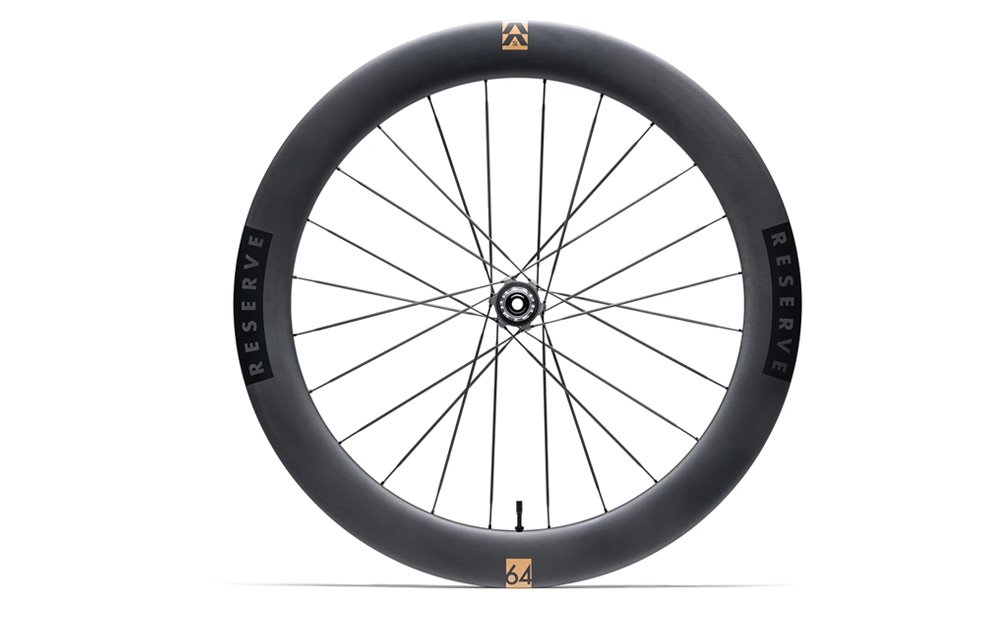

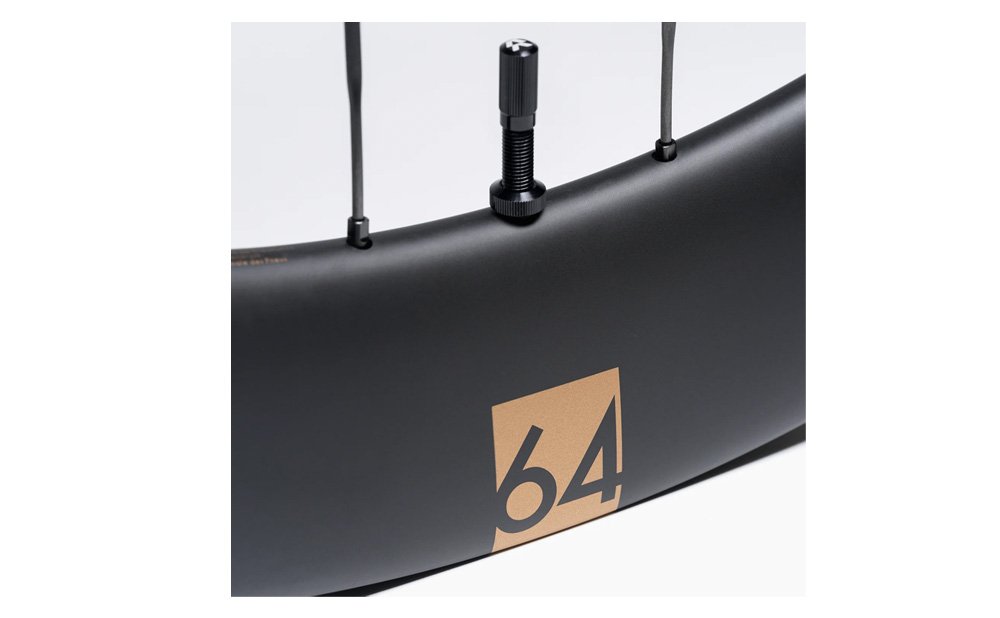

Rim Depth	57mm Front / 64mm Rear	Maximum aerodynamic efficiency.	Optimized for 28mm�35mm tyres.
Internal Width	25.4mm Front / 24.4mm Rear	Designed for 29mm�40mm tyres.	Maximises aerodynamic transition.
External Width	34.3mm Front / 32.5mm Rear	Blunted profile for crosswind control.	Combined: ?2,167g.
Hub Type	Tune Pico (Carbon Spoke Dedicated)	Machined 7075-T6; Centerlock.	Bonded interface; high-grade bearings.
Spokes	Vonoa Carbon (Straight Pull)	24 Front / 24 Rear.	Optional Track (Bolt-on) available.
Engagement	5.2-degree (69 POE) / 2.6-degree (138 POE)	User-adjustable with Tune pawl kits.	Standard Road/TT Thru-Axle.
Rim Weights	435g (F) / 495g (R)	SL specific lightweight layup.	Typically ships with both drivers.
Asymmetric Offset	1.3mm Rear	Balances spoke tension for the deep profile.	Hooked rim for high-pressure safety.
Max Pressure	100�PSI (6.9�bar)	Semi-hooked bead for high-pressure safety.	Or tyre manufacturer's limit.
Warranty	Lifetime (No Rider Limit)	Includes 4 replacement Vonoa spokes.	Includes No-Fault Crash Replacement.
UK Price	�2,999.00	The flagship SL road build.

Specification	Detail
Rim Material	Carbon Fibre (30\|SL)
Internal Width	30mm
Specification	Detail
Wheelset Weight	1,470g
Rim Depth	57mm Front / 64mm Rear
Internal Width	25.4mm Front / 24.4mm Rear
External Width	34.3mm Front / 32.5mm Rear
Hub Type	Tune Pico (Carbon Spoke Dedicated)
Spokes	Vonoa Carbon (Straight Pull)
Engagement	5.2-degree (69 POE) / 2.6-degree (138 POE)
Rim Weights	435g (F) / 495g (R)
Asymmetric Offset	1.3mm Rear
Max Pressure	100�PSI (6.9�bar)
Warranty	Lifetime (No Rider Limit)
UK Price	�2,999.00

Specification	Notes
Rim Material	Optimized for trail compliance.
Internal Width	Perfect for 2.3" to 2.5" tyres.
Specification	Notes
Wheelset Weight	Including tape, Fillmore valves, and lockrings.
Rim Depth	Maximum aerodynamic efficiency.
Internal Width	Designed for 29mm�40mm tyres.
External Width	Blunted profile for crosswind control.
Hub Type	Machined 7075-T6; Centerlock.
Spokes	24 Front / 24 Rear.
Engagement	User-adjustable with Tune pawl kits.
Rim Weights	SL specific lightweight layup.
Asymmetric Offset	Balances spoke tension for the deep profile.
Max Pressure	Semi-hooked bead for high-pressure safety.
Warranty	Includes 4 replacement Vonoa spokes.
UK Price	The flagship SL road build.

Specification
Rim Material
Internal Width
Specification	Notes
Wheelset Weight	Bonded lenticular construction.
Rim Depth	Optimized for 28mm�35mm tyres.
Internal Width	Maximises aerodynamic transition.
External Width	Combined: ?2,167g.
Hub Type	Bonded interface; high-grade bearings.
Spokes	Optional Track (Bolt-on) available.
Engagement	Standard Road/TT Thru-Axle.
Rim Weights	Typically ships with both drivers.
Asymmetric Offset	Hooked rim for high-pressure safety.
Max Pressure	Or tyre manufacturer's limit.
Warranty	Includes No-Fault Crash Replacement.
