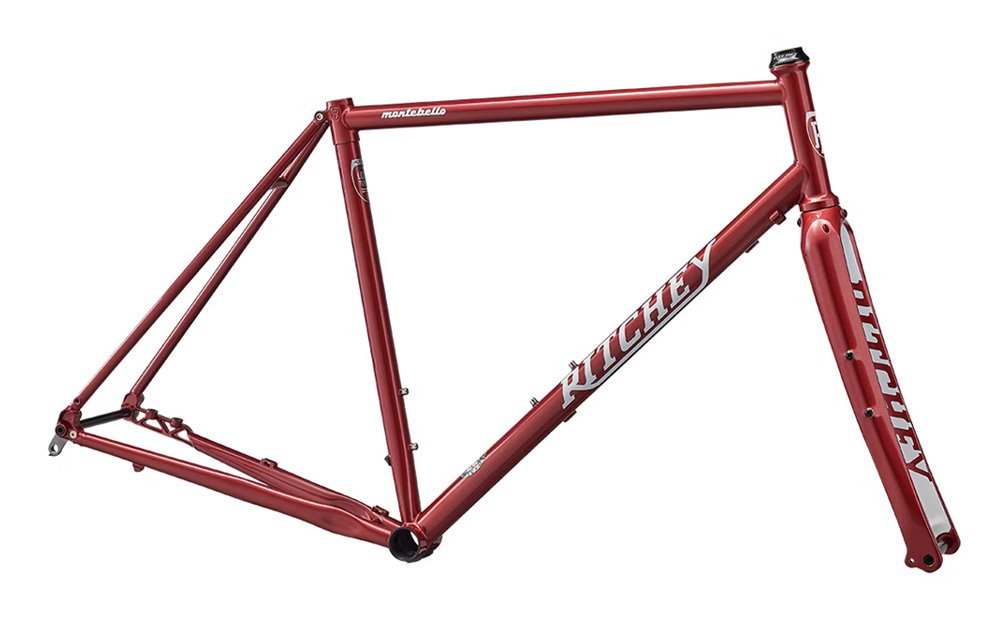

Ritchey Montebello Frameset: RED

Name: Ritchey Montebello Frameset: RED
Brand: Ritchey
SKU: RT97352837006z
Price: 1479.00 GBP
Availability: PreOrder

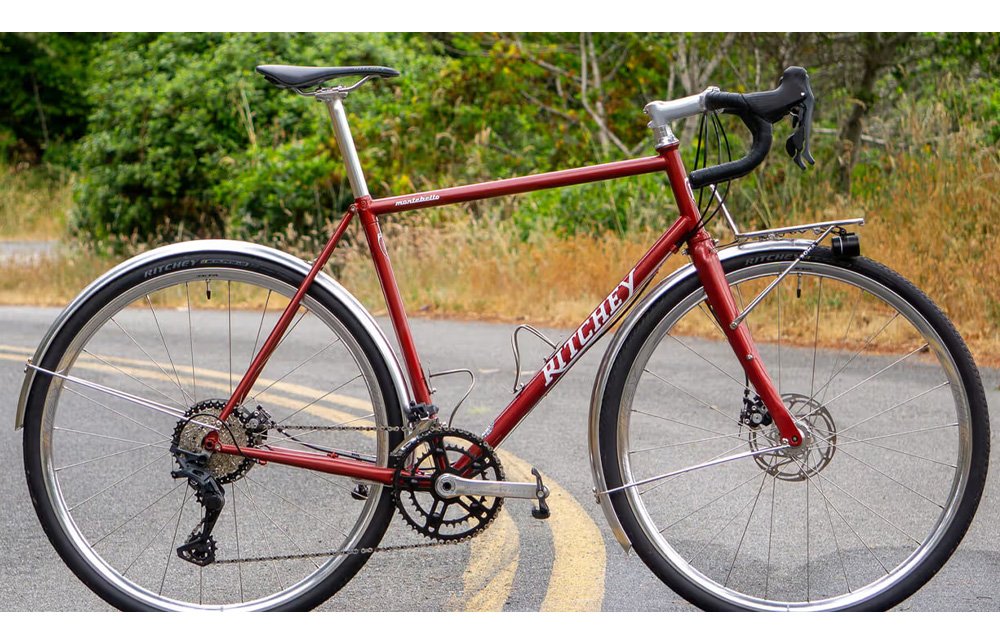

Introducing the Ritchey Montebello Frameset: The "Go Anywhere" Endurance Road Bike

The Ritchey Montebello perfectly embodies the philosophy that a bike's design can offer solutions for something far greater than forward momentum. Born from Tom Ritchey's extensive mileage and desire for a more comfortable, "go anywhere" machine for longer excursions, the Montebello is your ultimate partner for epic endurance road adventures.

Built with Ritchey's proprietary triple-butted Logic steel tubing, the Montebello sets itself apart with an increased stack, longer wheelbase, and lower bottom bracket than its Road Logic sibling. These thoughtful geometrical choices deliver an incredibly welcoming and stable ride, whether you're watching the sun set or rise again on your journey. Practical features include highly requested fender and rack mounts, expanding its versatility for light bikepacking or commuting.

This unique frameset includes the all-new WCS Carbon Brevet Fork, designed explicitly for the Montebello. This high-performance fork boasts clearance for 700c x 40c tires without fenders (or 36c with fenders), and special mounting options for a porteur or lowrider rack. Further enhancing its long-distance capabilities, the fork features internal dynamo routing and threaded drilling in the crown for attaching rack lights – hallmarks of Ritchey's adventure-ready forks. And, of course, the Brevet Fork sports the precise yet forgiving ride experience of a 1-1/8" straight steerer.

The Ritchey Montebello frameset is the quintessential choice for endurance road cyclists and light bikepackers who prioritise comfort, stability, and versatility without compromising on the legendary ride feel of a Ritchey.

CHOOSE SIZE

XXL

Lead time: 2-3 WEEKS

Price (select options)

£1,479.00

e: / t: 01323 737320

click here to see finance examples or £110.92 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	6	10	12	18	24	36
Purchase Cost	£1,479.00	£1,479.00	£1,479.00	£1,479.00	£1,479.00	£1,479.00
APR	0.00%	0.00%	0.00%	0.00%	0.00%	11.90%
Deposit %	10.01%	10.01%	10.01%	10.01%	10.01%	10.01%
Deposit amount	£148.00	£148.00	£148.00	£148.00	£148.00	£148.00
Loan amount	£1,331.00	£1,331.00	£1,331.00	£1,331.00	£1,331.00	£1,331.00
Pay per month	£221.83	£133.10	£110.92	£73.94	£55.46	£43.76
Total payable	£1,478.98	£1,479.00	£1,479.04	£1,478.92	£1,479.04	£1,723.36

THE DETAIL

Endurance-Optimised Geometry: Designed with increased stack, a longer wheelbase, and a lower bottom bracket for a remarkably comfortable and stable ride over long distances.

Premium Ritchey Logic Steel Frame: Crafted from heat-treated, triple-butted Ritchey Logic steel tubing, TIG-welded for that classic Ritchey ride quality, and ED Coat treated for corrosion resistance.

WCS Carbon Brevet Fork Included: A lightweight and responsive carbon fork purpose-built for the Montebello, featuring internal dynamo routing, porteur/low-rider rack mounts, and threaded crown drilling for lights.

Generous Tire Clearance: This tire clearance accommodates 700c x 40c tires without fenders or 700c x 36c with fenders (depending on tire/rim manufacturer), enhancing comfort and versatility on varied road surfaces.

Comprehensive Mounting Options: Includes integrated rack and fender mounts on both the frame and fork, plus two bottle cage mounts, making it ready for extended rides and light touring.

Modern Standards: Features a 68mm English threaded bottom bracket, 142mm rear / 100mm front spacing with 12mm alloy thru-axles, and flat-mount brakes front and rear (140mm native, 160mm max).

Di2 & Mechanical Compatibility: Features stealth wire routing for semi-wireless Shimano Di2 (EW-SD300 compatible) while retaining stops/guides for mechanical groupsets and brake hoses.

Rider-Friendly Details: Ultra-light forged and machined straight 1-1/8" headtube, 27.2mm seat tube with integrated seat collar,

External cable routing, WCS headset, and a replaceable stainless-steel derailleur hanger.

Striking Colour: Available in a vibrant Hot Sauce finish.

Weight: Frame approximately 2,000g (size M), Fork approximately 415g (uncut steerer).

SPECIFICATIONS

Frame:
Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded

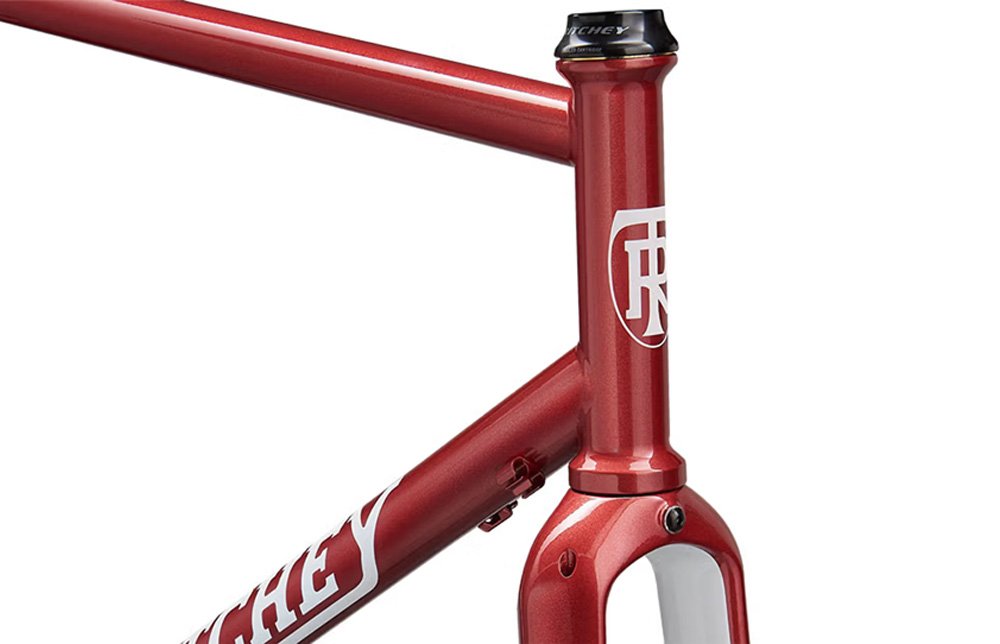

Ultra-light forged and machined straight 1-1/8" headtube
Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Seat tube clamp size 28.6 mm (2.5Nm max for derailleur clamps and chain guides)

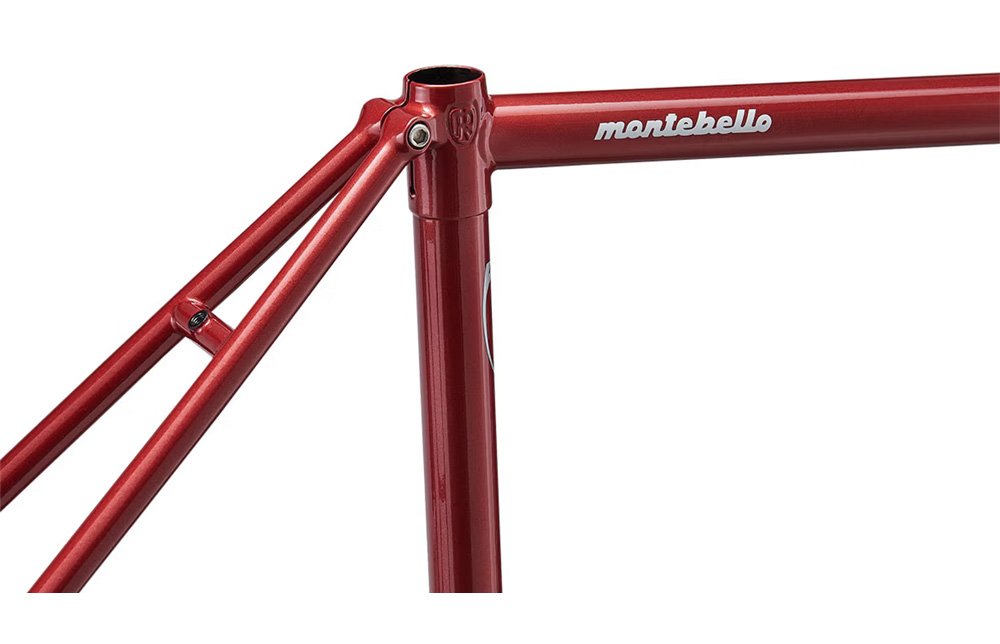

27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)

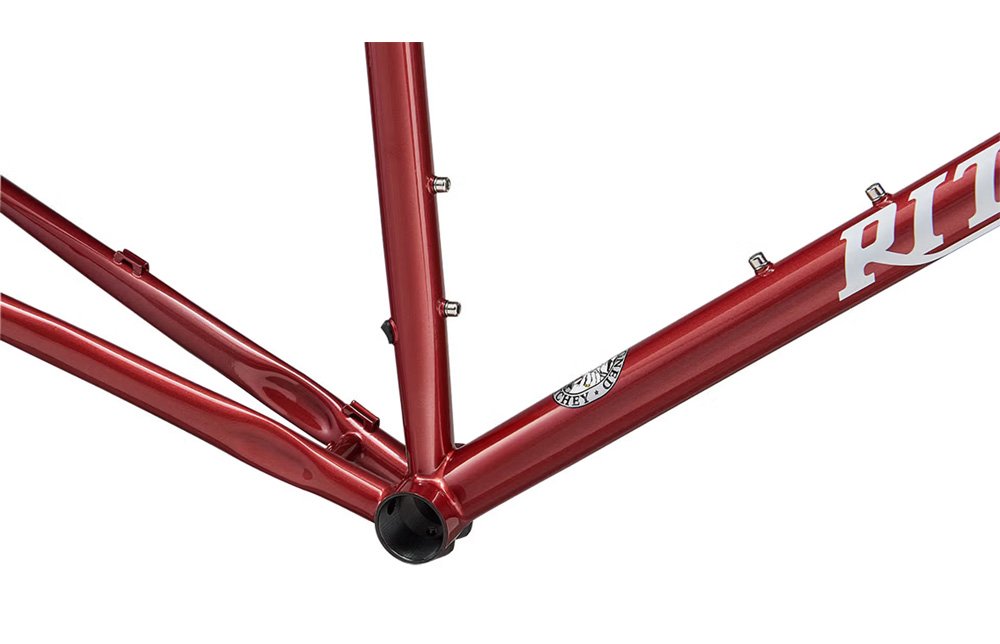

Bottom bracket 68 mm - English threaded

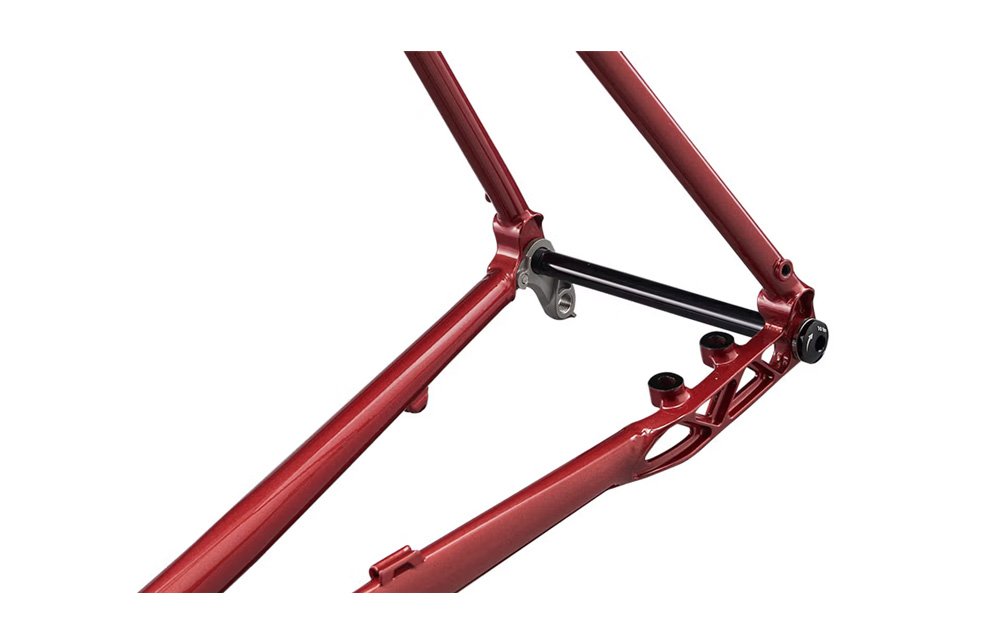

142mm spacing (12mm alloy thru-axle included)
Crankset min/max ring size - single36 to 50t / double: 46/30t to 53/39t
Can accommodate 1X or 2X chainrings
Chainline46mm
Bottle cage mounts2
Rack and fender mounts
Stealth wire routing for semi-wireless Di2 groupsets
Only compatible with Shimano Di2 EW-SD300 wire for 12-speed.
Includes stops/guides for brake hoses and mechanical groupsets
External cable routing
WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)

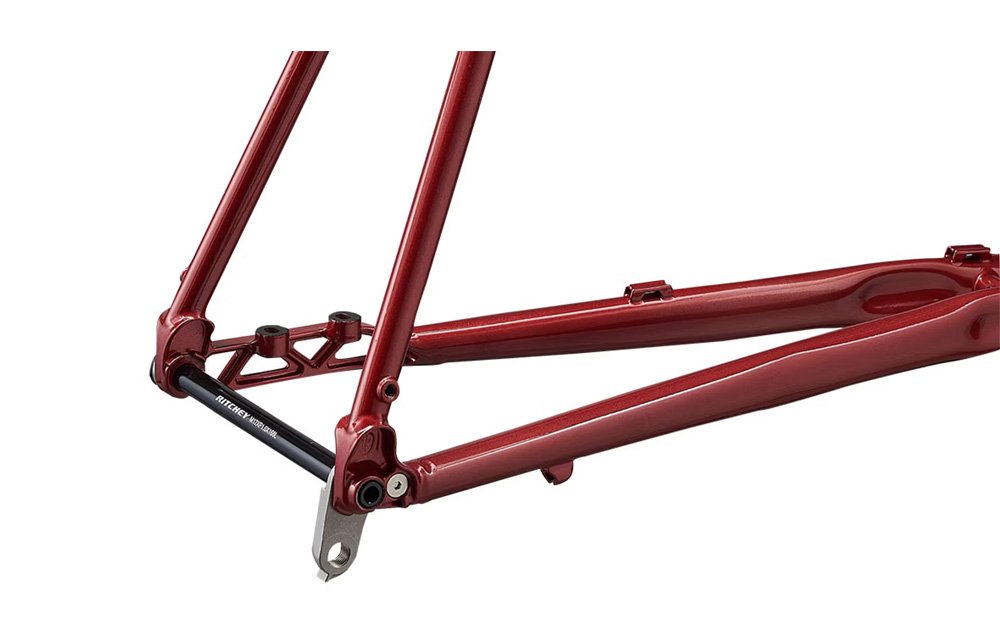

Replaceable stainless-steel derailleur hanger

Fork:
WCS Carbon Brevet Fork Included
Internal dynamo routing

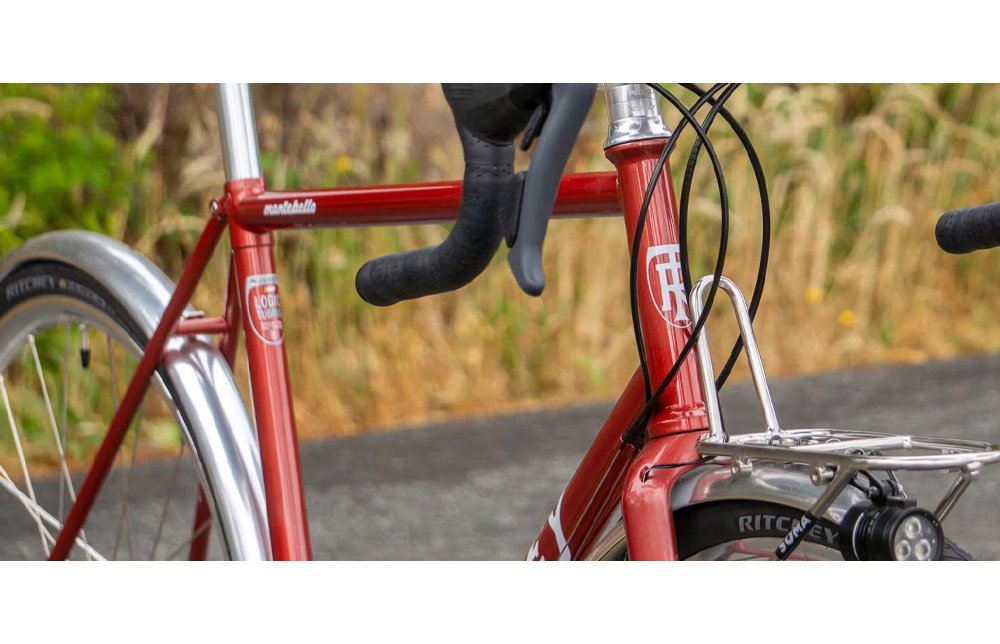

Porteur or low-rider rack mounts
Fork max payload 3 kg per side
1-1/8" straight steerer with integrated 45-degree crown race
Steerer length300mm
Axle-crown388mm
Rake/Offset 48 mm
100mm spacing (12mm alloy thru-axle included)
30mm maximum spacers below the stem
Tire Compatibility
Wheel and tire compatibility700 x 36c tire clearance with fender, 700x40c without (depending on tire/rim manufacturer)
Frame spacing46mm
Fork spacing52mm
Brake Compatibility
Flat-mount brakes front and rear140mm (160mm max - adaptors available separately)
Frame flat-mount bracket height: 10 mm

Details:

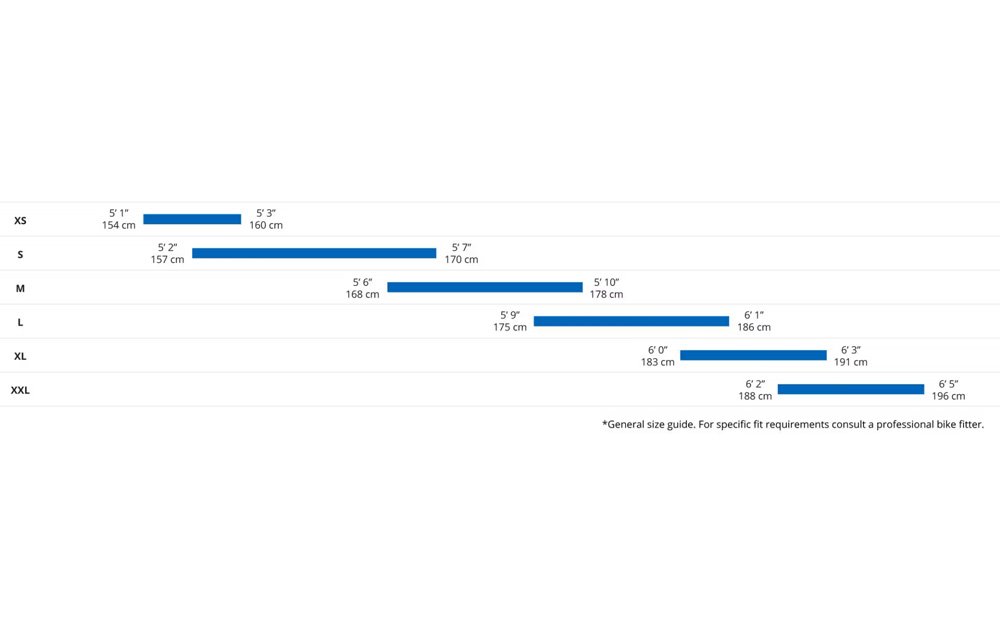

Sizes XS / S / M / L / XL / XXL
Frame weight: 2,000 g (size M - w/o thru-axle)
Fork weight: 415 g (with uncut steerer / not including axle)
ColorHot Sauce
Logic Features
WCS Logic Tubing
WCS Logic Tubing
Ritchey's proprietary and triple-butted steel tubing was explicitly developed for the TIG welding process to Tom's specifications.

Integrated Carbon Crown: Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.
