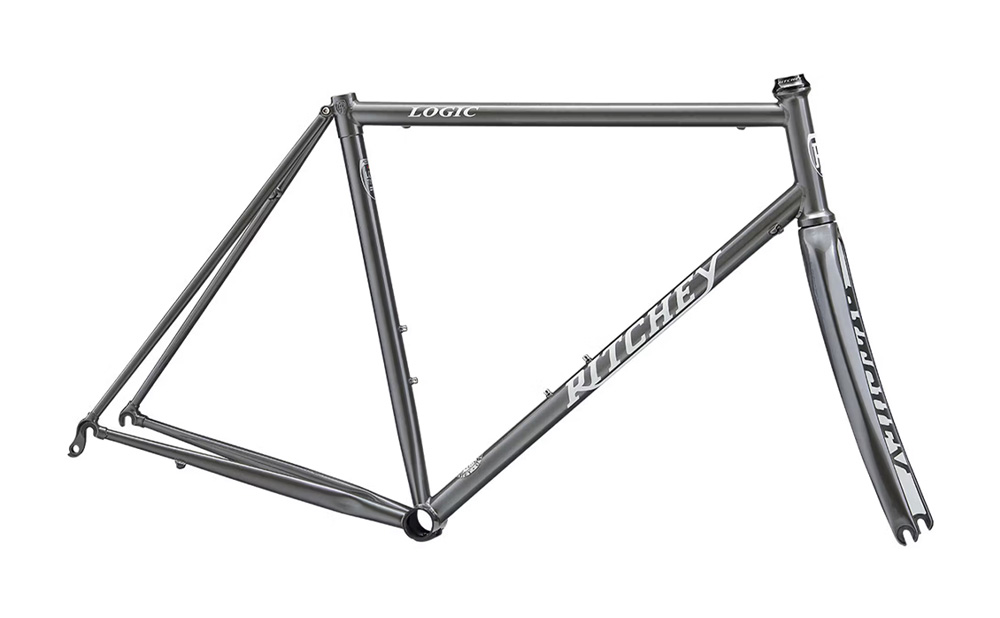

Ritchey Road Logic Frameset: GREY

Name: Ritchey Road Logic Frameset: GREY
Brand: Ritchey
SKU: RT97352007017z
Price: 1392.00 GBP
Availability: PreOrder

Introducing the Ritchey Road Logic Frameset: Where Heritage Meets Modern Performance

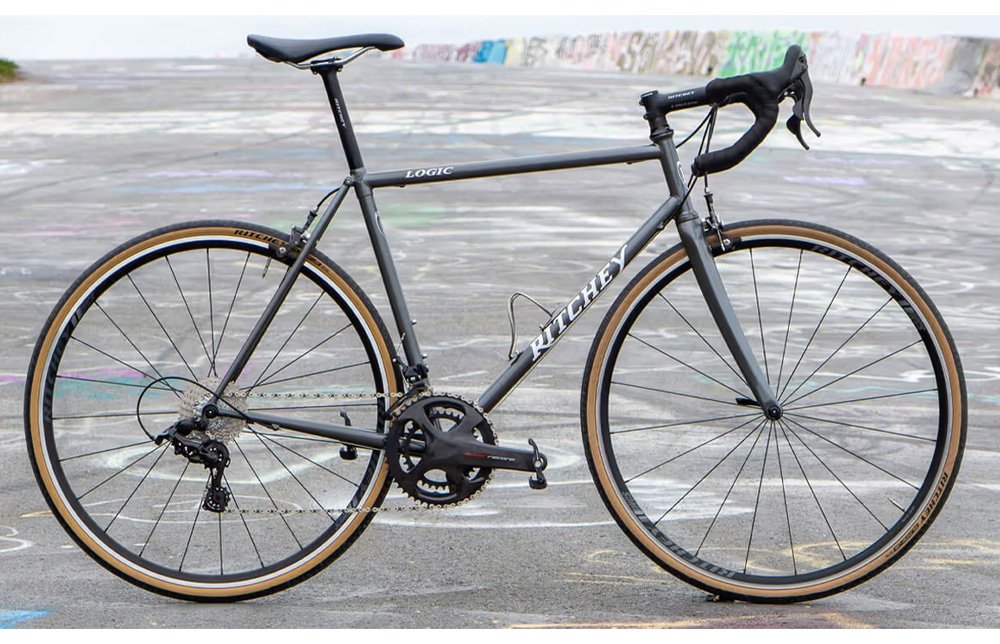

The Ritchey Road Logic frameset offers a riding experience steeped in over 50 years of Tom Ritchey's unparalleled framebuilding heritage, innovation, and exploration. This modern classic flawlessly unites the beauty of traditional steel lines with advanced building techniques and proven materials, delivering a contemporary road bicycle that is remarkably comfortable for long days in the saddle, nimble and stiff enough for quick accelerations, and adaptable enough to conquer roads beyond pristine pavement.

The Road Logic features a heat-treated and triple-butted Ritchey Logic tubeset, designed by Tom Ritchey himself. Its aggressively short-butted sections, optimised for TIG welding, cleverly save weight while significantly enhancing ride quality. The proprietary forged-and-machined integrated headtube further sheds 80 grams over standard designs, accepting standard drop-in bearings for a sleek and robust front end.

Wrapped in a delightful Sally’s Macarons or sophisticated Anthracite paint scheme, the Road Logic also boasts generous clearance for up to 700c x 30c tires. It includes a high-performance Ritchey WCS Carbon Road Fork, ensuring a lifetime of enjoyable pedal turns.

With the Ritchey Road Logic frameset, you can experience the mastery of steel, the joy of the open road, and the undeniable charm of a true modern classic.

The Ritchey Road Logic frameset is perfect for discerning riders who appreciate the nuanced ride quality of steel, combined with modern performance and the enduring legacy of Tom Ritchey's craftsmanship.

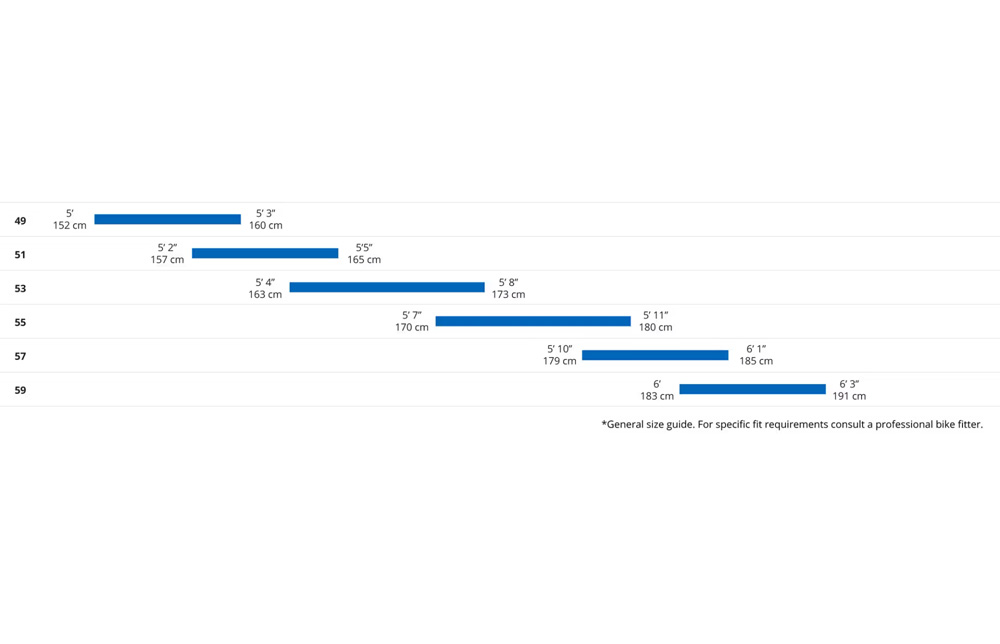

CHOOSE SIZE

49CM (Out of stock)

51CM

53CM

55CM (Out of stock)

57CM (Out of stock)

59CM (Out of stock)

Lead time: 2-3 WEEKS

Price (select options)

£1,392.00

e: / t: 01323 737320

click here to see finance examples or £104.33 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

50%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	6	10	12	18	24	36
Purchase Cost	£1,392.00	£1,392.00	£1,392.00	£1,392.00	£1,392.00	£1,392.00
APR	0.00%	0.00%	0.00%	0.00%	0.00%	11.90%
Deposit %	10.06%	10.06%	10.06%	10.06%	10.06%	10.06%
Deposit amount	£140.00	£140.00	£140.00	£140.00	£140.00	£140.00
Loan amount	£1,252.00	£1,252.00	£1,252.00	£1,252.00	£1,252.00	£1,252.00
Pay per month	£208.67	£125.20	£104.33	£69.56	£52.17	£41.16
Total payable	£1,392.02	£1,392.00	£1,391.96	£1,392.08	£1,392.08	£1,621.76

THE DETAIL

Premium Ritchey Logic Steel Frame: Crafted from heat-treated, triple-butted Ritchey Logic steel tubing, TIG-welded for an exceptional blend of stiffness, comfort, and durability. ED Coat treated for superior corrosion resistance.

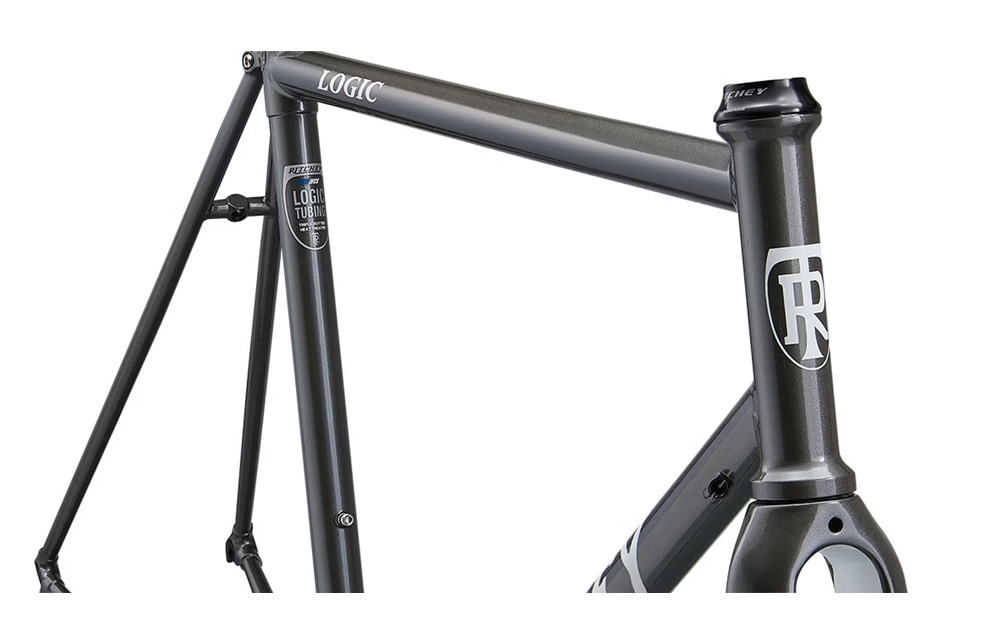

Integrated Headtube Design: Ultra-light forged and machined straight 1-1/8" headtube that uses standard drop-in bearings, saving 80 grams for a lighter, cleaner front end.

Ritchey WCS Carbon Road Fork Included: A lightweight and responsive carbon fork with a 1-1/8" straight steerer and integrated 45-degree crown race, enhancing handling and dampening road chatter.

Generous Tire Clearance: Designed to accommodate up to 700c x 30c tires (depending on tire/rim manufacturer), offering versatility for rougher roads and enhanced comfort.

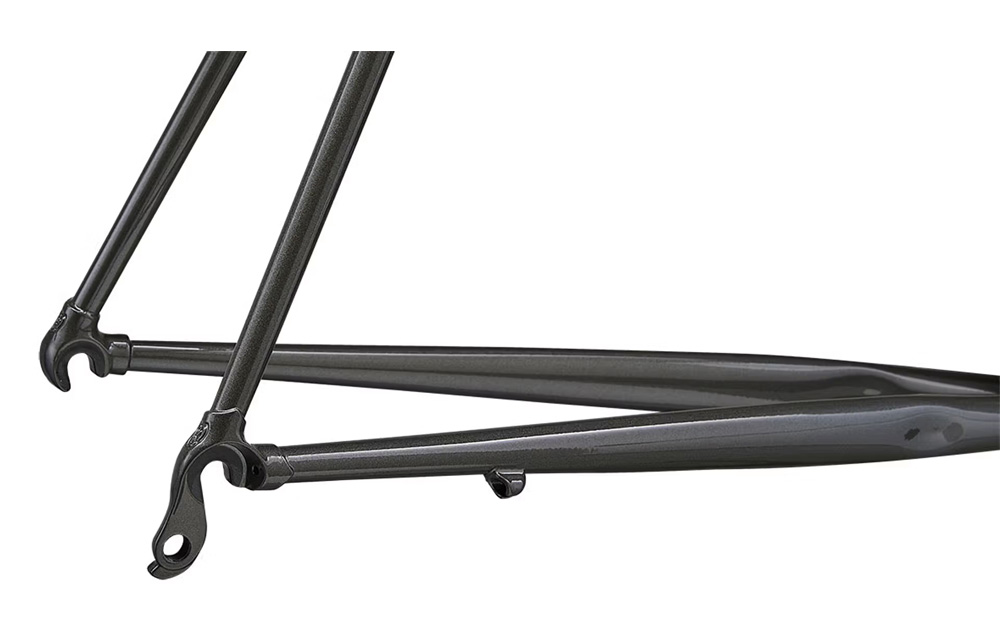

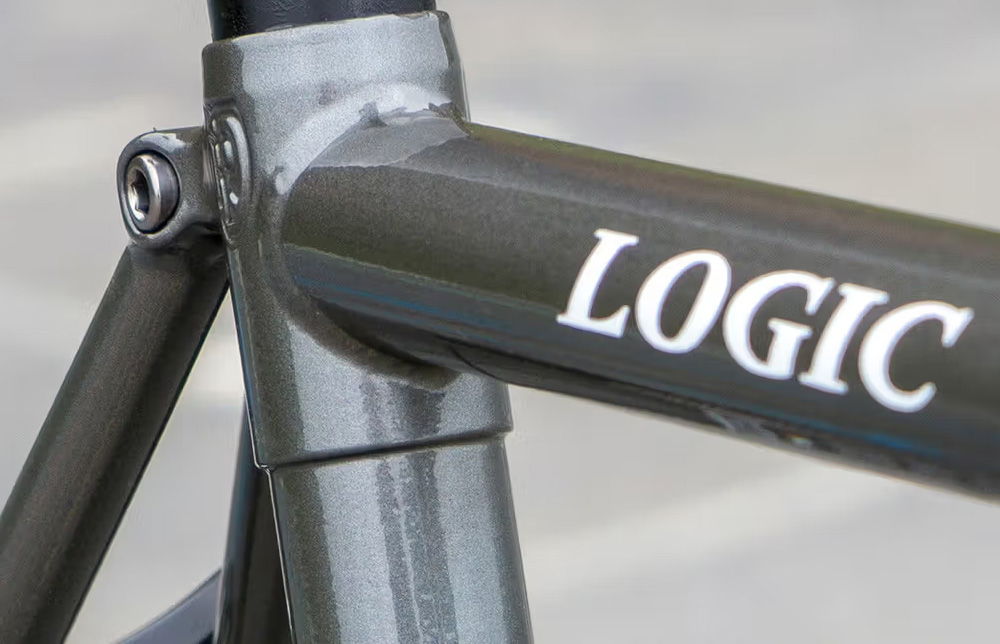

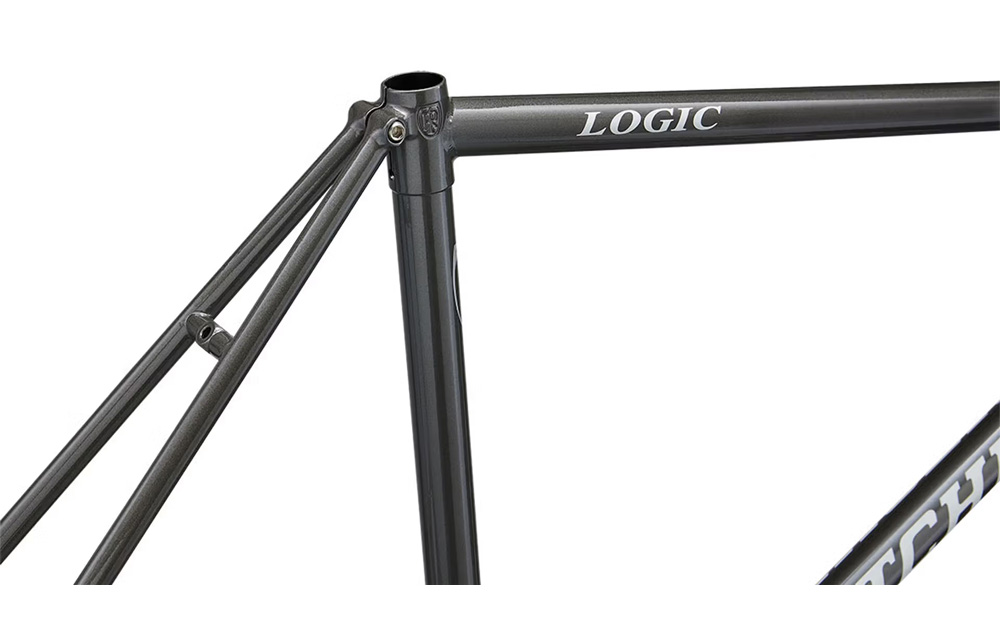

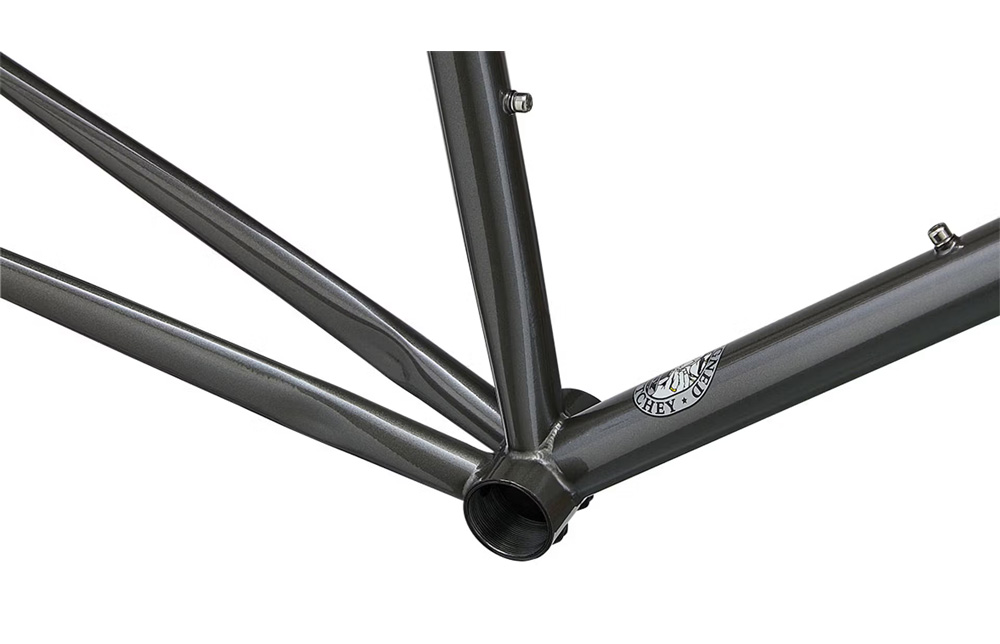

Classic Standards with Modern Execution: Features a 68mm English threaded bottom bracket, standard Quick Release front and rear dropouts, and a 27.2mm seat tube with an integrated seat collar.

Convenient Features: Includes two bottle cage mounts, external cable routing for easy maintenance, and a WCS headset (upper IS42/28.6 | lower IS42/30).

Optimized for Drivetrains: Compatible with 1x and 2x cranksets (min/max ring size: 46/30t to 53/39t) with a 44mm chainline.

Lightweight Construction: The frame weighs 1,750g (size 55), and the fork weighs 350g (uncut steerer), contributing to a lively and responsive ride.

Timeless Aesthetics: Available in charming Sally's Macarons or sophisticated Anthracite colourways.
