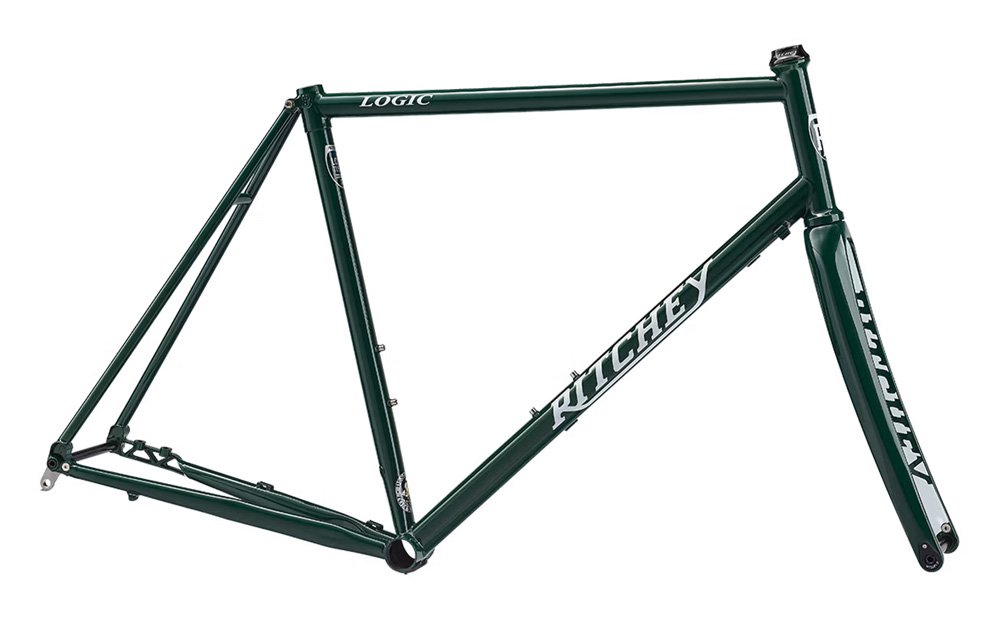

Ritchey Road Logic Disc Frameset: NIGRI

Name: Ritchey Road Logic Disc Frameset: NIGRI
Brand: Ritchey
SKU: RT97352897014z
Price: 1569.99 GBP
Availability: PreOrder

Introducing the Ritchey Road Logic Disc Frameset: Timeless Heritage, Modern Performance

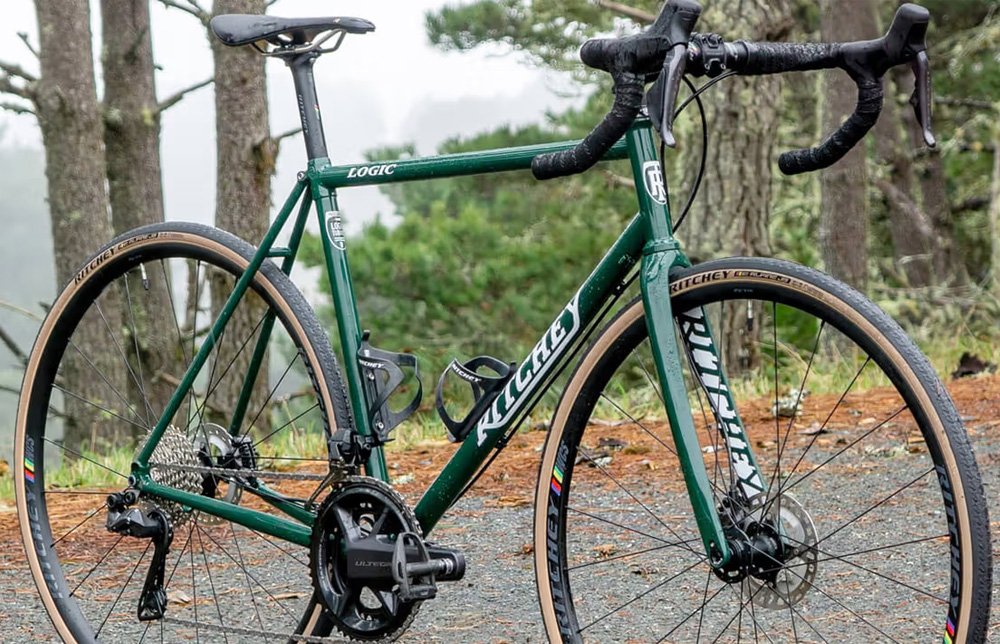

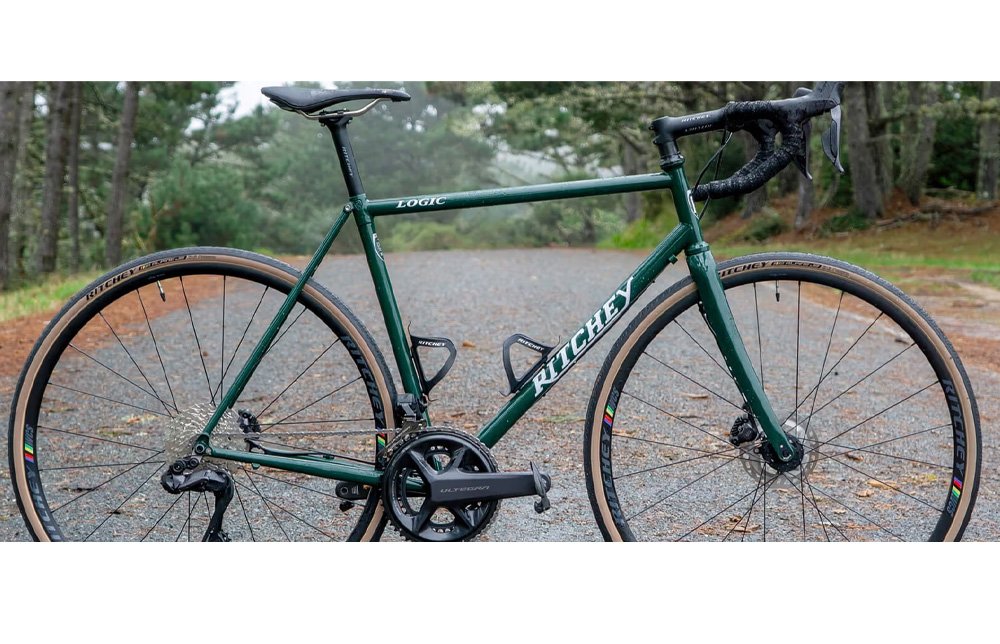

The Ritchey Road Logic Disc Frameset epitomises the perfect fusion of classic road bike aesthetics and cutting-edge performance. Steeped in over 50 years of frame-building heritage, innovation, and extensive riding experience, this beautiful steel frame and carbon fibre fork deliver a contemporary bicycle that's wonderfully comfortable for epic days in the saddle, nimble and stiff enough for sprint finishes, and robust enough to tackle roads that might lack proper pavement.

The Road Logic Disc frame is meticulously crafted from a heat-treated and triple-butted Ritchey Logic tubeset, explicitly designed for this model. It features aggressively short-butted sections optimised for TIG welding, which expertly save weight while significantly enhancing ride quality. The frameset includes a high-performance Ritchey WCS Carbon Disc Road Fork for precise handling and responsiveness, ensuring a truly integrated and superior ride.

Updated for 2024, this modern classic embraces the latest technology. It now boasts stealth wire routing for Shimano’s newest semi-wireless Di2 groupsets (EW-SD300 compatible), with a clever drive-side dropout design for concealed battery and derailleur wiring. Mechanical shifting enthusiasts will rejoice, as the frame thoughtfully retains cable stops for traditional groupsets. On the non-drive side, a new one-piece truss design for flat mount brakes provides exceptional stiffness and strength while significantly reducing chainstay weight.

With purposeful design, unwavering attention to detail, and modern features like flat-mount disc brakes (140mm native, 160mm max) and 12mm thru-axles (front & rear), the new Road Logic Disc almost telepathically delivers a fantastic ride experience unlike any other bike. It’s fast, nimble, comfortable, and ideally suited for wherever your rides may take you.

The Ritchey Road Logic Disc Frameset is the quintessential choice for cyclists who cherish the nuanced ride quality of steel, demand the stopping power of disc brakes, and appreciate a bike that blends classic artistry with cutting-edge functionality.

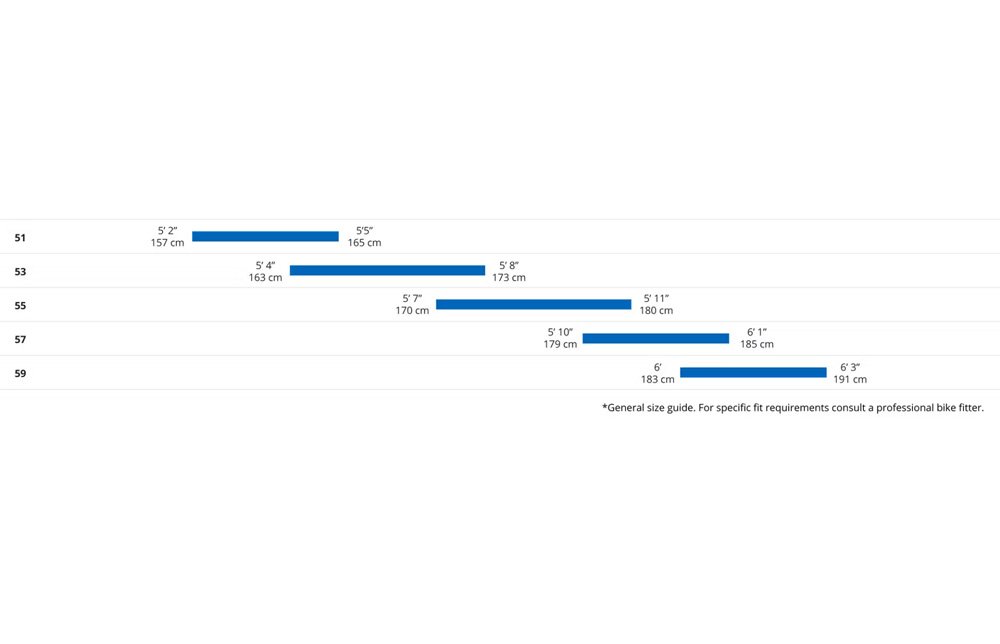

CHOOSE SIZE

51CM (Out of stock)

53CM (Out of stock)

55CM (Out of stock)

57CM (Out of stock)

59CM (Out of stock)

Lead time: MORE STOCK DUE 2026

Price (select options)

£1,569.99

e: / t: 01323 737320

click here to see finance examples or £46.45 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

42%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	6	10	12	18	24	36
Purchase Cost	£1,569.99	£1,569.99	£1,569.99	£1,569.99	£1,569.99	£1,569.99
APR	0.00%	0.00%	0.00%	0.00%	0.00%	11.90%
Deposit %	10.00%	10.00%	10.00%	10.00%	10.00%	10.00%
Deposit amount	£157.00	£157.00	£157.00	£157.00	£157.00	£157.00
Loan amount	£1,412.99	£1,412.99	£1,412.99	£1,412.99	£1,412.99	£1,412.99
Pay per month	£235.50	£141.30	£117.75	£78.50	£58.87	£46.45
Total payable	£1,570.00	£1,570.00	£1,570.00	£1,570.00	£1,569.88	£1,829.20

THE DETAIL

Premium Ritchey Logic Steel Frame: This frame features heat-treated, triple-butted Ritchey Logic steel tubing, TIG-welded for that signature lively steel ride, and ED coated for superior corrosion resistance.

Ritchey WCS Carbon Disc Road Fork Included: This lightweight and responsive carbon fork has an integrated 45-degree crown race and is optimised for disc brakes and precise handling.

2024 Updates for Modern Drivetrains:

Stealth Di2 Routing: This is hidden wire routing for the semi-wireless Shimano 12-speed Di2 (EW-SD300), offering a super clean aesthetic.

Mechanical Shifting Compatible: Retains cable stops for traditional mechanical groupsets.

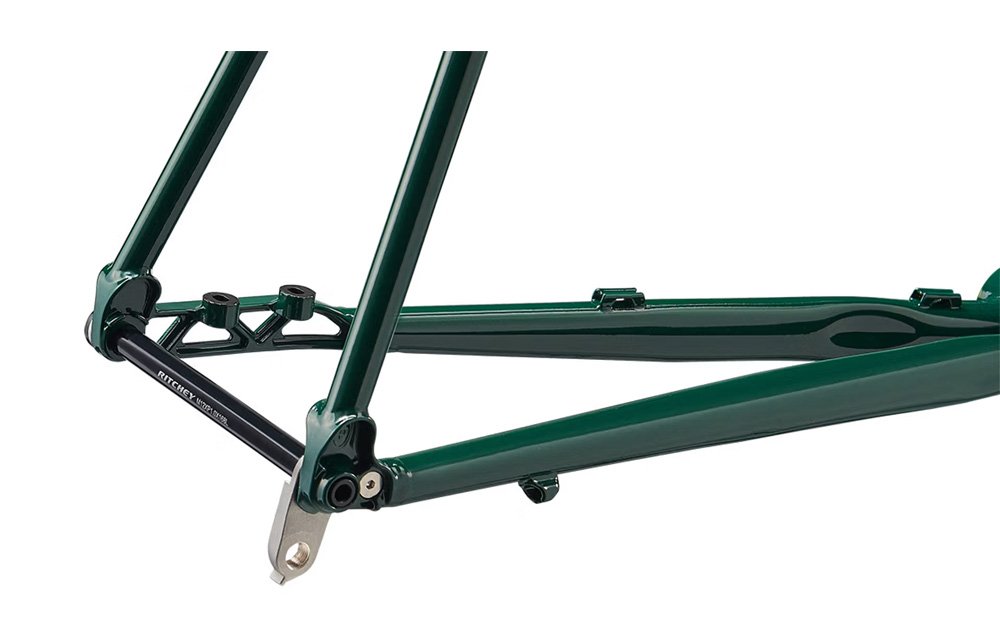

Updated Flat Mount Brakes: New one-piece truss design on the chainstay provides robust flat-mount disc brake compatibility (140mm native, 160mm max).

Thru-Axles Front & Rear: This model features 12mm alloy thru-axles for enhanced stiffness, security, and precise wheel alignment (142mm rear, 100mm front spacing).

Generous Tire Clearance: Designed to accommodate up to 700c x 30c tires (depending on tire/rim manufacturer), enhancing comfort and versatility.

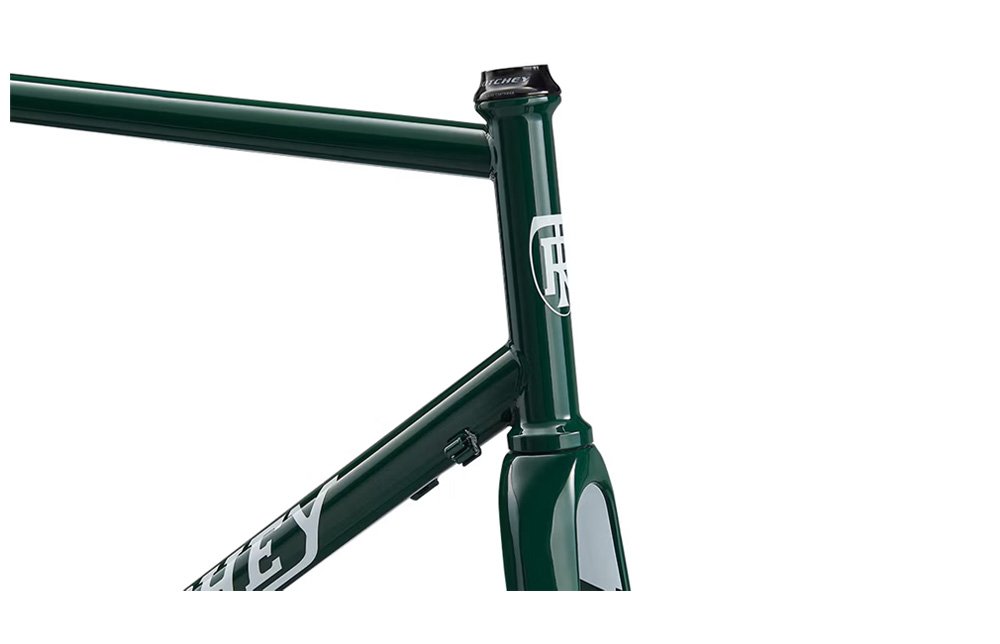

Integrated Headtube: Ultra-light forged and machined straight 1-1/8" headtube accepts standard drop-in bearings, reducing weight and enhancing aesthetics.

Rider-Focused Details: This package includes two bottle cage mounts, external brake hose routing, a WCS headset, and a replaceable stainless-steel derailleur hanger.

Bottom Bracket: 68mm English threaded BB for broad compatibility.

Weight: Frame 1,940g (size 55), Fork 420g (uncut steerer).

Signature Colour: Available in a striking Nigiri finish.

SPECIFICATIONS

Frame:
Material heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded

Ultra-light forged and machined straight 1-1/8" headtube

Electrophoretic Deposition (ED Coat) treated for corrosion resistance

Seat tube clamp size28.6mm (2.5Nm max for derailleur clamps and chain guides)

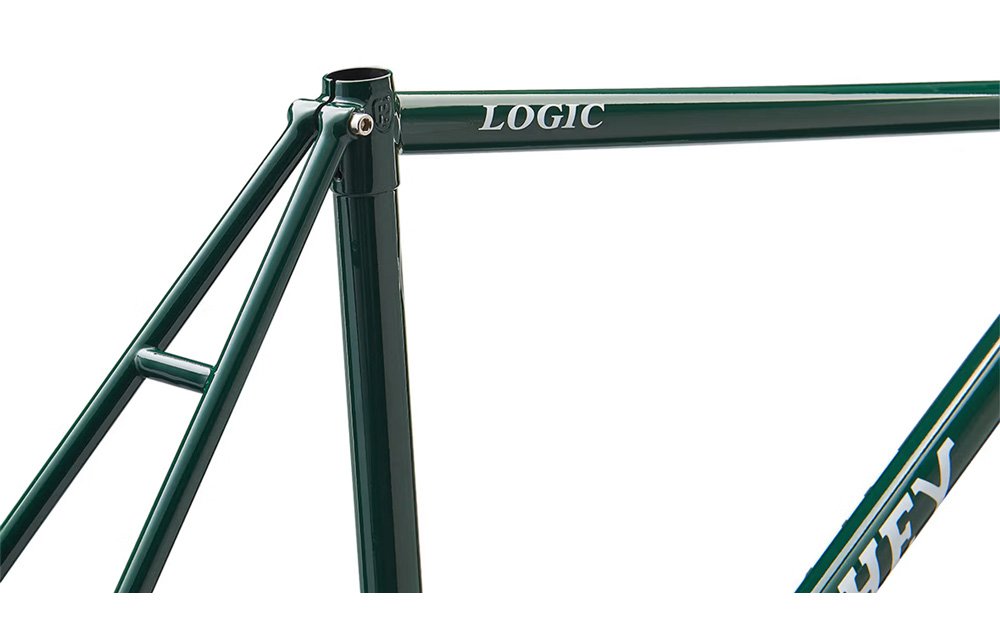

27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)

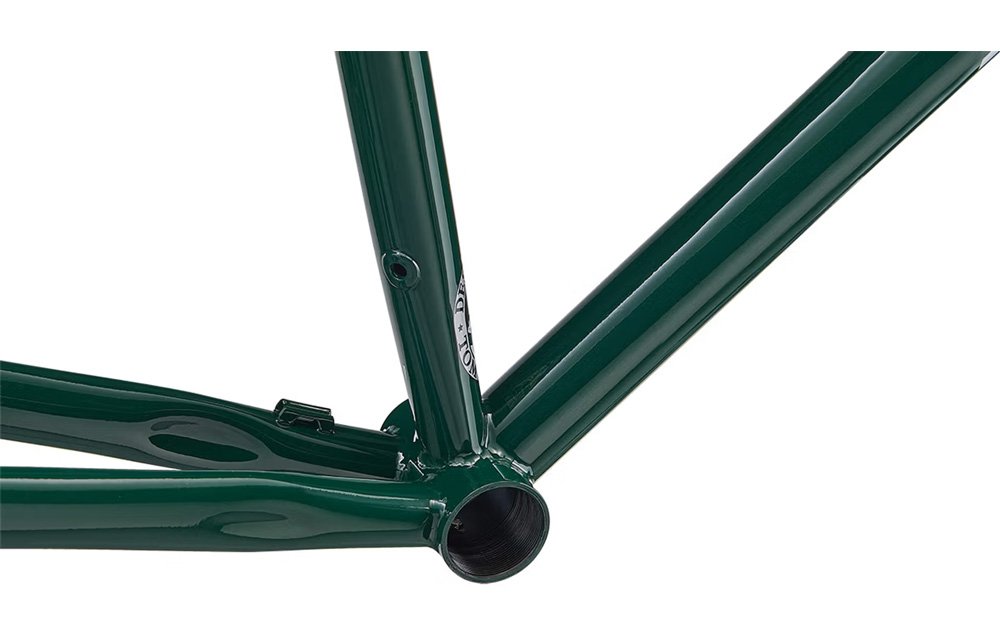

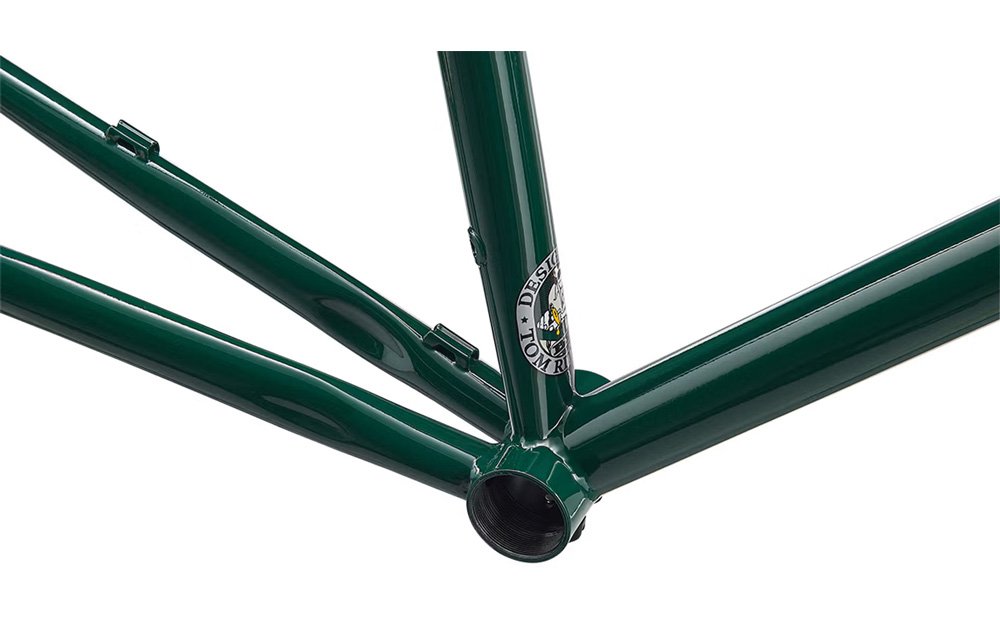

Bottom bracket68mm - English threaded

142mm spacing (12mm alloy thru-axle included)

Crankset min/max ring size - single36 to 50t / double: 46/30t to 53/39t

Can accommodate 1X or 2X chainrings

Chainline44mm

Bottle cage mounts2

Stealth wire routing for semi-wireless Di2 groupsets

Only compatible with Shimano Di2 EW-SD300 wire for 12-speed.

Includes stops/guides for brake hoses and mechanical groupsets

External cable routing

WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)

Replaceable stainless-steel derailleur hanger

Fork:

Ritchey WCS Carbon Disc Road Fork included

1-1/8" straight steerer with integrated 45-degree crown race

Steerer length300mm

Axle-crown371mm

Rake/Offset46mm

100mm spacing (12mm alloy thru-axle included)

30mm maximum spacers below stem

Tire Compatibility

Wheel and tire compatibility700 x 30c tire clearance (depending on tire/rim manufacturer)

Frame spacing39mm

Fork spacing40mm

Brake Compatibility

Flat-mount brakes front and rear140mm (160mm max - adaptors available separately)

Frame flat-mount bracket height10mm

Details:
Sizes51 / 53 / 55 / 57 / 59cm
Frame weight1,940g (size 55 - w/o thru-axle)
Fork weight420g (with uncut steerer / not including axle)
Color - Nigiri

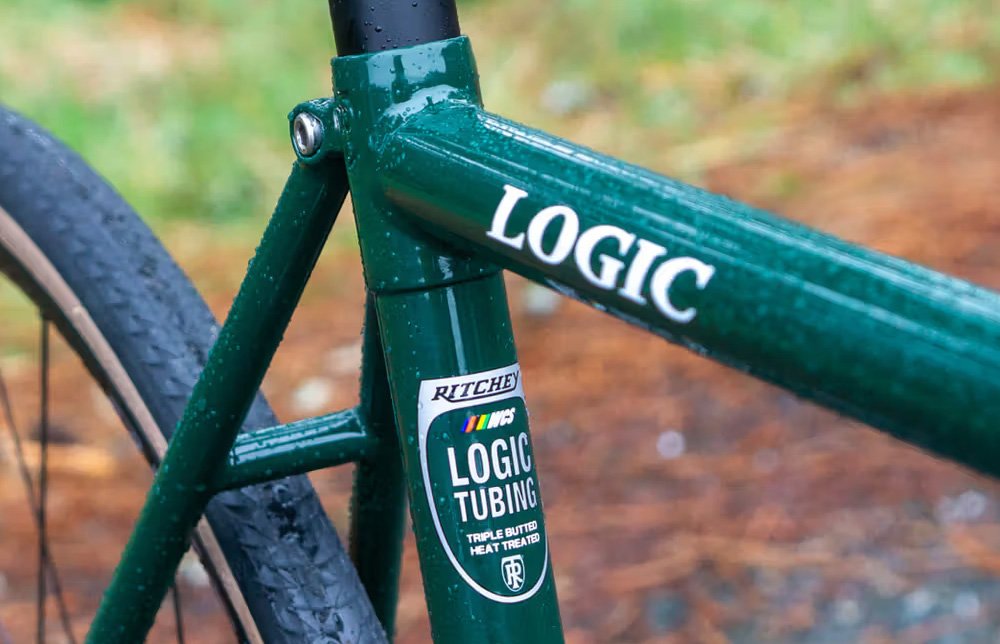

WCS Logic Tubing - Ritchey's proprietary and triple-butted steel tubing developed specifically for the TIG welding process to Tom's specifications.

Integrated Carbon crown - Sleek integration with Ritchey headsets and the added benefit of reducing stress at the steerer crown interface.
