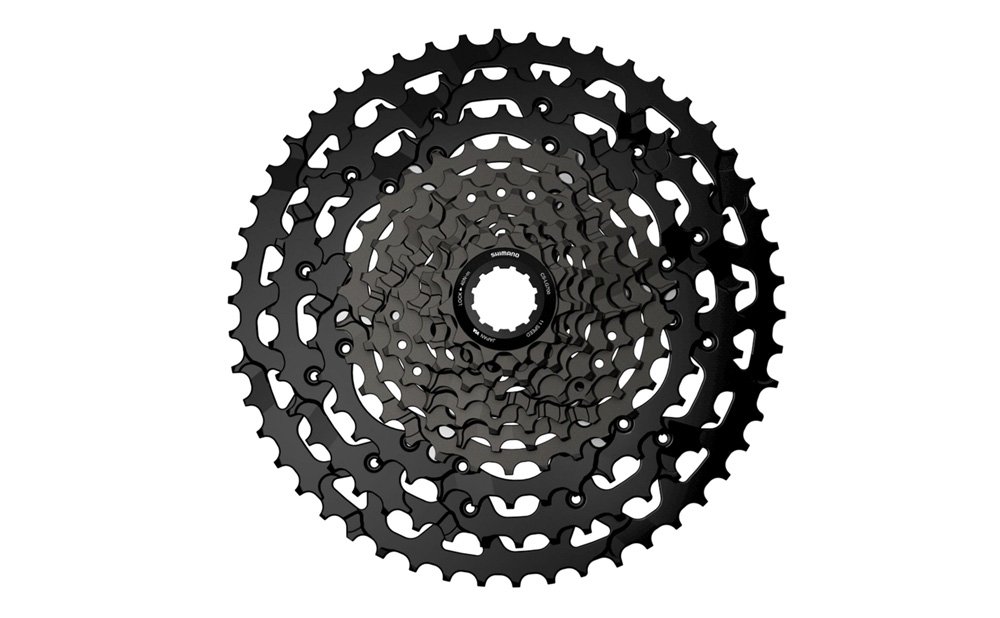

Shimano CUES CS-LG700-11 Link Glide cassette, 11-speed, 11 - 50T

Name: Shimano CUES CS-LG700-11 Link Glide cassette, 11-speed, 11 - 50T
Brand: Shimano
SKU: CSLG70011150
Price: 85 GBP
Availability: LimitedAvailability

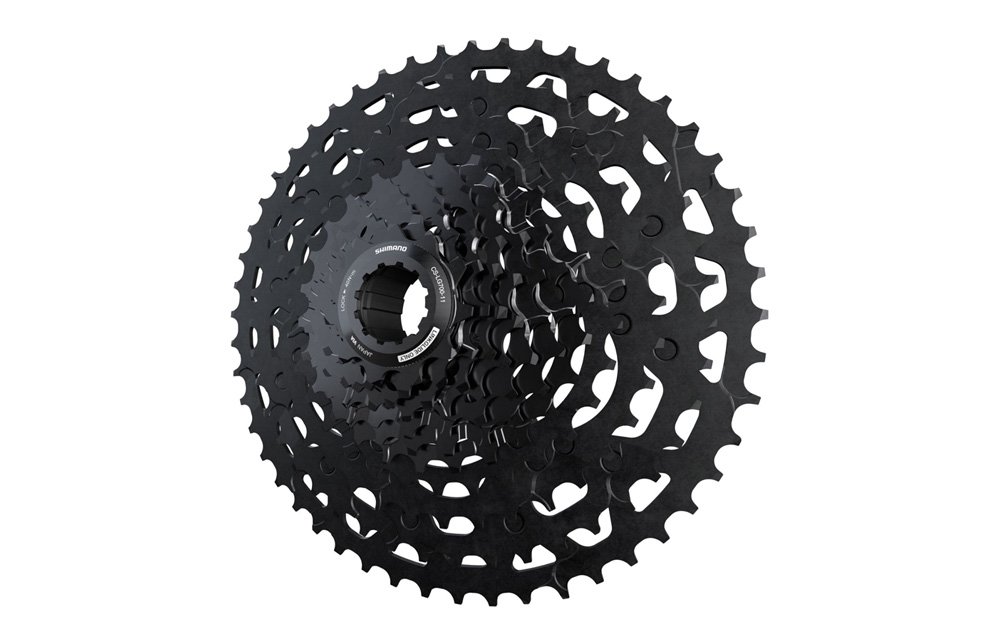

Shimano LG700 Linkglide 11-Speed Cassette

The Shimano CS-LG700-11 is the premium cassette in the Linkglide lineup, sitting above the LG400 and LG600 series. It remains the ultimate choice for high-mileage riders who want the legendary durability of Linkglide but want to save significant weight by using an aluminium spider arm. While the lower-tier cassettes are full-steel constructions, the LG700 uses a more refined architecture to shed roughly 170g, making it the "XT-level" equivalent for e-bikes and heavy-duty trekking.

The Shimano CS-LG700 is designed for those who demand "bombproof" reliability without the massive weight penalty usually associated with steel e-bike components. By mounting the largest sprockets on an aluminium spider, Shimano has created a cassette that is stiff, light, and capable of withstanding the relentless torque of the latest 95Nm motors.

The Linkglide Advantage

The core of the LG700 is its robust tooth profile. Each sprocket is noticeably thicker at the base than a standard Hyperglide unit, which prevents the chain from "digging in" and deforming the teeth over time. This design allows for incredibly smooth, two-way shifting (both up and down the block) even while the rider is out of the saddle or under full motor assistance.

THE DETAIL

Aluminium Spider Construction: Significantly reduces weight compared to the LG400 series while increasing lateral stiffness for sharper shifting.
Triple the Longevity: Specifically engineered to last up to three times longer than Hyperglide+ cassettes in high-tension e-bike conditions.
Smooth Shifting Gates: Features computer-designed shift aids that guide the chain between sprockets, virtually eliminating the "clunk" associated with shifting under load.
Standard HG Compatibility: Fits onto standard Shimano HG freehub bodies (8/9/10/11-speed MTB), meaning no expensive wheel or driver body upgrades are required

SPECIFICATIONS

Specification	Detail	Notes
Model Number	CS-LG700-11	The highest tier mechanical Linkglide cassette.
Speeds	11-Speed	Requires Linkglide-specific shifter and derailleur.
Spider Material	Painted Aluminium	Key weight-saving feature over lower LG models.
Sprocket Material	Plated Steel	High-durability steel for maximum wear resistance.
Ratio (11-50T)	11-13-15-17-20-23-26-30-36-43-50T	Optimized for 1� wide-range systems.
Ratio (11-45T)	11-13-15-17-20-23-26-30-34-39-45T	Better for 2� or tighter steps on trekking bikes.
Freehub Type	Standard HG Spline	Does NOT require Micro Spline.
Compatible Chain	CN-LG500 / CN-HG701-11	Works with Linkglide and 11-speed HG chains.
Lockring Material	Anodised Aluminium	Premium finish to prevent corrosion.
Weight (11-50T)	?609g	Approx. 170g lighter than the CS-LG400-11.
System Compatibility	Linkglide Mechanical & Di2	Fully compatible with Shimano Free Shift.

Specification	Detail
Model Number	CS-LG700-11
Speeds	11-Speed
Spider Material	Painted Aluminium
Sprocket Material	Plated Steel
Ratio (11-50T)	11-13-15-17-20-23-26-30-36-43-50T
Ratio (11-45T)	11-13-15-17-20-23-26-30-34-39-45T
Freehub Type	Standard HG Spline
Compatible Chain	CN-LG500 / CN-HG701-11
Lockring Material	Anodised Aluminium
Weight (11-50T)	?609g
System Compatibility	Linkglide Mechanical & Di2

Specification	Notes
Model Number	The highest tier mechanical Linkglide cassette.
Speeds	Requires Linkglide-specific shifter and derailleur.
Spider Material	Key weight-saving feature over lower LG models.
Sprocket Material	High-durability steel for maximum wear resistance.
Ratio (11-50T)	Optimized for 1� wide-range systems.
Ratio (11-45T)	Better for 2� or tighter steps on trekking bikes.
Freehub Type	Does NOT require Micro Spline.
Compatible Chain	Works with Linkglide and 11-speed HG chains.
Lockring Material	Premium finish to prevent corrosion.
Weight (11-50T)	Approx. 170g lighter than the CS-LG400-11.
System Compatibility	Fully compatible with Shimano Free Shift.
