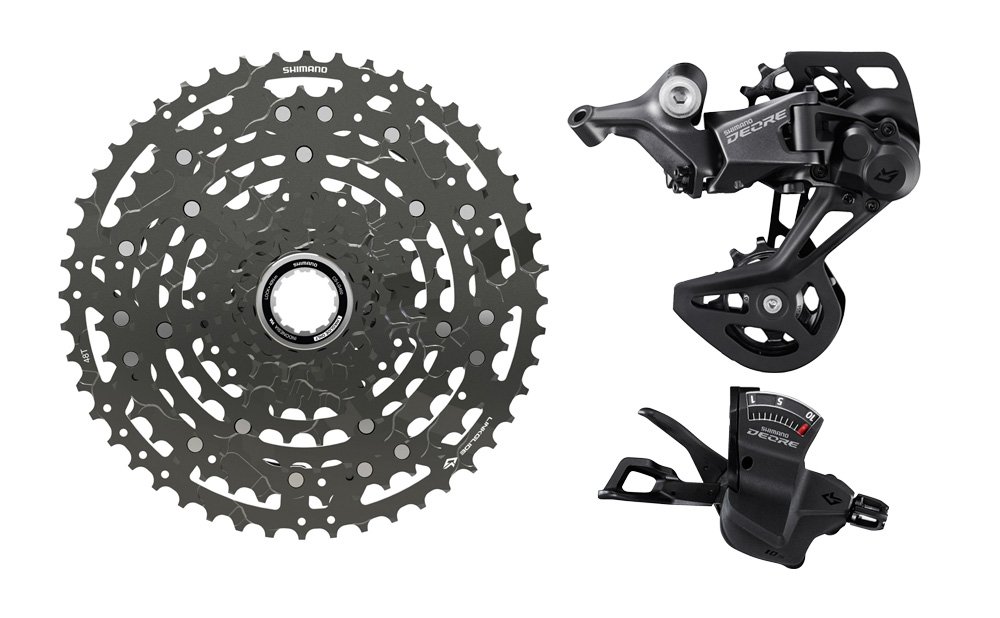

Shimano Deore 10 Speed Link Glide Ebike Upgrade Kit

Name: Shimano Deore 10 Speed Link Glide Ebike Upgrade Kit
Brand: Shimano
SKU: DeoreLinkGlideKit
Price: 124.95 GBP
Availability: LimitedAvailability

Shimano Deore 10-Speed Linkglide E-Bike Upgrade Kit

The Shimano Deore 10-Speed Linkglide Kit is engineered for the "everyday adventurer." By focusing on 10-speed spacing, Shimano has created a system with even thicker sprockets and a more robust chain engagement than 11 or 12-speed setups. This makes it virtually immune to the "skipping" and "crunching" often experienced when shifting an e-bike under heavy pedal pressure.

Maximum Value, Minimum Maintenance

The Deore Linkglide system is designed to be set and forgotten. The CS-LG400-10 cassette is constructed entirely of high-strength steel, ensuring the teeth maintain their profile even after thousands of miles of motor-assisted climbing. It is the ideal choice for trekking, utility, and entry-level e-MTB riders who want to spend more time riding and less time in the workshop.

The Shimano Deore 10-Speed Linkglide (LG) Upgrade Kit is the most cost-effective way to bring ultra-durable drivetrain technology to your e-bike or heavy-duty commuter. While it offers one fewer gear than the XT version, it utilises the same Linkglide tooth architecture, providing a significant increase in lifespan for riders who wear through standard drivetrains every few hundred miles.

The Deore LG kit remains the benchmark for "indestructible" entry-level e-bike components, offering reliable shifting under the high loads of mid-drive motors.

CHOOSE OPTIONS

Rear Derailleur

D-M5130 Deore Link Glide 10-speed rear derailleur, Shadow+, GS, for single

£0.00

Right Hand Shifter

SL-M5130 Deore Link Glide shift lever, 10-speed, band on, right hand

£0.00

Cassette

CS-LG400-10 CUES Link Glide cassette, 10-speed, 11 - 43

£0.00

Chain

Shimano CN-LG500 Link Glide Chain

£0.00

was £174.99

Available to order

£124.95

ADD TO ORDER

e: / t: 01323 737320

THE DETAIL

Three Times the Lifespan: Linkglide's unique tooth gates are significantly thicker than standard Hyperglide teeth, resisting the wear caused by the high-torque output of modern e-bike drive units.
Seamless Shifting: The system is optimised to reduce "pedal shock," enabling smooth gear transitions even when the motor is providing maximum assistance.
Shadow RD+ Stability: The rear derailleur features a proven friction clutch to keep the chain quiet and secure on rough roads or light trails.
Standard HG Hub Fitment: Designed to fit onto a standard Shimano HG freehub body, making it a simple and direct upgrade for the vast majority of existing e-bikes.

SPECIFICATIONS

Specification	Detail	Notes
Rear Derailleur	RD-M5130-SGS (Linkglide)	10-speed specific; features Shadow RD clutch.
Shifter	SL-M5130-R (Rapidfire Plus)	Standard clamp mount with optical gear display.
Cassette	CS-LG400-10	11?43T range; Full steel construction.
Chain	CN-LG500 (126 Links)	10/11-speed compatible Linkglide reinforced chain.
Compatibility	Standard HG Freehub	Fits traditional 8/9/10/11-speed MTB hub bodies.
Max Cog Size	43T	Specifically designed for the LG 11-43T range.
Gearing Steps	11?13?15?17?20?23?26?30?36?43T	Consistent steps for natural pedalling cadence.
Derailleur Tech	Shadow RD	Low-profile design to minimise trail damage.
Shifter Tech	2-Way Release	Can be operated by thumb push or index finger pull.
Approx. Weight	?1250g (Total Kit)	Prioritises durability and strength over weight.
E-Bike Rating	Full e-Bike Approval	Rated for all mid-drive motors (Bosch, Shimano, etc.).

Specification	Detail
Rear Derailleur	RD-M5130-SGS (Linkglide)
Shifter	SL-M5130-R (Rapidfire Plus)
Cassette	CS-LG400-10
Chain	CN-LG500 (126 Links)
Compatibility	Standard HG Freehub
Max Cog Size	43T
Gearing Steps	11?13?15?17?20?23?26?30?36?43T
Derailleur Tech	Shadow RD
Shifter Tech	2-Way Release
Approx. Weight	?1250g (Total Kit)
E-Bike Rating	Full e-Bike Approval

Specification	Notes
Rear Derailleur	10-speed specific; features Shadow RD clutch.
Shifter	Standard clamp mount with optical gear display.
Cassette	11?43T range; Full steel construction.
Chain	10/11-speed compatible Linkglide reinforced chain.
Compatibility	Fits traditional 8/9/10/11-speed MTB hub bodies.
Max Cog Size	Specifically designed for the LG 11-43T range.
Gearing Steps	Consistent steps for natural pedalling cadence.
Derailleur Tech	Low-profile design to minimise trail damage.
Shifter Tech	Can be operated by thumb push or index finger pull.
Approx. Weight	Prioritises durability and strength over weight.
E-Bike Rating	Rated for all mid-drive motors (Bosch, Shimano, etc.).
