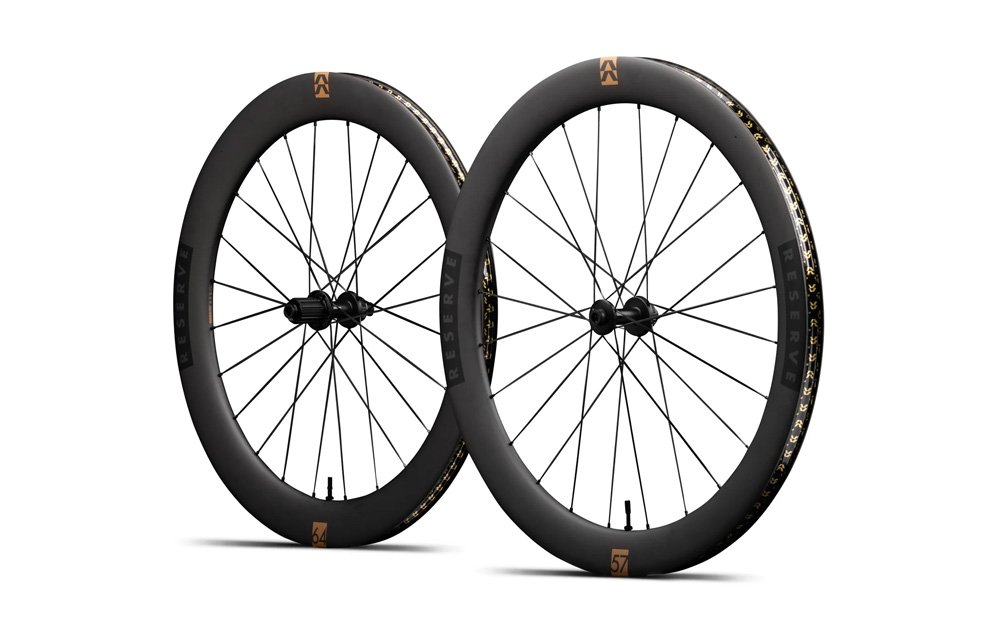

Reserve 57/64 Turbulent Aero Carbon Wheelset

Name: Reserve 5764 Turbulent Aero Carbon Wheelset
Brand: Reserve
SKU: RSV5764350xdz
Price: 1599.00 GBP
Availability: LimitedAvailability

The Reserve 57|64 Turbulent Aero (Standard) is the workhorse aero wheelset of Reserve's range. While the "SL" version is an exotic, lightweight project for professional climbers, the Standard 57|64 is built for the everyday racer. It swaps the carbon spokes and Tune hubs for the legendary reliability of DT Swiss hubs and steel Sapim spokes.

The 57|64 is the result of Reserve’s "Turbulent Aero" research, which uses mapped wind data to create a rim profile that remains stable when the wind isn't hitting you at a perfect angle. The 57mm front rim is significantly blunted to reduce the "torque" felt at the handlebars during gusts, while the 64mm rear rim acts as a stabilizing rudder, providing a significant "sail effect" thrust.

It is designed to be the fastest possible wheelset that you can still ride in the windiest UK coastal conditions without losing confidence in your steering.

The DT Swiss Foundation

Unlike the SL version, this wheelset uses industry-standard DT Swiss hubs and Sapim CX-Ray steel spokes. This makes it the better choice for riders who want a "set-and-forget" wheelset that can be serviced at any local bike shop. The steel spokes also provide a slightly more damped, comfortable ride quality on rougher tarmac compared to the ultra-stiff carbon spokes of the SL.

CHOOSE SIZE

Shimano HG11

Sram XDr

CHOOSE BUILD KIT

DT Swiss 350

DT Swiss 240 (+£400.00)

DT Swiss 180 (+£800.00)

Price (select options)

£1,599.00

e: / t: 01323 737320

click here to see finance examples or £67.26 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

37%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	6	12	24
Purchase Cost	£1,599.00	£1,599.00	£1,599.00
APR	0.00%	7.90%	11.90%
Deposit %	10.01%	10.01%	10.01%
Deposit amount	£160.00	£160.00	£160.00
Loan amount	£1,439.00	£1,439.00	£1,439.00
Pay per month	£239.83	£124.93	£67.26
Total payable	£1,598.98	£1,659.16	£1,774.24

THE DETAIL

Staggered Depths: 57mm front for stability; 64mm rear for maximum aerodynamic drag reduction.
Sapim CX-Ray Spokes: The gold standard of steel aero spokes—incredibly durable, lightweight, and easy to replace if damaged.
Wide Tyre Optimization: Specifically designed for 28mm-30mm tyres, featuring a 25mm internal front width that creates a perfect "lightbulb-free" aerodynamic transition.
Semi-Hooked Rims: Safe for high pressures and compatible with any tyre brand, whether you run tubeless or traditional inner tubes.

SPECIFICATIONS

Specification	Detail	Notes
Rim Material	Carbon Fibre (30\|SL)	Optimized for trail compliance.
Internal Width	30mm	Perfect for 2.3" to 2.5" tyres.
Specification	Detail	Notes	Notes
Rim Depth	57mm Front / 64mm Rear	Staggered for optimal wind handling.	Bonded lenticular construction.
Internal Width	25mm Front / 24mm Rear	Optimized for 28mm tyres.	Optimized for 28mm�35mm tyres.
External Width	34.3mm Front / 32.5mm Rear	Wide profile for aero-to-tyre blending.	Maximises aerodynamic transition.
Hub Options	DT Swiss 350 (or 240/180)	2026 350 hubs feature the Star Ratchet.	Combined: ?2,167g.
Spokes	Sapim CX-Ray (Steel)	24 Front / 24 Rear; J-Bend or Straight Pull.	Bonded interface; high-grade bearings.
Nipples	Sapim Secure Lock (External)	Brass or Alloy; easy to true.	Optional Track (Bolt-on) available.
Wheelset Weight	?1,630g (DT 350 build)	Weight including tape and Fillmore valves.	Standard Road/TT Thru-Axle.
Brake Interface	Centerlock Disc	Standard road disc spacing.	Typically ships with both drivers.
Max Tyre Pressure	100�PSI	Following ETRTO tubeless standards.	Hooked rim for high-pressure safety.
Warranty	Lifetime Warranty	Includes no-fault crash replacement.	Or tyre manufacturer's limit.
UK Price (RRP):	DT350-�1,599		Includes No-Fault Crash Replacement.
	DT240 - �1999
	DT180 - �2,399

Specification	Detail
Rim Material	Carbon Fibre (30\|SL)
Internal Width	30mm
Specification	Detail
Rim Depth	57mm Front / 64mm Rear
Internal Width	25mm Front / 24mm Rear
External Width	34.3mm Front / 32.5mm Rear
Hub Options	DT Swiss 350 (or 240/180)
Spokes	Sapim CX-Ray (Steel)
Nipples	Sapim Secure Lock (External)
Wheelset Weight	?1,630g (DT 350 build)
Brake Interface	Centerlock Disc
Max Tyre Pressure	100�PSI
Warranty	Lifetime Warranty
UK Price (RRP):	DT350-�1,599
	DT240 - �1999
	DT180 - �2,399

Specification	Notes
Rim Material	Optimized for trail compliance.
Internal Width	Perfect for 2.3" to 2.5" tyres.
Specification	Notes
Rim Depth	Staggered for optimal wind handling.
Internal Width	Optimized for 28mm tyres.
External Width	Wide profile for aero-to-tyre blending.
Hub Options	2026 350 hubs feature the Star Ratchet.
Spokes	24 Front / 24 Rear; J-Bend or Straight Pull.
Nipples	Brass or Alloy; easy to true.
Wheelset Weight	Weight including tape and Fillmore valves.
Brake Interface	Standard road disc spacing.
Max Tyre Pressure	Following ETRTO tubeless standards.
Warranty	Includes no-fault crash replacement.
UK Price (RRP):

Specification
Rim Material
Internal Width
Specification	Notes
Rim Depth	Bonded lenticular construction.
Internal Width	Optimized for 28mm�35mm tyres.
External Width	Maximises aerodynamic transition.
Hub Options	Combined: ?2,167g.
Spokes	Bonded interface; high-grade bearings.
Nipples	Optional Track (Bolt-on) available.
Wheelset Weight	Standard Road/TT Thru-Axle.
Brake Interface	Typically ships with both drivers.
Max Tyre Pressure	Hooked rim for high-pressure safety.
Warranty	Or tyre manufacturer's limit.
UK Price (RRP):	Includes No-Fault Crash Replacement.
