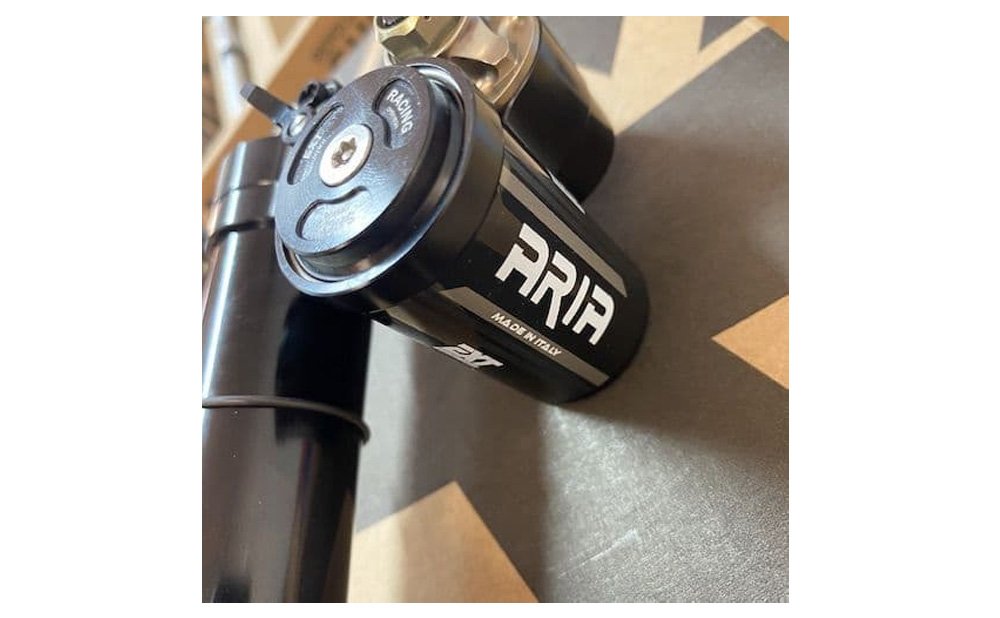

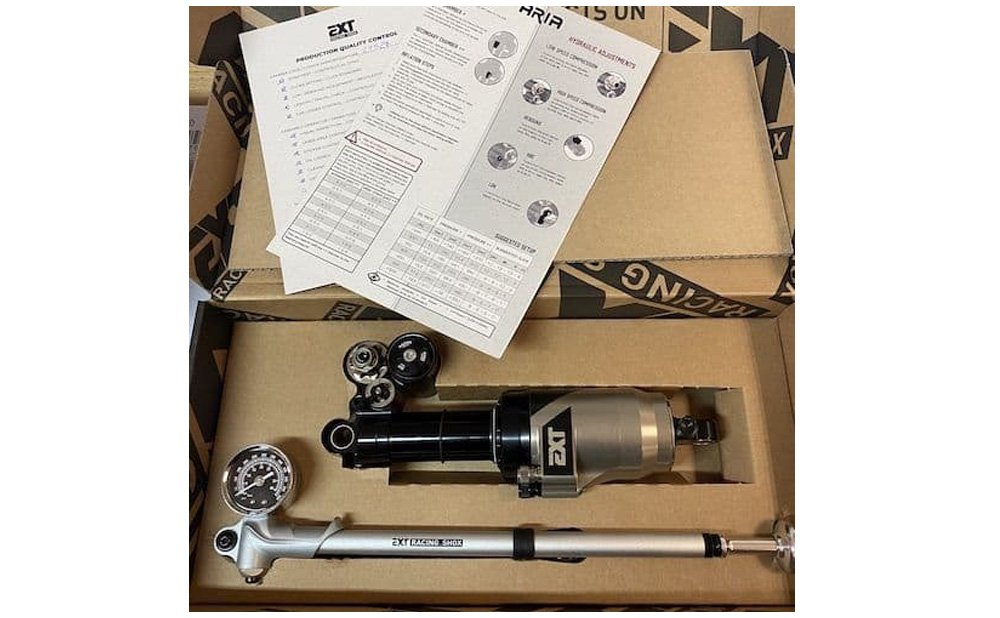

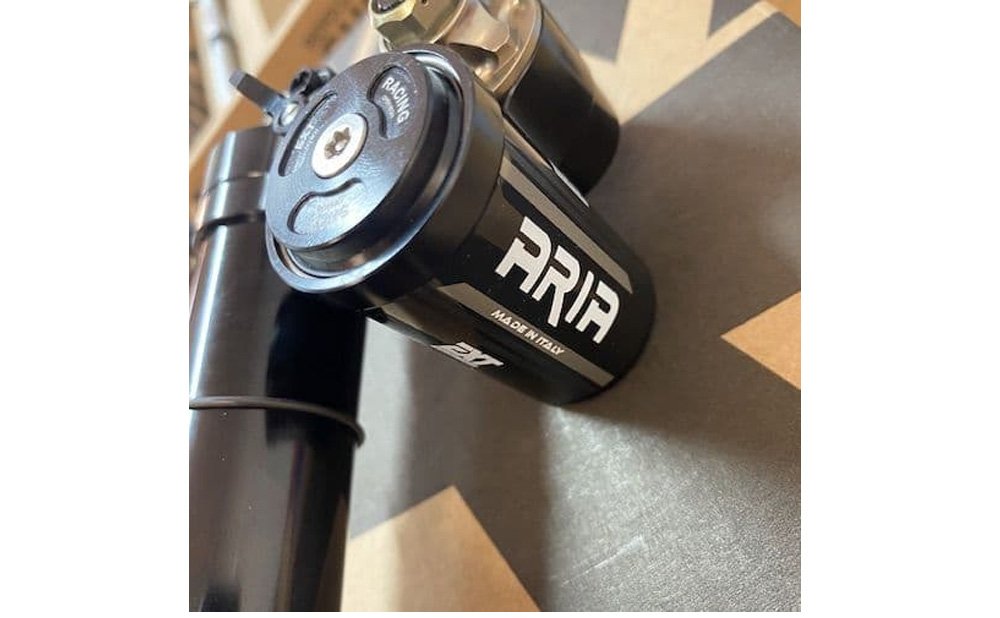

EXT Aria AS3 Dual-Chamber Air Shock

The EXT Aria is the world’s most advanced air shock, developed by the Italian specialists to offer a genuine, high-performance alternative to their legendary coil shocks. While most air shocks rely on plastic volume spacers to tune the spring curve, the Aria uses a patented dual positive air chamber system to provide independent control over every stage of the travel.

The Aria (Italian for "Air") is a ground-up redesign that brings EXT’s Formula 1 suspension heritage to the trail. Its core innovation is AS3 Technology, which utilises two separate positive air valves (+ and ++). This allows you to set your sag and initial sensitivity with the primary chamber while independently tuning the mid-stroke support and end-stroke ramp with the secondary chamber—no volume spacers required.

It is the perfect choice for riders who want the weight savings and tunability of air without sacrificing the "bottomless" mid-stroke support of a coil.

Damper Excellence

The Aria’s internal damping architecture is derived from the E-Storia, meaning it is built to handle the highest loads. It features a massive 28mm main piston and an adjustable Hydraulic Bottom-out Circuit (HBC), giving you total control over the final 15% of the stroke to prevent harsh clouts on big landings.

CHOOSE OPTIONS

Shock Size

£0.00

Lead time: Built to Order 4-7 Days

Available to order

£1,190.00

ADD TO ORDER

e: / t: 01323 737320

click here to see finance examples or £50.06 per month

FINANCE OPTIONS

Consumer credit services are only available to over 18s and subject to status

To see how much this would cost on finance enter Deposit or use slider below

10%

15%

USE THE FINANCE BUTTON AFTER CHECKOUT TO APPLY FOR FINANCE

Months	12	24
Purchase Cost	£1,190.00	£1,190.00
APR	11.90%	11.90%
Deposit %	10.00%	10.00%
Deposit amount	£119.00	£119.00
Loan amount	£1,071.00	£1,071.00
Pay per month	£94.80	£50.06
Total payable	£1,256.60	£1,320.44

THE DETAIL

AS3 Dual-Chamber System: Control the spring curve's progression via air pressure rather than disassembling the shock for plastic spacers.
Adjustable HBC: Position-sensitive damping that ramps up only at the end of the stroke, allowing for lower air pressures and better traction.
Super Finish Coating: Proprietary surface treatments and aerospace-grade seals reduce friction to the lowest levels in the industry.
LOK 2.0: A refined "climb switch" that provides a stable pedalling platform but includes a blow-off valve for unexpected hits.

SPECIFICATIONS

Specification	Detail	Notes
Spring Technology	AS3 Dual Positive Chamber	Plus a large self-equalising negative chamber.
Damper Architecture	Large 28mm Main Piston	High-flow design for consistent damping.
Adjustments	HSC, LSC, LSR, HBC (Adjustable)	Includes independent LOK 2.0 lever.
HBC Range	Last 15% of stroke	12 clicks of adjustment.
Shaft Material	14mm Steel Shaft	Low-friction coating for durability.
Seals	Aerospace Technology	Low friction, long-lasting performance.
Weight	Approx. 650g	Based on 230x65mm standard mount.
Max Pressure	600�PSI ( Chamber)	Proprietary high-pressure pump included.
Warranty	2-Year Manufacturer	Includes initial custom-tune for the bike.
UK Price	�1,190.00	Custom tuned and built to order.

Specification	Detail
Spring Technology	AS3 Dual Positive Chamber
Damper Architecture	Large 28mm Main Piston
Adjustments	HSC, LSC, LSR, HBC (Adjustable)
HBC Range	Last 15% of stroke
Shaft Material	14mm Steel Shaft
Seals	Aerospace Technology
Weight	Approx. 650g
Max Pressure	600�PSI ( Chamber)
Warranty	2-Year Manufacturer
UK Price	�1,190.00

Specification	Notes
Spring Technology	Plus a large self-equalising negative chamber.
Damper Architecture	High-flow design for consistent damping.
Adjustments	Includes independent LOK 2.0 lever.
HBC Range	12 clicks of adjustment.
Shaft Material	Low-friction coating for durability.
Seals	Low friction, long-lasting performance.
Weight	Based on 230x65mm standard mount.
Max Pressure	Proprietary high-pressure pump included.
Warranty	Includes initial custom-tune for the bike.
UK Price	Custom tuned and built to order.
